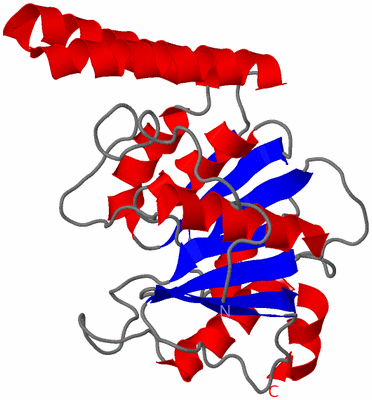

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  RRNA METHYLTRANSFERASE AVIRA FROM STREPTOMYCES VIRIDOCHROMOGENES AT 2.4A

Authors :  T. G. Mosbacher, G. E. Schulz
Date :  13 Dec 02  (Deposition) - 16 May 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym./Biol. Unit :  A
Keywords :  Antibiotic Resistance; Rrna-Methyltransferase, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  T. G. Mosbacher, A. Bechthold, G. E. Schulz
Crystal Structure Of The Avilamycin Resistance-Conferring Methyltransferase Avira From Streptomyces Viridochromogenes
J. Mol. Biol. V. 329 147 2003
PubMed-ID: 12742024  |  Reference-DOI: 10.1016/S0022-2836(03)00407-8

(-) Compounds

Molecule 1 - RRNA METHYLTRANSFERASE
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPRSETB
    Expression System StrainBL21(DE3)
    Expression System Taxid469008
    Organism ScientificSTREPTOMYCES VIRIDOCHROMOGENES
    Organism Taxid1938

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1O9H)

(-) Sites  (0, 0)

(no "Site" information available for 1O9H)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1O9H)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Ala A:222 -Pro A:223

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1O9H)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1O9H)

(-) Exons   (0, 0)

(no "Exon" information available for 1O9H)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:249
 aligned with AVRA_STRVR | Q9F5K5 from UniProtKB/Swiss-Prot  Length:250

    Alignment length:249
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241
           AVRA_STRVR     2 SAYRHAVERIDSSDLACGVVLHSAPGYPAFPVRLATEIFQRALARLPGDGPVTLWDPCCGSGYLLTVLGLLHRRSLRQVIASDVDPAPLELAAKNLALLSPAGLTARELERREQSERFGKPSYLEAAQAARRLRERLTAEGGALPCAIRTADVFDPRALSAVLAGSAPDVVLTDLPYGERTHWEGQVPAQPVAGLLRSLASALPAHAVIAVTDRSRKIPVAPVKALERLKIGTRSAVLVRAADVLEAGP 250
               SCOP domains d1o9ha_ A: rRNA methyltransferase AviRa                                                                                                                                                                                                                   SCOP domains
               CATH domains 1o9hA01 A:2-101,A:145-250 Vaccinia Virus protein VP39                                               1o9hA02 A:102-144 Helix hairpin bin        1o9hA01 A:2-101,A:145-250 Vaccinia Virus protein VP39                                                      CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..............................hhhhhhhhhhhhhh.......eeeee.....hhhhhhhhhhh...eeeeeeee.hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeee....hhhhhhhhhh.....eeeee.............hhhhhhhhhhhhhh......eeeeee.............eeeee..eeeeeeehhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1o9h A   2 SAYRHAVERIDSSDLACGVVLHSAPGYPAFPVRLATEIFQRALARLPGDGPVTLWDPCCGSGYLLTVLGLLHRRSLRQVIASDVDPAPLELAAKNLALLSPAGLTARELERREQSERFGKPSYLEAAQAARRLRERLTAEGGALPCAIRTADVFDPRALSAVLAGSAPDVVLTDLPYGERTHWEGQVPAQPVAGLLRSLASALPAHAVIAVTDRSRKIPVAPVKALERLKIGTRSAVLVRAADVLEAGP 250
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit

(-) CATH Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1O9H)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (AVRA_STRVR | Q9F5K5)
molecular function
    GO:0008168    methyltransferase activity    Catalysis of the transfer of a methyl group to an acceptor molecule.
    GO:0008989    rRNA (guanine-N1-)-methyltransferase activity    Catalysis of the reaction: S-adenosyl-L-methionine + rRNA = S-adenosyl-L-homocysteine + rRNA containing N1-methylguanine.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0032259    methylation    The process in which a methyl group is covalently attached to a molecule.
    GO:0031167    rRNA methylation    The posttranscriptional addition of methyl groups to specific residues in an rRNA molecule.
    GO:0046677    response to antibiotic    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an antibiotic stimulus. An antibiotic is a chemical substance produced by a microorganism which has the capacity to inhibit the growth of or to kill other microorganisms.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1o9h)

  Sites
(no "Sites" information available for 1o9h)

  Cis Peptide Bonds
    Ala A:222 - Pro A:223   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1o9h
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  AVRA_STRVR | Q9F5K5
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  AVRA_STRVR | Q9F5K5
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        AVRA_STRVR | Q9F5K51o9g

(-) Related Entries Specified in the PDB File

1o9g RRNA METHYLTRANSFERASE AVIRA FROM STREPTOMYCES VIRIDOCHROMOGENES AT 1.5A
1qam THE STRUCTURE OF THE RRNA METHYLTRANSFERASE ERMC': IMPLICATIONS FOR THE REACTION MECHANISM
1qan THE STRUCTURE OF THE RRNA METHYLTRANSFERASE ERMC': IMPLICATIONS FOR THE REACTION MECHANISM
1qao THE STRUCTURE OF THE RRNA METHYLTRANSFERASE ERMC': IMPLICATIONS FOR THE REACTION MECHANISM
1qaq THE STRUCTURE OF THE RRNA METHYLTRANSFERASE ERMC': IMPLICATIONS FOR THE REACTION MECHANISM
1yub SOLUTION STRUCTURE OF AN RRNA METHYLTRANSFERASE (ERMAM) THAT CONFERS MACROLIDE -LINCOSAMIDE-STREPTOGRAMIN ANTIBIOTIC RESISTANCE, NMR, MINIMIZED AVERAGE STRUCTURE
