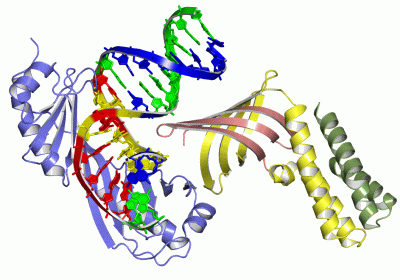

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

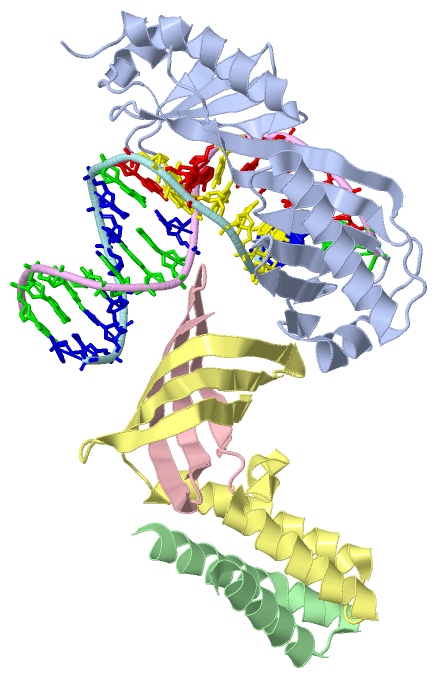

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  HUMAN TFIIA/TBP/DNA COMPLEX

Authors :  M. Bleichenbacher, S. Tan, T. J. Richmond
Date :  04 Feb 03  (Deposition) - 21 Oct 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F
Keywords :  Transcription Regulation, Dna, Complex, Transcription/Dna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  M. Bleichenbacher, S. Tan, T. J. Richmond
Novel Interactions Between The Components Of Human And Yeast Tfiia/Tbp/Dna Complexes.
J. Mol. Biol. V. 332 783 2003
PubMed-ID: 12972251  |  Reference-DOI: 10.1016/S0022-2836(03)00887-8
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - 5'- D(*GP*GP*GP*GP*GP*GP*GP*CP*TP*AP*TP*AP*AP*AP*AP*GP*G)-3'
    ChainsE
    EngineeredYES
    SyntheticYES

Molecule 2 - 5'- D(*CP*CP*TP*TP*TP*TP*AP*TP*AP*GP*CP*CP*CP*CP*CP*CP*C)-3'
    ChainsF
    EngineeredYES
    SyntheticYES

Molecule 3 - TATA BOX BINDING PROTEIN
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    FragmentC-TERMINAL 181 AMINO ACIDS
    GeneTBP OR TFIID OR TF2D
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    SynonymTRANSCRIPTION INITIATION FACTOR TFIID, TATA-BOX FACTOR, TATA SEQUENCE-BINDING PROTEIN, TBP

Molecule 4 - TRANSCRIPTION INITIATION FACTOR IIA ALPHA CHAIN
    ChainsB
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    FragmentN-TERMINAL 58 AMINO ACIDS
    GeneGTF2A1 OR TF2A1
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    SynonymTFIIA P35 AND P19 SUBUNITS, TFIIA-42, TFIIAL

Molecule 5 - TRANSCRIPTION INITIATION FACTOR IIA BETA CHAIN
    ChainsC
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    FragmentC-TERMINAL 76 AMINO ACIDS
    GeneGTF2A1 OR TF2A1
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    SynonymTFIIA P35 AND P19 SUBUNITS, TFIIA-42, TFIIAL

Molecule 6 - TRANSCRIPTION INITIATION FACTOR IIA GAMMA CHAIN
    ChainsD
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    GeneGTF2A2 OR TF2A2
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    SynonymTFIIA P12 SUBUNIT, TFIIA-12, TFIIAS, TFIIA-GAMMA

 Structural Features

(-) Chains, Units

  123456
Asymmetric/Biological Unit ABCDEF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1NVP)

(-) Sites  (0, 0)

(no "Site" information available for 1NVP)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1NVP)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Glu A:206 -Pro A:207
2Lys A:297 -Pro A:298

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (1, 1)

Asymmetric/Biological Unit (1, 1)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_035667L30VTF2AA_HUMANUnclassified  ---BL30V

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

(-) PROSITE Motifs  (1, 2)

Asymmetric/Biological Unit (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1TFIIDPS00351 Transcription factor TFIID repeat signature.TBP_HUMAN192-241
283-332
  2A:192-241
A:283-332

(-) Exons   (9, 9)

Asymmetric/Biological Unit (9, 9)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1bENST000003920921bENSE00001510680chr6:170863459-17086355193TBP_HUMAN-00--
1.3bENST000003920923bENSE00001510679chr6:170865970-170866171202TBP_HUMAN1-18180--
1.4cENST000003920924cENSE00000854357chr6:170870879-170871321443TBP_HUMAN19-1661481A:159-1668
1.5ENST000003920925ENSE00000766152chr6:170873633-17087372088TBP_HUMAN166-195301A:166-19530
1.6bENST000003920926bENSE00000766154chr6:170876006-17087609792TBP_HUMAN196-226311A:196-22631
1.7bENST000003920927bENSE00001593404chr6:170878700-170878867168TBP_HUMAN226-282571A:226-28257
1.8ENST000003920928ENSE00001773146chr6:170880498-17088059295TBP_HUMAN282-314331A:282-31433
1.9bENST000003920929bENSE00001510678chr6:170881274-170881944671TBP_HUMAN314-339261A:314-33825

2.1dENST000003960631dENSE00001523727chr15:59949713-59949605109T2AG_HUMAN-00--
2.2ENST000003960632ENSE00001523724chr15:59949232-59949014219T2AG_HUMAN-00--
2.4bENST000003960634bENSE00001141539chr15:59944525-59944405121T2AG_HUMAN1-24241D:3-2422
2.5ENST000003960635ENSE00000942369chr15:59942972-59942868105T2AG_HUMAN25-59351D:25-5935
2.6ENST000003960636ENSE00000942370chr15:59934461-59934335127T2AG_HUMAN60-102431D:60-9940
2.7cENST000003960637cENSE00001523723chr15:59931356-59931068289T2AG_HUMAN102-10980--

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:180
 aligned with TBP_HUMAN | P20226 from UniProtKB/Swiss-Prot  Length:339

    Alignment length:180
                                   168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338
            TBP_HUMAN   159 SGIVPQLQNIVSTVNLGCKLDLKTIALRARNAEYNPKRFAAVIMRIREPRTTALIFSSGKMVCTGAKSEEQSRLAARKYARVVQKLGFPAKFLDFKIQNMVGSCDVKFPIRLEGLVLTHQQFSSYEPELFPGLIYRMIKPRIVLLIFVSGKVVLTGAKVRAEIYEAFENIYPILKGFRKT 338
               SCOP domains d1nvpa1 A:159-252 TATA-box binding protein (TBP), C-terminal domain                           d1nvpa2 A:253-338 TATA-box binding protein (TBP), C-terminal domain                    SCOP domains
               CATH domains 1nvpA01    1nvpA02 A:170-255 TATA-Binding Protein                                                1nvpA01 A:159-169,A:256-337 TATA-Binding Protein                                  - CATH domains
           Pfam domains (1) -------------------------------------------------------------------------------------------TBP-1nvpA01 A:250-336                                                                  -- Pfam domains (1)
           Pfam domains (2) -------------------------------------------------------------------------------------------TBP-1nvpA02 A:250-336                                                                  -- Pfam domains (2)
         Sec.struct. author .....eeeeeeeeee.....hhhhhhhhh..eeee...eeeeeeee....eeeee....eeeee...hhhhhhhhhhhhhhhhhhh......eeeeeeeeeeeee.....hhhhhhhhh...ee........eeeee....eeeee....eeeeeee.hhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ---------------------------------TFIID  PDB: A:192-241 UniProt: 192-241            -----------------------------------------TFIID  PDB: A:283-332 UniProt: 283-332            ------ PROSITE
           Transcript 1 (1) 1.4c    -----------------------------Exon 1.6b  PDB: A:196-226      -------------------------------------------------------Exon 1.8  PDB: A:282-314         ------------------------ Transcript 1 (1)
           Transcript 1 (2) -------Exon 1.5  PDB: A:166-195      ------------------------------Exon 1.7b  PDB: A:226-282 UniProt: 226-282               -------------------------------Exon 1.9b  PDB: A:314-338 Transcript 1 (2)
                 1nvp A 159 SGIVPQLQNIVSTVNLGCKLDLKTIALRARNAEYNPKRFAAVIMRIREPRTTALIFSSGKMVCTGAKSEEQSRLAARKYARVVQKLGFPAKFLDFKIQNMVGSCDVKFPIRLEGLVLTHQQFSSYEPELFPGLIYRMIKPRIVLLIFVSGKVVLTGAKVRAEIYEAFENIYPILKGFRKT 338
                                   168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338

Chain B from PDB  Type:PROTEIN  Length:43
 aligned with TF2AA_HUMAN | P52655 from UniProtKB/Swiss-Prot  Length:376

    Alignment length:43
                                    18        28        38        48
          TF2AA_HUMAN     9 TVPKLYRSVIEDVINDVRDIFLDDGVDEQVLMELKTLWENKLM  51
               SCOP domains d1nvpb_ B:                                  SCOP domains
               CATH domains 1nvpB00 B:9-51                              CATH domains
               Pfam domains ------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------V--------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------- PROSITE
                 Transcript ------------------------------------------- Transcript
                 1nvp B   9 TVPKLYRSVIEDVINDVRDIFLDDGVDEQVLMELKTLWENKLM  51
                                    18        28        38        48

Chain C from PDB  Type:PROTEIN  Length:47
 aligned with TF2AA_HUMAN | P52655 from UniProtKB/Swiss-Prot  Length:376

    Alignment length:47
                                   339       349       359       369
          TF2AA_HUMAN   330 DTENVVVCQYDKIHRSKNKWKFHLKDGIMNLNGRDYIFSKAIGDAEW 376
               SCOP domains d1nvpc_ C: Large chain TOA1, C-terminal domain  SCOP domains
               CATH domains 1nvpC00 C:330-376                               CATH domains
           Pfam domains (1) TFIIA-1nvpC01 C:330-376                         Pfam domains (1)
           Pfam domains (2) TFIIA-1nvpC02 C:330-376                         Pfam domains (2)
         Sec.struct. author ....eeeeeeeeeeee..eeeeeeeeeeeee..eeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------- PROSITE
                 Transcript ----------------------------------------------- Transcript
                 1nvp C 330 DTENVVVCQYDKIHRSKNKWKFHLKDGIMNLNGRDYIFSKAIGDAEW 376
                                   339       349       359       369

Chain D from PDB  Type:PROTEIN  Length:97
 aligned with T2AG_HUMAN | P52657 from UniProtKB/Swiss-Prot  Length:109

    Alignment length:97
                                    12        22        32        42        52        62        72        82        92
           T2AG_HUMAN     3 YQLYRNTTLGNSLQESLDELIQSQQITPQLALQVLLQFDKAINAALAQRVRNRVNFRGSLNTYRFCDNVWTFVLNDVEFREVTELIKVDKVKIVACD  99
               SCOP domains d1nvpd1 D:3-53 Small chain TOA2, N-terminal domain d1nvpd2 D:54-99                                SCOP domains
               CATH domains 1nvpD01 D:3-53                                     1nvpD02 D:54-99                                CATH domains
               Pfam domains TFIIA_gamma_N-1nvpD02 D:3-49                   -TFIIA_gamma_C-1nvpD01 D:51-99                     Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeeeeee..eeeeeeeeeeee....eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------- PROSITE
               Transcript 2 Exon 2.4b  PDB: D:3-24Exon 2.5  PDB: D:25-59             Exon 2.6  PDB: D:60-99 UniProt: 60-102   Transcript 2
                 1nvp D   3 YQLYRNTTLGNSLQESLDELIQSQQITPQLALQVLLQFDKAINAALAQRVRNRVNFRGSLNTYRFCDNVWTFVLNDVEFREVTELIKVDKVKIVACD  99
                                    12        22        32        42        52        62        72        82        92

Chain E from PDB  Type:DNA  Length:17

                 1nvp E   1 GGGGGGGCTATAAAAGG  17
                                    10

Chain F from PDB  Type:DNA  Length:17

                 1nvp F   1 CCTTTTATAGCCCCCCC  17
                                    10

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (5, 6)

Asymmetric/Biological Unit

(-) CATH Domains  (4, 6)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (4, 6)

Asymmetric/Biological Unit
(-)
Clan: TBP-like (48)
(-)
Family: TBP (22)
1aTBP-1nvpA01A:250-336
1bTBP-1nvpA02A:250-336

(-) Gene Ontology  (43, 72)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (TBP_HUMAN | P20226)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0000978    RNA polymerase II core promoter proximal region sequence-specific DNA binding    Interacting selectively and non-covalently with a sequence of DNA that is in cis with and relatively close to a core promoter for RNA polymerase II.
    GO:0000979    RNA polymerase II core promoter sequence-specific DNA binding    Interacting selectively and non-covalently with the regulatory region composed of the transcription start site and binding sites for transcription factors of the RNA polymerase II basal transcription machinery.
    GO:0001103    RNA polymerase II repressing transcription factor binding    Interacting selectively and non-covalently with an RNA polymerase II transcription repressing factor, a protein involved in negative regulation of transcription.
    GO:0019899    enzyme binding    Interacting selectively and non-covalently with any enzyme.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0070491    repressing transcription factor binding    Interacting selectively and non-covalently with a transcription repressor, any protein whose activity is required to prevent or downregulate transcription.
    GO:0003700    transcription factor activity, sequence-specific DNA binding    Interacting selectively and non-covalently with a specific DNA sequence in order to modulate transcription. The transcription factor may or may not also interact selectively with a protein or macromolecular complex.
    GO:0008134    transcription factor binding    Interacting selectively and non-covalently with a transcription factor, any protein required to initiate or regulate transcription.
    GO:0044212    transcription regulatory region DNA binding    Interacting selectively and non-covalently with a DNA region that regulates the transcription of a region of DNA, which may be a gene, cistron, or operon. Binding may occur as a sequence specific interaction or as an interaction observed only once a factor has been recruited to the DNA by other factors.
biological process
    GO:0006352    DNA-templated transcription, initiation    Any process involved in the assembly of the RNA polymerase preinitiation complex (PIC) at the core promoter region of a DNA template, resulting in the subsequent synthesis of RNA from that promoter. The initiation phase includes PIC assembly and the formation of the first few bonds in the RNA chain, including abortive initiation, which occurs when the first few nucleotides are repeatedly synthesized and then released. The initiation phase ends just before and does not include promoter clearance, or release, which is the transition between the initiation and elongation phases of transcription.
    GO:0045815    positive regulation of gene expression, epigenetic    Any epigenetic process that activates or increases the rate of gene expression.
    GO:0045893    positive regulation of transcription, DNA-templated    Any process that activates or increases the frequency, rate or extent of cellular DNA-templated transcription.
    GO:1901796    regulation of signal transduction by p53 class mediator    Any process that modulates the frequency, rate or extent of signal transduction by p53 class mediator.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0042795    snRNA transcription from RNA polymerase II promoter    The synthesis of small nuclear RNA (snRNA) from a DNA template by RNA Polymerase II (Pol II), originating at a Pol II promoter.
    GO:0007283    spermatogenesis    The process of formation of spermatozoa, including spermatocytogenesis and spermiogenesis.
    GO:0006363    termination of RNA polymerase I transcription    The process in which the synthesis of an RNA molecule by RNA polymerase I using a DNA template is completed. RNAP I termination requires binding of a terminator protein so specific sequences downstream of the transcription unit.
    GO:0006362    transcription elongation from RNA polymerase I promoter    The extension of an RNA molecule after transcription initiation and promoter clearance at an RNA polymerase I specific promoter by the addition of ribonucleotides catalyzed by RNA polymerase I.
    GO:0006368    transcription elongation from RNA polymerase II promoter    The extension of an RNA molecule after transcription initiation and promoter clearance at an RNA polymerase II promoter by the addition of ribonucleotides catalyzed by RNA polymerase II.
    GO:0006366    transcription from RNA polymerase II promoter    The synthesis of RNA from a DNA template by RNA polymerase II, originating at an RNA polymerase II promoter. Includes transcription of messenger RNA (mRNA) and certain small nuclear RNAs (snRNAs).
    GO:0006383    transcription from RNA polymerase III promoter    The synthesis of RNA from a DNA template by RNA polymerase III, originating at an RNAP III promoter.
    GO:0006361    transcription initiation from RNA polymerase I promoter    Any process involved in the assembly of the RNA polymerase I preinitiation complex (PIC) at an RNA polymerase I promoter region of a DNA template, resulting in the subsequent synthesis of RNA from that promoter. The initiation phase includes PIC assembly and the formation of the first few bonds in the RNA chain, including abortive initiation, which occurs when the first few nucleotides are repeatedly synthesized and then released. Promoter clearance, or release, is the transition between the initiation and elongation phases of transcription.
    GO:0006367    transcription initiation from RNA polymerase II promoter    Any process involved in the assembly of the RNA polymerase II preinitiation complex (PIC) at an RNA polymerase II promoter region of a DNA template, resulting in the subsequent synthesis of RNA from that promoter. The initiation phase includes PIC assembly and the formation of the first few bonds in the RNA chain, including abortive initiation, which occurs when the first few nucleotides are repeatedly synthesized and then released. Promoter clearance, or release, is the transition between the initiation and elongation phases of transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
    GO:0016032    viral process    A multi-organism process in which a virus is a participant. The other participant is the host. Includes infection of a host cell, replication of the viral genome, and assembly of progeny virus particles. In some cases the viral genetic material may integrate into the host genome and only subsequently, under particular circumstances, 'complete' its life cycle.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0001939    female pronucleus    The pronucleus originating from the ovum that is being fertilized.
    GO:0001940    male pronucleus    The pronucleus originating from the spermatozoa that was involved in fertilization.
    GO:0005719    nuclear euchromatin    The dispersed less dense form of chromatin in the interphase nucleus. It exists in at least two forms, a some being in the form of transcriptionally active chromatin which is the least condensed, while the rest is inactive euchromatin which is more condensed than active chromatin but less condensed than heterochromatin.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0045120    pronucleus    The nucleus of either the ovum or the spermatozoon following fertilization. Thus, in the fertilized ovum, there are two pronuclei, one originating from the ovum, the other from the spermatozoon that brought about fertilization; they approach each other, but do not fuse until just before the first cleavage, when each pronucleus loses its membrane to release its contents.
    GO:0005672    transcription factor TFIIA complex    A component of the transcription machinery of RNA Polymerase II. In humans, TFIIA is a heterotrimer composed of an alpha (P35), beta (P19) and gamma subunits (P12).
    GO:0005669    transcription factor TFIID complex    A complex composed of TATA binding protein (TBP) and TBP associated factors (TAFs); the total mass is typically about 800 kDa. Most of the TAFs are conserved across species. In TATA-containing promoters for RNA polymerase II (Pol II), TFIID is believed to recognize at least two distinct elements, the TATA element and a downstream promoter element. TFIID is also involved in recognition of TATA-less Pol II promoters. Binding of TFIID to DNA is necessary but not sufficient for transcription initiation from most RNA polymerase II promoters.

Chain B,C   (TF2AA_HUMAN | P52655)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0017025    TBP-class protein binding    Interacting selectively and non-covalently with a member of the class of TATA-binding proteins (TBP), including any of the TBP-related factors (TRFs).
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0046982    protein heterodimerization activity    Interacting selectively and non-covalently with a nonidentical protein to form a heterodimer.
    GO:0003713    transcription coactivator activity    Interacting selectively and non-covalently with a activating transcription factor and also with the basal transcription machinery in order to increase the frequency, rate or extent of transcription. Cofactors generally do not bind the template nucleic acid, but rather mediate protein-protein interactions between activating transcription factors and the basal transcription machinery.
    GO:0008134    transcription factor binding    Interacting selectively and non-covalently with a transcription factor, any protein required to initiate or regulate transcription.
biological process
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0042795    snRNA transcription from RNA polymerase II promoter    The synthesis of small nuclear RNA (snRNA) from a DNA template by RNA Polymerase II (Pol II), originating at a Pol II promoter.
    GO:0006368    transcription elongation from RNA polymerase II promoter    The extension of an RNA molecule after transcription initiation and promoter clearance at an RNA polymerase II promoter by the addition of ribonucleotides catalyzed by RNA polymerase II.
    GO:0006366    transcription from RNA polymerase II promoter    The synthesis of RNA from a DNA template by RNA polymerase II, originating at an RNA polymerase II promoter. Includes transcription of messenger RNA (mRNA) and certain small nuclear RNAs (snRNAs).
    GO:0006367    transcription initiation from RNA polymerase II promoter    Any process involved in the assembly of the RNA polymerase II preinitiation complex (PIC) at an RNA polymerase II promoter region of a DNA template, resulting in the subsequent synthesis of RNA from that promoter. The initiation phase includes PIC assembly and the formation of the first few bonds in the RNA chain, including abortive initiation, which occurs when the first few nucleotides are repeatedly synthesized and then released. Promoter clearance, or release, is the transition between the initiation and elongation phases of transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0005672    transcription factor TFIIA complex    A component of the transcription machinery of RNA Polymerase II. In humans, TFIIA is a heterotrimer composed of an alpha (P35), beta (P19) and gamma subunits (P12).

Chain D   (T2AG_HUMAN | P52657)
molecular function
    GO:0001103    RNA polymerase II repressing transcription factor binding    Interacting selectively and non-covalently with an RNA polymerase II transcription repressing factor, a protein involved in negative regulation of transcription.
    GO:0017025    TBP-class protein binding    Interacting selectively and non-covalently with a member of the class of TATA-binding proteins (TBP), including any of the TBP-related factors (TRFs).
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0046982    protein heterodimerization activity    Interacting selectively and non-covalently with a nonidentical protein to form a heterodimer.
    GO:0042803    protein homodimerization activity    Interacting selectively and non-covalently with an identical protein to form a homodimer.
    GO:0003713    transcription coactivator activity    Interacting selectively and non-covalently with a activating transcription factor and also with the basal transcription machinery in order to increase the frequency, rate or extent of transcription. Cofactors generally do not bind the template nucleic acid, but rather mediate protein-protein interactions between activating transcription factors and the basal transcription machinery.
    GO:0008134    transcription factor binding    Interacting selectively and non-covalently with a transcription factor, any protein required to initiate or regulate transcription.
biological process
    GO:0051123    RNA polymerase II transcriptional preinitiation complex assembly    The aggregation, arrangement and bonding together of proteins on an RNA polymerase II promoter DNA to form the transcriptional preinitiation complex (PIC), the formation of which is a prerequisite for transcription by RNA polymerase.
    GO:0051091    positive regulation of sequence-specific DNA binding transcription factor activity    Any process that activates or increases the frequency, rate or extent of activity of a transcription factor, any factor involved in the initiation or regulation of transcription.
    GO:0045944    positive regulation of transcription from RNA polymerase II promoter    Any process that activates or increases the frequency, rate or extent of transcription from an RNA polymerase II promoter.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0042795    snRNA transcription from RNA polymerase II promoter    The synthesis of small nuclear RNA (snRNA) from a DNA template by RNA Polymerase II (Pol II), originating at a Pol II promoter.
    GO:0006368    transcription elongation from RNA polymerase II promoter    The extension of an RNA molecule after transcription initiation and promoter clearance at an RNA polymerase II promoter by the addition of ribonucleotides catalyzed by RNA polymerase II.
    GO:0006366    transcription from RNA polymerase II promoter    The synthesis of RNA from a DNA template by RNA polymerase II, originating at an RNA polymerase II promoter. Includes transcription of messenger RNA (mRNA) and certain small nuclear RNAs (snRNAs).
    GO:0006367    transcription initiation from RNA polymerase II promoter    Any process involved in the assembly of the RNA polymerase II preinitiation complex (PIC) at an RNA polymerase II promoter region of a DNA template, resulting in the subsequent synthesis of RNA from that promoter. The initiation phase includes PIC assembly and the formation of the first few bonds in the RNA chain, including abortive initiation, which occurs when the first few nucleotides are repeatedly synthesized and then released. Promoter clearance, or release, is the transition between the initiation and elongation phases of transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
    GO:0016032    viral process    A multi-organism process in which a virus is a participant. The other participant is the host. Includes infection of a host cell, replication of the viral genome, and assembly of progeny virus particles. In some cases the viral genetic material may integrate into the host genome and only subsequently, under particular circumstances, 'complete' its life cycle.
cellular component
    GO:0030054    cell junction    A cellular component that forms a specialized region of connection between two or more cells or between a cell and the extracellular matrix. At a cell junction, anchoring proteins extend through the plasma membrane to link cytoskeletal proteins in one cell to cytoskeletal proteins in neighboring cells or to proteins in the extracellular matrix.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0005672    transcription factor TFIIA complex    A component of the transcription machinery of RNA Polymerase II. In humans, TFIIA is a heterotrimer composed of an alpha (P35), beta (P19) and gamma subunits (P12).

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1nvp)

  Sites
(no "Sites" information available for 1nvp)

  Cis Peptide Bonds
    Glu A:206 - Pro A:207   [ RasMol ]
    Lys A:297 - Pro A:298   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1nvp
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  T2AG_HUMAN | P52657
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  TBP_HUMAN | P20226
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt
  TF2AA_HUMAN | P52655
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  0067
    Age Related InformationGenAge
  0194
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  T2AG_HUMAN | P52657
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  TBP_HUMAN | P20226
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  TF2AA_HUMAN | P52655
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        T2AG_HUMAN | P526575fur 5iy6 5iy7 5iy8 5iy9 5iya 5iyb 5iyc 5iyd
        TBP_HUMAN | P202261c9b 1cdw 1jfi 1tgh 4roc 4rod 4roe 5fur 5iy6 5iy7 5iy8 5iy9 5iya 5iyb 5iyc 5iyd 5n9g
        TF2AA_HUMAN | P526555fur 5iy6 5iy7 5iy8 5iy9 5iya 5iyb 5iyc 5iyd

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1NVP)
