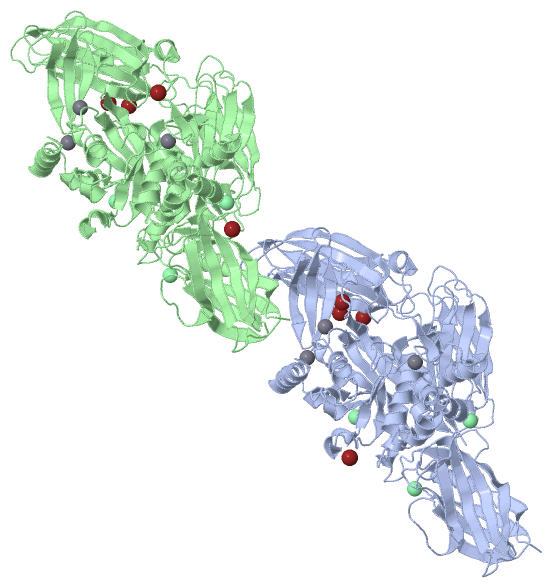

Asymmetric Unit (Jmol Viewer)

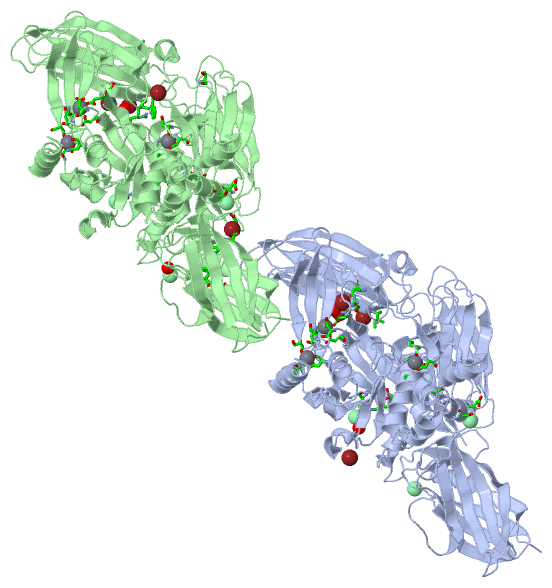

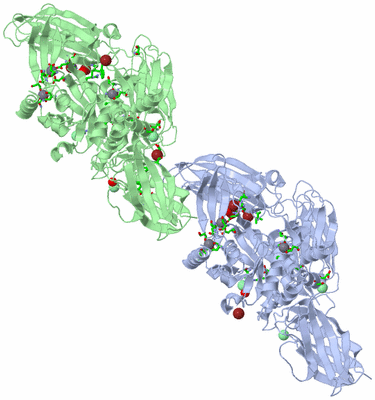

Asym. Unit - sites (Jmol Viewer)

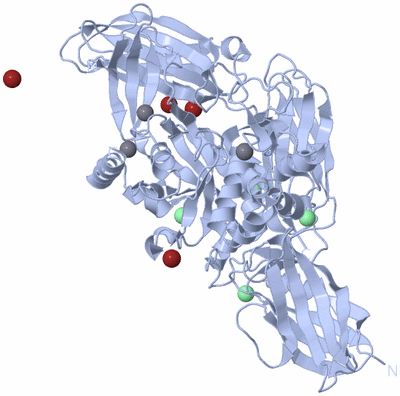

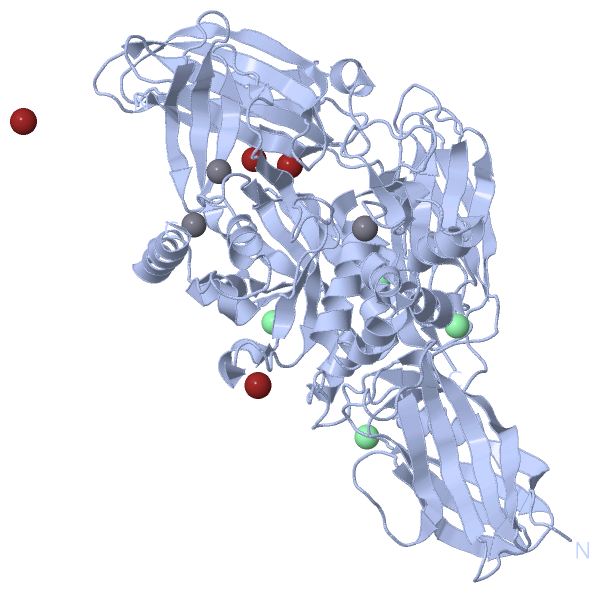

Biological Unit 1 (Jmol Viewer)

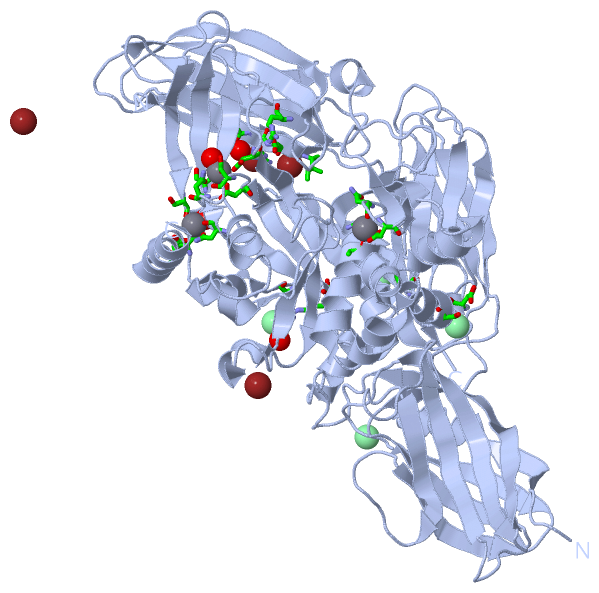

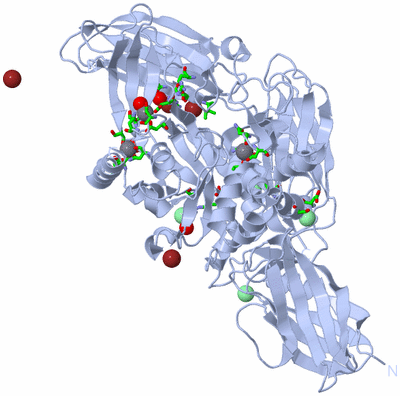

Biol. Unit 1 - sites (Jmol Viewer)

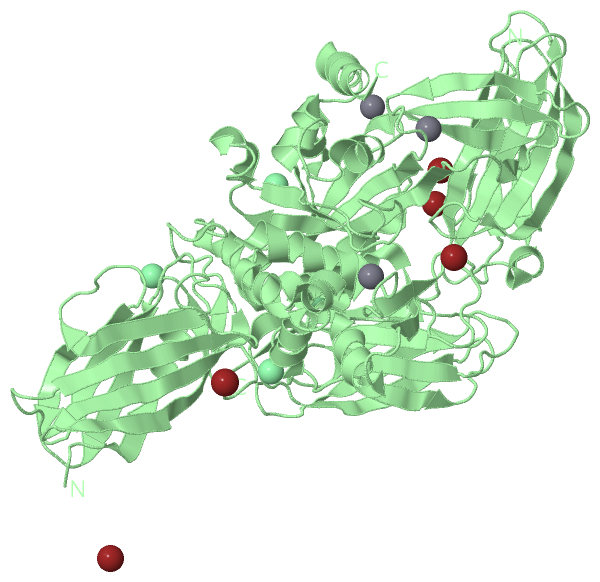

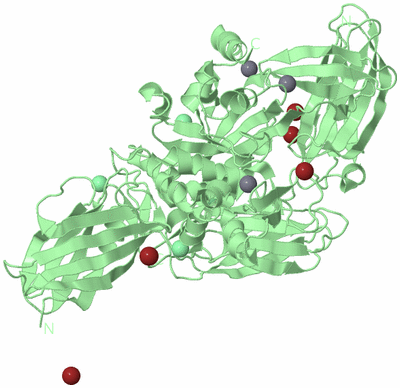

Biological Unit 2 (Jmol Viewer)

Title :   ROLE OF CALCIUM IONS IN THE ACTIVATION AND ACTIVITY OF THE TRANSGLUTAMINASE 3 ENZYME (3 CALCIUMS, ACTIVE FORM)

Authors :   B. Ahvazi

Date :   31 Jan 03 (Deposition) - 22 Apr 03 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.70

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)

Keywords :   Transglutaminase 3, X-Ray Crystallography, Metalloenzyme, Calcium Ion, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   B. Ahvazi, K. M. Boeshans, W. Idler, U. Baxa, P. M. Steinert
Roles Of Calcium Ions In The Activation And Activity Of The Transglutaminase 3 Enzyme
J. Biol. Chem. V. 278 23834 2003
PubMed-ID: 12679341 | Reference-DOI: 10.1074/JBC.M301162200
(for further references see the PDB file header)

Molecule 1 - PROTEIN-GLUTAMINE GLUTAMYLTRANSFERASE E
	Chains	:	A, B
	EC Number	:	2.3.2.13
	Engineered	:	YES
	Expression System	:	SPODOPTERA FRUGIPERDA
	Expression System Cell Line	:	SF9
	Expression System Common	:	FALL ARMYWORM
	Expression System Plasmid	:	BAC-N_BLUE, INVITROGEN
	Expression System Taxid	:	7108
	Expression System Vector	:	PET 11A VECTOR (NOVAGEN) PVL1392 (INVITROGEN)
	Expression System Vector Type	:	BACULOVIRUS
	Gene	:	TGM3
	Mutation	:	YES
	Organism Common	:	HUMAN
	Organism Scientific	:	HOMO SAPIENS
	Organism Taxid	:	9606
	Synonym	:	TGASE E, TGE, TGE, TRANSGLUTAMINASE 3

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (3, 23)

No.	Name	Count	Type	Full Name
1	BR	9	Ligand/Ion	BROMIDE ION
2	CA	6	Ligand/Ion	CALCIUM ION
3	CL	8	Ligand/Ion	CHLORIDE ION

Biological Unit 1 (0, 0)

No.	Name	Count	Type	Full Name
1	BR	-1	Ligand/Ion	BROMIDE ION
2	CA	-1	Ligand/Ion	CALCIUM ION
3	CL	-1	Ligand/Ion	CHLORIDE ION

Biological Unit 2 (0, 0)

No.	Name	Count	Type	Full Name
1	BR	-1	Ligand/Ion	BROMIDE ION
2	CA	-1	Ligand/Ion	CALCIUM ION
3	CL	-1	Ligand/Ion	CHLORIDE ION

Asymmetric Unit (21, 21)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	ALA A:221 , ASN A:224 , ASN A:226 , ASP A:228	BINDING SITE FOR RESIDUE CA A 701
02	AC2	SOFTWARE	ASN A:393 , SER A:415 , GLU A:443 , GLU A:448 , HOH A:895	BINDING SITE FOR RESIDUE CA A 702
03	AC3	SOFTWARE	ASP A:301 , ASP A:303 , ASN A:305 , SER A:307 , ASP A:324 , HOH A:765	BINDING SITE FOR RESIDUE CA A 703
04	AC4	SOFTWARE	ASP A:183 , SER A:186	BINDING SITE FOR RESIDUE CL A 704
05	AC5	SOFTWARE	ASN A:430 , GLN A:669	BINDING SITE FOR RESIDUE CL A 705
06	AC6	SOFTWARE	ARG A:291 , MET A:433 , HOH A:885	BINDING SITE FOR RESIDUE CL A 707
07	AC7	SOFTWARE	ARG A:587 , ILE A:590	BINDING SITE FOR RESIDUE BR A 708
08	AC8	SOFTWARE	VAL A:488 , ARG A:587	BINDING SITE FOR RESIDUE BR A 709
09	AC9	SOFTWARE	PHE B:37 , GLN B:38 , SER B:98 , THR B:241	BINDING SITE FOR RESIDUE BR A 711
10	BC1	SOFTWARE	ALA B:221 , ASN B:224 , ASN B:226 , ASP B:228	BINDING SITE FOR RESIDUE CA B 701
11	BC2	SOFTWARE	ASN B:393 , SER B:415 , GLU B:443 , GLU B:448 , HOH B:838	BINDING SITE FOR RESIDUE CA B 702
12	BC3	SOFTWARE	ASP B:301 , ASP B:303 , ASN B:305 , SER B:307 , ASP B:324	BINDING SITE FOR RESIDUE CA B 703
13	BC4	SOFTWARE	ASP B:183 , SER B:186	BINDING SITE FOR RESIDUE CL B 704
14	BC5	SOFTWARE	ASN B:430 , GLN B:669	BINDING SITE FOR RESIDUE CL B 705
15	BC6	SOFTWARE	HOH B:824	BINDING SITE FOR RESIDUE CL B 706
16	BC7	SOFTWARE	ARG B:291	BINDING SITE FOR RESIDUE CL B 707
17	BC8	SOFTWARE	ARG B:169 , ARG B:587 , ILE B:590 , HOH B:884	BINDING SITE FOR RESIDUE BR B 708
18	BC9	SOFTWARE	GLU B:28 , THR B:129 , PHE B:130	BINDING SITE FOR RESIDUE BR B 709
19	CC1	SOFTWARE	TRP B:236	BINDING SITE FOR RESIDUE BR B 710
20	CC2	SOFTWARE	VAL B:488 , ARG B:587	BINDING SITE FOR RESIDUE BR B 711
21	CC3	SOFTWARE	ARG A:570 , GLU A:586 , ASP A:588 , HOH A:883	BINDING SITE FOR RESIDUE BR B 712

(no "SS Bond" information available for 1NUD)

Asymmetric Unit

No.	Residues
1	Arg A:268	-	Tyr A:269
2	Gly A:367	-	Pro A:368
3	Asn A:382	-	Phe A:383
4	Arg B:268	-	Tyr B:269
5	Gly B:367	-	Pro B:368
6	Asn B:382	-	Phe B:383

Asymmetric Unit (6, 12)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_040067	T	13	K	TGM3_HUMAN	Polymorphism	214803	A/B	T	12	K
2	UniProt	VAR_040068	I	163	L	TGM3_HUMAN	Polymorphism	6048066	A/B	I	162	L
3	UniProt	VAR_040069	S	249	N	TGM3_HUMAN	Polymorphism	214814	A/B	S	248	N
4	UniProt	VAR_040070	K	562	R	TGM3_HUMAN	Polymorphism	1042617	A/B	R	561	R
5	UniProt	VAR_040071	G	654	R	TGM3_HUMAN	Polymorphism	214830	A/B	R	653	R
6	UniProt	VAR_055360	L	687	M	TGM3_HUMAN	Polymorphism	45581032	A/B	L	686	M

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 1 (6, 6)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_040067	T	13	K	TGM3_HUMAN	Polymorphism	214803	A	T	12	K
2	UniProt	VAR_040068	I	163	L	TGM3_HUMAN	Polymorphism	6048066	A	I	162	L
3	UniProt	VAR_040069	S	249	N	TGM3_HUMAN	Polymorphism	214814	A	S	248	N
4	UniProt	VAR_040070	K	562	R	TGM3_HUMAN	Polymorphism	1042617	A	R	561	R
5	UniProt	VAR_040071	G	654	R	TGM3_HUMAN	Polymorphism	214830	A	R	653	R
6	UniProt	VAR_055360	L	687	M	TGM3_HUMAN	Polymorphism	45581032	A	L	686	M

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 2 (6, 6)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_040067	T	13	K	TGM3_HUMAN	Polymorphism	214803	B	T	12	K
2	UniProt	VAR_040068	I	163	L	TGM3_HUMAN	Polymorphism	6048066	B	I	162	L
3	UniProt	VAR_040069	S	249	N	TGM3_HUMAN	Polymorphism	214814	B	S	248	N
4	UniProt	VAR_040070	K	562	R	TGM3_HUMAN	Polymorphism	1042617	B	R	561	R
5	UniProt	VAR_040071	G	654	R	TGM3_HUMAN	Polymorphism	214830	B	R	653	R
6	UniProt	VAR_055360	L	687	M	TGM3_HUMAN	Polymorphism	45581032	B	L	686	M

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Asymmetric Unit (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	TRANSGLUTAMINASES	PS00547	Transglutaminases active site.	TGM3_HUMAN	271-288	2	A:270-287 B:270-287

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	TRANSGLUTAMINASES	PS00547	Transglutaminases active site.	TGM3_HUMAN	271-288	1	A:270-287 -

Biological Unit 2 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	TRANSGLUTAMINASES	PS00547	Transglutaminases active site.	TGM3_HUMAN	271-288	1	- B:270-287

Asymmetric Unit (13, 26)

	ENSEMBL					UniProtKB			PDB
No.	Transcript ID	Exon	Exon ID	Genome Location	Length	ID	Location	Length	Count	Location	Length
1.1b	ENST00000381458	1b	ENSE00001884839	chr20:2276647-2276716	70	TGM3_HUMAN	1-3	3	2	A:1-2 B:1-2	2 2
1.2	ENST00000381458	2	ENSE00000858628	chr20:2290303-2290476	174	TGM3_HUMAN	3-61	59	2	A:2-60 B:2-60	59 59
1.3	ENST00000381458	3	ENSE00000655744	chr20:2290824-2291063	240	TGM3_HUMAN	61-141	81	2	A:60-140 B:60-140	81 81
1.4b	ENST00000381458	4b	ENSE00000655746	chr20:2291657-2291775	119	TGM3_HUMAN	141-180	40	2	A:140-179 B:140-179	40 40
1.5a	ENST00000381458	5a	ENSE00000655748	chr20:2293544-2293672	129	TGM3_HUMAN	181-223	43	2	A:180-222 B:180-222	43 43
1.6a	ENST00000381458	6a	ENSE00000655870	chr20:2297714-2297891	178	TGM3_HUMAN	224-283	60	2	A:223-282 B:223-282	60 60
1.7	ENST00000381458	7	ENSE00001764210	chr20:2297996-2298131	136	TGM3_HUMAN	283-328	46	2	A:282-327 B:282-327	46 46
1.8a	ENST00000381458	8a	ENSE00001696552	chr20:2306495-2306598	104	TGM3_HUMAN	328-363	36	2	A:327-362 B:327-362	36 36
1.9	ENST00000381458	9	ENSE00001632148	chr20:2308766-2309011	246	TGM3_HUMAN	363-445	83	2	A:362-444 B:362-444	83 83
1.10b	ENST00000381458	10b	ENSE00001671589	chr20:2312648-2312956	309	TGM3_HUMAN	445-548	104	2	A:444-547 (gaps) B:444-547 (gaps)	104 104
1.12	ENST00000381458	12	ENSE00001761978	chr20:2315762-2315919	158	TGM3_HUMAN	548-600	53	2	A:547-599 B:547-599	53 53
1.13	ENST00000381458	13	ENSE00001622482	chr20:2320500-2320633	134	TGM3_HUMAN	601-645	45	2	A:600-644 B:600-644	45 45
1.14a	ENST00000381458	14a	ENSE00001609199	chr20:2321080-2321724	645	TGM3_HUMAN	645-693	49	2	A:644-692 B:644-692	49 49

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:673
 aligned with TGM3_HUMAN | Q08188 from UniProtKB/Swiss-Prot  Length:693

    Alignment length:692
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541       551       561       571       581       591       601       611       621       631       641       651       661       671       681       691
           TGM3_HUMAN     2 AALGVQSINWQTAFNRQAHHTDKFSSQELILRRGQNFQVLMIMNKGLGSNERLEFIVSTGPYPSESAMTKAVFPLSNGSSGGWSAVLQASNGNTLTISISSPASAPIGRYTMALQIFSQGGISSVKLGTFILLFNPWLNVDSVFMGNHAEREEYVQEDAGIIFVGSTNRIGMIGWNFGQFEEDILSICLSILDRSLNFRRDAATDVASRNDPKYVGRVLSAMINSNDDNGVLAGNWSGTYTGGRDPRSWNGSVEILKNWKKSGFSPVRYGQCWVFAGTLNTALRSLGIPSRVITNFNSAHDTDRNLSVDVYYDPMGNPLDKGSDSVWNFHVWNEGWFVRSDLGPSYGGWQVLDATPQERSQGVFQCGPASVIGVREGDVQLNFDMPFIFAEVNADRITWLYDNTTGKQWKNSVNSHTIGRYISTKAVGSNARMDVTDKYKYPEGSDQERQVFQKALGKLKPNTPFAATSSMGLETEEQEPSIIGKLKVAGMLAVGKEVNLVLLLKNLSRDTKTVTVNMTAWTIIYNGTLVHEVWKDSATMSLDPEEEAEHPIKISYAQYEKYLKSDNMIRITAVCKVPDESEVVVERDIILDNPTLTLEVLNEARVRKPVNVQMLFSNPLDEPVRDCVLMVEGSGLLLGNLKIDVPTLGPKEGSRVRFDILPSRSGTKQLLADFSCNKFPAIKAMLSIDVAE 693
               SCOP domains d1nuda1 A:1-140 Transglutaminase N-terminal domain                                                                                          d1nuda4 A:141-460 Transglutaminase catalytic domain                                                                                                                                                                                                                                                                             -------------------d1nuda2 A:480-593 Transglutaminase, two C-terminal domains                                                        d1nuda3 A:594-692 Transglutaminase, two C-terminal domains                                          SCOP domains
               CATH domains 1nudA01 A:1-142 Immunoglobulins                                                                                                               1nudA02 A:143-480 Coagulation Factor XIII, subunit A, domain 2                                                                                                                                                                                                                                                                                    1nudA03 A:481-594 Immunoglobulins                                                                                 1nudA04 A:595-691 Immunoglobulins                                                                - CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee.hhhhhhhhh..........eee...eeeeeeee........eeeeeeee..........eeeeeee.......eeeeeeee..eeeeeee.......eeeeeeeeeee..eeeeeeeeeeeee.............hhhhhhhhh...eeeeeeee..eeeeeeee......hhhhhhhhhh..hhhhhhhhhhhhhh..hhhhhhhhhhhhh........eee..........hhhhh..hhhhhhhhhhh....eeeehhhhhhhhhhhhhhhhh..eeeeeeeeeee......eeeeee.....ee.....eeeeeeeeeeee......hhhhh.eeee................eehhhhhh.......hhhhhhhhhhheeeeeee......eeeeeee.....eeeeee......eeehhhhhh....hhhhhhhhhhhhhhh.-------------------..eeeeeee.........eeeeeeeee.....eeeeeeeeeeee.....eeeeeeeeeeeeee....eeeeeeeehhhhhhh......eeeeeeeee......eeeeeeee.....eeeee.........eeeeeeee.........eeeeee........eeeee.......eeeeeeee.....eeeeeeeeee......eeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) -----------K-----------------------------------------------------------------------------------------------------------------------------------------------------L-------------------------------------------------------------------------------------N------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------R-------------------------------------------------------------------------------------------R--------------------------------M------ SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------TRANSGLUTAMINASES --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) 1.---------------------------------------------------------Exon 1.3  PDB: A:60-140 UniProt: 61-141                                          ---------------------------------------Exon 1.5a  PDB: A:180-222 UniProt: 181-223 Exon 1.6a  PDB: A:223-282 UniProt: 224-283                  --------------------------------------------Exon 1.8a  PDB: A:327-362           ---------------------------------------------------------------------------------Exon 1.10b  PDB: A:444-547 (gaps) UniProt: 445-548                                                      ----------------------------------------------------Exon 1.13  PDB: A:600-644 UniProt: 601-645   ------------------------------------------------ Transcript 1 (1)
           Transcript 1 (2) -Exon 1.2  PDB: A:2-60 UniProt: 3-61                        -------------------------------------------------------------------------------Exon 1.4b  PDB: A:140-179               ------------------------------------------------------------------------------------------------------Exon 1.7  PDB: A:282-327 UniProt: 283-328     ----------------------------------Exon 1.9  PDB: A:362-444 UniProt: 363-445                                          ------------------------------------------------------------------------------------------------------Exon 1.12  PDB: A:547-599 UniProt: 548-600           --------------------------------------------Exon 1.14a  PDB: A:644-692 UniProt: 645-693       Transcript 1 (2)
                 1nud A   1 AALGVQSINWQTAFNRQAHHTDKFSSQELILRRGQNFQVLMIMNKGLGSNERLEFIVSTGPYPSESAMTKAVFPLSNGSSGGWSAVLQASNGNTLTISISSPASAPIGRYTMALQIFSQGGISSVKLGTFILLFNPWLNVDSVFMGNHAEREEYVQEDAGIIFVGSTNRIGMIGWNFGQFEEDILSICLSILDRSLNFRRDAATDVASRNDPKYVGRVLSAMINSNDDNGVLAGNWSGTYTGGRDPRSWDGSVEILKNWKKSGLSPVRYGQCWVFAGTLNTALRSLGIPSRVITNFNSAHDTDRNLSVDVYYDPMGNPLDKGSDSVWNFHVWNEGWFVRSDLGPSYGGWQVLDATPQERSQGVFQCGPASVIGVREGDVQLNFDMPFIFAEVNADRITWLYDNTTGKQWKNSVNSHTIGRYISTKAVGSNARMDVTDKYKYPEGSDQERQVFQKALGKLK-------------------PSIIGKLKVAGMLAVGKEVNLVLLLKNLSRDTKTVTVNMTAWTIIYNGTLVHEVWKDSATMSLDPEEEAEHPIKISYAQYERYLKSDNMIRITAVCKVPDESEVVVERDIILDNPTLTLEVLNEARVRKPVNVQMLFSNPLDEPVRDCVLMVEGSGLLLGNLKIDVPTLGPKERSRVRFDILPSRSGTKQLLADFSCNKFPAIKAMLSIDVAE 692
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460         -       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630       640       650       660       670       680       690
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                     460                 480

Chain B from PDB  Type:PROTEIN  Length:673
 aligned with TGM3_HUMAN | Q08188 from UniProtKB/Swiss-Prot  Length:693

    Alignment length:692
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541       551       561       571       581       591       601       611       621       631       641       651       661       671       681       691
           TGM3_HUMAN     2 AALGVQSINWQTAFNRQAHHTDKFSSQELILRRGQNFQVLMIMNKGLGSNERLEFIVSTGPYPSESAMTKAVFPLSNGSSGGWSAVLQASNGNTLTISISSPASAPIGRYTMALQIFSQGGISSVKLGTFILLFNPWLNVDSVFMGNHAEREEYVQEDAGIIFVGSTNRIGMIGWNFGQFEEDILSICLSILDRSLNFRRDAATDVASRNDPKYVGRVLSAMINSNDDNGVLAGNWSGTYTGGRDPRSWNGSVEILKNWKKSGFSPVRYGQCWVFAGTLNTALRSLGIPSRVITNFNSAHDTDRNLSVDVYYDPMGNPLDKGSDSVWNFHVWNEGWFVRSDLGPSYGGWQVLDATPQERSQGVFQCGPASVIGVREGDVQLNFDMPFIFAEVNADRITWLYDNTTGKQWKNSVNSHTIGRYISTKAVGSNARMDVTDKYKYPEGSDQERQVFQKALGKLKPNTPFAATSSMGLETEEQEPSIIGKLKVAGMLAVGKEVNLVLLLKNLSRDTKTVTVNMTAWTIIYNGTLVHEVWKDSATMSLDPEEEAEHPIKISYAQYEKYLKSDNMIRITAVCKVPDESEVVVERDIILDNPTLTLEVLNEARVRKPVNVQMLFSNPLDEPVRDCVLMVEGSGLLLGNLKIDVPTLGPKEGSRVRFDILPSRSGTKQLLADFSCNKFPAIKAMLSIDVAE 693
               SCOP domains d1nudb1 B:1-140 Transglutaminase N-terminal domain                                                                                          d1nudb4 B:141-460 Transglutaminase catalytic domain                                                                                                                                                                                                                                                                             -------------------d1nudb2 B:480-593 Transglutaminase, two C-terminal domains                                                        d1nudb3 B:594-692 Transglutaminase, two C-terminal domains                                          SCOP domains
               CATH domains 1nudB01 B:1-142 Immunoglobulins                                                                                                               1nudB02 B:143-480 Coagulation Factor XIII, subunit A, domain 2                                                                                                                                                                                                                                                                                    1nudB03 B:481-594 Immunoglobulins                                                                                 1nudB04 B:595-691 Immunoglobulins                                                                - CATH domains
           Pfam domains (1) --Transglut_N-1nudB07 B:3-119                                                                                          -----------------------------------------------------------------------------------------------------------------------Transglut_core-1nudB05 B:239-354                                                                                    -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Transglut_C-1nudB01 B:594-692                                                                       Pfam domains (1)
           Pfam domains (2) --Transglut_N-1nudB08 B:3-119                                                                                          -----------------------------------------------------------------------------------------------------------------------Transglut_core-1nudB06 B:239-354                                                                                    -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Transglut_C-1nudB02 B:594-692                                                                       Pfam domains (2)
           Pfam domains (3) -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Transglut_C-1nudB03 B:594-692                                                                       Pfam domains (3)
           Pfam domains (4) -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Transglut_C-1nudB04 B:594-692                                                                       Pfam domains (4)
         Sec.struct. author ....eeeee...hhhhhhh.........eeee...eeeeeeee........eeeeeeee..........eeeeeee.......eeeeeeee..eeeeeee.......eeeeeeeeeee..eeeeeeeeeeeee.............hhhhhhhhhh..eeeeeeee..eeeeeeee......hhhhhhhhhh..hhhhhhhhhhhhhhh.hhhhhhhhhhhhh........eee................hhhhhhhhhhhh....eeeehhhhhhhhhhhhhhhhh..eeeeeeeeeee......eeeeee.....ee.....eeeeeeeeeeee......hhhhh.eeee................eehhhhhhh......hhhhhhhhhhheeeeeee......eeeeeee.....eeeeee......eeehhhhhh....hhhhhhhhhhhhhhh.-------------------...eeeeee.........eeeeeeee......eeeeeeeeeeee.....eeeeeeeeeeeeee....eeeeeeeehhhhhhh......eeeeeeeee......eeeeeeee.....eeeee.........eeeeeeee.........eeeeee........eeeee.......eeeeeeee.....eeeeeeeeee......eeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) -----------K-----------------------------------------------------------------------------------------------------------------------------------------------------L-------------------------------------------------------------------------------------N------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------R-------------------------------------------------------------------------------------------R--------------------------------M------ SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------TRANSGLUTAMINASES --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) 1.---------------------------------------------------------Exon 1.3  PDB: B:60-140 UniProt: 61-141                                          ---------------------------------------Exon 1.5a  PDB: B:180-222 UniProt: 181-223 Exon 1.6a  PDB: B:223-282 UniProt: 224-283                  --------------------------------------------Exon 1.8a  PDB: B:327-362           ---------------------------------------------------------------------------------Exon 1.10b  PDB: B:444-547 (gaps) UniProt: 445-548                                                      ----------------------------------------------------Exon 1.13  PDB: B:600-644 UniProt: 601-645   ------------------------------------------------ Transcript 1 (1)
           Transcript 1 (2) -Exon 1.2  PDB: B:2-60 UniProt: 3-61                        -------------------------------------------------------------------------------Exon 1.4b  PDB: B:140-179               ------------------------------------------------------------------------------------------------------Exon 1.7  PDB: B:282-327 UniProt: 283-328     ----------------------------------Exon 1.9  PDB: B:362-444 UniProt: 363-445                                          ------------------------------------------------------------------------------------------------------Exon 1.12  PDB: B:547-599 UniProt: 548-600           --------------------------------------------Exon 1.14a  PDB: B:644-692 UniProt: 645-693       Transcript 1 (2)
                 1nud B   1 AALGVQSINWQTAFNRQAHHTDKFSSQELILRRGQNFQVLMIMNKGLGSNERLEFIVSTGPYPSESAMTKAVFPLSNGSSGGWSAVLQASNGNTLTISISSPASAPIGRYTMALQIFSQGGISSVKLGTFILLFNPWLNVDSVFMGNHAEREEYVQEDAGIIFVGSTNRIGMIGWNFGQFEEDILSICLSILDRSLNFRRDAATDVASRNDPKYVGRVLSAMINSNDDNGVLAGNWSGTYTGGRDPRSWDGSVEILKNWKKSGLSPVRYGQCWVFAGTLNTALRSLGIPSRVITNFNSAHDTDRNLSVDVYYDPMGNPLDKGSDSVWNFHVWNEGWFVRSDLGPSYGGWQVLDATPQERSQGVFQCGPASVIGVREGDVQLNFDMPFIFAEVNADRITWLYDNTTGKQWKNSVNSHTIGRYISTKAVGSNARMDVTDKYKYPEGSDQERQVFQKALGKLK-------------------PSIIGKLKVAGMLAVGKEVNLVLLLKNLSRDTKTVTVNMTAWTIIYNGTLVHEVWKDSATMSLDPEEEAEHPIKISYAQYERYLKSDNMIRITAVCKVPDESEVVVERDIILDNPTLTLEVLNEARVRKPVNVQMLFSNPLDEPVRDCVLMVEGSGLLLGNLKIDVPTLGPKERSRVRFDILPSRSGTKQLLADFSCNKFPAIKAMLSIDVAE 692
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460         -       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630       640       650       660       670       680       690
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                     460                 480

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Alpha-Beta Complex (3881)

Topology: Coagulation Factor XIII; Chain A, domain 2 (19)

Homologous Superfamily: Coagulation Factor XIII, subunit A, domain 2 (19)

Human (Homo sapiens) (18)

1a	1nudA02	A:143-480
1b	1nudB02	B:143-480

Class: Mainly Beta (13760)

Architecture: Sandwich (5577)

Topology: Immunoglobulin-like (3897)

Homologous Superfamily: Immunoglobulins (2282)

Human (Homo sapiens) (912)

2a	1nudA04	A:595-691
2b	1nudB04	B:595-691
2c	1nudA03	A:481-594
2d	1nudB03	B:481-594
2e	1nudA01	A:1-142
2f	1nudB01	B:1-142

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: E-set (290)

Family: Transglut_C (8)

Homo sapiens (Human) (8)

1a	Transglut_C-1nudB01	B:594-692
1b	Transglut_C-1nudB02	B:594-692
1c	Transglut_C-1nudB03	B:594-692
1d	Transglut_C-1nudB04	B:594-692

Clan: Peptidase_CA (169)

Family: Transglut_core (7)

Homo sapiens (Human) (7)

2a	Transglut_core-1nudB05	B:239-354
2b	Transglut_core-1nudB06	B:239-354

Clan: no clan defined [family: Transglut_N] (7)

Family: Transglut_N (7)

Homo sapiens (Human) (7)

3a	Transglut_N-1nudB07	B:3-119
3b	Transglut_N-1nudB08	B:3-119

Asymmetric Unit(hide GO term definitions)

Chain A,B (TGM3_HUMAN | Q08188)

molecular function
	GO:0005509	calcium ion binding	Interacting selectively and non-covalently with calcium ions (Ca2+).
	GO:0003824	catalytic activity	Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0003810	protein-glutamine gamma-glutamyltransferase activity	Catalysis of the reaction: protein glutamine + alkylamine = protein N5-alkylglutamine + NH3. This reaction is the formation of the N6-(L-isoglutamyl)-L-lysine isopeptide, resulting in cross-linking polypeptide chains; the gamma-carboxamide groups of peptidyl-glutamine residues act as acyl donors, and the 6-amino-groups of peptidyl-lysine residues act as acceptors, to give intra- and intermolecular N6-(5-glutamyl)lysine cross-links.
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
	GO:0016746	transferase activity, transferring acyl groups	Catalysis of the transfer of an acyl group from one compound (donor) to another (acceptor).
biological process
	GO:0043163	cell envelope organization	A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of the cell envelope, everything external to, but not including, the cytoplasmic membrane of bacteria, encompassing the periplasmic space, cell wall, and outer membrane if present.
	GO:0006464	cellular protein modification process	The covalent alteration of one or more amino acids occurring in proteins, peptides and nascent polypeptides (co-translational, post-translational modifications) occurring at the level of an individual cell. Includes the modification of charged tRNAs that are destined to occur in a protein (pre-translation modification).
	GO:0031069	hair follicle morphogenesis	The process in which the anatomical structures of the hair follicle are generated and organized.
	GO:0031424	keratinization	The process in which the cytoplasm of the outermost cells of the vertebrate epidermis is replaced by keratin. Keratinization occurs in the stratum corneum, feathers, hair, claws, nails, hooves, and horns.
	GO:0030216	keratinocyte differentiation	The process in which a relatively unspecialized cell acquires specialized features of a keratinocyte.
	GO:0018149	peptide cross-linking	The formation of a covalent cross-link between or within protein chains.
	GO:0051262	protein tetramerization	The formation of a protein tetramer, a macromolecular structure consisting of four noncovalently associated identical or nonidentical subunits.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0070062	extracellular exosome	A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
	GO:0031234	extrinsic component of cytoplasmic side of plasma membrane	The component of a plasma membrane consisting of gene products and protein complexes that are loosely bound to its cytoplasmic surface, but not integrated into the hydrophobic region.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		BR	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		CA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		CL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]
		BC8	[ RasMol ]	+environment [ RasMol ]
		BC9	[ RasMol ]	+environment [ RasMol ]
		CC1	[ RasMol ]	+environment [ RasMol ]
		CC2	[ RasMol ]	+environment [ RasMol ]
		CC3	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Arg A:268 - Tyr A:269	[ RasMol ]
		Arg B:268 - Tyr B:269	[ RasMol ]
		Asn A:382 - Phe A:383	[ RasMol ]
		Asn B:382 - Phe B:383	[ RasMol ]
		Gly A:367 - Pro A:368	[ RasMol ]
		Gly B:367 - Pro B:368	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1nud
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	TGM3_HUMAN \| Q08188
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	2.3.2.13
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	TGM3_HUMAN \| Q08188
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	TGM3_HUMAN \| Q08188	:	1l9m 1l9n 1nuf 1nug

1l9m	ZYMOGEN TRANSGLUTAMINASE 3
1l9n	ACTIVE TRANSGLUTAMINASE 3
1nuf	TRANSGLUTAMINASE 3 ENZYME (1 CALCIUM, INACTIVE FORM)
1nug	TRANSGLUTAMINASE 3 ENZYME (2 CALCIUMS, 1 MG, INACTIVE FORM)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (3, 23)

Sites (21, 21)

SS Bonds (0, 0)

Cis Peptide Bonds (6, 6)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (6, 12)

PROSITE Motifs (1, 2)

Exons (13, 26)

Sequences/Alignments

Classification and Annotation

SCOP Domains (3, 8)

CATH Domains (2, 8)

Pfam Domains (3, 8)

Gene Ontology (16, 16)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
