Title :   CRYSTAL STRUCTURE OF A PANTOTHENATE SYNTHETASE FROM M. TUBERCULOSIS

Authors :   S. Wang, D. Eisenberg, Tb Structural Genomics Consortium (Tbsgc)

Date :   09 Sep 02 (Deposition) - 11 Mar 03 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.60

Chains :   Asym. Unit : A,B
Biol. Unit 1: A,B  (1x)
Biol. Unit 2: A (1x),B (1x)

Keywords :   Structural Genomics, Rossmann Fold, Dimer, Intersubunit Beta Sheet, Psi, Protein Structure Initiative, Tb Structural Genomics Consortium, Tbsgc, Ligase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   S. Wang, D. Eisenberg
Crystal Structures Of A Pantothenate Synthetase From M. Tuberculosis And Its Complexes With Substrates And A Reaction Intermediate
Protein Sci. V. 12 1097 2003
PubMed-ID: 12717031 | Reference-DOI: 10.1110/PS.0241803

Molecule 1 - PANTOTHENATE SYNTHETASE
	Chains	:	A, B
	EC Number	:	6.3.2.1
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21(DE3)
	Expression System Plasmid	:	PET30A
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Vector Type	:	PLASMID
	Gene	:	PANC
	Mutation	:	YES
	Organism Scientific	:	MYCOBACTERIUM TUBERCULOSIS
	Organism Taxid	:	1773
	Synonym	:	PANTOATE--BETA-ALANINE LIGASE, PANTOATE ACTIVATING ENZYME

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (1x)	:	A (1x)	B (1x)

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (3, 13)

No.	Name	Count	Type	Full Name
1	EOH	5	Ligand/Ion	ETHANOL
2	GOL	4	Ligand/Ion	GLYCEROL
3	SO4	4	Ligand/Ion	SULFATE ION

Biological Unit 1 (3, 13)

No.	Name	Count	Type	Full Name
1	EOH	5	Ligand/Ion	ETHANOL
2	GOL	4	Ligand/Ion	GLYCEROL
3	SO4	4	Ligand/Ion	SULFATE ION

Biological Unit 2 (3, 7)

No.	Name	Count	Type	Full Name
1	EOH	2	Ligand/Ion	ETHANOL
2	GOL	3	Ligand/Ion	GLYCEROL
3	SO4	2	Ligand/Ion	SULFATE ION

Asymmetric Unit (13, 13)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	ARG B:56 , ARG B:154 , HOH B:877	BINDING SITE FOR RESIDUE SO4 B 601
02	AC2	SOFTWARE	ARG A:56 , PRO A:58 , ARG A:154 , HOH A:837	BINDING SITE FOR RESIDUE SO4 A 602
03	AC3	SOFTWARE	HIS B:44 , TYR B:82 , SER B:196 , SER B:197	BINDING SITE FOR RESIDUE SO4 B 603
04	AC4	SOFTWARE	HIS A:44 , HIS A:47 , LYS A:160 , SER A:196 , SER A:197 , HOH A:804	BINDING SITE FOR RESIDUE SO4 A 604
05	AC5	SOFTWARE	PRO B:38 , GLN B:72 , VAL B:142 , GLN B:164 , HOH B:750 , HOH B:924	BINDING SITE FOR RESIDUE GOL B 501
06	AC6	SOFTWARE	MET A:109 , TYR A:110 , PRO A:111 , ASP A:112 , GLY A:113 , ARG A:115 , THR A:116 , LYS A:145 , ASP B:174	BINDING SITE FOR RESIDUE GOL A 502
07	AC7	SOFTWARE	PRO A:38 , MET A:40 , GLN A:72 , VAL A:142 , GLN A:164 , HOH A:708	BINDING SITE FOR RESIDUE GOL A 503
08	AC8	SOFTWARE	ASP A:78 , ALA A:81 , HOH A:745 , HOH A:813 , HOH A:817	BINDING SITE FOR RESIDUE GOL A 504
09	AC9	SOFTWARE	PRO B:122 , GLU B:126	BINDING SITE FOR RESIDUE EOH B 701
10	BC1	SOFTWARE	GLY B:59 , HOH B:822 , HOH B:908	BINDING SITE FOR RESIDUE EOH B 702
11	BC2	SOFTWARE	HIS B:44 , GLY B:46 , THR B:186 , VAL B:187 , MET B:195 , HOH B:782 , HOH B:862	BINDING SITE FOR RESIDUE EOH B 703
12	BC3	SOFTWARE	ILE A:255 , GLY A:256 , HOH A:858 , HOH A:876	BINDING SITE FOR RESIDUE EOH A 704
13	BC4	SOFTWARE	ARG A:52	BINDING SITE FOR RESIDUE EOH A 705

(no "SS Bond" information available for 1MOP)

(no "Cis Peptide Bond" information available for 1MOP)

(no "SAP(SNP)/Variant" information available for 1MOP)

(no "PROSITE Motif" information available for 1MOP)

(no "Exon" information available for 1MOP)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

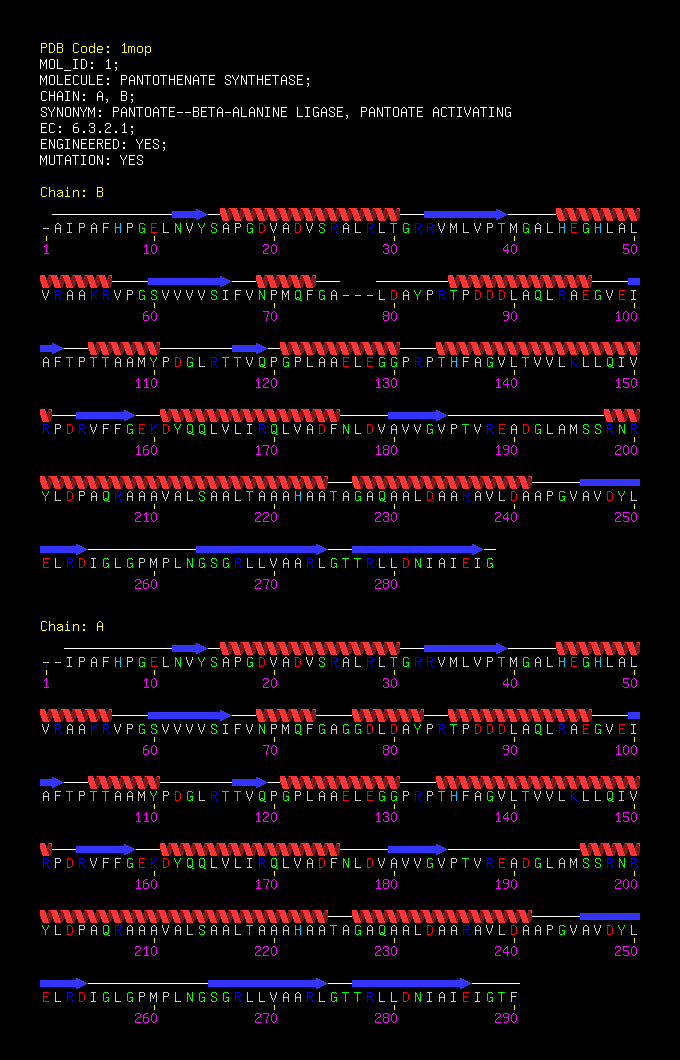

Chain A from PDB  Type:PROTEIN  Length:288
 aligned with PANC_MYCTO | P9WIL4 from UniProtKB/Swiss-Prot  Length:309

    Alignment length:288
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282
           PANC_MYCTO     3 IPAFHPGELNVYSAPGDVADVSRALRLTGRRVMLVPTMGALHEGHLALVRAAKRVPGSVVVVSIFVNPMQFGAGEDLDAYPRTPDDDLAQLRAEGVEIAFTPTTAAMYPDGLRTTVQPGPLAAELEGGPRPTHFAGVLTVVLKLLQIVRPDRVFFGEKDYQQLVLIRQLVADFNLDVAVVGVPTVREADGLAMSSRNRYLDPAQRAAAVALSAALTAAAHAATAGAQAALDAARAVLDAAPGVAVDYLELRDIGLGPMPLNGSGRLLVAARLGTTRLLDNIAIEIGTF 290
               SCOP domains d1mopa_ A: Pantothenate synthetase (Pantoate-beta-alanine ligase, PanC)                                                                                                                                                                                                                          SCOP domains
               CATH domains 1mopA01 A:3-185 Tyrosyl-Transfer RNA Synthetase , subunit E, domain 1                                                                                                                  1mopA02 A:186-290  [code=3.30.1300.10, no name defined]                                                   CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .........eee.hhhhhhhhhhhhhhh..eeeeeee....hhhhhhhhhhhhh...eeeeeee..hhhhh...hhhhhh..hhhhhhhhhhhh...eee..hhhhhh......eee.hhhhhhhhhh...hhhhhhhhhhhhhhhhhh..eeeee..hhhhhhhhhhhhhhh....eeeee...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhh....eeeeeeeee..........eeeeeeeeee..eeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1mop A   3 IPAFHPGELNVYSAPGDVADVSRALRLTGRRVMLVPTMGALHEGHLALVRAAKRVPGSVVVVSIFVNPMQFGAGGDLDAYPRTPDDDLAQLRAEGVEIAFTPTTAAMYPDGLRTTVQPGPLAAELEGGPRPTHFAGVLTVVLKLLQIVRPDRVFFGEKDYQQLVLIRQLVADFNLDVAVVGVPTVREADGLAMSSRNRYLDPAQRAAAVALSAALTAAAHAATAGAQAALDAARAVLDAAPGVAVDYLELRDIGLGPMPLNGSGRLLVAARLGTTRLLDNIAIEIGTF 290
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282

Chain A from PDB  Type:PROTEIN  Length:288
 aligned with PANC_MYCTU | P9WIL5 from UniProtKB/Swiss-Prot  Length:309

    Alignment length:288
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282
           PANC_MYCTU     3 IPAFHPGELNVYSAPGDVADVSRALRLTGRRVMLVPTMGALHEGHLALVRAAKRVPGSVVVVSIFVNPMQFGAGEDLDAYPRTPDDDLAQLRAEGVEIAFTPTTAAMYPDGLRTTVQPGPLAAELEGGPRPTHFAGVLTVVLKLLQIVRPDRVFFGEKDYQQLVLIRQLVADFNLDVAVVGVPTVREADGLAMSSRNRYLDPAQRAAAVALSAALTAAAHAATAGAQAALDAARAVLDAAPGVAVDYLELRDIGLGPMPLNGSGRLLVAARLGTTRLLDNIAIEIGTF 290
               SCOP domains d1mopa_ A: Pantothenate synthetase (Pantoate-beta-alanine ligase, PanC)                                                                                                                                                                                                                          SCOP domains
               CATH domains 1mopA01 A:3-185 Tyrosyl-Transfer RNA Synthetase , subunit E, domain 1                                                                                                                  1mopA02 A:186-290  [code=3.30.1300.10, no name defined]                                                   CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .........eee.hhhhhhhhhhhhhhh..eeeeeee....hhhhhhhhhhhhh...eeeeeee..hhhhh...hhhhhh..hhhhhhhhhhhh...eee..hhhhhh......eee.hhhhhhhhhh...hhhhhhhhhhhhhhhhhh..eeeee..hhhhhhhhhhhhhhh....eeeee...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhh....eeeeeeeee..........eeeeeeeeee..eeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1mop A   3 IPAFHPGELNVYSAPGDVADVSRALRLTGRRVMLVPTMGALHEGHLALVRAAKRVPGSVVVVSIFVNPMQFGAGGDLDAYPRTPDDDLAQLRAEGVEIAFTPTTAAMYPDGLRTTVQPGPLAAELEGGPRPTHFAGVLTVVLKLLQIVRPDRVFFGEKDYQQLVLIRQLVADFNLDVAVVGVPTVREADGLAMSSRNRYLDPAQRAAAVALSAALTAAAHAATAGAQAALDAARAVLDAAPGVAVDYLELRDIGLGPMPLNGSGRLLVAARLGTTRLLDNIAIEIGTF 290
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282

Chain B from PDB  Type:PROTEIN  Length:284
 aligned with PANC_MYCTO | P9WIL4 from UniProtKB/Swiss-Prot  Length:309

    Alignment length:287
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
           PANC_MYCTO     2 TIPAFHPGELNVYSAPGDVADVSRALRLTGRRVMLVPTMGALHEGHLALVRAAKRVPGSVVVVSIFVNPMQFGAGEDLDAYPRTPDDDLAQLRAEGVEIAFTPTTAAMYPDGLRTTVQPGPLAAELEGGPRPTHFAGVLTVVLKLLQIVRPDRVFFGEKDYQQLVLIRQLVADFNLDVAVVGVPTVREADGLAMSSRNRYLDPAQRAAAVALSAALTAAAHAATAGAQAALDAARAVLDAAPGVAVDYLELRDIGLGPMPLNGSGRLLVAARLGTTRLLDNIAIEIG 288
               SCOP domains d1mopb_ B: Pantothenate synthetase (Pantoate-beta-alanine ligase, PanC)                                                                                                                                                                                                                         SCOP domains
               CATH domains -1mopB01 B:3-185 Tyrosyl-Transfer RNA Synthetase , subunit E, domain 1                                                                                                                  1mopB02 B:186-288  [code=3.30.1300.10, no name defined]                                                 CATH domains
           Pfam domains (1) ---------Pantoate_ligase-1mopB01 B:11-285                                                                                                                                                                                                                                                   --- Pfam domains (1)
           Pfam domains (2) ---------Pantoate_ligase-1mopB02 B:11-285                                                                                                                                                                                                                                                   --- Pfam domains (2)
         Sec.struct. author ..........eee.hhhhhhhhhhhhhhh..eeeeeee....hhhhhhhhhhhhh...eeeeeee..hhhhh..---......hhhhhhhhhhhh...eee..hhhhhh......eee.hhhhhhhhhh...hhhhhhhhhhhhhhhhhh..eeeee..hhhhhhhhhhhhhhh....eeeee.............hhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhh....eeeeeeeee.........eeeeeeeeeee..eeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1mop B   2 AIPAFHPGELNVYSAPGDVADVSRALRLTGRRVMLVPTMGALHEGHLALVRAAKRVPGSVVVVSIFVNPMQFGA---LDAYPRTPDDDLAQLRAEGVEIAFTPTTAAMYPDGLRTTVQPGPLAAELEGGPRPTHFAGVLTVVLKLLQIVRPDRVFFGEKDYQQLVLIRQLVADFNLDVAVVGVPTVREADGLAMSSRNRYLDPAQRAAAVALSAALTAAAHAATAGAQAALDAARAVLDAAPGVAVDYLELRDIGLGPMPLNGSGRLLVAARLGTTRLLDNIAIEIG 288
                                    11        21        31        41        51        61        71   |   |81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
                                                                                                    75  79

Chain B from PDB  Type:PROTEIN  Length:284
 aligned with PANC_MYCTU | P9WIL5 from UniProtKB/Swiss-Prot  Length:309

    Alignment length:287
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
           PANC_MYCTU     2 TIPAFHPGELNVYSAPGDVADVSRALRLTGRRVMLVPTMGALHEGHLALVRAAKRVPGSVVVVSIFVNPMQFGAGEDLDAYPRTPDDDLAQLRAEGVEIAFTPTTAAMYPDGLRTTVQPGPLAAELEGGPRPTHFAGVLTVVLKLLQIVRPDRVFFGEKDYQQLVLIRQLVADFNLDVAVVGVPTVREADGLAMSSRNRYLDPAQRAAAVALSAALTAAAHAATAGAQAALDAARAVLDAAPGVAVDYLELRDIGLGPMPLNGSGRLLVAARLGTTRLLDNIAIEIG 288
               SCOP domains d1mopb_ B: Pantothenate synthetase (Pantoate-beta-alanine ligase, PanC)                                                                                                                                                                                                                         SCOP domains
               CATH domains -1mopB01 B:3-185 Tyrosyl-Transfer RNA Synthetase , subunit E, domain 1                                                                                                                  1mopB02 B:186-288  [code=3.30.1300.10, no name defined]                                                 CATH domains
           Pfam domains (1) ---------Pantoate_ligase-1mopB01 B:11-285                                                                                                                                                                                                                                                   --- Pfam domains (1)
           Pfam domains (2) ---------Pantoate_ligase-1mopB02 B:11-285                                                                                                                                                                                                                                                   --- Pfam domains (2)
         Sec.struct. author ..........eee.hhhhhhhhhhhhhhh..eeeeeee....hhhhhhhhhhhhh...eeeeeee..hhhhh..---......hhhhhhhhhhhh...eee..hhhhhh......eee.hhhhhhhhhh...hhhhhhhhhhhhhhhhhh..eeeee..hhhhhhhhhhhhhhh....eeeee.............hhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhh....eeeeeeeee.........eeeeeeeeeee..eeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1mop B   2 AIPAFHPGELNVYSAPGDVADVSRALRLTGRRVMLVPTMGALHEGHLALVRAAKRVPGSVVVVSIFVNPMQFGA---LDAYPRTPDDDLAQLRAEGVEIAFTPTTAAMYPDGLRTTVQPGPLAAELEGGPRPTHFAGVLTVVLKLLQIVRPDRVFFGEKDYQQLVLIRQLVADFNLDVAVVGVPTVREADGLAMSSRNRYLDPAQRAAAVALSAALTAAAHAATAGAQAALDAARAVLDAAPGVAVDYLELRDIGLGPMPLNGSGRLLVAARLGTTRLLDNIAIEIG 288
                                    11        21        31        41        51        61        71   |   |81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281
                                                                                                    75  79

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: HUP (230)

Family: Pantoate_ligase (16)

Mycobacterium tuberculosis (7)

1a	Pantoate_ligase-1mopB01	B:11-285
1b	Pantoate_ligase-1mopB02	B:11-285

Asymmetric Unit(hide GO term definitions)

Chain A,B (PANC_MYCTO | P9WIL4)

molecular function
	GO:0005524	ATP binding	Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
	GO:0016874	ligase activity	Catalysis of the joining of two substances, or two groups within a single molecule, with the concomitant hydrolysis of the diphosphate bond in ATP or a similar triphosphate.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0000166	nucleotide binding	Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
	GO:0004592	pantoate-beta-alanine ligase activity	Catalysis of the reaction: ATP + (R)-pantoate + beta-alanine = AMP + diphosphate + (R)-pantothenate.
biological process
	GO:0015940	pantothenate biosynthetic process	The chemical reactions and pathways resulting in the formation of pantothenate, the anion of pantothenic acid. It is a B complex vitamin that is a constituent of coenzyme A and is distributed ubiquitously in foods.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Chain A,B (PANC_MYCTU | P9WIL5)

molecular function
	GO:0005524	ATP binding	Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
	GO:0016874	ligase activity	Catalysis of the joining of two substances, or two groups within a single molecule, with the concomitant hydrolysis of the diphosphate bond in ATP or a similar triphosphate.
	GO:0000287	magnesium ion binding	Interacting selectively and non-covalently with magnesium (Mg) ions.
	GO:0030145	manganese ion binding	Interacting selectively and non-covalently with manganese (Mn) ions.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0000166	nucleotide binding	Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
	GO:0004592	pantoate-beta-alanine ligase activity	Catalysis of the reaction: ATP + (R)-pantoate + beta-alanine = AMP + diphosphate + (R)-pantothenate.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
	GO:0019482	beta-alanine metabolic process	The chemical reactions and pathways involving beta-alanine (3-aminopropanoic acid), an achiral amino acid and an isomer of alanine. It occurs free (e.g. in brain) and in combination (e.g. in pantothenate) but it is not a constituent of proteins.
	GO:0040007	growth	The increase in size or mass of an entire organism, a part of an organism or a cell.
	GO:0015940	pantothenate biosynthetic process	The chemical reactions and pathways resulting in the formation of pantothenate, the anion of pantothenic acid. It is a B complex vitamin that is a constituent of coenzyme A and is distributed ubiquitously in foods.
	GO:0009405	pathogenesis	The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		EOH	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		GOL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1mop)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1mop
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	PANC_MYCTO \| P9WIL4
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	PANC_MYCTU \| P9WIL5
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	6.3.2.1
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	PANC_MYCTO \| P9WIL4
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	PANC_MYCTU \| P9WIL5
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Related Entries Specified in the PDB File" available for 1MOP)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (3, 13)

Sites (13, 13)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 2)

CATH Domains (2, 4)

Pfam Domains (1, 2)

Gene Ontology (13, 20)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
