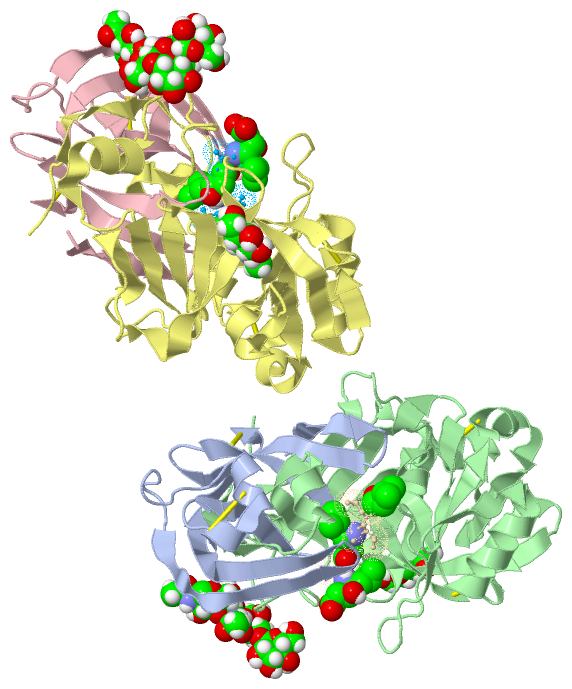

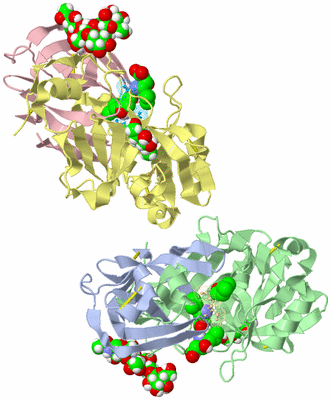

Asymmetric Unit (Jmol Viewer)

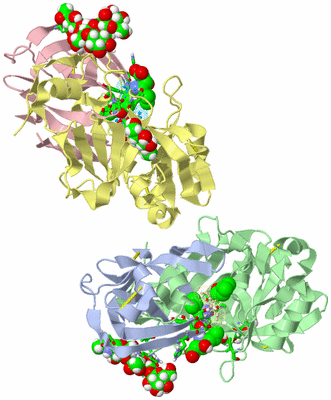

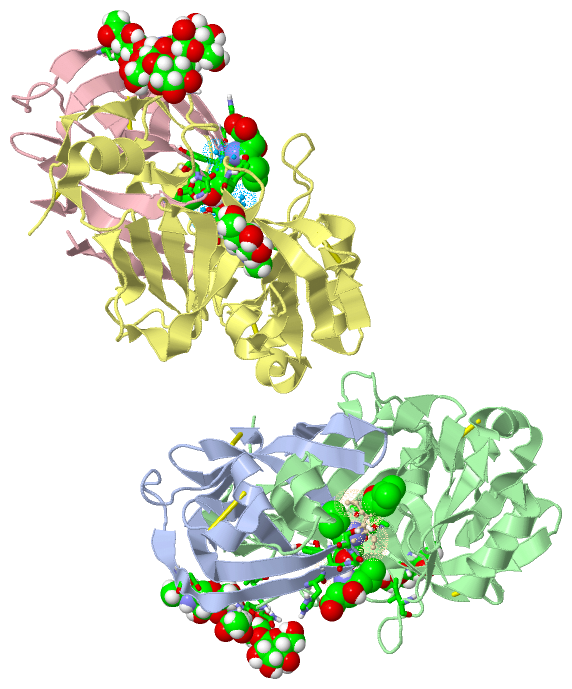

Asym. Unit - sites (Jmol Viewer)

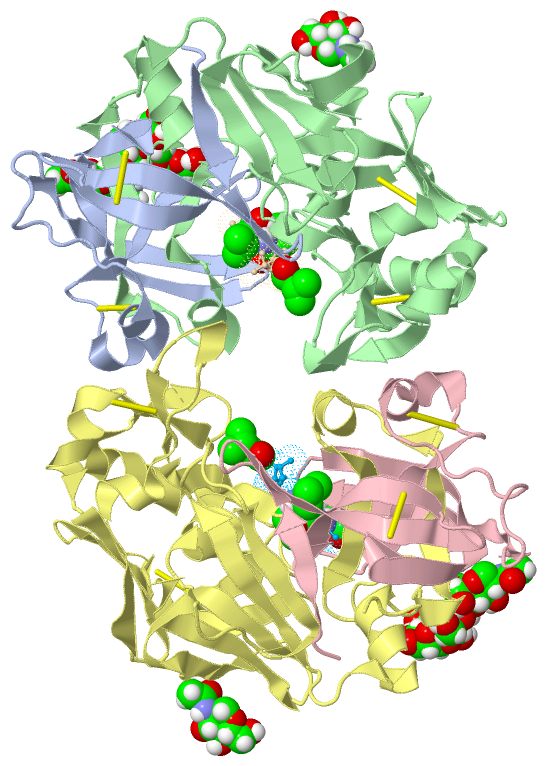

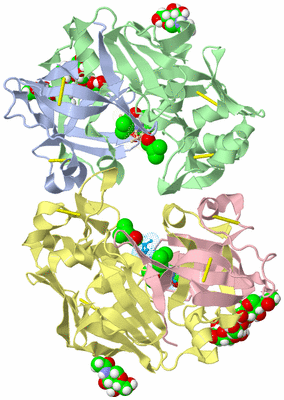

Biological Unit 1 (Jmol Viewer)

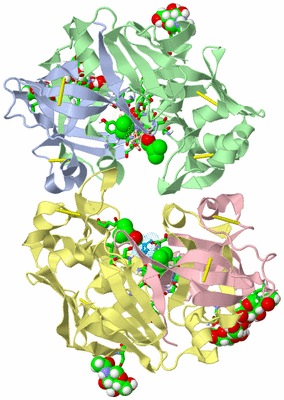

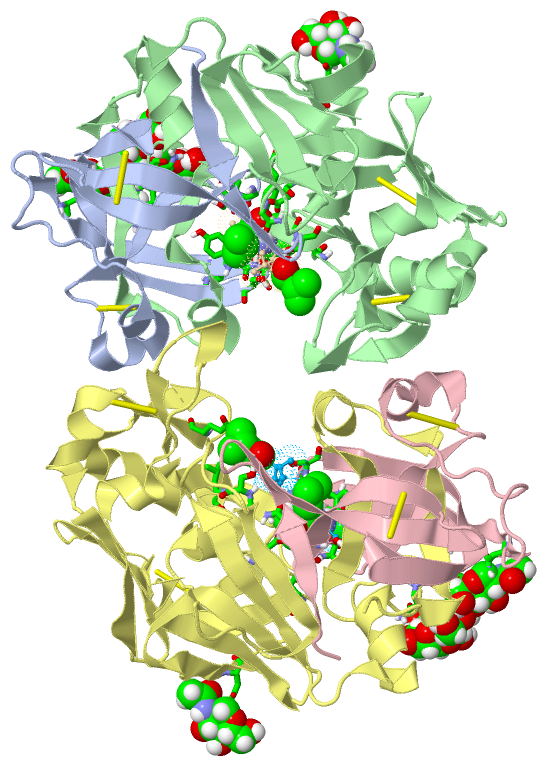

Biol. Unit 1 - sites (Jmol Viewer)

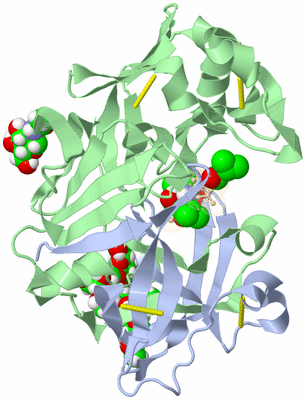

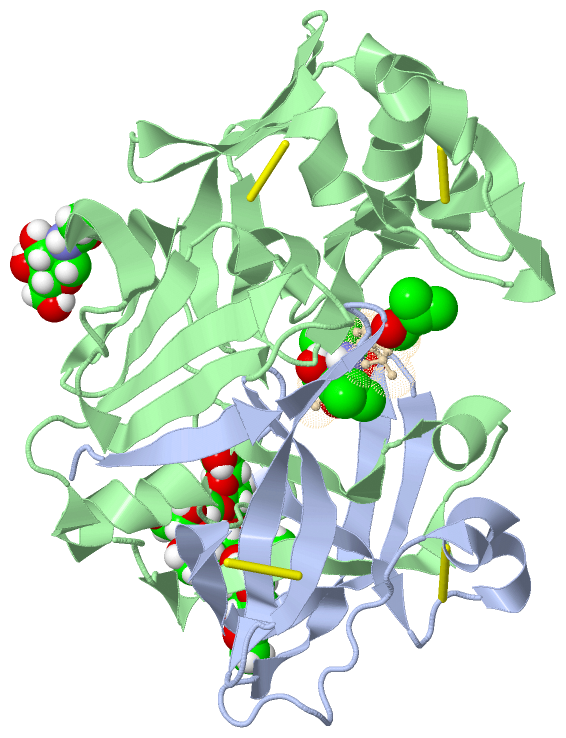

Biological Unit 2 (Jmol Viewer)

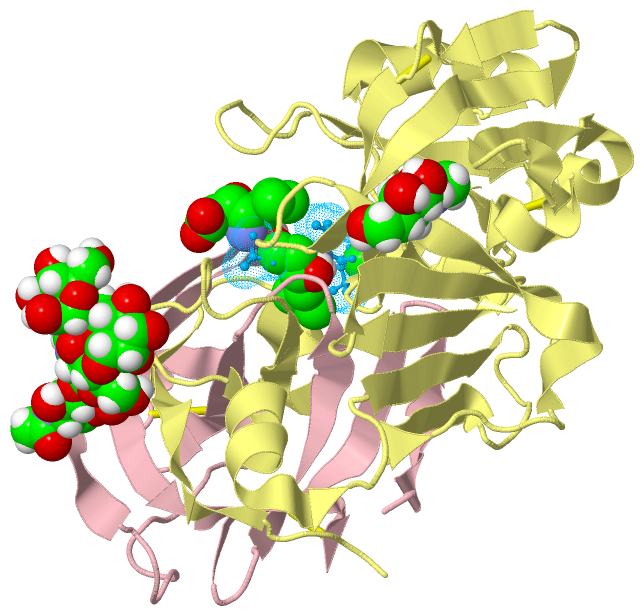

Biological Unit 3 (Jmol Viewer)

Title :   CRYSTAL STRUCTURES OF NATIVE AND INHIBITED FORMS OF HUMAN CATHEPSIN D: IMPLICATIONS FOR LYSOSOMAL TARGETING AND DRUG DESIGN

Authors :   E. T. Baldwin, T. N. Bhat, S. Gulnik, J. W. Erickson

Date :   22 Apr 93 (Deposition) - 31 Jan 94 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.50

Chains :   Asym. Unit : A,B,C,D,I,J
Biol. Unit 1: A (1x),B (1x),C (1x),D (1x),I (1x),J (1x)
Biol. Unit 2: A,B,I  (1x)
Biol. Unit 3: C,D,J  (1x)

Keywords :   Lysosomal Aspartic Protease, Hydrolase-Hydrolase Inhibitor Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   E. T. Baldwin, T. N. Bhat, S. Gulnik, M. V. Hosur, R. C. Sowder 2Nd. , R. E. Cachau, J. Collins, A. M. Silva, J. W. Erickson
Crystal Structures Of Native And Inhibited Forms Of Human Cathepsin D: Implications For Lysosomal Targeting And Drug Design.
Proc. Natl. Acad. Sci. Usa V. 90 6796 1993
PubMed-ID: 8393577 | Reference-DOI: 10.1073/PNAS.90.14.6796
(for further references see the PDB file header)

Molecule 1 - CATHEPSIN D
	Chains	:	A, C
	EC Number	:	3.4.23.5
	Organ	:	LIVER
	Organism Common	:	HUMAN
	Organism Scientific	:	HOMO SAPIENS
	Organism Taxid	:	9606
	Tissue	:	LIVER

Molecule 2 - CATHEPSIN D
	Chains	:	B, D
	EC Number	:	3.4.23.5
	Organ	:	LIVER
	Organism Common	:	HUMAN
	Organism Scientific	:	HOMO SAPIENS
	Organism Taxid	:	9606
	Tissue	:	LIVER

Molecule 3 - PEPSTATIN
	Chains	:	I, J
	Engineered	:	YES

		1	2	3	4	5	6
Asymmetric Unit	:	A	B	C	D	I	J
Biological Unit 1 (1x)	:	A (1x)	B (1x)	C (1x)	D (1x)	I (1x)	J (1x)
Biological Unit 2 (1x)	:	A	B			I
Biological Unit 3 (1x)	:			C	D		J

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (5, 16)

No.	Name	Count	Type	Full Name
1	BMA	2	Ligand/Ion	BETA-D-MANNOSE
2	IVA	2	Mod. Amino Acid	ISOVALERIC ACID
3	MAN	2	Ligand/Ion	ALPHA-D-MANNOSE
4	NAG	6	Ligand/Ion	N-ACETYL-D-GLUCOSAMINE
5	STA	4	Mod. Amino Acid	STATINE

Biological Unit 1 (5, 8)

No.	Name	Count	Type	Full Name
1	BMA	1	Ligand/Ion	BETA-D-MANNOSE
2	IVA	1	Mod. Amino Acid	ISOVALERIC ACID
3	MAN	1	Ligand/Ion	ALPHA-D-MANNOSE
4	NAG	3	Ligand/Ion	N-ACETYL-D-GLUCOSAMINE
5	STA	2	Mod. Amino Acid	STATINE

Biological Unit 2 (5, 8)

No.	Name	Count	Type	Full Name
1	BMA	1	Ligand/Ion	BETA-D-MANNOSE
2	IVA	1	Mod. Amino Acid	ISOVALERIC ACID
3	MAN	1	Ligand/Ion	ALPHA-D-MANNOSE
4	NAG	3	Ligand/Ion	N-ACETYL-D-GLUCOSAMINE
5	STA	2	Mod. Amino Acid	STATINE

Biological Unit 3 (5, 8)

No.	Name	Count	Type	Full Name
1	BMA	1	Ligand/Ion	BETA-D-MANNOSE
2	IVA	1	Mod. Amino Acid	ISOVALERIC ACID
3	MAN	1	Ligand/Ion	ALPHA-D-MANNOSE
4	NAG	3	Ligand/Ion	N-ACETYL-D-GLUCOSAMINE
5	STA	2	Mod. Amino Acid	STATINE

Asymmetric Unit (6, 6)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASN B:199	BINDING SITE FOR RESIDUE NAG B 1
2	AC2	SOFTWARE	ASN D:199	BINDING SITE FOR RESIDUE NAG D 1
3	AC3	SOFTWARE	ASN A:70 , ASN B:145 , ASN B:146 , VAL B:147	BINDING SITE FOR CHAIN A OF SUGAR BOUND TO ASN A 70 RESIDUES 98 TO 101
4	AC4	SOFTWARE	ASN C:70 , ASN D:145 , ASN D:146	BINDING SITE FOR CHAIN C OF SUGAR BOUND TO ASN C 70 RESIDUES 98 TO 101
5	AC5	SOFTWARE	ASP A:33 , GLY A:35 , SER A:36 , HIS A:77 , TYR A:78 , GLY A:79 , SER A:80 , TYR B:205 , ASP B:231 , GLY B:233 , THR B:234 , SER B:235 , ILE B:311	BINDING SITE FOR CHAIN I OF PEPSTATIN
6	AC6	SOFTWARE	ASP C:33 , GLY C:35 , SER C:36 , HIS C:77 , TYR C:78 , GLY C:79 , SER C:80 , TYR D:205 , ASP D:231 , GLY D:233 , THR D:234 , SER D:235 , LEU D:236 , GLU D:260	BINDING SITE FOR CHAIN J OF PEPSTATIN

Asymmetric Unit

No.	Residues
1	A:27	-	A:96
2	A:46	-	A:53
3	B:222	-	B:226
4	B:265	-	B:302
5	C:27	-	C:96
6	C:46	-	C:53
7	D:222	-	D:226
8	D:265	-	D:302

Asymmetric Unit

No.	Residues
1	Thr A:23	-	Pro A:24
2	Val A:94	-	Pro A:95
3	Gln B:176	-	Pro B:177
4	Pro B:313	-	Pro B:314
5	Gly B:316	-	Pro B:317
6	Gly C:1	-	Pro C:2
7	Thr C:23	-	Pro C:24
8	Val C:94	-	Pro C:95
9	Gln D:176	-	Pro D:177
10	Pro D:313	-	Pro D:314
11	Gly D:316	-	Pro D:317

Asymmetric Unit (3, 6)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_029362	F	229	I	CATD_HUMAN	Disease (CLN10)	121912789	B/D	F	165	I
2	UniProt	VAR_058490	G	282	R	CATD_HUMAN	Polymorphism	147278302	B/D	G	218	R
3	UniProt	VAR_029363	W	383	C	CATD_HUMAN	Disease (CLN10)	121912790	B/D	W	319	C

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 1 (3, 6)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_029362	F	229	I	CATD_HUMAN	Disease (CLN10)	121912789	B/D	F	165	I
2	UniProt	VAR_058490	G	282	R	CATD_HUMAN	Polymorphism	147278302	B/D	G	218	R
3	UniProt	VAR_029363	W	383	C	CATD_HUMAN	Disease (CLN10)	121912790	B/D	W	319	C

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 2 (3, 3)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_029362	F	229	I	CATD_HUMAN	Disease (CLN10)	121912789	B	F	165	I
2	UniProt	VAR_058490	G	282	R	CATD_HUMAN	Polymorphism	147278302	B	G	218	R
3	UniProt	VAR_029363	W	383	C	CATD_HUMAN	Disease (CLN10)	121912790	B	W	319	C

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 3 (3, 3)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_029362	F	229	I	CATD_HUMAN	Disease (CLN10)	121912789	D	F	165	I
2	UniProt	VAR_058490	G	282	R	CATD_HUMAN	Polymorphism	147278302	D	G	218	R
3	UniProt	VAR_029363	W	383	C	CATD_HUMAN	Disease (CLN10)	121912790	D	W	319	C

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Asymmetric Unit (2, 6)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PEPTIDASE_A1	PS51767	Peptidase family A1 domain profile.	CATD_HUMAN	79-407	2	A:15-97 C:15-97
2	ASP_PROTEASE	PS00141	Eukaryotic and viral aspartyl proteases active site.	CATD_HUMAN	94-105 292-303	4	A:30-41 C:30-41 B:228-239 D:228-239

Biological Unit 1 (2, 6)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PEPTIDASE_A1	PS51767	Peptidase family A1 domain profile.	CATD_HUMAN	79-407	2	A:15-97 C:15-97
2	ASP_PROTEASE	PS00141	Eukaryotic and viral aspartyl proteases active site.	CATD_HUMAN	94-105 292-303	4	A:30-41 C:30-41 B:228-239 D:228-239

Biological Unit 2 (2, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PEPTIDASE_A1	PS51767	Peptidase family A1 domain profile.	CATD_HUMAN	79-407	1	A:15-97 -
2	ASP_PROTEASE	PS00141	Eukaryotic and viral aspartyl proteases active site.	CATD_HUMAN	94-105 292-303	2	A:30-41 - B:228-239 -

Biological Unit 3 (2, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PEPTIDASE_A1	PS51767	Peptidase family A1 domain profile.	CATD_HUMAN	79-407	1	- C:15-97
2	ASP_PROTEASE	PS00141	Eukaryotic and viral aspartyl proteases active site.	CATD_HUMAN	94-105 292-303	2	- C:30-41 - D:228-239

Asymmetric Unit (8, 18)

	ENSEMBL					UniProtKB			PDB
No.	Transcript ID	Exon	Exon ID	Genome Location	Length	ID	Location	Length	Count	Location	Length
1.1a	ENST00000236671	1a	ENSE00001316045	chr11:1785222-1785022	201	CATD_HUMAN	1-23	23	0	-	-
1.3b	ENST00000236671	3b	ENSE00001612002	chr11:1782698-1782539	160	CATD_HUMAN	23-76	54	2	A:1-12 - C:1-12 -	12 - 12 -
1.4	ENST00000236671	4	ENSE00000690124	chr11:1780869-1780746	124	CATD_HUMAN	77-118	42	2	A:13-54 - C:13-54 -	42 - 42 -
1.5	ENST00000236671	5	ENSE00000690128	chr11:1780317-1780199	119	CATD_HUMAN	118-157	40	2	A:54-93 - C:54-93 -	40 - 40 -
1.6	ENST00000236671	6	ENSE00002178061	chr11:1778786-1778554	233	CATD_HUMAN	158-235	78	4	A:94-97 B:106-171 C:94-97 D:106-171	4 66 4 66
1.7b	ENST00000236671	7b	ENSE00002147820	chr11:1776258-1776136	123	CATD_HUMAN	235-276	42	2	- B:171-212 - D:171-212	- 42 - 42
1.8c	ENST00000236671	8c	ENSE00002179431	chr11:1775368-1775224	145	CATD_HUMAN	276-324	49	2	- B:212-260 - D:212-260	- 49 - 49
1.8f	ENST00000236671	8f	ENSE00002173924	chr11:1775131-1775033	99	CATD_HUMAN	325-357	33	2	- B:261-293 - D:261-293	- 33 - 33
1.9d	ENST00000236671	9d	ENSE00000794681	chr11:1774900-1773982	919	CATD_HUMAN	358-412	55	2	- B:294-346 - D:294-346	- 53 - 53

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:97
 aligned with CATD_HUMAN | P07339 from UniProtKB/Swiss-Prot  Length:412

    Alignment length:97
                                    74        84        94       104       114       124       134       144       154
           CATD_HUMAN    65 GPIPEVLKNYMDAQYYGEIGIGTPPQCFTVVFDTGSSNLWVPSIHCKLLDIACWIHHKYNSDKSSTYVKNGTSFDIHYGSGSLSGYLSQDTVSVPCQ 161
               SCOP domains d1lyb.1 A:,B: Cathepsin D                                                                         SCOP domains
               CATH domains 1lybA00 A:1-97 Acid Proteases                                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee...eeeeeeeee...eeeeeeee....eeeeee...hhhhhhhhh............eeeeeeeeeee..eeeeeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --------------PEPTIDASE_A1  PDB: A:15-97 UniProt: 79-407                                          PROSITE (1)
                PROSITE (2) -----------------------------ASP_PROTEASE-------------------------------------------------------- PROSITE (2)
           Transcript 1 (1) Exon 1.3b   Exon 1.4  PDB: A:13-54 UniProt: 77-118    ---------------------------------------1.6  Transcript 1 (1)
           Transcript 1 (2) -----------------------------------------------------Exon 1.5  PDB: A:54-93 UniProt: 118-157 ---- Transcript 1 (2)
                 1lyb A   1 GPIPEVLKNYMDAQYYGEIGIGTPPQCFTVVFDTGSSNLWVPSIHCKLLDIACWIHHKYNSDKSSTYVKNGTSFDIHYGSGSLSGYLSQDTVSVPCQ  97
                                    10        20        30        40        50        60        70        80        90

Chain B from PDB  Type:PROTEIN  Length:241
 aligned with CATD_HUMAN | P07339 from UniProtKB/Swiss-Prot  Length:412

    Alignment length:241
                                   179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379       389       399       409
           CATD_HUMAN   170 GGVKVERQVFGEATKQPGITFIAAKFDGILGMAYPRISVNNVLPVFDNLMQQKLVDQNIFSFYLSRDPDAQPGGELMLGGTDSKYYKGSLSYLNVTRKAYWQVHLDQVEVASGLTLCKEGCEAIVDTGTSLMVGPVDEVRELQKAIGAVPLIQGEYMIPCEKVSTLPAITLKLGGKGYKLSPEDYTLKVSQAGKTLCLSGFMGMDIPPPSGPLWILGDVFIGRYYTVFDRDNNRVGFAEAA 410
               SCOP domains d1lyb.1 A:,B: Cathepsin D                                                                                                                                                                                                                         SCOP domains
               CATH domains 1lybB00 B:106-346 Acid Proteases                                                                                                                                                                                                                  CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeeeeee...hhhhhh.eeeeeee...........hhhhhhhhhhh....eeeeeee.......eeeeeee.....eeeeeeeeeee.....eeeeeeeeeee..eeeee..eeeeee..eeeeeehhhhhhhhhhhhh.eee...eeeehhhhhhhh.eeeeee..eeeeehhhhhh....eee..eeeeeeeee............hhhhhh..eeeee..eeeeeeeeee Sec.struct. author
                 SAPs(SNPs) -----------------------------------------------------------I----------------------------------------------------R----------------------------------------------------------------------------------------------------C--------------------------- SAPs(SNPs)
                PROSITE (1) PEPTIDASE_A1  PDB: - UniProt: 79-407                                                                                                                                                                                                          --- PROSITE (1)
                PROSITE (2) --------------------------------------------------------------------------------------------------------------------------ASP_PROTEASE----------------------------------------------------------------------------------------------------------- PROSITE (2)
           Transcript 1 (1) Exon 1.6  PDB: B:106-171 UniProt: 158-235 [INCOMPLETE]            ----------------------------------------Exon 1.8c  PDB: B:212-260 UniProt: 276-324       Exon 1.8f  PDB: B:261-293        Exon 1.9d  PDB: B:294-346 UniProt: 358-412            Transcript 1 (1)
           Transcript 1 (2) -----------------------------------------------------------------Exon 1.7b  PDB: B:171-212 UniProt: 235-276-------------------------------------------------------------------------------------------------------------------------------------- Transcript 1 (2)
                 1lyb B 106 GGVKVERQVFGEATKQPGITFIAAKFDGILGMAYPRISVNNVLPVFDNLMQQKLVDQNIFSFYLSRDPDAQPGGELMLGGTDSKYYKGSLSYLNVTRKAYWQVHLDQVEVASGLTLCKEGCEAIVDTGTSLMVGPVDEVRELQKAIGAVPLIQGEYMIPCEKVSTLPAITLKLGGKGYKLSPEDYTLKVSQAGKTLCLSGFMGMDIPPPSGPLWILGDVFIGRYYTVFDRDNNRVGFAEAA 346
                                   115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345

Chain C from PDB  Type:PROTEIN  Length:97
 aligned with CATD_HUMAN | P07339 from UniProtKB/Swiss-Prot  Length:412

    Alignment length:97
                                    74        84        94       104       114       124       134       144       154
           CATD_HUMAN    65 GPIPEVLKNYMDAQYYGEIGIGTPPQCFTVVFDTGSSNLWVPSIHCKLLDIACWIHHKYNSDKSSTYVKNGTSFDIHYGSGSLSGYLSQDTVSVPCQ 161
               SCOP domains d1lyb.2 C:,D: Cathepsin D                                                                         SCOP domains
               CATH domains 1lybC00 C:1-97 Acid Proteases                                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee...eeeeeeeee...eeeeeeee....eeeeee...hhhhhhhhh............eeeeeeeeeee..eeeeeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --------------PEPTIDASE_A1  PDB: C:15-97 UniProt: 79-407                                          PROSITE (1)
                PROSITE (2) -----------------------------ASP_PROTEASE-------------------------------------------------------- PROSITE (2)
           Transcript 1 (1) Exon 1.3b   Exon 1.4  PDB: C:13-54 UniProt: 77-118    ---------------------------------------1.6  Transcript 1 (1)
           Transcript 1 (2) -----------------------------------------------------Exon 1.5  PDB: C:54-93 UniProt: 118-157 ---- Transcript 1 (2)
                 1lyb C   1 GPIPEVLKNYMDAQYYGEIGIGTPPQCFTVVFDTGSSNLWVPSIHCKLLDIACWIHHKYNSDKSSTYVKNGTSFDIHYGSGSLSGYLSQDTVSVPCQ  97
                                    10        20        30        40        50        60        70        80        90

Chain D from PDB  Type:PROTEIN  Length:241
 aligned with CATD_HUMAN | P07339 from UniProtKB/Swiss-Prot  Length:412

    Alignment length:241
                                   179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379       389       399       409
           CATD_HUMAN   170 GGVKVERQVFGEATKQPGITFIAAKFDGILGMAYPRISVNNVLPVFDNLMQQKLVDQNIFSFYLSRDPDAQPGGELMLGGTDSKYYKGSLSYLNVTRKAYWQVHLDQVEVASGLTLCKEGCEAIVDTGTSLMVGPVDEVRELQKAIGAVPLIQGEYMIPCEKVSTLPAITLKLGGKGYKLSPEDYTLKVSQAGKTLCLSGFMGMDIPPPSGPLWILGDVFIGRYYTVFDRDNNRVGFAEAA 410
               SCOP domains d1lyb.2 C:,D: Cathepsin D                                                                                                                                                                                                                         SCOP domains
               CATH domains 1lybD00 D:106-346 Acid Proteases                                                                                                                                                                                                                  CATH domains
           Pfam domains (1) Asp-1lybD01 D:106-345                                                                                                                                                                                                                           - Pfam domains (1)
           Pfam domains (2) Asp-1lybD02 D:106-345                                                                                                                                                                                                                           - Pfam domains (2)
           Pfam domains (3) Asp-1lybD03 D:106-345                                                                                                                                                                                                                           - Pfam domains (3)
           Pfam domains (4) Asp-1lybD04 D:106-345                                                                                                                                                                                                                           - Pfam domains (4)
         Sec.struct. author ....eeeeeeeeeee...hhhhhh.eeeeeee...........hhhhhhhhhhh....eeeeeee.......eeeeeee.....eeeeeeeeeee.....eeeeeeeeeee..eeeee..eeeeee..eeeeeehhhhhhhhhhhhh.eee...eeeehhhhhhhh.eeeeee..eeeeehhhhhh....eee..eeeeeeeee............hhhhhh..eeeee..eeeeeeeeee Sec.struct. author
                 SAPs(SNPs) -----------------------------------------------------------I----------------------------------------------------R----------------------------------------------------------------------------------------------------C--------------------------- SAPs(SNPs)
                PROSITE (1) PEPTIDASE_A1  PDB: - UniProt: 79-407                                                                                                                                                                                                          --- PROSITE (1)
                PROSITE (2) --------------------------------------------------------------------------------------------------------------------------ASP_PROTEASE----------------------------------------------------------------------------------------------------------- PROSITE (2)
           Transcript 1 (1) Exon 1.6  PDB: D:106-171 UniProt: 158-235 [INCOMPLETE]            ----------------------------------------Exon 1.8c  PDB: D:212-260 UniProt: 276-324       Exon 1.8f  PDB: D:261-293        Exon 1.9d  PDB: D:294-346 UniProt: 358-412            Transcript 1 (1)
           Transcript 1 (2) -----------------------------------------------------------------Exon 1.7b  PDB: D:171-212 UniProt: 235-276-------------------------------------------------------------------------------------------------------------------------------------- Transcript 1 (2)
                 1lyb D 106 GGVKVERQVFGEATKQPGITFIAAKFDGILGMAYPRISVNNVLPVFDNLMQQKLVDQNIFSFYLSRDPDAQPGGELMLGGTDSKYYKGSLSYLNVTRKAYWQVHLDQVEVASGLTLCKEGCEAIVDTGTSLMVGPVDEVRELQKAIGAVPLIQGEYMIPCEKVSTLPAITLKLGGKGYKLSPEDYTLKVSQAGKTLCLSGFMGMDIPPPSGPLWILGDVFIGRYYTVFDRDNNRVGFAEAA 346
                                   115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345

Chain I from PDB  Type:PROTEIN  Length:6

               SCOP domains ------ SCOP domains
               CATH domains ------ CATH domains
               Pfam domains ------ Pfam domains
         Sec.struct. author ...... Sec.struct. author
                 SAPs(SNPs) ------ SAPs(SNPs)
                    PROSITE ------ PROSITE
                 Transcript ------ Transcript
                 1lyb I   1 xVVxAx   6
                            |  | |
                            1-IVA|
                               4-STA
                                 6-STA

Chain J from PDB  Type:PROTEIN  Length:6

               SCOP domains ------ SCOP domains
               CATH domains ------ CATH domains
               Pfam domains ------ Pfam domains
         Sec.struct. author ...... Sec.struct. author
                 SAPs(SNPs) ------ SAPs(SNPs)
                    PROSITE ------ PROSITE
                 Transcript ------ Transcript
                 1lyb J   1 xVVxAx   6
                            |  | |
                            |  | |
                            1-IVA|
                               4-STA
                                 6-STA

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: Acid proteases (1120)

Superfamily: Acid proteases (1120)

Family: Pepsin-like (505)

Protein domain: Cathepsin D (3)

Human (Homo sapiens) [TaxId: 9606] (3)

1a	d1lyb.1	A:,B:
1b	d1lyb.2	C:,D:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Beta (13760)

Architecture: Beta Barrel (4804)

Topology: Cathepsin D, subunit A; domain 1 (745)

Homologous Superfamily: Acid Proteases (745)

Human (Homo sapiens) (161)

1a	1lybA00	A:1-97
1b	1lybC00	C:1-97
1c	1lybB00	B:106-346
1d	1lybD00	D:106-346

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: Peptidase_AA (368)

Family: Asp (155)

Homo sapiens (Human) (116)

1a	Asp-1lybD01	D:106-345
1b	Asp-1lybD02	D:106-345
1c	Asp-1lybD03	D:106-345
1d	Asp-1lybD04	D:106-345

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (CATD_HUMAN | P07339)

molecular function
	GO:0004190	aspartic-type endopeptidase activity	Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a mechanism in which a water molecule bound by the side chains of aspartic residues at the active center acts as a nucleophile.
	GO:0004197	cysteine-type endopeptidase activity	Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a mechanism in which the sulfhydryl group of a cysteine residue at the active center acts as a nucleophile.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0008233	peptidase activity	Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0004252	serine-type endopeptidase activity	Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
biological process
	GO:0019886	antigen processing and presentation of exogenous peptide antigen via MHC class II	The process in which an antigen-presenting cell expresses a peptide antigen of exogenous origin on its cell surface in association with an MHC class II protein complex. The peptide antigen is typically, but not always, processed from a whole protein.
	GO:0006914	autophagy	The process in which cells digest parts of their own cytoplasm; allows for both recycling of macromolecular constituents under conditions of cellular stress and remodeling the intracellular structure for cell differentiation.
	GO:0030574	collagen catabolic process	The proteolytic chemical reactions and pathways resulting in the breakdown of collagen in the extracellular matrix, usually carried out by proteases secreted by nearby cells.
	GO:0030163	protein catabolic process	The chemical reactions and pathways resulting in the breakdown of a protein by the destruction of the native, active configuration, with or without the hydrolysis of peptide bonds.
	GO:0006508	proteolysis	The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
cellular component
	GO:0070062	extracellular exosome	A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
	GO:0031012	extracellular matrix	A structure lying external to one or more cells, which provides structural support for cells or tissues.
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
	GO:0005615	extracellular space	That part of a multicellular organism outside the cells proper, usually taken to be outside the plasma membranes, and occupied by fluid.
	GO:0043202	lysosomal lumen	The volume enclosed within the lysosomal membrane.
	GO:0005764	lysosome	A small lytic vacuole that has cell cycle-independent morphology and is found in most animal cells and that contains a variety of hydrolases, most of which have their maximal activities in the pH range 5-6. The contained enzymes display latency if properly isolated. About 40 different lysosomal hydrolases are known and lysosomes have a great variety of morphologies and functions.
	GO:0042470	melanosome	A tissue-specific, membrane-bounded cytoplasmic organelle within which melanin pigments are synthesized and stored. Melanosomes are synthesized in melanocyte cells.
	GO:0045121	membrane raft	Any of the small (10-200 nm), heterogeneous, highly dynamic, sterol- and sphingolipid-enriched membrane domains that compartmentalize cellular processes. Small rafts can sometimes be stabilized to form larger platforms through protein-protein and protein-lipid interactions.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		BMA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		IVA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MAN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		NAG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		STA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Gln B:176 - Pro B:177	[ RasMol ]
		Gln D:176 - Pro D:177	[ RasMol ]
		Gly B:316 - Pro B:317	[ RasMol ]
		Gly C:1 - Pro C:2	[ RasMol ]
		Gly D:316 - Pro D:317	[ RasMol ]
		Pro B:313 - Pro B:314	[ RasMol ]
		Pro D:313 - Pro D:314	[ RasMol ]
		Thr A:23 - Pro A:24	[ RasMol ]
		Thr C:23 - Pro C:24	[ RasMol ]
		Val A:94 - Pro A:95	[ RasMol ]
		Val C:94 - Pro C:95	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1lyb
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	CATD_HUMAN \| P07339
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.4.23.5
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	610127
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	CATD_HUMAN \| P07339
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	CATD_HUMAN \| P07339	:	1lya 1lyw 4obz 4oc6 4od9

(no "Related Entries Specified in the PDB File" available for 1LYB)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (5, 16)

Sites (6, 6)

SS Bonds (8, 8)

Cis Peptide Bonds (11, 11)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (3, 6)

PROSITE Motifs (2, 6)

Exons (8, 18)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 2)

CATH Domains (1, 4)

Pfam Domains (1, 4)

Gene Ontology (19, 19)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
