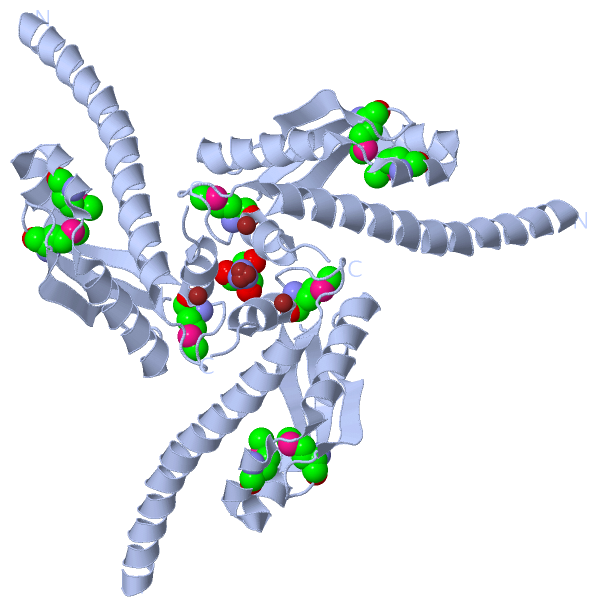

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  PSEUDOMONAS AERUGINOSA TOLA DOMAIN III, SELENO-METHIONINE DERIVATIVE

Authors :  M. Witty, C. Sanz, A. Shah, J. G. Grossman, K. Mizuguchi, R. N. Perham, B.
Date :  14 May 02  (Deposition) - 29 May 02  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.91
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  A  (3x)
Keywords :  Domain-Swapping, Tola, Tonb, Protein Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Witty, C. Sanz, A. Shah, J. G. Grossmann, K. Mizuguchi, R. N. Perham, B. Luisi
Structure Of The Periplasmic Domain Of Pseudomonas Aeruginosa Tola: Evidence For An Evolutionary Relationship With The Tonb Transporter Protein.
Embo J. V. 21 4207 2002
PubMed-ID: 12169623  |  Reference-DOI: 10.1093/EMBOJ/CDF417

(-) Compounds

Molecule 1 - TOLA PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET-11C
    Expression System Strain: BL21(DE3)PLYSS
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: PERIPLASMIC DOMAIN (RESIDUES 226-347)
    Gene: TOLA
    Organism Scientific: PSEUDOMONAS AERUGINOSA
    Organism Taxid: 287

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (1x): A
Biological Unit 2 (3x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 6)

Asymmetric Unit (3, 6)
No.NameCountTypeFull Name
1MSE3Mod. Amino AcidSELENOMETHIONINE
2TRS1Ligand/Ion2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
3ZN2Ligand/IonZINC ION
Biological Unit 1 (2, 4)
No.NameCountTypeFull Name
1MSE3Mod. Amino AcidSELENOMETHIONINE
2TRS1Ligand/Ion2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
3ZN-1Ligand/IonZINC ION
Biological Unit 2 (2, 12)
No.NameCountTypeFull Name
1MSE9Mod. Amino AcidSELENOMETHIONINE
2TRS3Ligand/Ion2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
3ZN-1Ligand/IonZINC ION

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS A:125 , HOH A:421BINDING SITE FOR RESIDUE ZN A 130
2AC2SOFTWAREHIS A:126BINDING SITE FOR RESIDUE ZN A 131
3AC3SOFTWAREASN A:50 , GLU A:119 , HOH A:342BINDING SITE FOR RESIDUE TRS A 303

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1LR0)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1LR0)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1LR0)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1LR0)

(-) Exons   (0, 0)

(no "Exon" information available for 1LR0)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:126
 aligned with TOLA_PSEAE | P50600 from UniProtKB/Swiss-Prot  Length:347

    Alignment length:126
                                                                                                                                                  347
                                   236       246       256       266       276       286       296       306       316       326       336       346|
           TOLA_PSEAE   227 ALAELLSDTTERQQALADEVGSEVTGSLDDLIVNLVSQQWRRPPSARNGMSVEVLIEMLPDGTITNASVSRSSGDKPFDSSAVAAVRNVGRIPEMQQLPRATFDSLYRQRRIIFKPEDLSL-----   -
               SCOP domains d1lr0a_ A: TolA                                                                                                                SCOP domains
               CATH domains 1lr0A00 A:3-128  [code=3.30.1150.10, no name defined]                                                                          CATH domains
               Pfam domains -----------------------------TonB_2-1lr0A01 A:32-107                                                     --------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...........eeeeeee.....eeeeeeee...hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.eeeeeehhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1lr0 A   3 ALAELLSDTTERQQALADEVGSEVTGSLDDLIVNLVSQQWRRPPSARNGmSVEVLIEmLPDGTITNASVSRSSGDKPFDSSAVAAVRNVGRIPEmQQLPRATFDSLYRQRRIIFKPEDLSLHHHHH 128
                                    12        22        32        42        52       |62        72        82        92    |  102       112       122
                                                                            52-MSE  60-MSE                               97-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: TolA-TonB-Cterm (7)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A   (TOLA_PSEAE | P50600)
molecular function
    GO:0005215    transporter activity    Enables the directed movement of substances (such as macromolecules, small molecules, ions) into, out of or within a cell, or between cells.
biological process
    GO:0015031    protein transport    The directed movement of proteins into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    TRS  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1lr0)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1lr0
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  TOLA_PSEAE | P50600
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  TOLA_PSEAE | P50600
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
