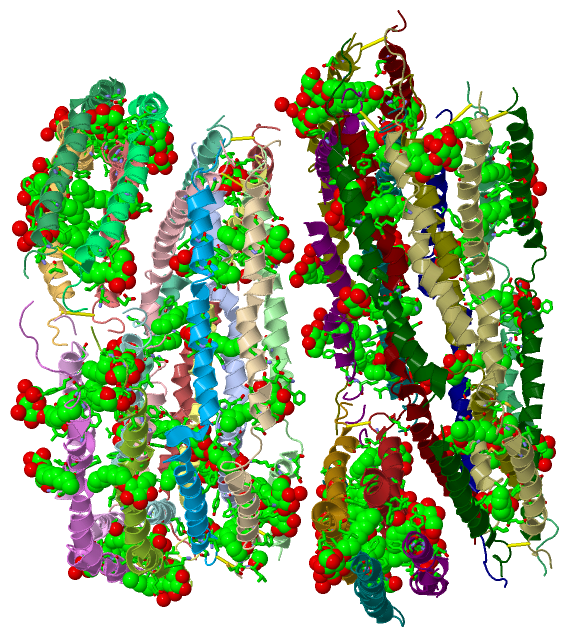

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

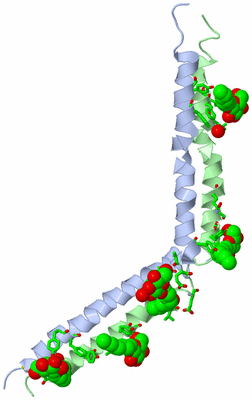

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

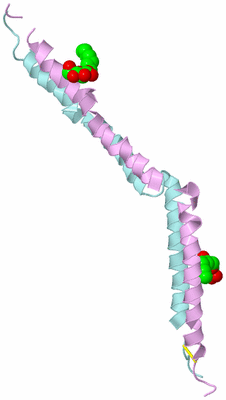

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)
Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)
Image Biological Unit 5
Biological Unit 5  (Jmol Viewer)
Image Biological Unit 6
Biological Unit 6  (Jmol Viewer)
Image Biological Unit 7
Biological Unit 7  (Jmol Viewer)
Image Biological Unit 8
Biological Unit 8  (Jmol Viewer)

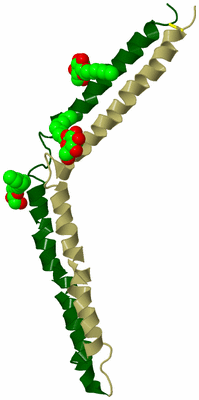

Image Biological Unit 9
Biological Unit 9  (Jmol Viewer)
Image Biological Unit 10
Biological Unit 10  (Jmol Viewer)
Image Biological Unit 11
Biological Unit 11  (Jmol Viewer)

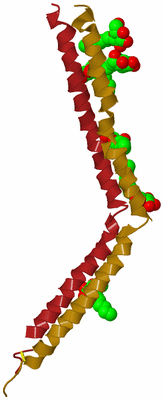

Image Biological Unit 12
Biological Unit 12  (Jmol Viewer)
Image Biological Unit 13
Biological Unit 13  (Jmol Viewer)
Image Biological Unit 14
Biological Unit 14  (Jmol Viewer)
Image Biological Unit 15
Biological Unit 15  (Jmol Viewer)
Image Biological Unit 16
Biological Unit 16  (Jmol Viewer)

(-) Description

Title :  STRUCTURES OF APOLIPOPROTEIN A-II AND A LIPID SURROGATE COMPLEX PROVIDE INSIGHTS INTO APOLIPOPROTEIN-LIPID INTERACTIONS

Authors :  M. S. Kumar, M. Carson, M. M. Hussain, H. M. K. Murthy
Date :  11 Mar 02  (Deposition) - 02 Oct 02  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,I,J,K,L,M,N,P,Q,S,T,U,V,W,X,Y,Z,1,2,3,4,5,6,7,8
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Biol. Unit 3:  E,F  (1x)
Biol. Unit 4:  G,H  (1x)
Biol. Unit 5:  I,J  (1x)
Biol. Unit 6:  K,L  (1x)
Biol. Unit 7:  M,N  (1x)
Biol. Unit 8:  P,Q  (1x)
Biol. Unit 9:  S,T  (1x)
Biol. Unit 10:  U,V  (1x)
Biol. Unit 11:  W,X  (1x)
Biol. Unit 12:  Y,Z  (1x)
Biol. Unit 13:  1,2  (1x)
Biol. Unit 14:  3,4  (1x)
Biol. Unit 15:  5,6  (1x)
Biol. Unit 16:  7,8  (1x)
Keywords :  Apolipoprotein, High Density Lipid, Helix, Apolipoprotein A- Ii, Cholesterol Metabolism, Lipid Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  M. S. Kumar, M. Carson, M. M. Hussain, H. M. Murthy
Structures Of Apolipoprotein A-Ii And A Lipid-Surrogate Complex Provide Insights Into Apolipoprotein-Lipid Interactions.
Biochemistry V. 41 11681 2002
PubMed-ID: 12269810  |  Reference-DOI: 10.1021/BI026069W
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - APOLIPOPROTEIN A-II
    ChainsA, B, C, D, E, F, G, H, I, J, K, L, M, N, P, Q, S, T, U, V, W, X, Y, Z, 1, 2, 3, 4, 5, 6, 7, 8
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    SynonymAPO-AII, APOA-II

 Structural Features

(-) Chains, Units

  1234567891011121314151617181920212223242526272829303132
Asymmetric Unit ABCDEFGHIJKLMNPQSTUVWXYZ12345678
Biological Unit 1 (1x)AB
Biological Unit 2 (1x)  CD
Biological Unit 3 (1x)    EF
Biological Unit 4 (1x)      GH
Biological Unit 5 (1x)        IJ
Biological Unit 6 (1x)          KL
Biological Unit 7 (1x)            MN
Biological Unit 8 (1x)              PQ
Biological Unit 9 (1x)                ST
Biological Unit 10 (1x)                  UV
Biological Unit 11 (1x)                    WX
Biological Unit 12 (1x)                      YZ
Biological Unit 13 (1x)                        12
Biological Unit 14 (1x)                          34
Biological Unit 15 (1x)                            56
Biological Unit 16 (1x)                              78

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 64)

Asymmetric Unit (1, 64)
No.NameCountTypeFull Name
1BOG64Ligand/IonB-OCTYLGLUCOSIDE
Biological Unit 1 (1, 5)
No.NameCountTypeFull Name
1BOG5Ligand/IonB-OCTYLGLUCOSIDE
Biological Unit 2 (1, 3)
No.NameCountTypeFull Name
1BOG3Ligand/IonB-OCTYLGLUCOSIDE
Biological Unit 3 (1, 2)
No.NameCountTypeFull Name
1BOG2Ligand/IonB-OCTYLGLUCOSIDE
Biological Unit 4 (1, 5)
No.NameCountTypeFull Name
1BOG5Ligand/IonB-OCTYLGLUCOSIDE
Biological Unit 5 (1, 4)
No.NameCountTypeFull Name
1BOG4Ligand/IonB-OCTYLGLUCOSIDE
Biological Unit 6 (1, 3)
No.NameCountTypeFull Name
1BOG3Ligand/IonB-OCTYLGLUCOSIDE
Biological Unit 7 (1, 7)
No.NameCountTypeFull Name
1BOG7Ligand/IonB-OCTYLGLUCOSIDE
Biological Unit 8 (1, 4)
No.NameCountTypeFull Name
1BOG4Ligand/IonB-OCTYLGLUCOSIDE
Biological Unit 9 (1, 3)
No.NameCountTypeFull Name
1BOG3Ligand/IonB-OCTYLGLUCOSIDE
Biological Unit 10 (1, 2)
No.NameCountTypeFull Name
1BOG2Ligand/IonB-OCTYLGLUCOSIDE
Biological Unit 11 (1, 3)
No.NameCountTypeFull Name
1BOG3Ligand/IonB-OCTYLGLUCOSIDE
Biological Unit 12 (1, 6)
No.NameCountTypeFull Name
1BOG6Ligand/IonB-OCTYLGLUCOSIDE
Biological Unit 13 (1, 5)
No.NameCountTypeFull Name
1BOG5Ligand/IonB-OCTYLGLUCOSIDE
Biological Unit 14 (1, 3)
No.NameCountTypeFull Name
1BOG3Ligand/IonB-OCTYLGLUCOSIDE
Biological Unit 15 (1, 6)
No.NameCountTypeFull Name
1BOG6Ligand/IonB-OCTYLGLUCOSIDE
Biological Unit 16 (1, 3)
No.NameCountTypeFull Name
1BOG3Ligand/IonB-OCTYLGLUCOSIDE

(-) Sites  (64, 64)

Asymmetric Unit (64, 64)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREPHE A:15 , TYR B:14 , CYS I:6 , VAL I:7 , GLU I:8 , SER I:9 , LEU I:10 , HOH I:1624 , LEU J:10BINDING SITE FOR RESIDUE BOG I 1601
02AC2SOFTWAREVAL B:18 , TYR B:21 , GLY B:22 , TYR I:14 , PHE I:15 , VAL I:18BINDING SITE FOR RESIDUE BOG B 1602
03AC3SOFTWAREGLU A:8 , TYR A:14 , HOH A:1612 , PHE F:15 , GLU J:4 , VAL J:7 , GLU J:8BINDING SITE FOR RESIDUE BOG A 1603
04AC4SOFTWAREVAL A:29 , PRO A:32 , GLU A:33 , ALA A:36 , GLU A:37 , HOH A:1613 , HOH A:1634 , LYS B:28 , BOG I:1605 , TYR J:21 , LEU J:25BINDING SITE FOR RESIDUE BOG A 1604
05AC5SOFTWAREBOG A:1604 , VAL B:29 , GLU B:33 , TYR I:21 , GLY I:22 , LEU I:25 , LYS I:28 , HOH I:1608 , HOH I:1620 , HOH I:1633BINDING SITE FOR RESIDUE BOG I 1605
06AC6SOFTWARETYR A:41 , ALA B:38 , TYR B:41 , PHE B:42 , SER B:45 , SER I:40 , TYR I:41 , LYS I:44 , HOH I:1628BINDING SITE FOR RESIDUE BOG B 1606
07AC7SOFTWAREGLN B:48 , GLN I:48 , GLN J:48 , LEU J:49 , LEU J:52BINDING SITE FOR RESIDUE BOG J 1607
08AC8SOFTWAREPHE A:63 , HOH B:1635 , GLU J:59 , LEU J:60 , PHE J:63 , LEU J:64BINDING SITE FOR RESIDUE BOG J 1608
09AC9SOFTWARELEU B:60 , PHE B:63 , LEU B:64 , TYR B:66 , ASN I:62 , PHE I:63 , TYR I:66 , GLU I:69 , PHE J:63BINDING SITE FOR RESIDUE BOG B 1609
10BC1SOFTWAREGLU C:8 , PHE C:15 , VAL D:7 , LEU D:10 , TYR D:14 , HOH D:1630 , GLU K:8 , VAL K:11 , PHE K:15 , THR K:19 , HOH K:238 , HOH K:1336 , LEU L:10BINDING SITE FOR RESIDUE BOG K 1610
11BC2SOFTWAREGLY D:22 , LEU D:25 , MET D:26 , LYS D:28 , VAL D:29 , LEU K:25 , MET K:26 , VAL K:29 , HOH K:602BINDING SITE FOR RESIDUE BOG D 1612
12BC3SOFTWAREPHE C:42 , ALA D:38 , SER D:40 , LYS D:44 , TYR L:41BINDING SITE FOR RESIDUE BOG D 1613
13BC4SOFTWARELYS C:44 , SER C:45 , GLU C:47 , GLN C:48 , HOH C:1617 , GLN L:48 , LEU L:49 , LEU L:52 , ILE L:53BINDING SITE FOR RESIDUE BOG C 1614
14BC5SOFTWAREGLU C:59 , LEU C:60 , ASN C:62 , PHE C:63 , TYR C:66 , GLU D:59 , PHE D:63 , LEU K:60 , PHE K:63 , GLU L:59 , LEU L:60 , PHE L:63 , LEU L:64 , PHE L:67BINDING SITE FOR RESIDUE BOG L 1615
15BC6SOFTWARETYR K:66 , LEU K:70BINDING SITE FOR RESIDUE BOG K 1616
16BC7SOFTWAREVAL E:7 , GLU E:8 , GLU N:8 , VAL N:11 , PHE N:15BINDING SITE FOR RESIDUE BOG N 1617
17BC8SOFTWAREGLU E:8 , TYR E:14 , PHE E:15 , VAL N:11 , TYR N:14 , PHE N:15 , HOH N:1628BINDING SITE FOR RESIDUE BOG N 1618
18BC9SOFTWAREVAL E:18 , THR E:19 , HOH E:1662 , TYR F:14 , VAL F:18 , TYR F:21 , HOH F:678 , THR M:19 , GLY M:22 , LEU M:25 , TYR N:21 , GLY N:22BINDING SITE FOR RESIDUE BOG F 1619
19CC1SOFTWARELYS M:23 , ASP M:24 , LEU M:25 , MET M:26 , GLU M:27 , LYS M:28 , HOH M:1651BINDING SITE FOR RESIDUE BOG M 1620
20CC2SOFTWAREILE M:53 , LYS M:54 , ALA M:56 , GLY M:57 , LYS N:55BINDING SITE FOR RESIDUE BOG M 1621
21CC3SOFTWARETHR N:50 , ILE N:53 , LYS N:54 , GLY N:57 , HOH N:1626 , HOH N:1656BINDING SITE FOR RESIDUE BOG N 1622
22CC4SOFTWAREASN E:62 , TYR E:66 , HOH E:1626 , HOH E:1650 , HOH E:1657 , PHE N:63 , LEU N:64 , PHE N:67 , BOG N:1624 , HOH N:1649BINDING SITE FOR RESIDUE BOG E 1623
23CC5SOFTWAREASN E:62 , PHE E:63 , TYR E:66 , BOG E:1623 , TYR M:66 , PHE M:67 , VAL M:68 , LEU M:70 , GLY M:71 , PHE N:63 , PHE N:67 , LEU N:70 , HOH N:1680BINDING SITE FOR RESIDUE BOG N 1624
24CC6SOFTWAREPHE E:67 , GLY E:71 , LEU F:70 , LEU M:70 , GLY M:71 , THR M:72 , PRO M:74 , ALA M:75 , PHE N:67BINDING SITE FOR RESIDUE BOG M 1625
25CC7SOFTWAREVAL G:11 , VAL H:7 , GLU H:8 , LEU H:10 , VAL H:11 , HOH H:1643 , LEU P:10 , VAL P:11 , TYR P:14BINDING SITE FOR RESIDUE BOG H 1626
26CC8SOFTWARETYR G:14 , PHE G:15 , VAL P:11 , PHE P:15 , VAL Q:7 , LEU Q:10 , VAL Q:11 , TYR Q:14 , HOH Q:1657 , HOH Q:1658BINDING SITE FOR RESIDUE BOG Q 1627
27CC9SOFTWARETHR G:19 , TYR G:21 , HOH G:1665 , BOG H:1629 , PHE P:15 , TYR Q:14 , PHE Q:15 , THR Q:17 , VAL Q:18 , THR Q:19 , HOH Q:1652 , HOH Q:1654 , HOH Q:1660BINDING SITE FOR RESIDUE BOG Q 1628
28DC1SOFTWAREVAL H:18 , TYR H:21 , GLY H:22 , LEU H:25 , TYR P:21 , GLY P:22 , LEU P:25 , TYR Q:21 , BOG Q:1628BINDING SITE FOR RESIDUE BOG H 1629
29DC2SOFTWAREALA G:38 , PHE G:42 , GLU H:37 , SER H:40 , TYR H:41 , LYS H:44 , GLN H:48 , TYR P:41 , GLU Q:37 , ALA Q:38 , TYR Q:41 , SER Q:45BINDING SITE FOR RESIDUE BOG Q 1630
30DC3SOFTWAREGLN H:48 , LEU H:49 , LEU H:52 , HOH H:1632 , GLN P:48 , PRO P:51 , LEU P:52 , LYS P:55 , GLN Q:48 , LEU Q:52BINDING SITE FOR RESIDUE BOG H 1631
31DC4SOFTWAREGLU H:59 , LEU H:60 , PHE H:63 , LEU H:64 , ASN P:62 , PHE P:63 , TYR P:66BINDING SITE FOR RESIDUE BOG P 1632
32DC5SOFTWAREPHE G:63 , SER G:65 , TYR G:66 , GLU G:69 , HOH G:1668 , HOH G:1670 , HOH G:1675 , PHE H:63 , LEU Q:64 , PHE Q:67BINDING SITE FOR RESIDUE BOG G 1633
33DC6SOFTWARETYR G:66 , GLU G:69 , LEU G:70 , HOH G:1676 , HOH G:1695 , HOH G:1698 , HOH G:1700 , PHE H:67 , LEU H:70 , PHE Q:67BINDING SITE FOR RESIDUE BOG G 1634
34DC7SOFTWARETYR 1:14 , PHE 1:15 , VAL T:18 , TYR T:21 , GLY T:22 , HOH T:80BINDING SITE FOR RESIDUE BOG T 1702
35DC8SOFTWAREGLU 1:8 , VAL 2:7 , TYR S:14 , PHE X:15BINDING SITE FOR RESIDUE BOG 2 1703
36DC9SOFTWAREBOG 1:1705 , TYR 2:21 , LEU 2:25 , VAL S:29 , PRO S:32 , GLU S:33 , ALA S:36 , GLU S:37 , HOH S:1723 , LYS T:28BINDING SITE FOR RESIDUE BOG S 1704
37EC1SOFTWARETYR 1:21 , GLY 1:22 , LEU 1:25 , LYS 1:28 , BOG S:1704 , VAL T:29 , GLU T:33BINDING SITE FOR RESIDUE BOG 1 1705
38EC2SOFTWARESER 1:40 , TYR 1:41 , LYS 1:44 , HOH 1:1710 , ALA 2:38 , TYR S:41 , ALA T:38 , TYR T:41 , PHE T:42 , SER T:45BINDING SITE FOR RESIDUE BOG T 1706
39EC3SOFTWAREGLN 1:48 , GLN 2:48 , LEU 2:49 , LEU 2:52 , GLN T:48BINDING SITE FOR RESIDUE BOG 1 1707
40EC4SOFTWAREGLU 2:59 , LEU 2:60 , PHE 2:63 , HOH 2:1734 , ASN S:62 , PHE S:63BINDING SITE FOR RESIDUE BOG 2 1708
41EC5SOFTWAREASN 1:62 , PHE 1:63 , TYR 1:66 , GLU 1:69 , PHE 2:63 , LEU T:60 , PHE T:63 , LEU T:64 , TYR T:66BINDING SITE FOR RESIDUE BOG 1 1709
42EC6SOFTWAREGLU 3:8 , VAL 3:11 , PHE 3:15 , LEU 4:10 , THR 4:17 , GLU U:8 , VAL U:11 , PHE U:15 , LEU V:10BINDING SITE FOR RESIDUE BOG U 1710
43EC7SOFTWAREGLY 3:22 , LEU 3:25 , MET 3:26 , VAL 3:29 , LYS 4:28 , LEU V:25 , MET V:26 , VAL V:29BINDING SITE FOR RESIDUE BOG 3 1712
44EC8SOFTWARESER 4:45 , GLN 4:48 , LEU 4:49 , LEU 4:52 , LYS U:44 , GLU U:47 , GLN U:48BINDING SITE FOR RESIDUE BOG 4 1714
45EC9SOFTWARELEU 3:60 , GLU 4:59 , LEU 4:60 , PHE 4:67 , THR U:58 , GLU U:59 , ASN U:62 , PHE U:63 , TYR U:66 , HOH U:1727 , HOH U:1729BINDING SITE FOR RESIDUE BOG U 1715
46FC1SOFTWARETYR 3:66 , HOH V:734BINDING SITE FOR RESIDUE BOG 3 1716
47FC2SOFTWAREGLU 5:8 , GLU 6:8 , VAL 6:11 , HOH 6:1727 , PRO W:5 , HOH W:762BINDING SITE FOR RESIDUE BOG 6 1717
48FC3SOFTWAREVAL 6:11 , TYR W:14 , PHE W:15 , HOH W:405BINDING SITE FOR RESIDUE BOG W 1718
49FC4SOFTWARETYR 5:21 , LEU 5:25 , HOH 5:724 , LEU 6:25 , THR W:19 , TYR X:21 , LEU X:25BINDING SITE FOR RESIDUE BOG 5 1719
50FC5SOFTWARELYS 5:23 , ASP 5:24 , GLU 5:27 , LYS 5:28 , LYS 5:30 , HOH 5:291BINDING SITE FOR RESIDUE BOG 5 1720
51FC6SOFTWAREILE 5:53 , LYS 5:54 , ALA 5:56 , GLY 5:57 , HOH 5:868 , PRO 6:51BINDING SITE FOR RESIDUE BOG 5 1721
52FC7SOFTWARETHR 6:50 , ILE 6:53 , LYS 6:54 , HOH 6:1728BINDING SITE FOR RESIDUE BOG 6 1722
53FC8SOFTWAREBOG 5:1724 , PHE 6:63 , LEU 6:64 , PHE 6:67 , ASN W:62 , PHE W:63 , TYR W:66 , HOH W:271BINDING SITE FOR RESIDUE BOG W 1723
54FC9SOFTWARETYR 5:66 , PHE 5:67 , LEU 5:70 , PHE 6:67 , PHE W:63 , TYR W:66 , PHE W:67 , GLU W:69 , BOG W:1723 , BOG X:1725BINDING SITE FOR RESIDUE BOG 5 1724
55GC1SOFTWAREGLN 5:73 , BOG 5:1724 , PHE W:67 , LEU W:70 , LEU X:70 , GLY X:71 , HOH X:1733 , HOH X:1742BINDING SITE FOR RESIDUE BOG X 1725
56GC2SOFTWARELEU 7:10 , VAL 7:11 , TYR 7:14 , GLU Y:8 , VAL Y:11 , GLU Z:4 , VAL Z:7 , LEU Z:10 , VAL Z:11BINDING SITE FOR RESIDUE BOG 7 1726
57GC3SOFTWAREVAL 7:11 , PHE 7:15 , VAL 8:7 , LEU 8:10 , VAL 8:11 , TYR 8:14 , HOH 8:1785 , TYR Y:14 , PHE Y:15 , HOH Y:1754BINDING SITE FOR RESIDUE BOG 8 1727
58GC4SOFTWARETYR 8:14 , PHE 8:15 , THR 8:17 , VAL 8:18 , THR 8:19 , THR Y:19BINDING SITE FOR RESIDUE BOG 8 1728
59GC5SOFTWAREGLY 7:22 , LEU 7:25 , THR 8:17 , TYR 8:21 , VAL Z:18 , TYR Z:21 , GLY Z:22 , LEU Z:25BINDING SITE FOR RESIDUE BOG Z 1729
60GC6SOFTWAREALA 8:38 , TYR 8:41 , GLN 8:48 , ALA Y:38 , PHE Y:42 , GLN Y:48 , GLU Z:37 , SER Z:40 , TYR Z:41 , GLN Z:48 , HOH Z:1738BINDING SITE FOR RESIDUE BOG Y 1730
61GC7SOFTWAREGLN 7:48 , PRO 7:51 , LEU 7:52 , GLN Y:48 , GLN Z:48 , LEU Z:49 , LEU Z:52 , HOH Z:1750BINDING SITE FOR RESIDUE BOG Z 1731
62GC8SOFTWAREASN 7:62 , PHE 7:63 , TYR 7:66 , PHE 7:67 , LEU Z:60 , PHE Z:63 , LEU Z:64 , HOH Z:1754BINDING SITE FOR RESIDUE BOG Z 1732
63GC9SOFTWAREPHE 7:67 , PHE 8:63 , PHE 8:67 , ASN Y:62 , PHE Y:63 , TYR Y:66 , GLU Y:69 , HOH Y:1748 , HOH Y:1753BINDING SITE FOR RESIDUE BOG Y 1733
64HC1SOFTWARETYR Y:66 , PHE Y:67 , GLU Y:69 , LEU Y:70 , TYR Z:66 , PHE Z:67BINDING SITE FOR RESIDUE BOG Y 1734

(-) SS Bonds  (16, 16)

Asymmetric Unit
No.Residues
11:6 -2:6
23:6 -4:6
35:6 -6:6
47:6 -8:6
5A:6 -B:6
6C:6 -D:6
7E:6 -F:6
8G:6 -H:6
9I:6 -J:6
10K:6 -L:6
11M:6 -N:6
12P:6 -Q:6
13S:6 -T:6
14U:6 -V:6
15W:6 -X:6
16Y:6 -Z:6

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1L6L)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1L6L)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1L6L)

(-) Exons   (2, 64)

Asymmetric Unit (2, 64)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1bENST000003679901bENSE00001041701chr1:161193418-16119338534APOA2_HUMAN-00--
1.1gENST000003679901gENSE00002171095chr1:161193215-16119314076APOA2_HUMAN1-18180--
1.1jENST000003679901jENSE00001041702chr1:161192840-161192708133APOA2_HUMAN18-6245321:4-39 (gaps)
2:4-39 (gaps)
3:2-39 (gaps)
4:2-39 (gaps)
5:2-39
6:2-39
7:2-39 (gaps)
8:2-39
A:4-39
B:4-39
C:2-39
D:2-39 (gaps)
E:2-39 (gaps)
F:2-39 (gaps)
G:2-39
H:2-39
I:4-39 (gaps)
J:4-39
K:2-39 (gaps)
L:2-39
M:2-39
N:2-39
P:2-39 (gaps)
Q:2-39
S:4-39
T:4-39
U:2-39
V:2-39 (gaps)
W:2-39 (gaps)
X:2-39 (gaps)
Y:2-39
Z:3-39 (gaps)
36
36
38
38
38
38
38
38
36
36
38
38
38
38
38
38
36
36
38
38
38
38
38
38
36
36
38
38
38
38
38
37
1.2fENST000003679902fENSE00001894959chr1:161192312-161192082231APOA2_HUMAN62-10039321:39-77
2:39-77
3:39-77
4:39-77
5:39-77 (gaps)
6:39-77 (gaps)
7:39-75 (gaps)
8:39-75
A:39-77
B:39-77
C:39-77
D:39-77
E:39-77 (gaps)
F:39-77
G:39-75
H:39-75
I:39-77
J:39-77
K:39-77
L:39-77 (gaps)
M:39-77
N:39-77
P:39-75
Q:39-75 (gaps)
S:39-77
T:39-77
U:39-77
V:39-77
W:39-77 (gaps)
X:39-77
Y:39-75
Z:39-75
39
39
39
39
39
39
37
37
39
39
39
39
39
39
37
37
39
39
39
39
39
39
37
37
39
39
39
39
39
39
37
37

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain 1 from PDB  Type:PROTEIN  Length:73
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:74
                                    36        46        56        66        76        86        96
          APOA2_HUMAN    27 EPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6l1_  1: Apolipoprotein A-II                                            SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......-..hhhhhhhhhhhhhhhhhh.......hhhhh.hhhhhhhhhhhhhhhhhhhh............. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: 1:4-39 (gaps)       -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -----------------------------------Exon 1.2f  PDB: 1:39-77 UniProt: 62-100 Transcript 1 (2)
                 1l6l 1   4 EPCVESL-SQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ  77
                                  | 13        23        33        43        53        63        73
                                 10 |
                                   12

Chain 2 from PDB  Type:PROTEIN  Length:73
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:74
                                    36        46        56        66        76        86        96
          APOA2_HUMAN    27 EPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6 l2_ 2: Apolipoprotein A-II                                            SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....-.hhhhhhhhhhhhhhhhhhh..hhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: 2:4-39 (gaps)       -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -----------------------------------Exon 1.2f  PDB: 2:39-77 UniProt: 62-100 Transcript 1 (2)
                 1l6l 2   4 EPCV-SLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ  77
                               | |  13        23        33        43        53        63        73
                               7 9

Chain 3 from PDB  Type:PROTEIN  Length:73
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:76
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6l3_ 3: Apolipoprotein A-II                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhhh........---.hhhhhhhhhhhhhhhhhhhhh..hhhhhh......... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: 3:2-39 (gaps)         -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: 3:39-77 UniProt: 62-100 Transcript 1 (2)
                 1l6l 3   2 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQ---KSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ  77
                                    11        21        31   |   |41        51        61        71
                                                            35  39

Chain 4 from PDB  Type:PROTEIN  Length:74
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:76
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6l4 _ 4: Apolipoprotein A-II                                              SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......-hhhhhhhhhhhhhhhhhhhhhh..-.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: 4:2-39 (gaps)         -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: 4:39-77 UniProt: 62-100 Transcript 1 (2)
                 1l6l 4   2 AKEPCV-SLVSQYFQTVTDYGKDLMEKVKSP-LQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ  77
                                 | |11        21        31| |     41        51        61        71
                                 7 9                     32 |
                                                           34

Chain 5 from PDB  Type:PROTEIN  Length:75
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:76
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6l5_ 5: Apolipoprotein A-II                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhh...hhhhhhhhh...hhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhh.-..... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: 5:2-39 UniProt: 18-62 -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: 5:39-77 (gaps)          Transcript 1 (2)
                 1l6l 5   2 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELG-QPATQ  77
                                    11        21        31        41        51        61        71 |
                                                                                                71 |
                                                                                                  73

Chain 6 from PDB  Type:PROTEIN  Length:75
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:76
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6l6_ 6: Apolipoprotein A-II                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..........-. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: 6:2-39 UniProt: 18-62 -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: 6:39-77 (gaps)          Transcript 1 (2)
                 1l6l 6   2 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPA-Q  77
                                    11        21        31        41        51        61        71   | |
                                                                                                    75 |
                                                                                                      77

Chain 7 from PDB  Type:PROTEIN  Length:70
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:74
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPA  98
               SCOP domains d1l6l7_ 7: Apolipoprotein A-II                                             SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhhhhhh.....---.hhhhhh-..hhhhhhhhhh....hhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: 7:2-39 (gaps)         ------------------------------------ Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: 7:39-75 (gaps)        Transcript 1 (2)
                 1l6l 7   2 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQ---KSYFEKS-EQLTPLIKKAGTELVNFLSYFVELGTQPA  75
                                    11        21        31   |   |41   | |  51        61        71
                                                            35  39    45 |
                                                                        47

Chain 8 from PDB  Type:PROTEIN  Length:74
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:74
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPA  98
               SCOP domains d1l6l8_ 8: Apolipoprotein A-II                                             SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: 8:2-39 UniProt: 18-62 ------------------------------------ Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: 8:39-75 [INCOMPLETE]  Transcript 1 (2)
                 1l6l 8   2 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPA  75
                                    11        21        31        41        51        61        71

Chain A from PDB  Type:PROTEIN  Length:74
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:74
                                    36        46        56        66        76        86        96
          APOA2_HUMAN    27 EPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6la_ A: Apolipoprotein A-II                                             SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: A:4-39 [INCOMPLETE] -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -----------------------------------Exon 1.2f  PDB: A:39-77 UniProt: 62-100 Transcript 1 (2)
                 1l6l A   4 EPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ  77
                                    13        23        33        43        53        63        73

Chain B from PDB  Type:PROTEIN  Length:74
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:74
                                    36        46        56        66        76        86        96
          APOA2_HUMAN    27 EPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6lb_ B: Apolipoprotein A-II                                             SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: B:4-39 [INCOMPLETE] -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -----------------------------------Exon 1.2f  PDB: B:39-77 UniProt: 62-100 Transcript 1 (2)
                 1l6l B   4 EPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ  77
                                    13        23        33        43        53        63        73

Chain C from PDB  Type:PROTEIN  Length:76
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:76
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6lc_ C: Apolipoprotein A-II                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhh........hhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: C:2-39 UniProt: 18-62 -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: C:39-77 UniProt: 62-100 Transcript 1 (2)
                 1l6l C   2 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ  77
                                    11        21        31        41        51        61        71

Chain D from PDB  Type:PROTEIN  Length:74
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:76
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6ld_ D: Apolipoprotein A-II                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhh....--hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: D:2-39 (gaps)         -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: D:39-77 UniProt: 62-100 Transcript 1 (2)
                 1l6l D   2 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQ--AKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ  77
                                    11        21        31   |  | 41        51        61        71
                                                            35 38

Chain E from PDB  Type:PROTEIN  Length:72
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:76
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6le_ E: Apolipoprotein A-II                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh---hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..-... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: E:2-39 (gaps)         -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: E:39-77 (gaps)          Transcript 1 (2)
                 1l6l E   2 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQ---KSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQ-ATQ  77
                                    11        21        31   |   |41        51        61        71 | |
                                                            35  39                                73 |
                                                                                                    75

Chain F from PDB  Type:PROTEIN  Length:75
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:76
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6lf _ F: Apolipoprotein A-II                                              SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......-hhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: F:2-39 (gaps)         -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: F:39-77 UniProt: 62-100 Transcript 1 (2)
                 1l6l F   2 AKEPCV-SLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ  77
                                 | |11        21        31        41        51        61        71
                                 7 9

Chain G from PDB  Type:PROTEIN  Length:74
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:74
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPA  98
               SCOP domains d1l6lg_ G: Apolipoprotein A-II                                             SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: G:2-39 UniProt: 18-62 ------------------------------------ Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: G:39-75 [INCOMPLETE]  Transcript 1 (2)
                 1l6l G   2 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPA  75
                                    11        21        31        41        51        61        71

Chain H from PDB  Type:PROTEIN  Length:74
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:74
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPA  98
               SCOP domains d1l6lh_ H: Apolipoprotein A-II                                             SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: H:2-39 UniProt: 18-62 ------------------------------------ Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: H:39-75 [INCOMPLETE]  Transcript 1 (2)
                 1l6l H   2 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPA  75
                                    11        21        31        41        51        61        71

Chain I from PDB  Type:PROTEIN  Length:73
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:74
                                    36        46        56        66        76        86        96
          APOA2_HUMAN    27 EPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6li_  I: Apolipoprotein A-II                                            SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......-..hhhhhhhhhhhhhhhhhh.......hhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: I:4-39 (gaps)       -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -----------------------------------Exon 1.2f  PDB: I:39-77 UniProt: 62-100 Transcript 1 (2)
                 1l6l I   4 EPCVESL-SQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ  77
                                  | 13        23        33        43        53        63        73
                                 10 |
                                   12

Chain J from PDB  Type:PROTEIN  Length:74
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:74
                                    36        46        56        66        76        86        96
          APOA2_HUMAN    27 EPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6lj_ J: Apolipoprotein A-II                                             SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: J:4-39 [INCOMPLETE] -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -----------------------------------Exon 1.2f  PDB: J:39-77 UniProt: 62-100 Transcript 1 (2)
                 1l6l J   4 EPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ  77
                                    13        23        33        43        53        63        73

Chain K from PDB  Type:PROTEIN  Length:74
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:76
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6lk_ K: Apolipoprotein A-II                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhhh.........--hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: K:2-39 (gaps)         -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: K:39-77 UniProt: 62-100 Transcript 1 (2)
                 1l6l K   2 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQA--KSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ  77
                                    11        21        31    |  |41        51        61        71
                                                             36 39

Chain L from PDB  Type:PROTEIN  Length:74
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:76
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6ll_ L: Apolipoprotein A-II                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh-...-... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: L:2-39 UniProt: 18-62 -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: L:39-77 (gaps)          Transcript 1 (2)
                 1l6l L   2 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVE-GTQ-ATQ  77
                                    11        21        31        41        51        61       |71 | |
                                                                                              69 | | |
                                                                                                71 | |
                                                                                                  73 |
                                                                                                    75

Chain M from PDB  Type:PROTEIN  Length:76
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:76
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6lm_ M: Apolipoprotein A-II                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhh.hhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: M:2-39 UniProt: 18-62 -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: M:39-77 UniProt: 62-100 Transcript 1 (2)
                 1l6l M   2 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ  77
                                    11        21        31        41        51        61        71

Chain N from PDB  Type:PROTEIN  Length:76
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:76
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6ln_ N: Apolipoprotein A-II                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhh.hhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh............ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: N:2-39 UniProt: 18-62 -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: N:39-77 UniProt: 62-100 Transcript 1 (2)
                 1l6l N   2 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ  77
                                    11        21        31        41        51        61        71

Chain P from PDB  Type:PROTEIN  Length:73
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:74
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPA  98
               SCOP domains d1l6lp_ P: Apolipoprotein A-II                                             SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhhhhhh.......-hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: P:2-39 (gaps)         ------------------------------------ Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: P:39-75 [INCOMPLETE]  Transcript 1 (2)
                 1l6l P   2 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAE-KSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPA  75
                                    11        21        31     | |41        51        61        71
                                                              37 |
                                                                39

Chain Q from PDB  Type:PROTEIN  Length:73
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:74
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPA  98
               SCOP domains d1l6lq_ Q: Apolipoprotein A-II                                             SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhh.hhhhhh.-hhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: Q:2-39 UniProt: 18-62 ------------------------------------ Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: Q:39-75 (gaps)        Transcript 1 (2)
                 1l6l Q   2 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVN-LSYFVELGTQPA  75
                                    11        21        31        41        51        61| |     71
                                                                                       62 |
                                                                                         64

Chain S from PDB  Type:PROTEIN  Length:74
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:74
                                    36        46        56        66        76        86        96
          APOA2_HUMAN    27 EPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6ls_ S: Apolipoprotein A-II                                             SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: S:4-39 [INCOMPLETE] -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -----------------------------------Exon 1.2f  PDB: S:39-77 UniProt: 62-100 Transcript 1 (2)
                 1l6l S   4 EPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ  77
                                    13        23        33        43        53        63        73

Chain T from PDB  Type:PROTEIN  Length:74
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:74
                                    36        46        56        66        76        86        96
          APOA2_HUMAN    27 EPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6lt_ T: Apolipoprotein A-II                                             SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: T:4-39 [INCOMPLETE] -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -----------------------------------Exon 1.2f  PDB: T:39-77 UniProt: 62-100 Transcript 1 (2)
                 1l6l T   4 EPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ  77
                                    13        23        33        43        53        63        73

Chain U from PDB  Type:PROTEIN  Length:76
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:76
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6lu_ U: Apolipoprotein A-II                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: U:2-39 UniProt: 18-62 -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: U:39-77 UniProt: 62-100 Transcript 1 (2)
                 1l6l U   2 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ  77
                                    11        21        31        41        51        61        71

Chain V from PDB  Type:PROTEIN  Length:75
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:76
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6lv_ V: Apolipoprotein A-II                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhh......-hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: V:2-39 (gaps)         -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: V:39-77 UniProt: 62-100 Transcript 1 (2)
                 1l6l V   2 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQA-AKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ  77
                                    11        21        31    | | 41        51        61        71
                                                             36 |
                                                               38

Chain W from PDB  Type:PROTEIN  Length:73
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:76
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6lw_ W: Apolipoprotein A-II                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh-.-hhhhhhhhhhhhhhhhhhhhhhhhhhhhh......-... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: W:2-39 (gaps)         -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: W:39-77 (gaps)          Transcript 1 (2)
                 1l6l W   2 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQ-E-KSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQ-ATQ  77
                                    11        21        31   | | |41        51        61        71 | |
                                                            35 | |                                73 |
                                                              37 |                                  75
                                                                39

Chain X from PDB  Type:PROTEIN  Length:75
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:76
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ 100
               SCOP domains d1l6lx _ X: Apolipoprotein A-II                                              SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......-hhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: X:2-39 (gaps)         -------------------------------------- Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: X:39-77 UniProt: 62-100 Transcript 1 (2)
                 1l6l X   2 AKEPCV-SLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPATQ  77
                                 | |11        21        31        41        51        61        71
                                 7 9

Chain Y from PDB  Type:PROTEIN  Length:74
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:74
                                    34        44        54        64        74        84        94
          APOA2_HUMAN    25 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPA  98
               SCOP domains d1l6ly_ Y: Apolipoprotein A-II                                             SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: Y:2-39 UniProt: 18-62 ------------------------------------ Transcript 1 (1)
           Transcript 1 (2) -------------------------------------Exon 1.2f  PDB: Y:39-75 [INCOMPLETE]  Transcript 1 (2)
                 1l6l Y   2 AKEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPA  75
                                    11        21        31        41        51        61        71

Chain Z from PDB  Type:PROTEIN  Length:72
 aligned with APOA2_HUMAN | P02652 from UniProtKB/Swiss-Prot  Length:100

    Alignment length:73
                                    35        45        55        65        75        85        95
          APOA2_HUMAN    26 KEPCVESLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPA  98
               SCOP domains d1l6l z_ Z: Apolipoprotein A-II                                           SCOP domains
               CATH domains ------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ApoA- II-1l6lZ01 Z:3-75                                                   Pfam domains (1)
           Pfam domains (2) ApoA- II-1l6lZ02 Z:3-75                                                   Pfam domains (2)
           Pfam domains (3) ApoA- II-1l6lZ03 Z:3-75                                                   Pfam domains (3)
           Pfam domains (4) ApoA- II-1l6lZ04 Z:3-75                                                   Pfam domains (4)
           Pfam domains (5) ApoA- II-1l6lZ05 Z:3-75                                                   Pfam domains (5)
           Pfam domains (6) ApoA- II-1l6lZ06 Z:3-75                                                   Pfam domains (6)
           Pfam domains (7) ApoA- II-1l6lZ07 Z:3-75                                                   Pfam domains (7)
           Pfam domains (8) ApoA- II-1l6lZ08 Z:3-75                                                   Pfam domains (8)
           Pfam domains (9) ApoA- II-1l6lZ09 Z:3-75                                                   Pfam domains (9)
          Pfam domains (10) ApoA- II-1l6lZ10 Z:3-75                                                   Pfam domains (10)
          Pfam domains (11) ApoA- II-1l6lZ11 Z:3-75                                                   Pfam domains (11)
          Pfam domains (12) ApoA- II-1l6lZ12 Z:3-75                                                   Pfam domains (12)
          Pfam domains (13) ApoA- II-1l6lZ13 Z:3-75                                                   Pfam domains (13)
          Pfam domains (14) ApoA- II-1l6lZ14 Z:3-75                                                   Pfam domains (14)
          Pfam domains (15) ApoA- II-1l6lZ15 Z:3-75                                                   Pfam domains (15)
          Pfam domains (16) ApoA- II-1l6lZ16 Z:3-75                                                   Pfam domains (16)
          Pfam domains (17) ApoA- II-1l6lZ17 Z:3-75                                                   Pfam domains (17)
          Pfam domains (18) ApoA- II-1l6lZ18 Z:3-75                                                   Pfam domains (18)
          Pfam domains (19) ApoA- II-1l6lZ19 Z:3-75                                                   Pfam domains (19)
          Pfam domains (20) ApoA- II-1l6lZ20 Z:3-75                                                   Pfam domains (20)
          Pfam domains (21) ApoA- II-1l6lZ21 Z:3-75                                                   Pfam domains (21)
          Pfam domains (22) ApoA- II-1l6lZ22 Z:3-75                                                   Pfam domains (22)
          Pfam domains (23) ApoA- II-1l6lZ23 Z:3-75                                                   Pfam domains (23)
          Pfam domains (24) ApoA- II-1l6lZ24 Z:3-75                                                   Pfam domains (24)
          Pfam domains (25) ApoA- II-1l6lZ25 Z:3-75                                                   Pfam domains (25)
          Pfam domains (26) ApoA- II-1l6lZ26 Z:3-75                                                   Pfam domains (26)
          Pfam domains (27) ApoA- II-1l6lZ27 Z:3-75                                                   Pfam domains (27)
          Pfam domains (28) ApoA- II-1l6lZ28 Z:3-75                                                   Pfam domains (28)
          Pfam domains (29) ApoA- II-1l6lZ29 Z:3-75                                                   Pfam domains (29)
          Pfam domains (30) ApoA- II-1l6lZ30 Z:3-75                                                   Pfam domains (30)
          Pfam domains (31) ApoA- II-1l6lZ31 Z:3-75                                                   Pfam domains (31)
          Pfam domains (32) ApoA- II-1l6lZ32 Z:3-75                                                   Pfam domains (32)
         Sec.struct. author .....-hhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1j  PDB: Z:3-39 (gaps)        ------------------------------------ Transcript 1 (1)
           Transcript 1 (2) ------------------------------------Exon 1.2f  PDB: Z:39-75 [INCOMPLETE]  Transcript 1 (2)
                 1l6l Z   3 KEPCV-SLVSQYFQTVTDYGKDLMEKVKSPELQAEAKSYFEKSKEQLTPLIKKAGTELVNFLSYFVELGTQPA  75
                                | | 12        22        32        42        52        62        72
                                7 9

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 32)

Asymmetric Unit

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1L6L)

(-) Pfam Domains  (1, 32)

Asymmetric Unit

(-) Gene Ontology  (67, 67)

Asymmetric Unit(hide GO term definitions)
Chain 1,2,3,4,5,6,7,8,A,B,C,D,E,F,G,H,I,J,K,L,M,N,P,Q,S,T,U,V,W,X,Y,Z   (APOA2_HUMAN | P02652)
molecular function
    GO:0034190    apolipoprotein receptor binding    Interacting selectively and non-covalently with an apolipoprotein receptor.
    GO:0015485    cholesterol binding    Interacting selectively and non-covalently with cholesterol (cholest-5-en-3-beta-ol); the principal sterol of vertebrates and the precursor of many steroids, including bile acids and steroid hormones.
    GO:0017127    cholesterol transporter activity    Enables the directed movement of cholesterol into, out of or within a cell, or between cells. Cholesterol is the principal sterol of vertebrates and the precursor of many steroids, including bile acids and steroid hormones.
    GO:0008035    high-density lipoprotein particle binding    Interacting selectively and non-covalently with high-density lipoprotein particle, a lipoprotein particle with a high density (typically 1.063-1.21 g/ml) and a diameter of 5-10 nm that contains APOAs and may contain APOCs and APOE.
    GO:0070653    high-density lipoprotein particle receptor binding    Interacting selectively and non-covalently with a high-density lipoprotein receptor.
    GO:0055102    lipase inhibitor activity    Stops, prevents or reduces the activity of a lipase, an enzyme that catalyzes of the hydrolysis of a lipid.
    GO:0008289    lipid binding    Interacting selectively and non-covalently with a lipid.
    GO:0005319    lipid transporter activity    Enables the directed movement of lipids into, out of or within a cell, or between cells.
    GO:0031210    phosphatidylcholine binding    Interacting selectively and non-covalently with phosphatidylcholine, a class of glycophospholipids in which a phosphatidyl group is esterified to the hydroxyl group of choline.
    GO:0060228    phosphatidylcholine-sterol O-acyltransferase activator activity    Increases the activity of phosphatidylcholine-sterol O-acyltransferase, an enzyme that converts cholesterol and phosphatidylcholine (lecithins) to cholesteryl esters and lyso-phosphatidylcholines.
    GO:0005543    phospholipid binding    Interacting selectively and non-covalently with phospholipids, a class of lipids containing phosphoric acid as a mono- or diester.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0046982    protein heterodimerization activity    Interacting selectively and non-covalently with a nonidentical protein to form a heterodimer.
    GO:0042803    protein homodimerization activity    Interacting selectively and non-covalently with an identical protein to form a homodimer.
biological process
    GO:0002526    acute inflammatory response    Inflammation which comprises a rapid, short-lived, relatively uniform response to acute injury or antigenic challenge and is characterized by accumulations of fluid, plasma proteins, and granulocytic leukocytes. An acute inflammatory response occurs within a matter of minutes or hours, and either resolves within a few days or becomes a chronic inflammatory response.
    GO:0031100    animal organ regeneration    The regrowth of a lost or destroyed animal organ.
    GO:0033344    cholesterol efflux    The directed movement of cholesterol, cholest-5-en-3-beta-ol, out of a cell or organelle.
    GO:0042632    cholesterol homeostasis    Any process involved in the maintenance of an internal steady state of cholesterol within an organism or cell.
    GO:0008203    cholesterol metabolic process    The chemical reactions and pathways involving cholesterol, cholest-5-en-3 beta-ol, the principal sterol of vertebrates and the precursor of many steroids, including bile acids and steroid hormones. It is a component of the plasma membrane lipid bilayer and of plasma lipoproteins and can be found in all animal tissues.
    GO:0030301    cholesterol transport    The directed movement of cholesterol, cholest-5-en-3-beta-ol, into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0046340    diacylglycerol catabolic process    The chemical reactions and pathways resulting in the breakdown of diacylglycerol, a glyceride in which any two of the R groups (positions not specified) are acyl groups while the remaining R group can be either H or an alkyl group.
    GO:0034380    high-density lipoprotein particle assembly    The non-covalent aggregation and arrangement of proteins and lipids to form a high-density lipoprotein particle.
    GO:0034384    high-density lipoprotein particle clearance    The process in which a high-density lipoprotein particle is removed from the blood via receptor-mediated endocytosis and its constituent parts degraded.
    GO:0034375    high-density lipoprotein particle remodeling    The acquisition, loss or modification of a protein or lipid within a high-density lipoprotein particle, including the hydrolysis of triglyceride by hepatic lipase, with the subsequent loss of free fatty acid, and the transfer of cholesterol esters from LDL to a triglyceride-rich lipoprotein particle by cholesteryl ester transfer protein (CETP), with the simultaneous transfer of triglyceride to LDL.
    GO:0006869    lipid transport    The directed movement of lipids into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore. Lipids are compounds soluble in an organic solvent but not, or sparingly, in an aqueous solvent.
    GO:0042158    lipoprotein biosynthetic process    The chemical reactions and pathways resulting in the formation of any conjugated, water-soluble protein in which the covalently attached nonprotein group consists of a lipid or lipids.
    GO:0042157    lipoprotein metabolic process    The chemical reactions and pathways involving any conjugated, water-soluble protein in which the covalently attached nonprotein group consists of a lipid or lipids.
    GO:0034374    low-density lipoprotein particle remodeling    The acquisition, loss or modification of a protein or lipid within a low-density lipoprotein particle, including the hydrolysis of triglyceride by hepatic lipase, with the subsequent loss of free fatty acid, and the transfer of cholesterol esters from LDL to a triglyceride-rich lipoprotein particle by cholesteryl ester transfer protein (CETP), with the simultaneous transfer of triglyceride to LDL.
    GO:0060621    negative regulation of cholesterol import    Any process that decreases the rate, frequency or extent of cholesterol import. Cholesterol import is the directed movement of cholesterol into a cell or organelle.
    GO:0032375    negative regulation of cholesterol transport    Any process that stops, prevents, or reduces the frequency, rate or extent of the directed movement of cholesterol into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0060695    negative regulation of cholesterol transporter activity    Any process that decreases the rate, frequency, or extent of cholesterol transporter activity.
    GO:0002740    negative regulation of cytokine secretion involved in immune response    Any process that stops, prevents, or reduces the frequency, rate, or extent of cytokine secretion contributing to an immune response.
    GO:0060192    negative regulation of lipase activity    Any process that decreases the frequency, rate or extent of lipase activity, the hydrolysis of a lipid or phospholipid.
    GO:0050995    negative regulation of lipid catabolic process    Any process that stops, prevents, or reduces the frequency, rate or extent of the chemical reactions and pathways resulting in the breakdown of lipids.
    GO:0010903    negative regulation of very-low-density lipoprotein particle remodeling    Any process that decreases the rate, frequency or extent of very-low-density lipoprotein particle remodeling. Very-low-density lipoprotein particle remodeling is the acquisition, loss or modification of a protein or lipid within a very-low-density lipoprotein particle, including the hydrolysis of triglyceride by hepatic lipase or lipoprotein lipase and the subsequent loss of free fatty acid.
    GO:0018206    peptidyl-methionine modification    The modification of peptidyl-methionine.
    GO:0006656    phosphatidylcholine biosynthetic process    The chemical reactions and pathways resulting in the formation of phosphatidylcholines, any of a class of glycerophospholipids in which the phosphatidyl group is esterified to the hydroxyl group of choline.
    GO:0009395    phospholipid catabolic process    The chemical reactions and pathways resulting in the breakdown of phospholipids, any lipid containing phosphoric acid as a mono- or diester.
    GO:0033700    phospholipid efflux    The directed movement of a phospholipid out of a cell or organelle.
    GO:0043085    positive regulation of catalytic activity    Any process that activates or increases the activity of an enzyme.
    GO:0010873    positive regulation of cholesterol esterification    Any process that increases the frequency, rate or extent of cholesterol esterification. Cholesterol esterification is the lipid modification process in which a sterol ester is formed by the combination of a carboxylic acid (often a fatty acid) and cholesterol. In the blood this process is associated with the conversion of free cholesterol into cholesteryl ester, which is then sequestered into the core of a lipoprotein particle.
    GO:0045416    positive regulation of interleukin-8 biosynthetic process    Any process that activates or increases the frequency, rate or extent of the chemical reactions and pathways resulting in the formation of interleukin-8.
    GO:0050996    positive regulation of lipid catabolic process    Any process that activates or increases the frequency, rate or extent of the chemical reactions and pathways resulting in the breakdown of lipids.
    GO:0018158    protein oxidation    The modification of a protein amino acid by oxidation.
    GO:0030300    regulation of intestinal cholesterol absorption    Any process that modulates the frequency, rate or extent of absorption of cholesterol into the blood, and the exclusion of other sterols from absorption.
    GO:0031647    regulation of protein stability    Any process that affects the structure and integrity of a protein, altering the likelihood of its degradation or aggregation.
    GO:0042493    response to drug    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a drug stimulus. A drug is a substance used in the diagnosis, treatment or prevention of a disease.
    GO:0043627    response to estrogen    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of stimulus by an estrogen, C18 steroid hormones that can stimulate the development of female sexual characteristics.
    GO:0051384    response to glucocorticoid    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a glucocorticoid stimulus. Glucocorticoids are hormonal C21 corticosteroids synthesized from cholesterol with the ability to bind with the cortisol receptor and trigger similar effects. Glucocorticoids act primarily on carbohydrate and protein metabolism, and have anti-inflammatory effects.
    GO:0009749    response to glucose    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a glucose stimulus.
    GO:0001523    retinoid metabolic process    The chemical reactions and pathways involving retinoids, any member of a class of isoprenoids that contain or are derived from four prenyl groups linked head-to-tail. Retinoids include retinol and retinal and structurally similar natural derivatives or synthetic compounds, but need not have vitamin A activity.
    GO:0043691    reverse cholesterol transport    The directed movement of peripheral cell cholesterol, cholest-5-en-3-beta-ol, towards the liver for catabolism.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
    GO:0006641    triglyceride metabolic process    The chemical reactions and pathways involving triglyceride, any triester of glycerol. The three fatty acid residues may all be the same or differ in any permutation. Triglycerides are important components of plant oils, animal fats and animal plasma lipoproteins.
    GO:0034370    triglyceride-rich lipoprotein particle remodeling    The acquisition, loss or modification of a protein or lipid within a triglyceride-rich lipoprotein particle, including the hydrolysis of triglyceride by lipoprotein lipase, with the subsequent loss of free fatty acid, and the transfer of cholesterol esters to a triglyceride-rich lipoprotein particle by cholesteryl ester transfer protein (CETP), with the simultaneous transfer of triglyceride from a triglyceride-rich lipoprotein particle.
    GO:0016032    viral process    A multi-organism process in which a virus is a participant. The other participant is the host. Includes infection of a host cell, replication of the viral genome, and assembly of progeny virus particles. In some cases the viral genetic material may integrate into the host genome and only subsequently, under particular circumstances, 'complete' its life cycle.
cellular component
    GO:0072562    blood microparticle    A phospholipid microvesicle that is derived from any of several cell types, such as platelets, blood cells, endothelial cells, or others, and contains membrane receptors as well as other proteins characteristic of the parental cell. Microparticles are heterogeneous in size, and are characterized as microvesicles free of nucleic acids.
    GO:0042627    chylomicron    A large lipoprotein particle (diameter 75-1200 nm) composed of a central core of triglycerides and cholesterol surrounded by a protein-phospholipid coating. The proteins include one molecule of apolipoprotein B-48 and may include a variety of apolipoproteins, including APOAs, APOCs and APOE. Chylomicrons are found in blood or lymph and carry lipids from the intestines into other body tissues.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0005769    early endosome    A membrane-bounded organelle that receives incoming material from primary endocytic vesicles that have been generated by clathrin-dependent and clathrin-independent endocytosis; vesicles fuse with the early endosome to deliver cargo for sorting into recycling or degradation pathways.
    GO:0005788    endoplasmic reticulum lumen    The volume enclosed by the membranes of the endoplasmic reticulum.
    GO:0070062    extracellular exosome    A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
    GO:0005615    extracellular space    That part of a multicellular organism outside the cells proper, usually taken to be outside the plasma membranes, and occupied by fluid.
    GO:0034364    high-density lipoprotein particle    A lipoprotein particle with a high density (typically 1.063-1.21 g/ml) and a diameter of 5-10 nm that contains APOAs and may contain APOCs and APOE; found in blood and carries lipids from body tissues to the liver as part of the reverse cholesterol transport process.
    GO:0034366    spherical high-density lipoprotein particle    A mature high-density lipoprotein (HDL) particle, converted from discoidal HDL particles following the esterification of cholesterol in the particle by phosphatidylcholine-sterol O-acyltransferase (lecithin cholesterol acyltransferase; LCAT).
    GO:0034361    very-low-density lipoprotein particle    A triglyceride-rich lipoprotein particle that is typically composed of APOB100, APOE and APOCs and has a density of about 1.006 g/ml and a diameter of between 20-80 nm. It is found in blood and transports endogenous products (newly synthesized cholesterol and triglycerides) from the liver.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    BOG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]
    BC7  [ RasMol ]  +environment [ RasMol ]
    BC8  [ RasMol ]  +environment [ RasMol ]
    BC9  [ RasMol ]  +environment [ RasMol ]
    CC1  [ RasMol ]  +environment [ RasMol ]
    CC2  [ RasMol ]  +environment [ RasMol ]
    CC3  [ RasMol ]  +environment [ RasMol ]
    CC4  [ RasMol ]  +environment [ RasMol ]
    CC5  [ RasMol ]  +environment [ RasMol ]
    CC6  [ RasMol ]  +environment [ RasMol ]
    CC7  [ RasMol ]  +environment [ RasMol ]
    CC8  [ RasMol ]  +environment [ RasMol ]
    CC9  [ RasMol ]  +environment [ RasMol ]
    DC1  [ RasMol ]  +environment [ RasMol ]
    DC2  [ RasMol ]  +environment [ RasMol ]
    DC3  [ RasMol ]  +environment [ RasMol ]
    DC4  [ RasMol ]  +environment [ RasMol ]
    DC5  [ RasMol ]  +environment [ RasMol ]
    DC6  [ RasMol ]  +environment [ RasMol ]
    DC7  [ RasMol ]  +environment [ RasMol ]
    DC8  [ RasMol ]  +environment [ RasMol ]
    DC9  [ RasMol ]  +environment [ RasMol ]
    EC1  [ RasMol ]  +environment [ RasMol ]
    EC2  [ RasMol ]  +environment [ RasMol ]
    EC3  [ RasMol ]  +environment [ RasMol ]
    EC4  [ RasMol ]  +environment [ RasMol ]
    EC5  [ RasMol ]  +environment [ RasMol ]
    EC6  [ RasMol ]  +environment [ RasMol ]
    EC7  [ RasMol ]  +environment [ RasMol ]
    EC8  [ RasMol ]  +environment [ RasMol ]
    EC9  [ RasMol ]  +environment [ RasMol ]
    FC1  [ RasMol ]  +environment [ RasMol ]
    FC2  [ RasMol ]  +environment [ RasMol ]
    FC3  [ RasMol ]  +environment [ RasMol ]
    FC4  [ RasMol ]  +environment [ RasMol ]
    FC5  [ RasMol ]  +environment [ RasMol ]
    FC6  [ RasMol ]  +environment [ RasMol ]
    FC7  [ RasMol ]  +environment [ RasMol ]
    FC8  [ RasMol ]  +environment [ RasMol ]
    FC9  [ RasMol ]  +environment [ RasMol ]
    GC1  [ RasMol ]  +environment [ RasMol ]
    GC2  [ RasMol ]  +environment [ RasMol ]
    GC3  [ RasMol ]  +environment [ RasMol ]
    GC4  [ RasMol ]  +environment [ RasMol ]
    GC5  [ RasMol ]  +environment [ RasMol ]
    GC6  [ RasMol ]  +environment [ RasMol ]
    GC7  [ RasMol ]  +environment [ RasMol ]
    GC8  [ RasMol ]  +environment [ RasMol ]
    GC9  [ RasMol ]  +environment [ RasMol ]
    HC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1l6l)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]
    Biological Unit 5  [ Jena3D ]
    Biological Unit 6  [ Jena3D ]
    Biological Unit 7  [ Jena3D ]
    Biological Unit 8  [ Jena3D ]
    Biological Unit 9  [ Jena3D ]
    Biological Unit 10  [ Jena3D ]
    Biological Unit 11  [ Jena3D ]
    Biological Unit 12  [ Jena3D ]
    Biological Unit 13  [ Jena3D ]
    Biological Unit 14  [ Jena3D ]
    Biological Unit 15  [ Jena3D ]
    Biological Unit 16  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1l6l
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  APOA2_HUMAN | P02652
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  APOA2_HUMAN | P02652
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        APOA2_HUMAN | P026522ou1

(-) Related Entries Specified in the PDB File

1l6k 1L6K CONTAINS THE SAME PROTEIN
