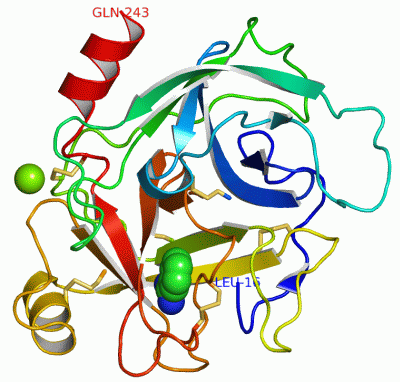

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

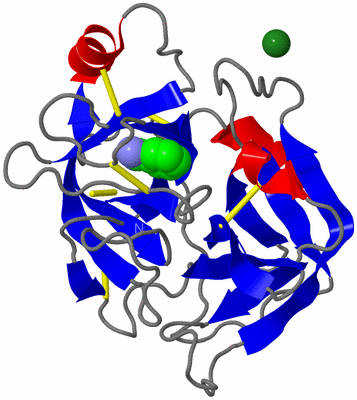

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

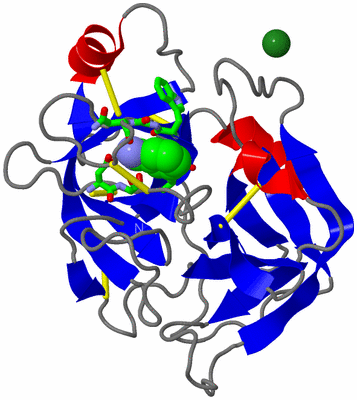

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  HUMAN KALLIKREIN 6 (HK6) ACTIVE FORM WITH BENZAMIDINE INHIBITOR

Authors :  M. J. Bernett, S. I. Blaber, I. A. Scarisbrick, M. Blaber
Date :  20 Feb 02  (Deposition) - 08 May 02  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.75
Chains :  Asym./Biol. Unit :  A
Keywords :  Serine Protease, Kallikrein, Human Kallikrein 6, Benzamidine, Protease, Myelencephalon Specific Protease, Zyme, Protease M, Neurosin, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  M. J. Bernett, S. I. Blaber, I. A. Scarisbrick, P. Dhanarajan, S. M. Thompson, M. Blaber
Crystal Structure And Biochemical Characterization Of Human Kallikrein 6 Reveals That A Trypsin-Like Kallikrein Is Expressed In The Central Nervous System.
J. Biol. Chem. V. 277 24562 2002
PubMed-ID: 11983703  |  Reference-DOI: 10.1074/JBC.M202392200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - KALLIKREIN 6
    ChainsA
    EngineeredYES
    Expression SystemSPODOPTERA FRUGIPERDA
    Expression System Cell LineSF9
    Expression System CommonFALL ARMYWORM
    Expression System Taxid7108
    Expression System VectorPBAC3
    Expression System Vector TypeBACULOVIRUS
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    SynonymHK6

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
1BEN1Ligand/IonBENZAMIDINE
2MG1Ligand/IonMAGNESIUM ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHOH A:337 , HOH A:350 , HOH A:361 , HOH A:380 , HOH A:390 , HOH A:397BINDING SITE FOR RESIDUE MG A 333
2AC2SOFTWAREASP A:189 , SER A:190 , VAL A:213 , TRP A:215 , GLY A:216 , ASN A:217 , HOH A:309BINDING SITE FOR RESIDUE BEN A 299

(-) SS Bonds  (6, 6)

Asymmetric/Biological Unit
No.Residues
1A:22 -A:157
2A:42 -A:58
3A:128 -A:232
4A:136 -A:201
5A:168 -A:182
6A:191 -A:220

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Ile A:218 -Pro A:219

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (1, 1)

Asymmetric/Biological Unit (1, 1)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_061776R78WKLK6_HUMANPolymorphism61469141AR74W

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

(-) PROSITE Motifs  (3, 3)

Asymmetric/Biological Unit (3, 3)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1TRYPSIN_DOMPS50240 Serine proteases, trypsin domain profile.KLK6_HUMAN22-242  1A:16-243
2TRYPSIN_HISPS00134 Serine proteases, trypsin family, histidine active site.KLK6_HUMAN58-63  1A:53-58
3TRYPSIN_SERPS00135 Serine proteases, trypsin family, serine active site.KLK6_HUMAN191-202  1A:189-200

(-) Exons   (4, 4)

Asymmetric/Biological Unit (4, 4)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.2aENST000003768512aENSE00001509796chr19:51472047-51471797251KLK6_HUMAN-00--
1.3ENST000003768513ENSE00002182478chr19:51471368-5147132148KLK6_HUMAN1-14140--
1.4ENST000003768514ENSE00001632581chr19:51470581-51470425157KLK6_HUMAN14-66531A:16-61 (gaps)46
1.5ENST000003768515ENSE00001700575chr19:51466805-51466558248KLK6_HUMAN66-149841A:61-147 (gaps)87
1.6ENST000003768516ENSE00001735538chr19:51465136-51465000137KLK6_HUMAN149-194461A:147-192 (gaps)48
1.7bENST000003768517bENSE00001779560chr19:51462572-51461888685KLK6_HUMAN195-244501A:193-243 (gaps)52

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:221
 aligned with KLK6_HUMAN | Q92876 from UniProtKB/Swiss-Prot  Length:244

    Alignment length:221
                                    31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241
          KLK6_HUMAN     22 LVHGGPCDKTSHPYQAALYTSGHLLCGGVLIHPLWVLTAAHCKKPNLQVFLGKHNLRQRESSQEQSSVVRAVIHPDYDAASHDQDIMLLRLARPAKLSELIQPLPLERDCSANTTSCHILGWGKTADGDFPDTIQCAYIHLVSREECEHAYPGQITQNMLCAGDEKYGKDSCQGDSGGPLVCGDHLRGLVSWGNIPCGSKEKPGVYTNVCRYTNWIQKTIQ  242
               SCOP domains d1l2ea_ A: Kallikrein 6                                                                                                                                                                                                       SCOP domains
               CATH domains 1l2eA01     1l2eA02 A:28-120,A:233-243 Trypsin-like serine proteases                                   1l2eA01 A:16-27,A:121-232 Trypsin-like serine proteases                                                    1l2eA02     CATH domains
               Pfam domains Trypsin-1l2eA01 A:16-238                                                                                                                                                                                                ----- Pfam domains
         Sec.struct. author ....ee........eeeeee..eeeeeeeeee..eeeehhhhh....eeee............eeeeeeeeee.............eeeee........................eeeeee.............eeeeeeeehhhhhhhhh.......eeeee...............eeee..eeeeeeee...........eeeee...hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------W-------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) TRYPSIN_DOM  PDB: A:16-243 UniProt: 22-242                                                                                                                                                                                    PROSITE (1)
                PROSITE (2) ------------------------------------TRYPSI-------------------------------------------------------------------------------------------------------------------------------TRYPSIN_SER ---------------------------------------- PROSITE (2)
           Transcript 1 (1) Exon 1.4  PDB: A:16-61 (gaps) UniProt: 14-66 ----------------------------------------------------------------------------------Exon 1.6  PDB: A:147-192 (gaps)               Exon 1.7b  PDB: A:193-243 (gaps)                 Transcript 1 (1)
           Transcript 1 (2) --------------------------------------------Exon 1.5  PDB: A:61-147 (gaps) UniProt: 66-149                                      --------------------------------------------------------------------------------------------- Transcript 1 (2)
                1l2e A   16 LVHGGPCDKTSHPYQAALYTSGHLLCGGVLIHPLWVLTAAHCKKPNLQVFLGKHNLRQRESSQEQSSVVRAVIHPDYDAASHDQDIMLLRLARPAKLSELIQPLPLERDCSANTTSCHILGWGKTADGDFPDTIQCAYIHLVSREECEHAYPGQITQNMLCAGDEKYGKDSCQGDSGGPLVCGDHLRGLVSWGNIPCGSKEKPGVYTNVCRYTNWIQKTIQ  243
                                    25        35||      46        56        66||      77        87        97       107       117       128 ||    139       151       161       171       181     ||189       199   ||  213       222       232       242
                                               36|                           67|                                                     125|  ||            147|                                 186A|              203|         220A
                                                38                            69                                                      127  ||             150                                  186B               208
                                                                                                                                         130|
                                                                                                                                          132

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit

(-) Gene Ontology  (31, 31)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (KLK6_HUMAN | Q92876)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0004252    serine-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
    GO:0008236    serine-type peptidase activity    Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
biological process
    GO:0042982    amyloid precursor protein metabolic process    The chemical reactions and pathways involving amyloid precursor protein (APP), the precursor of amyloid-beta, a glycoprotein associated with Alzheimer's disease.
    GO:0007417    central nervous system development    The process whose specific outcome is the progression of the central nervous system over time, from its formation to the mature structure. The central nervous system is the core nervous system that serves an integrating and coordinating function. In vertebrates it consists of the brain and spinal cord. In those invertebrates with a central nervous system it typically consists of a brain, cerebral ganglia and a nerve cord.
    GO:0030574    collagen catabolic process    The proteolytic chemical reactions and pathways resulting in the breakdown of collagen in the extracellular matrix, usually carried out by proteases secreted by nearby cells.
    GO:0042445    hormone metabolic process    The chemical reactions and pathways involving any hormone, naturally occurring substances secreted by specialized cells that affects the metabolism or behavior of other cells possessing functional receptors for the hormone.
    GO:0042552    myelination    The process in which myelin sheaths are formed and maintained around neurons. Oligodendrocytes in the brain and spinal cord and Schwann cells in the peripheral nervous system wrap axons with compact layers of their plasma membrane. Adjacent myelin segments are separated by a non-myelinated stretch of axon called a node of Ranvier.
    GO:0070997    neuron death    The process of cell death in a neuron.
    GO:0045745    positive regulation of G-protein coupled receptor protein signaling pathway    Any process that activates or increases the frequency, rate or extent of G-protein coupled receptor protein signaling pathway activity.
    GO:0016540    protein autoprocessing    Processing which a protein carries out itself. This involves actions such as the autolytic removal of residues to generate the mature form of the protein.
    GO:0016485    protein processing    Any protein maturation process achieved by the cleavage of a peptide bond or bonds within a protein. Protein maturation is the process leading to the attainment of the full functional capacity of a protein.
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
    GO:0045595    regulation of cell differentiation    Any process that modulates the frequency, rate or extent of cell differentiation, the process in which relatively unspecialized cells acquire specialized structural and functional features.
    GO:0010975    regulation of neuron projection development    Any process that modulates the rate, frequency or extent of neuron projection development. Neuron projection development is the process whose specific outcome is the progression of a neuron projection over time, from its formation to the mature structure. A neuron projection is any process extending from a neural cell, such as axons or dendrites (collectively called neurites).
    GO:0009611    response to wounding    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus indicating damage to the organism.
    GO:0042246    tissue regeneration    The regrowth of lost or destroyed tissues.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005783    endoplasmic reticulum    The irregular network of unit membranes, visible only by electron microscopy, that occurs in the cytoplasm of many eukaryotic cells. The membranes form a complex meshwork of tubular channels, which are often expanded into slitlike cavities called cisternae. The ER takes two forms, rough (or granular), with ribosomes adhering to the outer surface, and smooth (with no ribosomes attached).
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
    GO:0005615    extracellular space    That part of a multicellular organism outside the cells proper, usually taken to be outside the plasma membranes, and occupied by fluid.
    GO:0045171    intercellular bridge    A direct connection between the cytoplasm of two cells that is formed following the completion of cleavage furrow ingression during cell division. They are usually present only briefly prior to completion of cytokinesis. However, in some cases, such as the bridges between germ cells during their development, they become stabilised.
    GO:0043231    intracellular membrane-bounded organelle    Organized structure of distinctive morphology and function, bounded by a single or double lipid bilayer membrane and occurring within the cell. Includes the nucleus, mitochondria, plastids, vacuoles, and vesicles. Excludes the plasma membrane.
    GO:0015630    microtubule cytoskeleton    The part of the cytoskeleton (the internal framework of a cell) composed of microtubules and associated proteins.
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.
    GO:0031965    nuclear membrane    Either of the lipid bilayers that surround the nucleus and form the nuclear envelope; excludes the intermembrane space.
    GO:0005730    nucleolus    A small, dense body one or more of which are present in the nucleus of eukaryotic cells. It is rich in RNA and protein, is not bounded by a limiting membrane, and is not seen during mitosis. Its prime function is the transcription of the nucleolar DNA into 45S ribosomal-precursor RNA, the processing of this RNA into 5.8S, 18S, and 28S components of ribosomal RNA, and the association of these components with 5S RNA and proteins synthesized outside the nucleolus. This association results in the formation of ribonucleoprotein precursors; these pass into the cytoplasm and mature into the 40S and 60S subunits of the ribosome.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    BEN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ile A:218 - Pro A:219   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1l2e
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  KLK6_HUMAN | Q92876
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  KLK6_HUMAN | Q92876
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        KLK6_HUMAN | Q928761gvl 1lo6 3vfe 4d8n

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1L2E)
