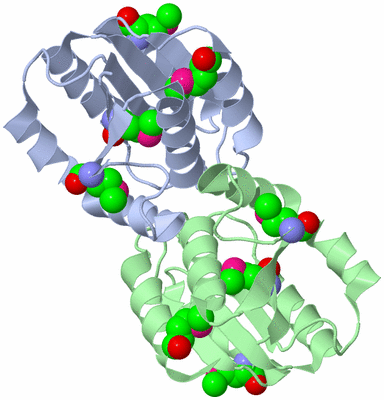

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF MT0777

Authors :  D. Christendat, A. Edwards, A. Joachimiak, S. Korolev, Midwest Center For Structural Genomics (Mcsg)
Date :  04 Dec 01  (Deposition) - 14 Aug 02  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Hypotethical Protein, Structural Genomics, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Christendat, A. Edwards, A. Joachimiak, S. Korolev
Crystal Structure Of Mt0777
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - MTH0777
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: PET15B
    Expression System Taxid: 562
    Fragment: HYPOTHETICAL PROTEIN
    Organism Scientific: METHANOTHERMOBACTER THERMAUTOTROPHICUS
    Organism Taxid: 145262

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 8)

Asymmetric/Biological Unit (1, 8)
No.NameCountTypeFull Name
1MSE8Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 1KJN)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1KJN)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1KJN)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1KJN)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1KJN)

(-) Exons   (0, 0)

(no "Exon" information available for 1KJN)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:152
 aligned with O26871_METTH | O26871 from UniProtKB/TrEMBL  Length:157

    Alignment length:152
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155
         O26871_METTH     6 TGKALMVLGCPESPVQIPLAIYTSHKLKKKGFRVTVTANPAALRLVQVADPEGIYTDEMVDLESCINELAEGDYEFLAGFVPNDAAAAYLVTFAGILNTETLAIIFDRDADVLEELVNEIMETLDAEIIAARAHHNPAPLRVRIDRFMEEKP 157
               SCOP domains d1kjna_ A: Hypothetical protein MTH777 (MT0777)                                                                                                          SCOP domains
               CATH domains 1kjnA00 A:6-157  [code=3.40.50.10160, no name defined]                                                                                                   CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee.......hhhhhhhhhhhhhhhh..eeeeeehhhhhhhhhhhh.......eeeehhhhhhhh......eeeeee.hhhhhhhhhhhhhhhh.eeeeeee..hhhhhhhhhhhhhhhh..eeeee.....hhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1kjn A   6 TGKALmVLGCPESPVQIPLAIYTSHKLKKKGFRVTVTANPAALRLVQVADPEGIYTDEmVDLESCINELAEGDYEFLAGFVPNDAAAAYLVTFAGILNTETLAIIFDRDADVLEELVNEImETLDAEIIAARAHHNPAPLRVRIDRFmEEKP 157
                                 |  15        25        35        45        55        65        75        85        95       105       115       125|      135       145       155
                                 |                                                   64-MSE                                                       126-MSE                    153-MSE
                                11-MSE


Chain B from PDB  Type:PROTEIN  Length:152
 aligned with O26871_METTH | O26871 from UniProtKB/TrEMBL  Length:157

    Alignment length:152
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155
         O26871_METTH     6 TGKALMVLGCPESPVQIPLAIYTSHKLKKKGFRVTVTANPAALRLVQVADPEGIYTDEMVDLESCINELAEGDYEFLAGFVPNDAAAAYLVTFAGILNTETLAIIFDRDADVLEELVNEIMETLDAEIIAARAHHNPAPLRVRIDRFMEEKP 157
               SCOP domains d1kjnb_ B: Hypothetical protein MTH777 (MT0777)                                                                                                          SCOP domains
               CATH domains 1kjnB00 B:6-157  [code=3.40.50.10160, no name defined]                                                                                                   CATH domains
           Pfam domains (1) ----DUF1890-1kjnB01 B:10-153                                                                                                                        ---- Pfam domains (1)
           Pfam domains (2) ----DUF1890-1kjnB02 B:10-153                                                                                                                        ---- Pfam domains (2)
         Sec.struct. author .eeeeee.......hhhhhhhhhhhhhhh..eeeeeeehhhhhhhhhhhh.......eeeehhhhhhhh......eeeeee.hhhhhhhhhhhhhhhh.eeeeeee..hhhhhhhhhhhhhhhh..eeeee.....hhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1kjn B   6 TGKALmVLGCPESPVQIPLAIYTSHKLKKKGFRVTVTANPAALRLVQVADPEGIYTDEmVDLESCINELAEGDYEFLAGFVPNDAAAAYLVTFAGILNTETLAIIFDRDADVLEELVNEImETLDAEIIAARAHHNPAPLRVRIDRFmEEKP 157
                                 |  15        25        35        45        55        65        75        85        95       105       115       125|      135       145       155
                                11-MSE                                               64-MSE                                                       126-MSE                    153-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Clan: no clan defined [family: DUF1890] (1)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1KJN)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 1kjn)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1kjn)

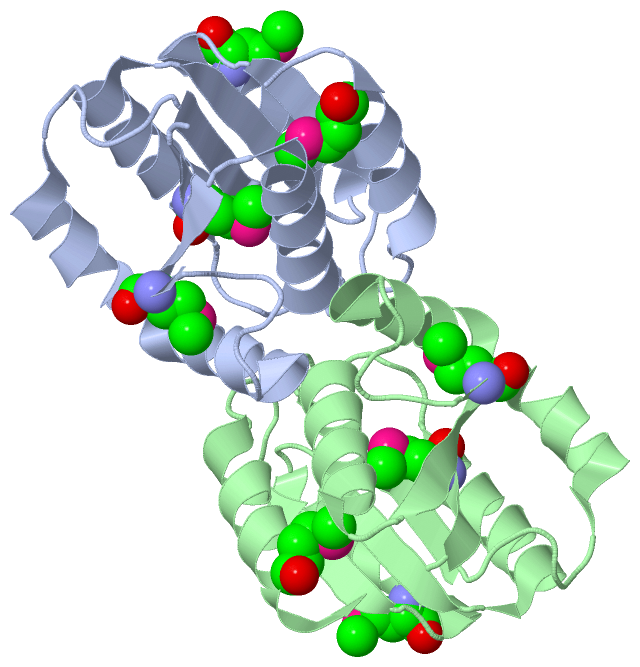

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
