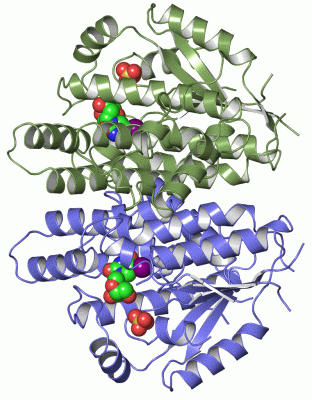

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

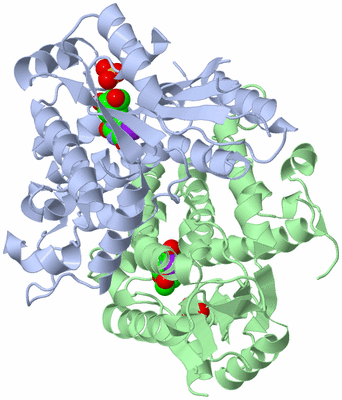

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

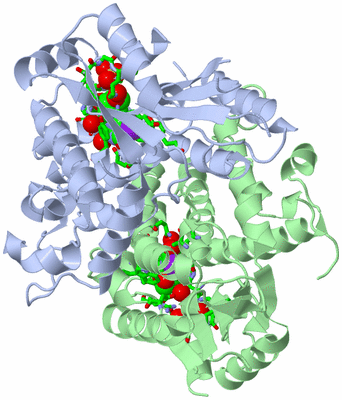

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THYMIDINE KINASE FROM HERPES SIMPLEX VIRUS TYPE I COMPLEXED WITH A 5-IODOURACIL ANHYDROHEXITOL NUCLEOSIDE

Authors :  J. N. Champness, M. S. Bennett, F. Wien, P. Herdewijn, T. Ostrowski, W. C. Summers, M. R. Sanderson
Date :  18 May 98  (Deposition) - 02 Dec 98  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.37
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Phosphotransferase, Thymidine Kinase, Viridae, Ds-Dna Enveloped Viruses, Herpesviridae, Alphaherpesvirinae, Substrate Analog, 5-Iodouracil Anhydrohexitol Nucleoside (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. N. Champness, M. S. Bennett, F. Wien, R. Visse, W. C. Summers, P. Herdewijn, E. De Clerq, T. Ostrowski, R. L. Jarvest, M. R. Sanderson
Exploring The Active Site Of Herpes Simplex Virus Type-1 Thymidine Kinase By X-Ray Crystallography Of Complexes With Aciclovir And Other Ligands.
Proteins V. 32 350 1998 (for further references see the PDB file header)

(-) Compounds

Molecule 1 - THYMIDINE KINASE
    Chains: A
    EC Number: 2.7.1.21
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Gene: TK
    Expression System Plasmid: PT7:HSVTK
    Expression System Strain: SY211
    Expression System Taxid: 562
    Gene: TK
    Organism Scientific: HERPES SIMPLEX VIRUS (TYPE 1 / STRAIN 17)
    Organism Taxid: 10299
    Strain: 17
    Synonym: TK

Molecule 2 - THYMIDINE KINASE
    Chains: B
    EC Number: 2.7.1.21
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Gene: TK
    Expression System Plasmid: PT7:HSVTK
    Expression System Strain: SY211
    Expression System Taxid: 562
    Gene: TK
    Organism Scientific: HERPES SIMPLEX VIRUS (TYPE 1 / STRAIN 17)
    Organism Taxid: 10299
    Strain: 17
    Synonym: TK

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 4)

Asymmetric/Biological Unit (2, 4)
No.NameCountTypeFull Name
1AHU2Ligand/Ion1',5'-ANHYDRO-2',3'-DIDEOXY-2'-(5-IODOURACIL-1-YL)-D-ABABINO-HEXITOL
2SO42Ligand/IonSULFATE ION

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS A:58 , GLY A:59 , MET A:60 , GLY A:61 , LYS A:62 , THR A:63 , ARG A:222 , HOH A:775BINDING SITE FOR RESIDUE SO4 A 3
2AC2SOFTWAREHIS B:58 , GLY B:59 , MET B:60 , GLY B:61 , LYS B:62 , THR B:63 , ARG B:220 , ARG B:222 , HOH B:675 , HOH B:766BINDING SITE FOR RESIDUE SO4 B 4
3AC3SOFTWAREHIS A:58 , ILE A:97 , ILE A:100 , TYR A:101 , GLN A:125 , MET A:128 , TYR A:132 , ARG A:163 , ALA A:168 , TYR A:172 , GLU A:225 , HOH A:564 , HOH A:566 , HOH A:775BINDING SITE FOR RESIDUE AHU A 1
4AC4SOFTWAREHIS B:58 , GLU B:83 , TRP B:88 , ILE B:97 , ILE B:100 , TYR B:101 , GLN B:125 , MET B:128 , ALA B:168 , TYR B:172 , GLU B:225 , HOH B:563 , HOH B:565BINDING SITE FOR RESIDUE AHU B 2

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1KI6)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1KI6)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (1, 2)

Asymmetric/Biological Unit (1, 2)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_KITH_HHV11_005 *C251GKITH_HHV11  ---  ---A/BC251G
   * ID not provided by source
  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1KI6)

(-) Exons   (0, 0)

(no "Exon" information available for 1KI6)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:300
 aligned with KITH_HHV11 | P03176 from UniProtKB/Swiss-Prot  Length:376

    Alignment length:329
                                    55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365
           KITH_HHV11    46 MPTLLRVYIDGPHGMGKTTTTQLLVALGSRDDIVYVPEPMTYWRVLGASETIANIYTTQHRLDQGEISAGDAAVVMTSAQITMGMPYAVTDAVLAPHIGGEAGSSHAPPPALTLIFDRHPIAALLCYPAARYLMGSMTPQAVLAFVALIPPTLPGTNIVLGALPEDRHIDRLAKRQRPGERLDLAMLAAIRRVYGLLANTVRYLQCGGSWREDWGQLSGTAVPPQGAEPQSNAGPRPHIGDTLFTLFRAPELLAPNGDLYNVFAWALDVLAKRLRSMHVFILDYDQSPAGCRDALLQLTSGMVQTHVTTPGSIPTICDLARTFAREMGE 374
               SCOP domains d1ki6a_ A: Thymidine kin       ase                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains 1ki6A00 A:46-374 P-loop        containing nucleotide triphosphate hydrolases                                                                                                                                                                                                                                                              CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeee.......hhhhhh..-------.eeee...hhhhh......hhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....------...eeeeee..hhhhh.hhhhhhhh.....hhhhhhhhh.........eeeeee..hhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhh.----------------....hhh.hhhhh.............hhhhhhhhhhhhhhhh.eeeeee....hhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------G--------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ki6 A  46 MPTLLRVYIDGPHGMGKTTTTQLL-------DIVYVPEPMTYWRVLGASETIANIYTTQHRLDQGEISAGDAAVVMTSAQITMGMPYAVTDAVLAPHIGGEA------PPALTLIFDRHPIAALLCYPAARYLMGSMTPQAVLAFVALIPPTLPGTNIVLGALPEDRHIDRLAKRQRPGERLDLAMLAAIRRVYGLLANTVRYLQCGGSWREDWGQLS----------------ARPHIGDTLFTLFRAPELLAPNGDLYNVFAWALDVLAKRLRSMHVFILDYDQSPAGCRDALLQLTSGMVQTHVTTPGSIPTICDLARTFAREMGE 374
                                    55        65   |     - |      85        95       105       115       125       135       145 |     155       165       175       185       195       205       215       225       235       245       255       | -         -    |  285       295       305       315       325       335       345       355       365
                                                  69      77                                                                   147    154                                                                                                          263              280


Chain B from PDB  Type:PROTEIN  Length:304
 aligned with KITH_HHV11 | P03176 from UniProtKB/Swiss-Prot  Length:376

    Alignment length:329
                                    55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365
           KITH_HHV11    46 MPTLLRVYIDGPHGMGKTTTTQLLVALGSRDDIVYVPEPMTYWRVLGASETIANIYTTQHRLDQGEISAGDAAVVMTSAQITMGMPYAVTDAVLAPHIGGEAGSSHAPPPALTLIFDRHPIAALLCYPAARYLMGSMTPQAVLAFVALIPPTLPGTNIVLGALPEDRHIDRLAKRQRPGERLDLAMLAAIRRVYGLLANTVRYLQCGGSWREDWGQLSGTAVPPQGAEPQSNAGPRPHIGDTLFTLFRAPELLAPNGDLYNVFAWALDVLAKRLRSMHVFILDYDQSPAGCRDALLQLTSGMVQTHVTTPGSIPTICDLARTFAREMGE 374
               SCOP domains d1ki6b_ B: Thymidine kinase                                                                                                                                                                                                                                                                                                               SCOP domains
               CATH domains 1ki6B00 B:46-374 P-loop con    taining nucleotide triphosphate hydrolases                                                                                                                                                                                                                                                                 CATH domains
           Pfam domains (1) ----------Herpes_TK-1ki6B01     B:56-330                                                                                                                                                                                                                                                     -------------------------------------------- Pfam domains (1)
           Pfam domains (2) ----------Herpes_TK-1ki6B02     B:56-330                                                                                                                                                                                                                                                     -------------------------------------------- Pfam domains (2)
         Sec.struct. author ..eeeeeee.......hhhhhhhhh..----.eeee...hhhhh......hhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....------...eeeeee..hhhhh.hhhhhhhh.....hhhhhhhhhh........eeeeee..hhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhh...hhhhhhh.---------------......hhh.hhhhh.............hhhhhhhhhhhhhhhh.eeeeee....hhhhhhhhhhhhhh..eee...hhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------G--------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ki6 B  46 MPTLLRVYIDGPHGMGKTTTTQLLVAL----DIVYVPEPMTYWRVLGASETIANIYTTQHRLDQGEISAGDAAVVMTSAQITMGMPYAVTDAVLAPHIGGEA------PPALTLIFDRHPIAALLCYPAARYLMGSMTPQAVLAFVALIPPTLPGTNIVLGALPEDRHIDRLAKRQRPGERLDLAMLAAIRRVYGLLANTVRYLQCGGSWREDWGQL---------------AGPRPHIGDTLFTLFRAPELLAPNGDLYNVFAWALDVLAKRLRSMHVFILDYDQSPAGCRDALLQLTSGMVQTHVTTPGSIPTICDLARTFAREMGE 374
                                    55        65      |  - |      85        95       105       115       125       135       145 |     155       165       175       185       195       205       215       225       235       245       255      |  -         -  |    285       295       305       315       325       335       345       355       365
                                                     72   77                                                                   147    154                                                                                                         262             278
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Clan: P-loop_NTPase (1112)

(-) Gene Ontology  (8, 8)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (KITH_HHV11 | P03176)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0004797    thymidine kinase activity    Catalysis of the reaction: ATP + thymidine = ADP + thymidine 5'-phosphate.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0071897    DNA biosynthetic process    The cellular DNA metabolic process resulting in the formation of DNA, deoxyribonucleic acid, one of the two main types of nucleic acid, consisting of a long unbranched macromolecule formed from one or two strands of linked deoxyribonucleotides, the 3'-phosphate group of each constituent deoxyribonucleotide being joined in 3',5'-phosphodiester linkage to the 5'-hydroxyl group of the deoxyribose moiety of the next one.
    GO:0006230    TMP biosynthetic process    The chemical reactions and pathways resulting in the formation of TMP, ribosylthymine monophosphate.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    AHU  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ki6)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

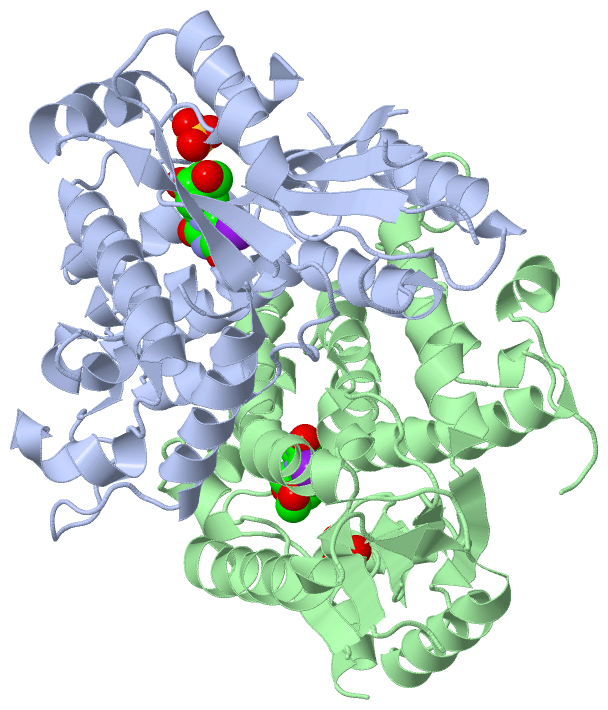

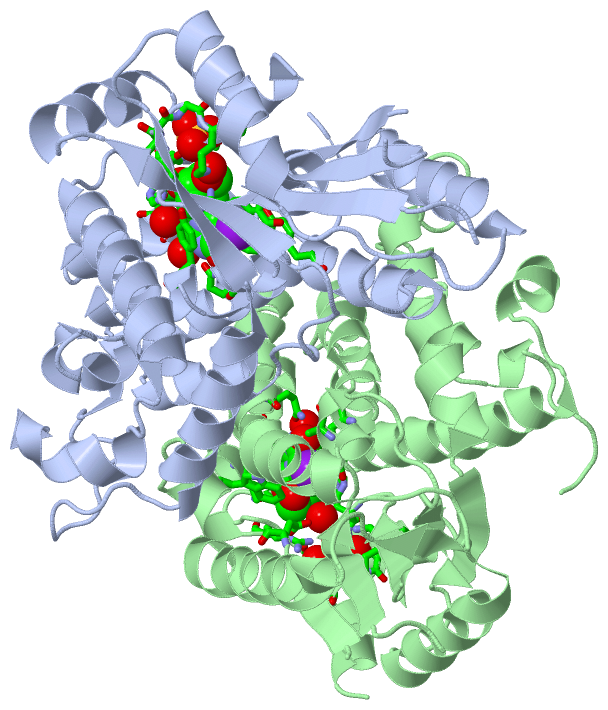

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1ki6
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  KITH_HHV11 | P03176
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.7.1.21
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  KITH_HHV11 | P03176
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        KITH_HHV11 | P03176: 1e2h 1e2i 1e2j 1e2k 1e2l 1e2m 1e2n 1e2p 1ki2 1ki3 1ki4 1ki7 1ki8 1kim 1of1 1p7c 1qhi 1vtk 2ki5 2vtk 3f0t 3rdp 3vtk 4ivp 4ivq 4ivr 4jbx 4jby 4oql 4oqm 4oqn 4oqx

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1KI6)
