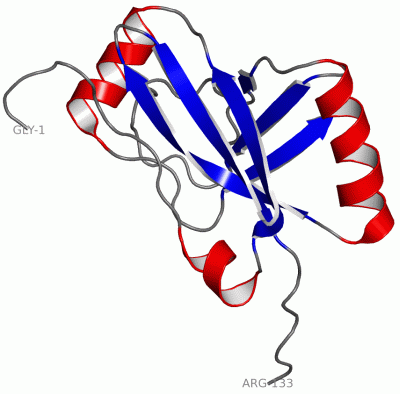

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

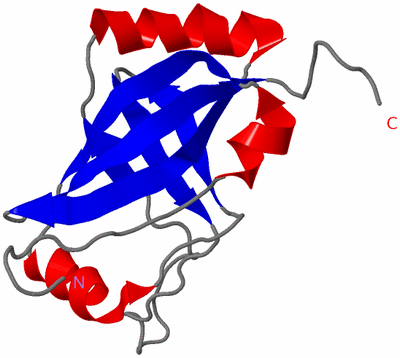

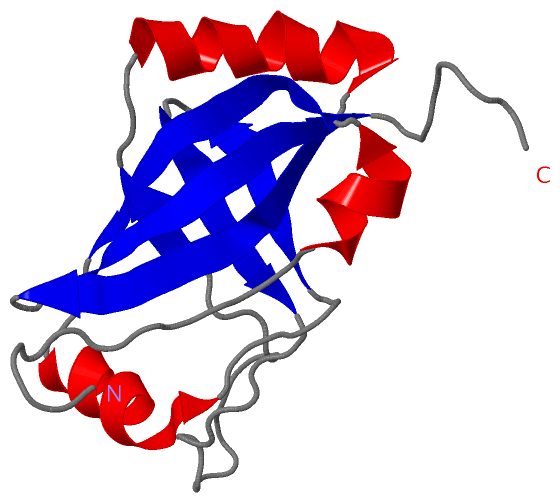

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

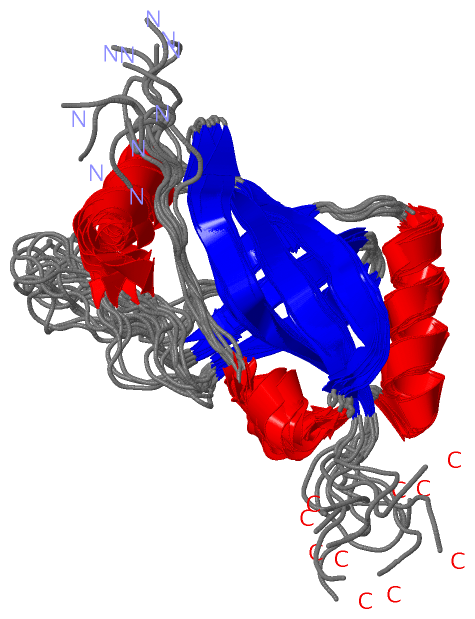

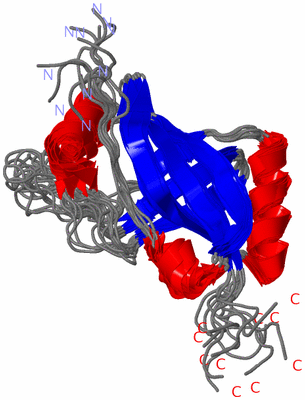

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR STRUCTURE OF SMALL PROTEIN B (SMPB) FROM AQUIFEX AEOLICUS

Authors :  G. Dong, D. W. Hoffman
Date :  24 Oct 01  (Deposition) - 20 Mar 02  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (10x)
Keywords :  Smpb, Ssra Associated Protein, Rna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. Dong, J. Nowakowski, D. W. Hoffman
Structure Of Small Protein B: The Protein Component Of The Tmrna-Smpb System For Ribosome Rescue.
Embo J. V. 21 1845 2002
PubMed-ID: 11927568  |  Reference-DOI: 10.1093/EMBOJ/21.7.1845
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - SMALL PROTEIN B
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: AQUIFEX AEOLICUS
    Organism Taxid: 63363
    Synonym: SSRA-BINDING PROTEIN

 Structural Features

(-) Chains, Units


NMR Structure (10x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1K8H)

(-) Sites  (0, 0)

(no "Site" information available for 1K8H)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1K8H)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1K8H)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1K8H)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1SSRPPS01317 SsrA-binding protein.SSRP_AQUAE28-40  1A:27-39

(-) Exons   (0, 0)

(no "Exon" information available for 1K8H)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:133
 aligned with SSRP_AQUAE | O66640 from UniProtKB/Swiss-Prot  Length:157

    Alignment length:133
                                    11        21        31        41        51        61        71        81        91       101       111       121       131
           SSRP_AQUAE     2 GKSDKIIPIAENKEAKAKYDILETYEAGIVLKGSEVKSLREKGTVSFKDSFVRIENGEAWLYNLYIAPYKHATIENHDPLRKRKLLLHKREIMRLYGKVQEKGYTIIPLKLYWKNNKVKVLIALAKGKKLYDR 134
               SCOP domains d1k8ha_ A: Small protein B (SmpB)                                                                                                     SCOP domains
               CATH domains 1k8hA00 A:1-133  [code=2.40.280.10, no name defined]                                                                                  CATH domains
               Pfam domains ----SmpB-1k8hA01 A:5-75                                                    ---------------------------------------------------------- Pfam domains
         Sec.struct. author ............hhhhhhh.eeeeeeeee...hhhhhhhhhhh......eeeeee..eeeeee...................eee...hhhhhhhhhhhhhhh.eeeeeeeeee..eeeeeeeee........ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------SSRP         ---------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1k8h A   1 GKSDKIIPIAENKEAKAKYDILETYEAGIVLKGSEVKSLREKGTVSFKDSFVRIENGEAWLYNLYIAPYKHATIENHDPLRKRKLLLHKREIMRLYGKVQEKGYTIIPLKLYWKNNKVKVLIALAKGKKLYDR 133
                                    10        20        30        40        50        60        70        80        90       100       110       120       130
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: no clan defined [family: SmpB] (2)

(-) Gene Ontology  (3, 3)

NMR Structure(hide GO term definitions)
Chain A   (SSRP_AQUAE | O66640)
molecular function
    GO:0003723    RNA binding    Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
biological process
    GO:0070929    trans-translation    A translational elongation process in which transfer of a translating ribosome from one mRNA to another RNA template takes place. Trans-translation occurs during tmRNA release of stalled ribosomes.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1k8h)

  Sites
(no "Sites" information available for 1k8h)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1k8h)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1k8h
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  SSRP_AQUAE | O66640
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  SSRP_AQUAE | O66640
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        SSRP_AQUAE | O66640: 1p6v 1zc8 2ob7

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1K8H)
