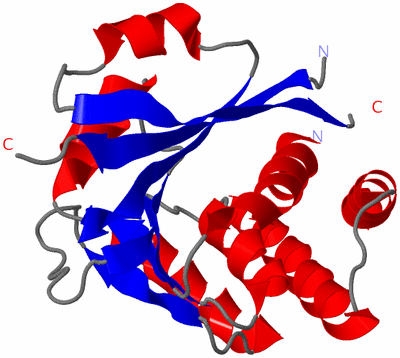

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE ESCHERICHIA COLI GLUCOSE-INHIBITED DIVISION PROTEIN B (GIDB)

Authors :  M. J. Romanowski, J. B. Bonanno, S. K. Burley, New York Sgx Research Center For Structural Genomics (Nysgxrc)
Date :  19 Aug 01  (Deposition) - 08 May 02  (Release) - 21 Jul 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym./Biol. Unit :  A
Keywords :  Methyltransferase Fold, Structural Genomics, Psi, Protein Structure Initiative, New York Sgx Research Center For Structural Genomics, Nysgxrc, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  M. J. Romanowski, J. B. Bonanno, S. K. Burley
Crystal Structure Of The Escherichia Coli Glucose-Inhibited Division Protein B (Gidb) Reveals A Methyltransferase Fold.
Proteins V. 47 563 2002
PubMed-ID: 12001236  |  Reference-DOI: 10.1002/PROT.10121.ABS
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - GLUCOSE-INHIBITED DIVISION PROTEIN B
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI BL21
    Expression System PlasmidPGEX6P1
    Expression System StrainBL21
    Expression System Taxid511693
    Expression System Vector TypePLASMID
    GeneGIDB
    Organism ScientificESCHERICHIA COLI
    Organism Taxid562

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1JSX)

(-) Sites  (0, 0)

(no "Site" information available for 1JSX)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1JSX)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Leu A:78 -Pro A:79

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1JSX)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1JSX)

(-) Exons   (0, 0)

(no "Exon" information available for 1JSX)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:193
 aligned with RSMG_ECOLI | P0A6U5 from UniProtKB/Swiss-Prot  Length:207

    Alignment length:207
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200
           RSMG_ECOLI     1 MLNKLSLLLKDAGISLTDHQKNQLIAYVNMLHKWNKAYNLTSVRDPNEMLVRHILDSIVVAPYLQGERFIDVGTGPGLPGIPLSIVRPEAHFTLLDSLGKRVRFLRQVQHELKLENIEPVQSRVEEFPSEPPFDGVISRAFASLNDMVSWCHHLPGEQGRFYALKGQMPEDEIALLPEEYQVESVVKLQVPALDGERHLVVIKANKI 207
               SCOP domains d1jsxa_ A: Glucose-inhibited divisi            on protein B (GidB)                                                                                                                                              SCOP domains
               CATH domains 1jsxA00 A:1-207 Vaccinia Virus prot            ein VP39                                                                                                                                                         CATH domains
               Pfam domains -------------------GidB-1jsxA01 A:2            0-200                                                                                                                                                    ------- Pfam domains
         Sec.struct. author hhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhh------------hhhhhhhhhhhhhhhhh...eeeee......hhhhhhhhh...eeeeee.hhhhhhhhhhhhhhh....eeeee...........eeeee.....hhhhhhhhhh..eeeeeeeeeee...hhhhhhh....eeeeeeeeee..--..eeeeeeeee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1jsx A   1 MLNKLSLLLKDAGISLTDHQKNQLIAYVNMLHKWN------------EMLVRHILDSIVVAPYLQGERFIDVGTGPGLPGIPLSIVRPEAHFTLLDSLGKRVRFLRQVQHELKLENIEPVQSRVEEFPSEPPFDGVISRAFASLNDMVSWCHHLPGEQGRFYALKGQMPEDEIALLPEEYQVESVVKLQVP--DGERHLVVIKANKI 207
                                    10        20        30    |    -       |50        60        70        80        90       100       110       120       130       140       150       160       170       180       190|  |   200
                                                             35           48                                                                                                                                            191  |
                                                                                                                                                                                                                           194

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit

(-) Gene Ontology  (10, 10)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (RSMG_ECOLI | P0A6U5)
molecular function
    GO:0008168    methyltransferase activity    Catalysis of the transfer of a methyl group to an acceptor molecule.
    GO:0070043    rRNA (guanine-N7-)-methyltransferase activity    Catalysis of the reaction: S-adenosyl-L-methionine + rRNA = S-adenosyl-L-homocysteine + rRNA containing N7-methylguanine.
    GO:0008649    rRNA methyltransferase activity    Catalysis of the transfer of a methyl group from S-adenosyl-L-methionine to a nucleoside residue in an rRNA molecule.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0032259    methylation    The process in which a methyl group is covalently attached to a molecule.
    GO:0070476    rRNA (guanine-N7)-methylation    The addition of a methyl group to the N7 atom in the base portion of a guanine nucleotide residue in an rRNA molecule.
    GO:0070475    rRNA base methylation    The addition of a methyl group to an atom in the nucleoside base portion of a nucleotide residue in an rRNA molecule.
    GO:0006364    rRNA processing    Any process involved in the conversion of a primary ribosomal RNA (rRNA) transcript into one or more mature rRNA molecules.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1jsx)

  Sites
(no "Sites" information available for 1jsx)

  Cis Peptide Bonds
    Leu A:78 - Pro A:79   [ RasMol ]
