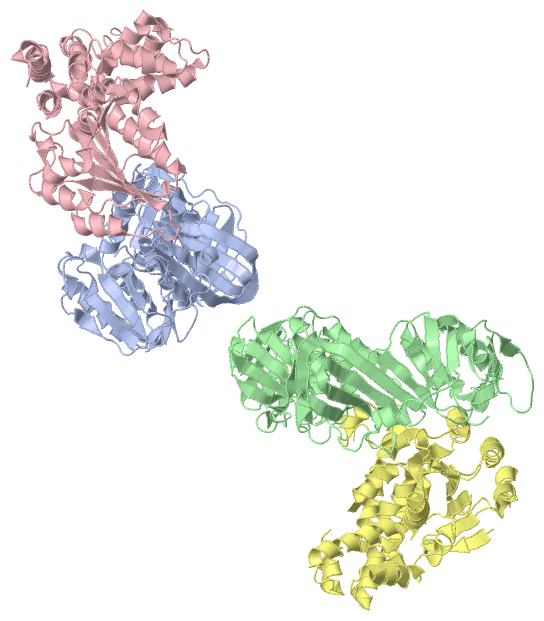

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

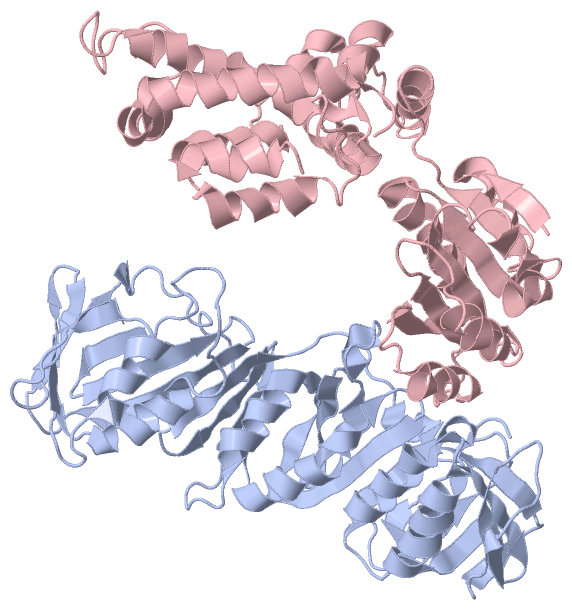

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

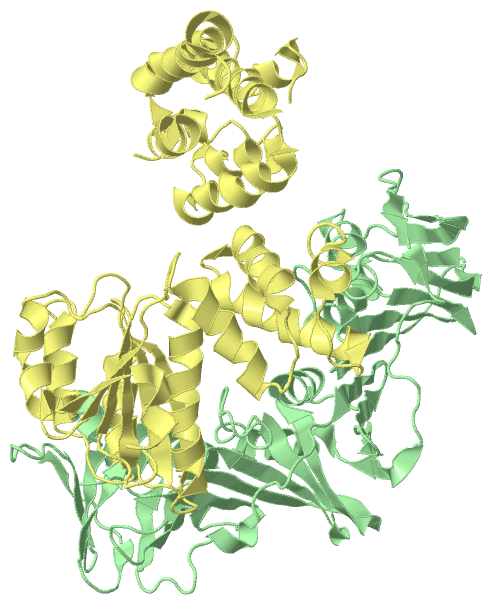

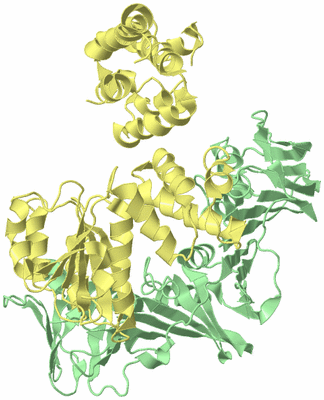

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

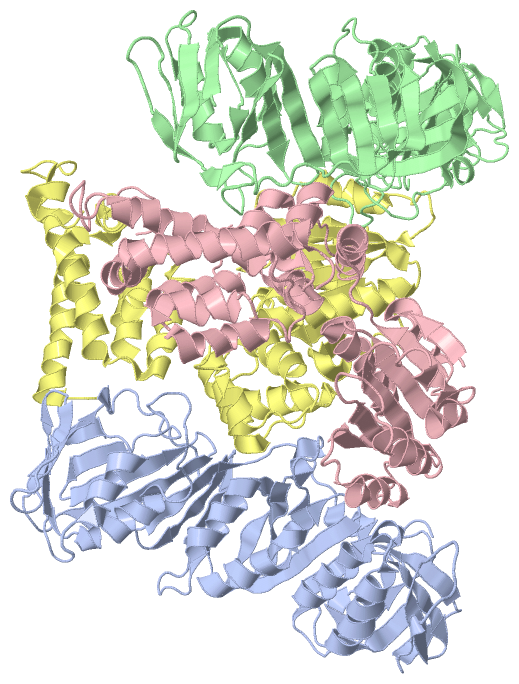

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

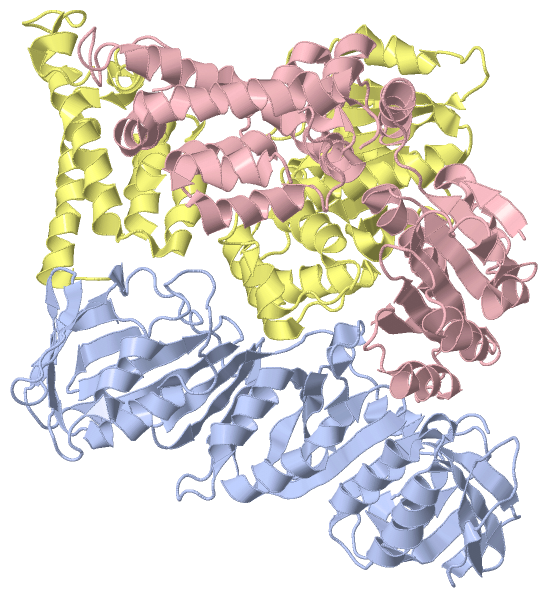

Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

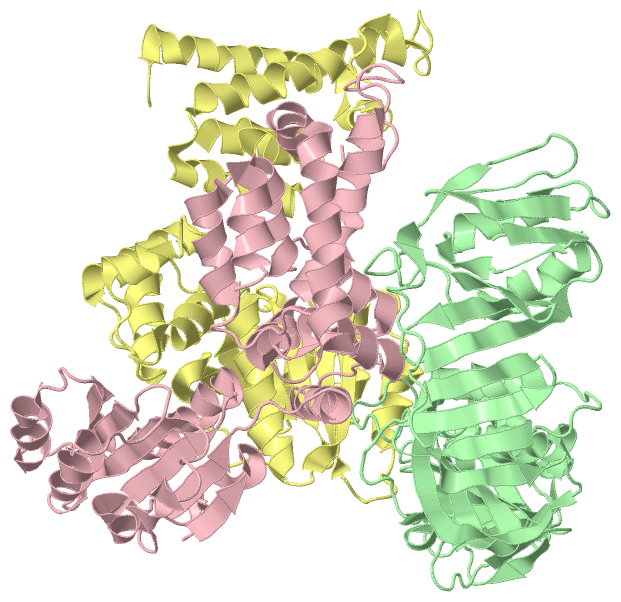

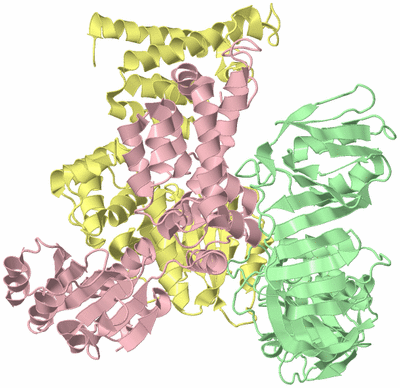

Image Biological Unit 5
Biological Unit 5  (Jmol Viewer)

(-) Description

Title :  MECHANISM OF PROCESSIVITY CLAMP OPENING BY THE DELTA SUBUNIT WRENCH OF THE CLAMP LOADER COMPLEX OF E. COLI DNA POLYMERASE III: STRUCTURE OF THE BETA-DELTA COMPLEX

Authors :  D. Jeruzalmi, O. Yurieva, Y. Zhao, M. Young, J. Stewart, M. Hingorani, M. O'Donnell, J. Kuriyan
Date :  07 Aug 01  (Deposition) - 07 Nov 01  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.90
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,C  (1x)
Biol. Unit 2:  B,D  (1x)
Biol. Unit 3:  A (1x),B (1x),C (1x),D (1x)
Biol. Unit 4:  A (1x),C (1x),D (1x)
Biol. Unit 5:  B (1x),C (1x),D (1x)
Keywords :  Dna Polymerase, Processivity Clamp, Clamp Loader, Dna Replication, Aaa+ Atpase, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Jeruzalmi, O. Yurieva, Y. Zhao, M. Young, J. Stewart, M. Hingorani, M. O'Donnell, J. Kuriyan
Mechanism Of Processivity Clamp Opening By The Delta Subunit Wrench Of The Clamp Loader Complex Of E. Coli Dna Polymerase Iii.
Cell(Cambridge, Mass. ) V. 106 417 2001
PubMed-ID: 11525728  |  Reference-DOI: 10.1016/S0092-8674(01)00462-7
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - DNA POLYMERASE III, BETA CHAIN
    Chains: A, B
    EC Number: 2.7.7.7
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Mutation: YES
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562

Molecule 2 - DNA POLYMERASE III, DELTA SUBUNIT
    Chains: C, D
    EC Number: 2.7.7.7
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): A C
Biological Unit 2 (1x):  B D
Biological Unit 3 (1x): A (1x)B (1x)C (1x)D (1x)
Biological Unit 4 (1x): A (1x) C (1x)D (1x)
Biological Unit 5 (1x):  B (1x)C (1x)D (1x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1JQJ)

(-) Sites  (0, 0)

(no "Site" information available for 1JQJ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1JQJ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1JQJ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1JQJ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1JQJ)

(-) Exons   (0, 0)

(no "Exon" information available for 1JQJ)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:366
 aligned with DPO3B_ECOLI | P0A988 from UniProtKB/Swiss-Prot  Length:366

    Alignment length:366
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360
          DPO3B_ECOLI     1 MKFTVEREHLLKPLQQVSGPLGGRPTLPILGNLLLQVADGTLSLTGTDLEMEMVARVALVQPHEPGATTVPARKFFDICRGLPEGAEIAVQLEGERMLVRSGRSRFSLSTLPAADFPNLDDWQSEVEFTLPQATMKRLIEATQFSMAHQDVRYYLNGMLFETEGEELRTVATDGHRLAVCSMPIGQSLPSHSVIVPRKGVIELMRMLDGGDNPLRVQIGSNNIRAHVGDFIFTSKLVDGRFPDYRRVLPKNPDKHLEAGCDLLKQAFARAAILSNEKFRGVRLYVSENQLKITANNPEQEEAEEILDVTYSGAEMEIGFNVSYVLDVLNALKCENVRMMLTDSVSSVQIEDAASQSAAYVVMPMRL 366
               SCOP domains d1jqja1 A:1-122 DNA polymerase III, beta subunit                                                                          d1jqja2 A:123-244 DNA polymerase III, beta subunit                                                                        d1jqja3 A:245-366 DNA polymerase III, beta subunit                                                                         SCOP domains
               CATH domains 1jqjA01 A:1-123 DNA Polymerase III, subunit A, domain 2                                                                    1jqjA02 A:124-247 DNA Polymerase III, subunit A, domain 2                                                                   1jqjA03 A:248-366 DNA Polymerase III, subunit A, domain 2                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeee.hhhhhhhhhhh................eeeee..eeeeeee...eeeeeeee....ee.eeee..hhhhhhhhhh......eeeeee..eee........eee.ee...............ee.hhhhhhhhhhhhhhhh.....hhhh.eeeeeeeeeeeeeeee...eeeeeeeeeeeeeeeeeeeeehhhhhhhhhhh.......eeeee..eeeeee..eeeeee.......hhhhh.......eeeeehhhhhhhhhhhhhhh.hhhh.eeeeee..eeeeee........ee....eee...eeeeehhhhhhhhhhhh...eeeee..........ee.....eeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1jqj A   1 MKFTVEREHLLKPLQQVSGPLGGRPTLPILGNLLLQVADGTLSLTGTDLEMEMVARVALVQPHEPGATTVPARKFFDICRGLPEGAEIAVQLEGERMLVRSGRSRFSLSTLPAADFPNLDDWQSEVEFTLPQATMKRLIEATQFSMAHQDVRYYLNGMLFETEGEELRTVATDGHRLAVCSMPIGQSLPSHSVIVPRKGVIELMRMLDGGDNPLRVQIGSNNIRAHVGDFIFTSKLVDGRFPDYRRVLPKNPDKHLEAGCDLLKQAFARAAAASNEKFRGVRLYVSENQLKITANNPEQEEAEEILDVTYSGAEMEIGFNVSYVLDVLNALKCENVRMMLTDSVSSVQIEDAASQSAAYVVMPMRL 366
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360


Chain B from PDB  Type:PROTEIN  Length:366
 aligned with DPO3B_ECOLI | P0A988 from UniProtKB/Swiss-Prot  Length:366

    Alignment length:366
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360
          DPO3B_ECOLI     1 MKFTVEREHLLKPLQQVSGPLGGRPTLPILGNLLLQVADGTLSLTGTDLEMEMVARVALVQPHEPGATTVPARKFFDICRGLPEGAEIAVQLEGERMLVRSGRSRFSLSTLPAADFPNLDDWQSEVEFTLPQATMKRLIEATQFSMAHQDVRYYLNGMLFETEGEELRTVATDGHRLAVCSMPIGQSLPSHSVIVPRKGVIELMRMLDGGDNPLRVQIGSNNIRAHVGDFIFTSKLVDGRFPDYRRVLPKNPDKHLEAGCDLLKQAFARAAILSNEKFRGVRLYVSENQLKITANNPEQEEAEEILDVTYSGAEMEIGFNVSYVLDVLNALKCENVRMMLTDSVSSVQIEDAASQSAAYVVMPMRL 366
               SCOP domains d1jqjb1 B:1-122 DNA polymerase III, beta subunit                                                                          d1jqjb2 B:123-244 DNA polymerase III, beta subunit                                                                        d1jqjb3 B:245-366 DNA polymerase III, beta subunit                                                                         SCOP domains
               CATH domains 1jqjB01 B:1-123 DNA Polymerase III, subunit A, domain 2                                                                    1jqjB02 B:124-247 DNA Polymerase III, subunit A, domain 2                                                                   1jqjB03 B:248-366 DNA Polymerase III, subunit A, domain 2                                                               CATH domains
           Pfam domains (1) DNA_pol3_beta-1jqjB01 B:1-120                                                                                           --------DNA_pol3_beta_2-1jqjB03 B:129-243                                                                                  -DNA_pol3_beta_3-1jqjB05 B:245-365                                                                                        - Pfam domains (1)
           Pfam domains (2) DNA_pol3_beta-1jqjB02 B:1-120                                                                                           --------DNA_pol3_beta_2-1jqjB04 B:129-243                                                                                  -DNA_pol3_beta_3-1jqjB06 B:245-365                                                                                        - Pfam domains (2)
         Sec.struct. author .eeee.hhhhhhhhhhh................eeeee..eeeeeee...eeeeeeee....ee.eeee..hhhhhhhhhh......eeeeee..eee........eee.ee...........eeeeee.hhhhhhhhhhh...............eeeeeeeeeeeeeeee...eeeeeeeeeeeeeeeeeeeeehhhhhhhhhhh.......eeeee..eeeeee..eeeeee.......hhhhh.......eeeeehhhhhhhhhhhhhhh.hhhh.eeeeee..eeeeee........ee....eee...eeeeehhhhhhhhhhhh...eeeee........eeee.....eeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1jqj B   1 MKFTVEREHLLKPLQQVSGPLGGRPTLPILGNLLLQVADGTLSLTGTDLEMEMVARVALVQPHEPGATTVPARKFFDICRGLPEGAEIAVQLEGERMLVRSGRSRFSLSTLPAADFPNLDDWQSEVEFTLPQATMKRLIEATQFSMAHQDVRYYLNGMLFETEGEELRTVATDGHRLAVCSMPIGQSLPSHSVIVPRKGVIELMRMLDGGDNPLRVQIGSNNIRAHVGDFIFTSKLVDGRFPDYRRVLPKNPDKHLEAGCDLLKQAFARAAAASNEKFRGVRLYVSENQLKITANNPEQEEAEEILDVTYSGAEMEIGFNVSYVLDVLNALKCENVRMMLTDSVSSVQIEDAASQSAAYVVMPMRL 366
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360


Chain C from PDB  Type:PROTEIN  Length:328
 aligned with HOLA_ECOLI | P28630 from UniProtKB/Swiss-Prot  Length:343

    Alignment length:333
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330
           HOLA_ECOLI     1 MIRLYPEQLRAQLNEGLRAAYLLLGNDPLLLQESQDAVRQVAAAQGFEEHHTFSIDPNTDWNAIFSLCQAMSLFASRQTLLLLLPENGPNAAINEQLLTLTGLLHDDLLLIVRGNKLSKAQENAAWFTALANRSVQVTCQTPEQAQLPRWVAARAKQLNLELDDAANQVLCYCYEGNLLALAQALERLSLLWPDGKLTLPRVEQAVNDAAHFTPFHWVDALLMGKSKRALHILQQLRLEGSEPVILLRTLQRELLLLVNLKRQSAHTPLRALFDKHRVWQNRRGMMGEALNRLSQTQLRQAVQLLTRTELTLKQDYGQSVWAELEGLSLLLCH 333
               SCOP domains d1jqjc2 C:1-211 delta subunit of DNA polymerase III, N-domain                                                                                                                                                      d1jqjc1 C:212-333 delta subunit                                                                                            SCOP domains
               CATH domains 1jqjC01 C:1-142 P-loop containing nucleotide triphosphate hydrolases                                                                          1jqjC03 C:143-213  [code=1.10.8.60, no name defined]                   1jqjC02 C:214-311  [code=1.20.272.20, no name defined]                                            -------   ------------ CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeehhhhhhhhhh.....eeeee..hhhhhhhhhhhhhhhhhh..eeeeeeee.....hhhhhhhhhh.......eeeeeee........hhhhhhhhhh......eeeeeee.....hhhhhhhhhhhh...eeee.......hhhhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.....hhhhhhhhhh.....hhhhhhhhhhh.hhhhhhhhhhhh........hhhhhhhhhhhhhhhhhh.................--...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...---..hhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1jqj C   1 MIRLYPEQLRAQLNEGLRAAYLLLGNDPLLLQESQDAVRQVAAAQGFEEHHTFSIDPNTDWNAIFSLCQAMSLFASRQTLLLLLPENGPNAAINEQLLTLTGLLHDDLLLIVRGNKLSKAQENAAWFTALANRSVQVTCQTPEQAQLPRWVAARAKQLNLELDDAANQVLCYCYEGNLLALAQALERLSLLWPDGKLTLPRVEQAVNDAAHFTPFHWVDALLMGKSKRALHILQQLRLEGSEPVILLRTLQRELLLLVNLKRQSAHTPLRALFDKHRVW--RRGMMGEALNRLSQTQLRQAVQLLTRTELTLKQDYGQ---AELEGLSLLLCH 333
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270        |- |     290       300       310       | - |     330
                                                                                                                                                                                                                                                                                                                279  |                                 318 322
                                                                                                                                                                                                                                                                                                                   282


Chain D from PDB  Type:PROTEIN  Length:325
 aligned with HOLA_ECOLI | P28630 from UniProtKB/Swiss-Prot  Length:343

    Alignment length:333
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330
           HOLA_ECOLI     1 MIRLYPEQLRAQLNEGLRAAYLLLGNDPLLLQESQDAVRQVAAAQGFEEHHTFSIDPNTDWNAIFSLCQAMSLFASRQTLLLLLPENGPNAAINEQLLTLTGLLHDDLLLIVRGNKLSKAQENAAWFTALANRSVQVTCQTPEQAQLPRWVAARAKQLNLELDDAANQVLCYCYEGNLLALAQALERLSLLWPDGKLTLPRVEQAVNDAAHFTPFHWVDALLMGKSKRALHILQQLRLEGSEPVILLRTLQRELLLLVNLKRQSAHTPLRALFDKHRVWQNRRGMMGEALNRLSQTQLRQAVQLLTRTELTLKQDYGQSVWAELEGLSLLLCH 333
               SCOP domains d1jqjd2 D:1-209 delta subunit of DNA polymerase III, N-domain                                                                                                                                                       d1jqjd1 D:213-333 delta subunit                                                                                           SCOP domains
               CATH domains 1jqjD01 D:1-142 P-loop containing nucleotide triphosphate hydrolases                                                                          1jqjD03 D:143-231  [code=1.10.8.60, no name defined]                                     1jqjD02 D:232-317  [code=1.20.272.20, no name de  fined]                              -   ------------ CATH domains
           Pfam domains (1) --------------------DNA_pol3_delta-1jqjD01 D:21-190                                                                                                                                           ----------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains (1)
           Pfam domains (2) --------------------DNA_pol3_delta-1jqjD02 D:21-190                                                                                                                                           ----------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains (2)
         Sec.struct. author .eeehhhhhh.........eeeee..hhhhhhhhhhhhhhhhhh..eeeeeeee.....hhhhhhhhhh.......eeeeeee........hhhhhhhhhh......eeeeeee.....hhhhhhhhhhhh...eeee.......hhhhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.....hhhhhhh.....---hhhhhhhhhh..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.......hhhhh....--......hhhhhhhhhhhhhhhhhhhhhhhhhhhh...---hhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1jqj D   1 MIRLYPEQLRAQLNEGLRAAYLLLGNDPLLLQESQDAVRQVAAAQGFEEHHTFSIDPNTDWNAIFSLCQAMSLFASRQTLLLLLPENGPNAAINEQLLTLTGLLHDDLLLIVRGNKLSKAQENAAWFTALANRSVQVTCQTPEQAQLPRWVAARAKQLNLELDDAANQVLCYCYEGNLLALAQALERLSLLWPDGKLTLPRVEQAVNDA---TPFHWVDALLMGKSKRALHILQQLRLEGSEPVILLRTLQRELLLLVNLKRQSAHTPLRALFDKHRVW--RRGMMGEALNRLSQTQLRQAVQLLTRTELTLKQDYGQ---AELEGLSLLLCH 333
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200        |-  |    220       230       240       250       260       270        |- |     290       300       310       | - |     330
                                                                                                                                                                                                                                          209 213                                                               279  |                                 318 322
                                                                                                                                                                                                                                                                                                                   282
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (3, 10)

Asymmetric Unit
(-)
Class: All alpha proteins (14657)
(-)
Class: Alpha and beta proteins (a+b) (23004)
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (4, 12)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (4, 8)

Asymmetric Unit
(-)
Clan: DNA_clamp (33)
(-)
Clan: P-loop_NTPase (1112)

(-) Gene Ontology  (16, 24)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (DPO3B_ECOLI | P0A988)
molecular function
    GO:0008408    3'-5' exonuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids by removing nucleotide residues from the 3' end.
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0003887    DNA-directed DNA polymerase activity    Catalysis of the reaction: deoxynucleoside triphosphate + DNA(n) = diphosphate + DNA(n+1); the synthesis of DNA from deoxyribonucleotide triphosphates in the presence of a DNA template and a 3'hydroxyl group.
    GO:0042802    identical protein binding    Interacting selectively and non-covalently with an identical protein or proteins.
    GO:0016779    nucleotidyltransferase activity    Catalysis of the transfer of a nucleotidyl group to a reactant.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0071897    DNA biosynthetic process    The cellular DNA metabolic process resulting in the formation of DNA, deoxyribonucleic acid, one of the two main types of nucleic acid, consisting of a long unbranched macromolecule formed from one or two strands of linked deoxyribonucleotides, the 3'-phosphate group of each constituent deoxyribonucleotide being joined in 3',5'-phosphodiester linkage to the 5'-hydroxyl group of the deoxyribose moiety of the next one.
    GO:0006260    DNA replication    The cellular metabolic process in which a cell duplicates one or more molecules of DNA. DNA replication begins when specific sequences, known as origins of replication, are recognized and bound by initiation proteins, and ends when the original DNA molecule has been completely duplicated and the copies topologically separated. The unit of replication usually corresponds to the genome of the cell, an organelle, or a virus. The template for replication can either be an existing DNA molecule or RNA.
    GO:0006271    DNA strand elongation involved in DNA replication    The process in which a DNA strand is synthesized from template DNA during replication by the action of polymerases, which add nucleotides to the 3' end of the nascent DNA strand.
    GO:0006974    cellular response to DNA damage stimulus    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus indicating damage to its DNA from environmental insults or errors during metabolism.
    GO:0090305    nucleic acid phosphodiester bond hydrolysis    The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.
cellular component
    GO:0009360    DNA polymerase III complex    The DNA polymerase III holoenzyme is a complex that contains 10 different types of subunits. These subunits are organized into 3 functionally essential sub-assemblies: the pol III core, the beta sliding clamp processivity factor and the clamp-loading complex. The pol III core carries out the polymerase and the 3'-5' exonuclease proofreading activities. The polymerase is tethered to the template via the sliding clamp processivity factor. The clamp-loading complex assembles the beta processivity factor onto the primer template and plays a central role in the organization and communication at the replication fork.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.

Chain C,D   (HOLA_ECOLI | P28630)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0003887    DNA-directed DNA polymerase activity    Catalysis of the reaction: deoxynucleoside triphosphate + DNA(n) = diphosphate + DNA(n+1); the synthesis of DNA from deoxyribonucleotide triphosphates in the presence of a DNA template and a 3'hydroxyl group.
    GO:0016779    nucleotidyltransferase activity    Catalysis of the transfer of a nucleotidyl group to a reactant.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0071897    DNA biosynthetic process    The cellular DNA metabolic process resulting in the formation of DNA, deoxyribonucleic acid, one of the two main types of nucleic acid, consisting of a long unbranched macromolecule formed from one or two strands of linked deoxyribonucleotides, the 3'-phosphate group of each constituent deoxyribonucleotide being joined in 3',5'-phosphodiester linkage to the 5'-hydroxyl group of the deoxyribose moiety of the next one.
    GO:0006260    DNA replication    The cellular metabolic process in which a cell duplicates one or more molecules of DNA. DNA replication begins when specific sequences, known as origins of replication, are recognized and bound by initiation proteins, and ends when the original DNA molecule has been completely duplicated and the copies topologically separated. The unit of replication usually corresponds to the genome of the cell, an organelle, or a virus. The template for replication can either be an existing DNA molecule or RNA.
    GO:0006261    DNA-dependent DNA replication    A DNA replication process that uses parental DNA as a template for the DNA-dependent DNA polymerases that synthesize the new strands.
cellular component
    GO:0009360    DNA polymerase III complex    The DNA polymerase III holoenzyme is a complex that contains 10 different types of subunits. These subunits are organized into 3 functionally essential sub-assemblies: the pol III core, the beta sliding clamp processivity factor and the clamp-loading complex. The pol III core carries out the polymerase and the 3'-5' exonuclease proofreading activities. The polymerase is tethered to the template via the sliding clamp processivity factor. The clamp-loading complex assembles the beta processivity factor onto the primer template and plays a central role in the organization and communication at the replication fork.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1jqj)

  Sites
(no "Sites" information available for 1jqj)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1jqj)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]
    Biological Unit 5  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format | Biol. Unit 5 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1jqj
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  DPO3B_ECOLI | P0A988
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  HOLA_ECOLI | P28630
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.7.7.7
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  DPO3B_ECOLI | P0A988
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  HOLA_ECOLI | P28630
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        DPO3B_ECOLI | P0A988: 1jql 1mmi 1ok7 1unn 1wai 2pol 2xur 3bep 3d1e 3d1f 3d1g 3f1v 3pwe 3q4j 3q4k 3q4l 3qsb 4k3k 4k3l 4k3m 4k3o 4k3p 4k3q 4k3r 4k3s 4mjp 4mjq 4mjr 4n94 4n95 4n96 4n97 4n98 4n99 4n9a 5fku 5fkv 5fkw 5m1s
        HOLA_ECOLI | P28630: 1jql 1jr3 1xxh 1xxi 3glf 3glg 3glh 3gli

(-) Related Entries Specified in the PDB File

1a5t
1jql STRUCTURE OF BETA-DELTA (1-140)
1jr3 STRUCTURE OF GAMMA-DELTA-DELTA-PRIME
2pol
