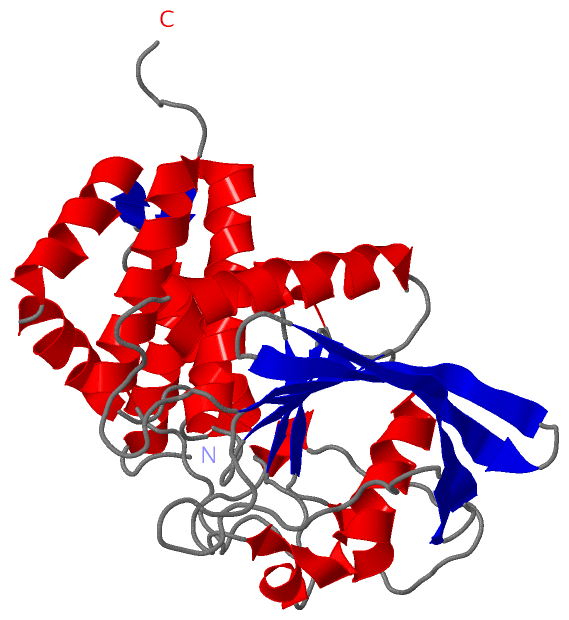

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE CATALYTIC DOMAIN OF PROTEIN TYROSINE PHOSPHATASE PTP-SL/BR7

Authors :  S. E. Szedlacsek, A. R. Aricescu, T. A. Fulga, L. Renault, A. J. Scheidig
Date :  16 Jul 01  (Deposition) - 17 Aug 01  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.81
Chains :  Asym./Biol. Unit :  A
Keywords :  Protein Tyrosine Phosphatase, Ptp-Sl, Ptpbr7, Erk2-Map Kinase Regulation, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  S. E. Szedlacsek, A. R. Aricescu, T. A. Fulga, L. Renault, A. J. Scheidig
Crystal Structure Of Ptp-Sl/Ptpbr7 Catalytic Domain: Implications For Map Kinase Regulation.
J. Mol. Biol. V. 311 557 2001
PubMed-ID: 11493009  |  Reference-DOI: 10.1006/JMBI.2001.4890
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROTEIN TYROSINE PHOSPHATASE, RECEPTOR TYPE, R
    ChainsA
    EC Number3.1.3.48
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPGEX-2T
    Expression System StrainDH5ALPHA
    Expression System Taxid562
    Expression System Vector TypePLASMID
    FragmentCATALYTIC DOMAIN
    Organism CommonHOUSE MOUSE
    Organism ScientificMUS MUSCULUS
    Organism Taxid10090
    SynonymSTEP-LIKE PTPASE

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1JLN)

(-) Sites  (0, 0)

(no "Site" information available for 1JLN)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1JLN)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1JLN)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1JLN)

(-) PROSITE Motifs  (3, 3)

Asymmetric/Biological Unit (3, 3)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1TYR_PHOSPHATASE_PTPPS50055 PTP type protein phosphatase family profile.PTPRR_MOUSE392-646  1A:285-539
2TYR_PHOSPHATASE_2PS50056 Tyrosine specific protein phosphatases family profile.PTPRR_MOUSE561-637  1A:454-530
3TYR_PHOSPHATASE_1PS00383 Tyrosine specific protein phosphatases active site.PTPRR_MOUSE585-595  1A:478-488

(-) Exons   (0, 0)

(no "Exon" information available for 1JLN)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:297
 aligned with PTPRR_MOUSE | Q62132 from UniProtKB/Swiss-Prot  Length:656

    Alignment length:297
                                   368       378       388       398       408       418       428       438       448       458       468       478       488       498       508       518       528       538       548       558       568       578       588       598       608       618       628       638       648
          PTPRR_MOUSE   359 STPREKVAMEYLQSASRVLTRSQLRDVVASSHLLQSEFMEIPMNFVDPKEIDIPRHGTKNRYKTILPNPLSRVCLRPKNITDSLSTYINANYIRGYSGKEKAFIATQGPMINTVNDFWQMVWQEDSPVIVMITKLKEKNEKCVLYWPEKRGIYGKVEVLVTGVTECDNYTIRNLVLKQGSHTQHVKHYWYTSWPDHKTPDSAQPLLQLMLDVEEDRLASEGRGPVVVHCSAGIGRTGCFIATSIGCQQLKEEGVVDALSIVCQLRVDRGGMVQTSEQYEFVHHALCLFESRLSPETV 655
               SCOP domains d1jlna_ A: Tyrosine phosphatase                                                                                                                                                                                                                                                                           SCOP domains
               CATH domains 1jlnA00 A:252-548 Protein tyrosine phosphatase superfamily                                                                                                                                                                                                                                                CATH domains
               Pfam domains -------------------------------------------------------Y_phosphatase-1jlnA01 A:307-538                                                                                                                                                                                                         ---------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhh...eehhhhhhhhhh.hhhhhhhhhh.............hhhhhh.......hhhh...........hhhhh..eeee.hhhhh...eeee...hhhhhhhhhhhhhhh...eeee..................eeee..eeeeeeeeee...eeeeeeeeee..eeeeeeeeee...........hhhhhhhhhhhhhhhhh......eeee....hhhhhhhhhhhhhhhhhhhhheehhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ---------------------------------TYR_PHOSPHATASE_PTP  PDB: A:285-539 UniProt: 392-646                                                                                                                                                                                                           --------- PROSITE (1)
                PROSITE (2) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------TYR_PHOSPHATASE_2  PDB: A:454-530 UniProt: 561-637                           ------------------ PROSITE (2)
                PROSITE (3) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------TYR_PHOSPHA------------------------------------------------------------ PROSITE (3)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1jln A 252 GSPREKVAMEYLQSASRVLTRSQLRDVVASSHLLQSEFMEIPMNFVDPKEIDIPRHGTKNRYKTILPNPLSRVCLRPKNITDSLSTYINANYIRGYSGKEKAFIATQGPMINTVNDFWQMVWQEDSPVIVMITKLKEKNEKCVLYWPEKRGIYGKVEVLVTGVTECDNYTIRNLVLKQGSHTQHVKHYWYTSWPDHKTPDSAQPLLQLMLDVEEDRLASEGRGPVVVHCSAGIGRTGCFIATSIGCQQLKEEGVVDALSIVCQLRVDRGGMVQTSEQYEFVHHALCLFESRLSPETV 548
                                   261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit

(-) Gene Ontology  (21, 21)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (PTPRR_MOUSE | Q62132)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016791    phosphatase activity    Catalysis of the hydrolysis of phosphoric monoesters, releasing inorganic phosphate.
    GO:0004721    phosphoprotein phosphatase activity    Catalysis of the reaction: a phosphoprotein + H2O = a protein + phosphate. Together with protein kinases, these enzymes control the state of phosphorylation of cell proteins and thereby provide an important mechanism for regulating cellular activity.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0019901    protein kinase binding    Interacting selectively and non-covalently with a protein kinase, any enzyme that catalyzes the transfer of a phosphate group, usually from ATP, to a protein substrate.
    GO:0004725    protein tyrosine phosphatase activity    Catalysis of the reaction: protein tyrosine phosphate + H2O = protein tyrosine + phosphate.
biological process
    GO:0038128    ERBB2 signaling pathway    A series of molecular signals initiated by binding of a ligand to a member of the ERBB family of receptors on the surface of a cell, where the signal is transmitted by ERBB2. The pathway ends with regulation of a downstream cellular process, e.g. transcription. ERBB2 receptors are themselves unable to bind to ligands, but act as a signal-amplifying tyrosine kinase within a heterodimeric pair.
    GO:0016311    dephosphorylation    The process of removing one or more phosphoric (ester or anhydride) residues from a molecule.
    GO:0001701    in utero embryonic development    The process whose specific outcome is the progression of the embryo in the uterus over time, from formation of the zygote in the oviduct, to birth. An example of this process is found in Mus musculus.
    GO:0070373    negative regulation of ERK1 and ERK2 cascade    Any process that stops, prevents, or reduces the frequency, rate or extent of signal transduction mediated by the ERK1 and ERK2 cascade.
    GO:0010633    negative regulation of epithelial cell migration    Any process that stops, prevents, or reduces the frequency, rate or extent of epithelial cell migration.
    GO:0007399    nervous system development    The process whose specific outcome is the progression of nervous tissue over time, from its formation to its mature state.
    GO:0030182    neuron differentiation    The process in which a relatively unspecialized cell acquires specialized features of a neuron.
    GO:0035335    peptidyl-tyrosine dephosphorylation    The removal of phosphoric residues from peptidyl-O-phospho-tyrosine to form peptidyl-tyrosine.
    GO:0006470    protein dephosphorylation    The process of removing one or more phosphoric residues from a protein.
cellular component
    GO:0030054    cell junction    A cellular component that forms a specialized region of connection between two or more cells or between a cell and the extracellular matrix. At a cell junction, anchoring proteins extend through the plasma membrane to link cytoskeletal proteins in one cell to cytoskeletal proteins in neighboring cells or to proteins in the extracellular matrix.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005615    extracellular space    That part of a multicellular organism outside the cells proper, usually taken to be outside the plasma membranes, and occupied by fluid.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1jln)

  Sites
(no "Sites" information available for 1jln)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1jln)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
