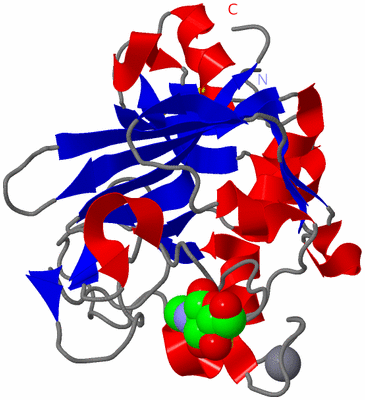

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

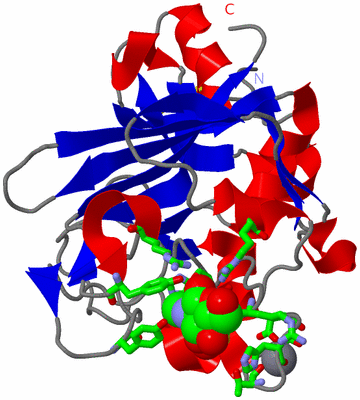

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  TACHYLECTIN 5A FROM TACHYPLEUS TRIDENTATUS (JAPANESE HORSESHOE CRAB)

Authors :  N. Kairies, H. -G. Beisel, P. Fuentes-Prior, R. Tsuda, T. Muta, S. Iwana W. Bode, R. Huber, S. Kawabata
Date :  08 Jun 01  (Deposition) - 28 Nov 01  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.01
Chains :  Asym./Biol. Unit :  A
Keywords :  Lectin, Fibrinogen Related, Sugar Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  N. Kairies, H. G. Beisel, P. Fuentes-Prior, R. Tsuda, T. Muta, S. Iwanaga, W. Bode, R. Huber, S. Kawabata
The 2. 0-A Crystal Structure Of Tachylectin 5A Provides Evidence For The Common Origin Of The Innate Immunity And The Blood Coagulation Systems.
Proc. Natl. Acad. Sci. Usa V. 98 13519 2001
PubMed-ID: 11707569  |  Reference-DOI: 10.1073/PNAS.201523798

(-) Compounds

Molecule 1 - TECHYLECTIN-5A
    Chains: A
    Organism Scientific: TACHYPLEUS TRIDENTATUS
    Organism Taxid: 6853

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
1CA1Ligand/IonCALCIUM ION
2NAG1Ligand/IonN-ACETYL-D-GLUCOSAMINE

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREARG A:186 , ARG A:218 , CYS A:219 , HIS A:220 , TYR A:236 , ARG A:243 , TYR A:248 , HOH A:379BINDING SITE FOR RESIDUE NAG A 270
2AC2SOFTWAREASP A:198 , ASP A:200 , HIS A:202 , THR A:204 , HOH A:341 , HOH A:362BINDING SITE FOR RESIDUE CA A 301

(-) SS Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1A:49 -A:80
2A:206 -A:219

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Arg A:218 -Cys A:219

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1JC9)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1FIBRINOGEN_C_1PS00514 Fibrinogen C-terminal domain signature.TL5A_TACTR237-249  1A:214-226

(-) Exons   (0, 0)

(no "Exon" information available for 1JC9)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:220
 aligned with TL5A_TACTR | Q9U8W8 from UniProtKB/Swiss-Prot  Length:292

    Alignment length:220
                                    77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287
           TL5A_TACTR    68 DPTDCADILLNGYRSSGGYRIWPKSWMTVGTLNVYCDMETDGGGWTVIQRRGNYGNPSDYFYKPWKNYKLGFGNIEKDFWLGNDRIFALTNQRNYMIRFDLKDKENDTRYAIYQDFWIENEDYLYCLHIGNYSGDAGNSFGRHNGHNFSTIDKDHDTHETHCAQTYKGGWWYDRCHESNLNGLYLNGEHNSYADGIEWRAWKGYHYSLPQVEMKIRPVEF 287
               SCOP domains d1jc9a_ A: Tachylectin 5a                                                                                                                                                                                                    SCOP domains
               CATH domains 1jc9A01 A:45-180,A:254-264 Gamma Fibrinogen, chain A, domain 1                                                                          1jc9A02 A:181-253 Gamma-fibrinogen Carboxyl Terminal Fragment, domain 2  1jc9A01     CATH domains
               Pfam domains Fibrinogen_C-1jc9A01 A:45-262                                                                                                                                                                                             -- Pfam domains
         Sec.struct. author ...hhhhhhhh.....eeeee...hhhhhh.eeeeee.hhhhh.eeeeeee............hhhhhhhhee.....ee.hhhhhhhhhhhh.eeeeeeee.....eeeeeeeeeee.hhhhh..ee...eee.....hhhhh................hhhhhhh...................ee.........hhhhhh..ee..eeeeeeee... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------FIBRINOGEN_C_-------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1jc9 A  45 DPTDCADILLNGYRSSGGYRIWPKSWMTVGTLNVYCDMETDGGGWTVIQRRGNYGNPSDYFYKPWKNYKLGFGNIEKDFWLGNDRIFALTNQRNYMIRFDLKDKENDTRYAIYQDFWIENEDYLYCLHIGNYSGDAGNSFGRHNGHNFSTIDKDHDTHETHCAQTYKGGWWYDRCHESNLNGLYLNGEHNSYADGIEWRAWKGYHYSLPQVEMKIRPVEF 264
                                    54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Few Secondary Structures (1120)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: Fibrinogen_C (23)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (TL5A_TACTR | Q9U8W8)
molecular function
    GO:0030246    carbohydrate binding    Interacting selectively and non-covalently with any carbohydrate, which includes monosaccharides, oligosaccharides and polysaccharides as well as substances derived from monosaccharides by reduction of the carbonyl group (alditols), by oxidation of one or more hydroxy groups to afford the corresponding aldehydes, ketones, or carboxylic acids, or by replacement of one or more hydroxy group(s) by a hydrogen atom. Cyclitols are generally not regarded as carbohydrates.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0016337    single organismal cell-cell adhesion    The attachment of one cell to another cell via adhesion molecules, where both cells are part of the same organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NAG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Arg A:218 - Cys A:219   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

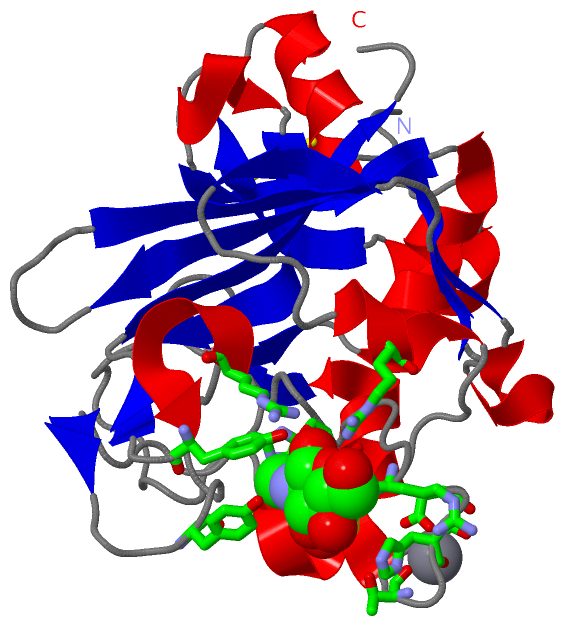

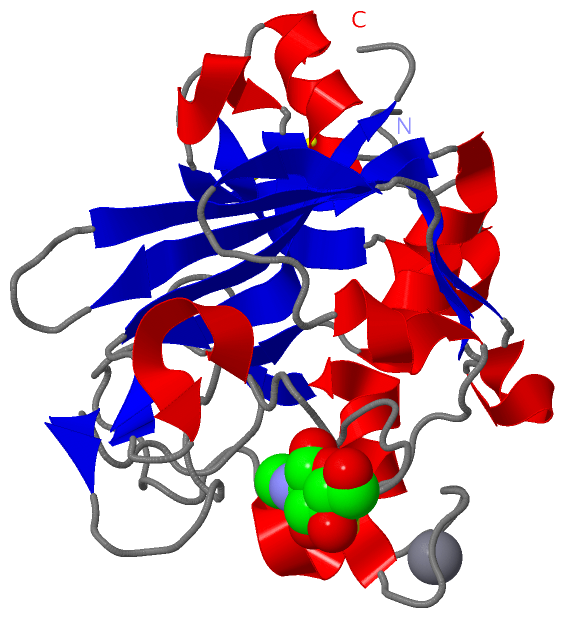

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1jc9
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  TL5A_TACTR | Q9U8W8
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  TL5A_TACTR | Q9U8W8
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1JC9)

(-) Related Entries Specified in the PDB File

1aoc COAGULOGEN, THE CLOTTING PROTEIN FROM THE JAPANESE HORSESHOE CRAB TACHYPLEUS TRIDENTATUS
1tl2 TACHYLECTIN-2: SPCIFIC GLCNAC/GALNAC-BINDING LECTIN INVOLVED IN THE INNATE IMMUNITY HOST DEFENSE OF THE JAPANESE HORSESHOE CRAB TACHYPLEUS TRIDENTATUS
