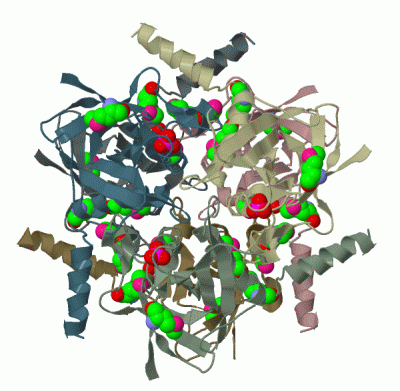

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

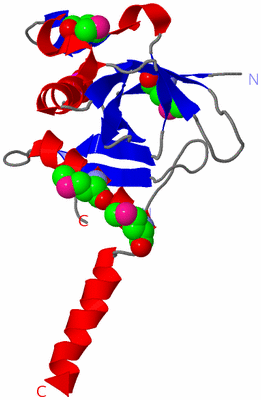

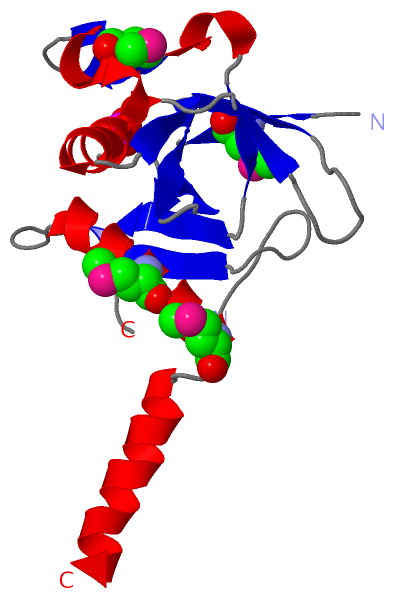

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

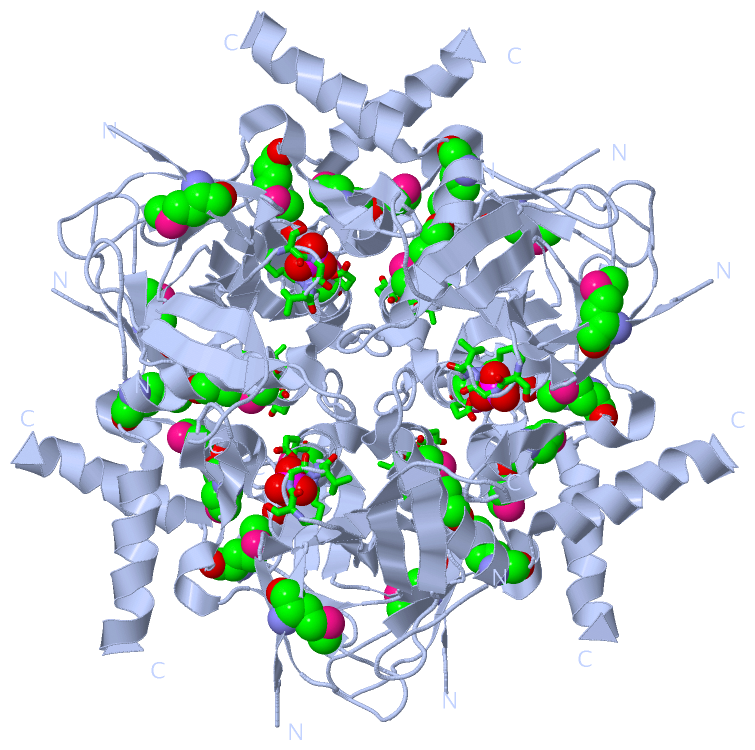

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  LACTOBACILLUS CASEI HPRK/P BOUND TO PHOSPHATE

Authors :  S. Fieulaine, S. Morera, S. Poncet, V. Monedero, V. Gueguen-Chaignon, A. Galinier, J. Janin, J. Deutscher, S. Nessler
Date :  01 Jun 01  (Deposition) - 08 Aug 01  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.80
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (6x)
Keywords :  Catabolite Repression, Hpr Phosphorylation, Lactobacillus Casei, P-Loop, Protein Kinase, Hexamer, Transferase/Hydrolase Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  S. Fieulaine, S. Morera, S. Poncet, V. Monedero, V. Gueguen-Chaignon, A. Galinier, J. Janin, J. Deutscher, S. Nessler
X-Ray Structure Of Hpr Kinase: A Bacterial Protein Kinase With A P-Loop Nucleotide-Binding Domain.
Embo J. V. 20 3917 2001
PubMed-ID: 11483495  |  Reference-DOI: 10.1093/EMBOJ/20.15.3917
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HPRK PROTEIN
    ChainsA
    EC Number2.7.1.-, 3.1.3.-
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPQE30
    Expression System StrainNM522
    Expression System Taxid562
    Expression System Vector TypePLASMID
    FragmentC-TERMINUS (RESIDUES 128-319)
    GenePTSK
    Organism ScientificLACTOBACILLUS CASEI
    Organism Taxid1582

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit A
Biological Unit 1 (6x)A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 5)

Asymmetric Unit (2, 5)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
2PO41Ligand/IonPHOSPHATE ION
Biological Unit 1 (2, 30)
No.NameCountTypeFull Name
1MSE24Mod. Amino AcidSELENOMETHIONINE
2PO46Ligand/IonPHOSPHATE ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARESER A:157 , GLY A:158 , VAL A:159 , GLY A:160 , LYS A:161 , SER A:162 , GLU A:163BINDING SITE FOR RESIDUE PO4 A 400

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1JB1)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1JB1)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1JB1)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1JB1)

(-) Exons   (0, 0)

(no "Exon" information available for 1JB1)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:161
 aligned with HPRK_LACCA | Q9RE09 from UniProtKB/Swiss-Prot  Length:319

    Alignment length:173
                                   144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304
           HPRK_LACCA   135 ERRSMHGVLVDIYGLGVLITGDSGVGKSETALELVQRGHRLIADDRVDVYQQDEQTIVGAAPPILSHLLEIRGLGIIDVMNLFGAGAVREDTTISLIVHLENWTPDKTFDRLGSGEQTQLIFDVPVPKITVPVKVGRNLAIIIEVAAMNFRAKSMGYDATKTFEKNLNHLIEH 307
               SCOP domains d1jb1a_ A: HPr kinase HprK C-terminal domain                                                                                                                                  SCOP domains
               CATH domains 1jb1A00 A:135-307 P-loop containing nucleotide triphosphate hydrolases                                                                                                        CATH domains
               Pfam domains Hpr_kinase_C-1jb1A01 A:135-301                                                                                                                                         ------ Pfam domains
         Sec.struct. author ..eeee.eeeee..eeeeee.....hhhhhhhhhhhh..eeee..eeee........eee.hhhhh.eeee...eeeehhhhhhhhh...eee..eeeeee.....------------.........eeeee.....hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1jb1 A 135 ERRSmHGVLVDIYGLGVLITGDSGVGKSETALELVQRGHRLIADDRVDVYQQDEQTIVGAAPPILSHLLEIRGLGIIDVmNLFGAGAVREDTTISLIVHLENWTPD------------QLIFDVPVPKITVPVKVGRNLAIIIEVAAmNFRAKSmGYDATKTFEKNLNHLIEH 307
                                |  144       154       164       174       184       194       204       214       224       234     |   -       254       264       274       284    |  294       304
                                |                                                                        214-MSE                   240          253                          282-MSE  |
                              139-MSE                                                                                                                                               289-MSE

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 1)

Asymmetric Unit

(-) Gene Ontology  (19, 19)

Asymmetric Unit(hide GO term definitions)
Chain A   (HPRK_LACCA | Q9RE09)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0000287    magnesium ion binding    Interacting selectively and non-covalently with magnesium (Mg) ions.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0000155    phosphorelay sensor kinase activity    Catalysis of the phosphorylation of a histidine residue in response to detection of an extracellular signal such as a chemical ligand or change in environment, to initiate a change in cell state or activity. The two-component sensor is a histidine kinase that autophosphorylates a histidine residue in its active site. The phosphate is then transferred to an aspartate residue in a downstream response regulator, to trigger a response.
    GO:0004672    protein kinase activity    Catalysis of the phosphorylation of an amino acid residue in a protein, usually according to the reaction: a protein + ATP = a phosphoprotein + ADP.
    GO:0004674    protein serine/threonine kinase activity    Catalysis of the reactions: ATP + protein serine = ADP + protein serine phosphate, and ATP + protein threonine = ADP + protein threonine phosphate.
    GO:0004712    protein serine/threonine/tyrosine kinase activity    Catalysis of the reactions: ATP + a protein serine = ADP + protein serine phosphate; ATP + a protein threonine = ADP + protein threonine phosphate; and ATP + a protein tyrosine = ADP + protein tyrosine phosphate.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0000160    phosphorelay signal transduction system    A conserved series of molecular signals found in prokaryotes and eukaryotes; involves autophosphorylation of a histidine kinase and the transfer of the phosphate group to an aspartate that then acts as a phospho-donor to response regulator proteins.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
    GO:0006468    protein phosphorylation    The process of introducing a phosphate group on to a protein.
    GO:0006109    regulation of carbohydrate metabolic process    Any process that modulates the frequency, rate or extent of the chemical reactions and pathways involving carbohydrates.
    GO:0023014    signal transduction by protein phosphorylation    A process in which the transfer of one or more phosphate groups to a substrate transmits a signal to the phosphorylated substrate.
cellular component
    GO:0005622    intracellular    The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.
