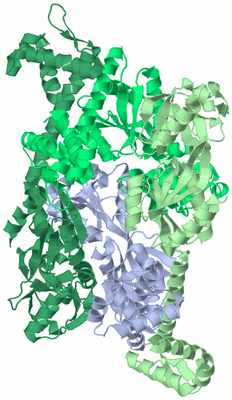

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF CBNR, A LYSR FAMILY TRANSCRIPTIONAL REGULATOR

Authors :  S. Muraoka, R. Okumura, N. Ogawa, K. Miyashita, T. Senda
Date :  18 Sep 02  (Deposition) - 06 May 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym./Biol. Unit :  A,B,P,Q
Keywords :  Long Alpha Helix Connecting Dna Binding And Regulatory Domains, Dna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Muraoka, R. Okumura, N. Ogawa, T. Nonaka, K. Miyashita, T. Senda
Crystal Structure Of A Full-Length Lysr-Type Transcriptional Regulator, Cbnr: Unusual Combination Of Two Subunit Forms And Molecular Bases For Causing And Changing Dna Bend
J. Mol. Biol. V. 328 555 2003
PubMed-ID: 12706716  |  Reference-DOI: 10.1016/S0022-2836(03)00312-7
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - LYSR-TYPE REGULATORY PROTEIN
    Chains: A, B, P, Q
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET
    Expression System Strain: BL21 (DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: CUPRIAVIDUS NECATOR
    Organism Taxid: 106590
    Synonym: CBNR

 Structural Features

(-) Chains, Units

  1234
Asymmetric/Biological Unit : ABPQ

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1IZ1)

(-) Sites  (0, 0)

(no "Site" information available for 1IZ1)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1IZ1)

(-) Cis Peptide Bonds  (8, 8)

Asymmetric/Biological Unit
No.Residues
1Phe A:194 -Pro A:195
2Arg A:199 -Pro A:200
3Phe B:194 -Pro B:195
4Arg B:199 -Pro B:200
5Phe P:194 -Pro P:195
6Arg P:199 -Pro P:200
7Phe Q:194 -Pro Q:195
8Arg Q:199 -Pro Q:200

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1IZ1)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1IZ1)

(-) Exons   (0, 0)

(no "Exon" information available for 1IZ1)

(-) Sequences/Alignments
