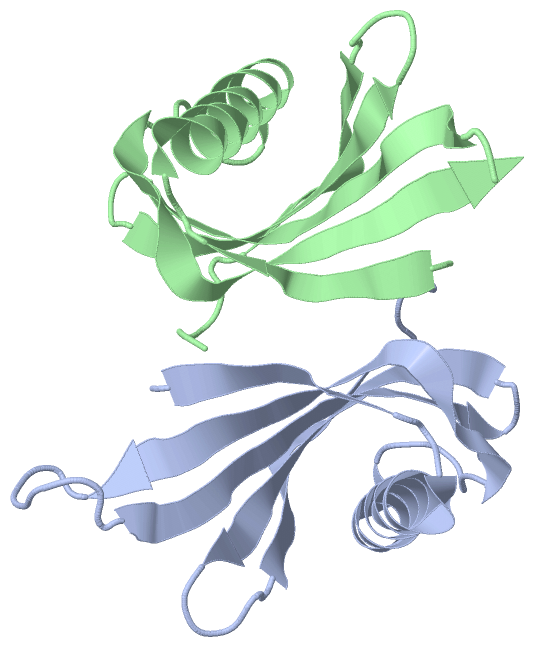

Title :   CRYSTAL STRUCTURE OF SINGLE CHAIN MONELLIN

Authors :   T. Tamada, Y. Kato, R. Kuroki

Date :   15 Mar 02 (Deposition) - 07 Oct 03 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.90

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)

Keywords :   Alpha+Beta, Plant Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   Y. Kato, T. Tamada, H. Sone, H. Iijima, R. Kuroki
The Effect Of Single Chain Derivatization On The Structure And Stability Of The Monellin
To Be Published
PubMed: search
(for further references see the PDB file header)

Molecule 1 - MONELLIN
	Chains	:	A, B
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI STR. K12 SUBSTR. W3110
	Expression System Plasmid	:	PST6311
	Expression System Strain	:	W3110
	Expression System Taxid	:	316407
	Expression System Vector Type	:	PLASMID
	Organism Common	:	SERENDIPITY BERRY
	Organism Scientific	:	DIOSCOREOPHYLLUM CUMMINSII
	Organism Taxid	:	3457
	Other Details	:	FUSION PROTEIN CONCERNING CHAIN A COMPRISE RESIDUES 1-50 (MONELLIN, CHAIN B) AND 52-96 (MONELLIN, CHAIN A), INCLUDING GLYSINE LINKER. FUSION PROTEIN CONCERNING CHAIN B COMPRISE RESIDUES 101-150 (MONELLIN, CHAIN B) AND 152-196 (MONELLIN, CHAIN A), INCLUDING GLYSINE LINKER.

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 1IV9)

(no "Site" information available for 1IV9)

(no "SS Bond" information available for 1IV9)

Asymmetric Unit

No.	Residues
1	Arg A:39	-	Pro A:40
2	Gly A:91	-	Pro A:92
3	Arg B:139	-	Pro B:140
4	Gly B:191	-	Pro B:192

(no "SAP(SNP)/Variant" information available for 1IV9)

(no "PROSITE Motif" information available for 1IV9)

(no "Exon" information available for 1IV9)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:96
 aligned with MONA_DIOCU | P02881 from UniProtKB/Swiss-Prot  Length:45

    Alignment length:96
                                                                               1
                                     -         -         -         -         - |       9        19        29        39
           MONA_DIOCU     - ---------------------------------------------------FREIKGYEYQLYVYASDKLFRADISEDYKTRGRKLLRFNGPVPPP  45
               SCOP domains d1iv9a_ A: Monellin, B & A chains together                                                       SCOP domains
               CATH domains 1iv9A00 A:1-96  [code=3.10.450.10, no name defined]                                              CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeee..hhhhhhhhhhhhhhhhhhh......eeeeeeeeeeeeee.......eeeeeeeeeeee..eeeeeeeeee.....eeeeeee...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------ Transcript
                 1iv9 A   1 GEWEIIDIGPFTQNLGKFAVDEENKIGQYGRLTFNKVIRPCMKKTIYEENGFREIKGYEYQLYVYASDKLFRADISEDYKTRGRKLLRFNGPVPPP  96
                                    10        20        30        40        50        60        70        80        90

Chain A from PDB  Type:PROTEIN  Length:96
 aligned with MONB_DIOCU | P02882 from UniProtKB/Swiss-Prot  Length:50

    Alignment length:96
                                                                            50
                                    10        20        30        40        50         -         -         -         -
           MONB_DIOCU     1 GEWEIIDIGPFTQNLGKFAVDEENKIGQYGRLTFNKVIRPCMKKTIYEEN----------------------------------------------   -
               SCOP domains d1iv9a_ A: Monellin, B & A chains together                                                       SCOP domains
               CATH domains 1iv9A00 A:1-96  [code=3.10.450.10, no name defined]                                              CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeee..hhhhhhhhhhhhhhhhhhh......eeeeeeeeeeeeee.......eeeeeeeeeeee..eeeeeeeeee.....eeeeeee...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------ Transcript
                 1iv9 A   1 GEWEIIDIGPFTQNLGKFAVDEENKIGQYGRLTFNKVIRPCMKKTIYEENGFREIKGYEYQLYVYASDKLFRADISEDYKTRGRKLLRFNGPVPPP  96
                                    10        20        30        40        50        60        70        80        90

Chain B from PDB  Type:PROTEIN  Length:92
 aligned with MONA_DIOCU | P02881 from UniProtKB/Swiss-Prot  Length:45

    Alignment length:92
                                                             1              2
                                     -         -         -   |     -        |3        13        23        33        43
           MONA_DIOCU     - ---------------------------------F--------------REIKGYEYQLYVYASDKLFRADISEDYKTRGRKLLRFNGPVPPP  45
               SCOP domains d1iv9b_ B: Monellin, B & A chains together                                                   SCOP domains
               CATH domains 1iv9B00 B:101-196  [code=3.10.450.10, no name defined]                                       CATH domains
               Pfam domains -------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee..hhhhhhhhhhhhhhhhhhh......eeeeeeeeeeeeee...eeeeeeeeeeee..eeeeeeeeee.....eeeeeee...... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------- Transcript
                 1iv9 B 101 GEWEIIDIGPFTQNLGKFAVDEENKIGQYGRLTFNKVIRPCMKKTIYEREIKGYEYQLYVYASDKLFRADISEDYKTRGRKLLRFNGPVPPP 196
                                   110       120       130       140       154       164       174       184       194
                                                                         148|
                                                                          153

Chain B from PDB  Type:PROTEIN  Length:92
 aligned with MONB_DIOCU | P02882 from UniProtKB/Swiss-Prot  Length:50

    Alignment length:92
                                                                                                    50
                                                                          48                       49|
                                    10        20        30        40       | -         -         -  ||     -         -
           MONB_DIOCU     1 GEWEIIDIGPFTQNLGKFAVDEENKIGQYGRLTFNKVIRPCMKKTIYE------------------------EN------------------   -
               SCOP domains d1iv9b_ B: Monellin, B & A chains together                                                   SCOP domains
               CATH domains 1iv9B00 B:101-196  [code=3.10.450.10, no name defined]                                       CATH domains
               Pfam domains -------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee..hhhhhhhhhhhhhhhhhhh......eeeeeeeeeeeeee...eeeeeeeeeeee..eeeeeeeeee.....eeeeeee...... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------- Transcript
                 1iv9 B 101 GEWEIIDIGPFTQNLGKFAVDEENKIGQYGRLTFNKVIRPCMKKTIYEREIKGYEYQLYVYASDKLFRADISEDYKTRGRKLLRFNGPVPPP 196
                                   110       120       130       140       154       164       174       184       194
                                                                         148|
                                                                          153

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Cystatin-like (403)

Superfamily: Cystatin/monellin (68)

Family: Monellin (15)

Protein domain: Monellin, B & A chains together (12)

Serendipity berry (Dioscoreophyllum cumminsii) [TaxId: 3457] (12)

1a	d1iv9a_	A:
1b	d1iv9b_	B:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Roll (3276)

Topology: Nuclear Transport Factor 2; Chain: A, (517)

Homologous Superfamily: [code=3.10.450.10, no name defined] (37)

Serendipity berry (Dioscoreophyllum cumminsii) (8)

1a	1iv9A00	A:1-96
1b	1iv9B00	B:101-196

(no "Pfam Domain" information available for 1IV9)

Asymmetric Unit(hide GO term definitions)

(no "Gene Ontology" information available for 1IV9)

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1iv9)

	Sites
(no "Sites" information available for 1iv9)

	Cis Peptide Bonds
		Arg A:39 - Pro A:40	[ RasMol ]
		Arg B:139 - Pro B:140	[ RasMol ]
		Gly A:91 - Pro A:92	[ RasMol ]
		Gly B:191 - Pro B:192	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)
