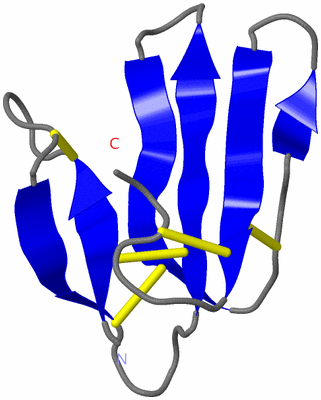

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

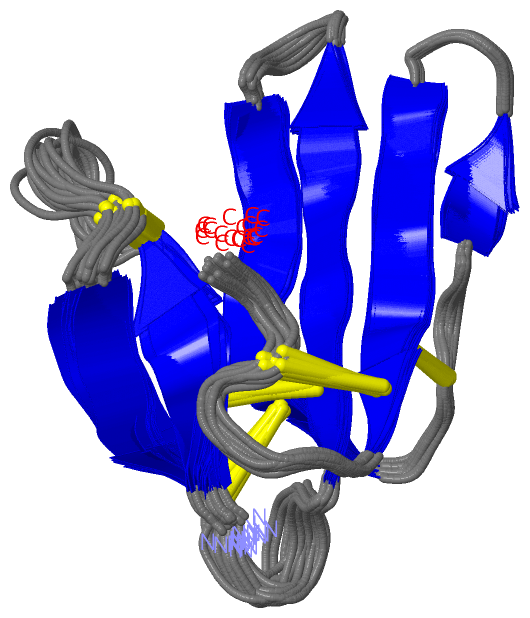

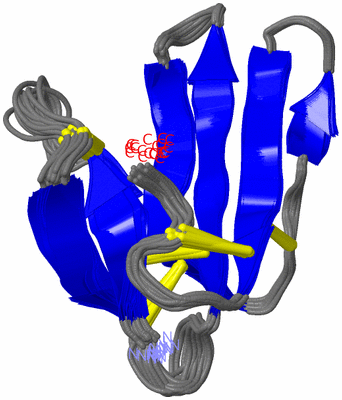

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF BUCANDIN, A NEUROTOXIN FROM THE VENOM OF THE MALAYAN KRAIT

Authors :  A. M. Torres, R. M. Kini, S. Nirthanan, P. W. Kuchel
Date :  25 Apr 01  (Deposition) - 21 Dec 01  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Three-Finger Motif, Two Antiparallel Beta-Sheets, Two And Four Stranded Beta-Sheets, Toxin (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  A. M. Torres, R. M. Kini, N. Selvanayagam, P. W. Kuchel
Nmr Structure Of Bucandin, A Neurotoxin From The Venom Of The Malayan Krait (Bungarus Candidus).
Biochem. J. V. 360 539 2001
PubMed-ID: 11736642  |  Reference-DOI: 10.1042/0264-6021:3600539
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - BUCANDIN
    ChainsA
    Organism ScientificBUNGARUS CANDIDUS
    Organism Taxid92438
    SecretionVENOM

 Structural Features

(-) Chains, Units


NMR Structure (20x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1IJC)

(-) Sites  (0, 0)

(no "Site" information available for 1IJC)

(-) SS Bonds  (5, 5)

NMR Structure
No.Residues
1A:3 -A:24
2A:6 -A:11
3A:17 -A:39
4A:43 -A:55
5A:56 -A:61

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1IJC)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1IJC)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1IJC)

(-) Exons   (0, 0)

(no "Exon" information available for 1IJC)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:63
 aligned with 3NOJ_BUNCA | P81782 from UniProtKB/Swiss-Prot  Length:63

    Alignment length:63
                                    10        20        30        40        50        60
            3NOJ_BUNCA    1 MECYRCGVSGCHLKITCSAEETFCYKWLNKISNERWLGCAKTCTEIDTWNVYNKCCTTNLCNT 63
               SCOP domains d1ijca_ A: Bucandin                                             SCOP domains
               CATH domains 1ijcA00 A:1-63 CD59                                             CATH domains
               Pfam domains --------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee.......eeee......eeeeeee....eeeeeee.....ee...eeeeee....... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------- Transcript
                  1ijc A  1 MECYRCGVSGCHLKITCSAEETFCYKWLNKISNERWLGCAKTCTEIDTWNVYNKCCTTNLCNT 63
                                    10        20        30        40        50        60

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1IJC)

(-) Gene Ontology  (3, 3)

NMR Structure(hide GO term definitions)
Chain A   (3NOJ_BUNCA | P81782)
biological process
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
    GO:0072556    other organism presynaptic membrane    A presynaptic membrane that is part of another organism, i.e. a secondary organism with which the first organism is interacting. A presynaptic membrane is specialized area of membrane of the axon terminal that faces the plasma membrane of the neuron or muscle fiber with which the axon terminal establishes a synaptic junction; many synaptic junctions exhibit structural presynaptic characteristics, such as conical, electron-dense internal protrusions, that distinguish it from the remainder of the axon plasma membrane.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1ijc)

  Sites
(no "Sites" information available for 1ijc)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ijc)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1ijc
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  3NOJ_BUNCA | P81782
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  3NOJ_BUNCA | P81782
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        3NOJ_BUNCA | P817821f94

(-) Related Entries Specified in the PDB File

1f94 X-RAY CRYSTAL STRUCTURE OF BUCANDIN
