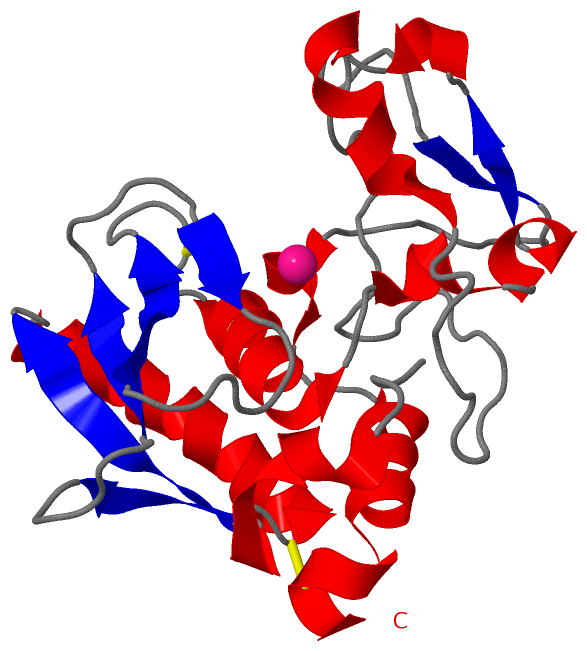

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)
Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  REFINED 1.8 ANGSTROMS X-RAY CRYSTAL STRUCTURE OF ASTACIN, A ZINC-ENDOPEPTIDASE FROM THE CRAYFISH ASTACUS ASTACUS L. STRUCTURE DETERMINATION, REFINEMENT, MOLECULAR STRUCTURE AND COMPARISON WITH THERMOLYSIN

Authors :  F. -X. Gomis-Rueth, W. Stoecker, W. Bode
Date :  09 May 94  (Deposition) - 31 Aug 94  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym./Biol. Unit :  A
Keywords :  Zinc Endopeptidase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  F. X. Gomis-Ruth, W. Stocker, R. Huber, R. Zwilling, W. Bode
Refined 1. 8 A X-Ray Crystal Structure Of Astacin, A Zinc-Endopeptidase From The Crayfish Astacus Astacus L. Structure Determination, Refinement, Molecular Structure And Comparison With Thermolysin.
J. Mol. Biol. V. 229 945 1993
PubMed-ID: 8445658  |  Reference-DOI: 10.1006/JMBI.1993.1098
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ASTACIN
    ChainsA
    EC Number3.4.24.21
    EngineeredYES
    Organism CommonBROAD-FINGERED CRAYFISH
    Organism ScientificASTACUS ASTACUS
    Organism Taxid6715

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1HG1Ligand/IonMERCURY (II) ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS A:92 , HIS A:96 , HIS A:102 , TYR A:149BINDING SITE FOR RESIDUE HG A 999

(-) SS Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1A:42 -A:198
2A:64 -A:84

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1IAC)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1IAC)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1ZINC_PROTEASEPS00142 Neutral zinc metallopeptidases, zinc-binding region signature.ASTA_ASTAS138-147  1A:89-98

(-) Exons   (0, 0)

(no "Exon" information available for 1IAC)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:200
 aligned with ASTA_ASTAS | P07584 from UniProtKB/Swiss-Prot  Length:251

    Alignment length:200
                                    59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249
           ASTA_ASTAS    50 AAILGDEYLWSGGVIPYTFAGVSGADQSAILSGMQELEEKTCIRFVPRTTESDYVEIFTSGSGCWSYVGRISGAQQVSLQANGCVYHGTIIHELMHAIGFYHEHTRMDRDNYVTINYQNVDPSMTSNFDIDTYSRYVGEDYQYYSIMHYGKYSFSIQWGVLETIVPLQNGIDLTDPYDKAHMLQTDANQINNLYTNECSL 249
               SCOP domains d1iaca_ A: Astacin                                                                                                                                                                                       SCOP domains
               CATH domains 1iacA00 A:1-200 Collagenase (Catalytic Domain)                                                                                                                                                           CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhh.eeeeeee..hhhhhhhhhhhhhhhhhhh..eeee......eeeee.....eee.......eeeeee......hhhhhhhhhhhhhh..hhhhh.hhhh.eee.hhh.hhhhhhhhh..................................eee........hhhhh...hhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------ZINC_PROTE------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1iac A   1 AAILGDEYLWSGGVIPYTFAGVSGADQSAILSGMQELEEKTCIRFVPRTTESDYVEIFTSGSGCWSYVGRISGAQQVSLQANGCVYHGTIIHELMHAIGFYHEHTRMDRDNYVTINYQNVDPSMTSNFDIDTYSRYVGEDYQYYSIMHYGKYSFSIQWGVLETIVPLQNGIDLTDPYDKAHMLQTDANQINNLYTNECSL 200
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1IAC)

(-) Gene Ontology  (17, 17)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (ASTA_ASTAS | P07584)
molecular function
    GO:0070001    aspartic-type peptidase activity    Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a mechanism in which a water molecule bound by the side chains of aspartic residues at the active center acts as a nucleophile.
    GO:0070002    glutamic-type peptidase activity    Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a mechanism involving a glutamate/glutamine catalytic dyad.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0004222    metalloendopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a mechanism in which water acts as a nucleophile, one or two metal ions hold the water molecule in place, and charged amino acid side chains are ligands for the metal ions.
    GO:0008237    metallopeptidase activity    Catalysis of the hydrolysis of peptide bonds by a mechanism in which water acts as a nucleophile, one or two metal ions hold the water molecule in place, and charged amino acid side chains are ligands for the metal ions.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0007155    cell adhesion    The attachment of a cell, either to another cell or to an underlying substrate such as the extracellular matrix, via cell adhesion molecules.
    GO:0009566    fertilization    The union of gametes of opposite sexes during the process of sexual reproduction to form a zygote. It involves the fusion of the gametic nuclei (karyogamy) and cytoplasm (plasmogamy).
    GO:2000360    negative regulation of binding of sperm to zona pellucida    Any process that stops, prevents or reduces the frequency, rate or extent of binding of sperm to the zona pellucida.
    GO:0010954    positive regulation of protein processing    Any process that increases the rate, frequency or extent of protein maturation by peptide bond cleavage.
    GO:0060468    prevention of polyspermy    The negative regulation of fertilization process that takes place as part of egg activation, ensuring that only a single sperm fertilizes the egg.
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
cellular component
    GO:0060473    cortical granule    A secretory vesicle that is stored under the cell membrane of an egg. These vesicles fuse with the egg plasma membrane as part of egg activation and are part of the block to polyspermy.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
