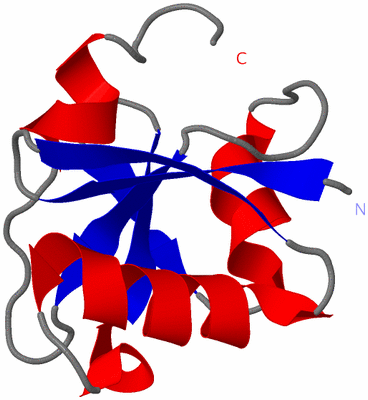

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

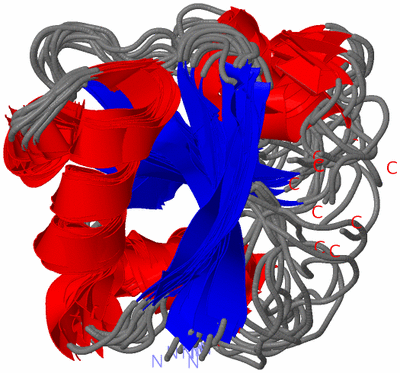

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE RAS-BINDING DOMAIN OF THE PROTEIN KINASE BYR2 FROM SCHIZOSACCHAROMYCES POMBE

Authors :  W. Gronwald, F. Huber, P. Grunewald, M. Sporner, S. Wohlgemuth, C. Herrmann, H. R. Kalbitzer
Date :  13 Feb 01  (Deposition) - 12 Dec 01  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (10x)
Keywords :  Ubiquitin Superfold, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  W. Gronwald, F. Huber, P. Grunewald, M. Sporner, S. Wohlgemuth, C. Herrmann, H. R. Kalbitzer
Solution Structure Of The Ras Binding Domain Of The Protein Kinase Byr2 From Schizosaccharomyces Pombe.
Structure V. 9 1029 2001
PubMed-ID: 11709167  |  Reference-DOI: 10.1016/S0969-2126(01)00671-2
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROTEIN KINASE BYR2
    ChainsA
    EC Number2.7.1.-
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPGEX4T3 (PHARMACIA)
    Expression System StrainB121 DE3
    Expression System Taxid562
    Expression System Vector TypePLASMID
    FragmentRAS-BINDING DOMAIN
    GeneBYR2 (AMINO ACIDS 71 - 165)
    Organism CommonFISSION YEAST
    Organism ScientificSCHIZOSACCHAROMYCES POMBE
    Organism Taxid4896

 Structural Features

(-) Chains, Units


NMR Structure (10x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1I35)

(-) Sites  (0, 0)

(no "Site" information available for 1I35)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1I35)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1I35)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1I35)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1I35)

(-) Exons   (0, 0)

(no "Exon" information available for 1I35)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:95
 aligned with BYR2_SCHPO | P28829 from UniProtKB/Swiss-Prot  Length:659

    Alignment length:95
                                    80        90       100       110       120       130       140       150       160
           BYR2_SCHPO    71 CILRFIACNGQTRAVQSRGDYQKTLAIALKKFSLEDASKFIVCVSQSSRIKLITEEEFKQICFNSSSPERDRLIIVPKEKPCPSFEDLRRSWEIE 165
               SCOP domains d1i35a_ A: Protein kinase byr2                                                                  SCOP domains
               CATH domains 1i35A00 A:1-95 Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1               CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee...eeeeee..hhhhhhhhhhhhhhh..hhhhheeeee....eeee..hhhhhhhhh........eeee.......hhhhhh...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------- Transcript
                 1i35 A   1 CILRFIACNGQTRAVQSRGDYQKTLAIALKKFSLEDASKFIVCVSQSSRIKLITEEEFKQICFNSSSPERDRLIIVPKEKPCPSFEDLRRSWEIE  95
                                    10        20        30        40        50        60        70        80        90

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1I35)

(-) Gene Ontology  (27, 27)

NMR Structure(hide GO term definitions)
Chain A   (BYR2_SCHPO | P28829)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0004709    MAP kinase kinase kinase activity    Catalysis of the phosphorylation and activation of a MAP kinase kinase; each MAP kinase kinase can be phosphorylated by any of several MAP kinase kinase kinases.
    GO:0008349    MAP kinase kinase kinase kinase activity    Catalysis of the phosphorylation of serine and threonine residues in a mitogen-activated protein kinase kinase kinase (MAPKKK), resulting in activation of MAPKKK. MAPKKK signaling pathways relay, amplify and integrate signals from the plasma membrane to the nucleus in response to a diverse range of extracellular stimuli.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0004672    protein kinase activity    Catalysis of the phosphorylation of an amino acid residue in a protein, usually according to the reaction: a protein + ATP = a phosphoprotein + ADP.
    GO:0004674    protein serine/threonine kinase activity    Catalysis of the reactions: ATP + protein serine = ADP + protein serine phosphate, and ATP + protein threonine = ADP + protein threonine phosphate.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:1903695    MAPK cascade involved in ascospore formation    Any MAPK cascade that is involved in ascospore formation.
    GO:0071507    MAPK cascade involved in conjugation with cellular fusion    A MAPK cascade that contributes to conjugation with cellular fusion.
    GO:0000186    activation of MAPKK activity    The initiation of the activity of the inactive enzyme MAP kinase kinase (MAPKK).
    GO:0000185    activation of MAPKKK activity    Any process that initiates the activity of the inactive enzyme MAP kinase kinase kinase (MAPKKK).
    GO:0000746    conjugation    The union or introduction of genetic information from compatible mating types that results in a genetically different individual. Conjugation requires direct cellular contact between the organisms.
    GO:0031142    induction of conjugation upon nitrogen starvation    The process in which a cell initiates conjugation with cellular fusion upon nitrogen starvation.
    GO:0010514    induction of conjugation with cellular fusion    The process in which a cell initiates conjugation with cellular fusion. Conjugation with cellular fusion is the process that results in the union of cellular and genetic information from compatible mating types.
    GO:0000751    mitotic cell cycle G1 arrest in response to pheromone    The cell cycle regulatory process in which the mitotic cell cycle is halted during G1 as a result of a pheromone stimulus. An example of this process is found in Saccharomyces cerevisiae.
    GO:0000750    pheromone-dependent signal transduction involved in conjugation with cellular fusion    A signal transduction process resulting in the relay, amplification or dampening of a signal generated in response to pheromone exposure in organisms that undergo conjugation with cellular fusion. An example of this process is found in Saccharomyces cerevisiae.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
    GO:0006468    protein phosphorylation    The process of introducing a phosphate group on to a protein.
    GO:0032005    signal transduction involved in conjugation with cellular fusion    The series of molecular signals that bring about the relay, amplification or dampening of a signal generated in response to a cue, such as starvation or pheromone exposure, in organisms that undergo conjugation with cellular fusion.
    GO:0030435    sporulation resulting in formation of a cellular spore    The process in which a relatively unspecialized cell acquires the specialized features of a cellular spore, a cell form that can be used for dissemination, for survival of adverse conditions because of its heat and dessication resistance, and/or for reproduction.
cellular component
    GO:0000935    barrier septum    A septum which spans a cell and does not allow exchange of organelles or cytoplasm between compartments.
    GO:0032153    cell division site    The eventual plane of cell division (also known as cell cleavage or cytokinesis) in a dividing cell. In Eukaryotes, the cleavage apparatus, composed of septin structures and the actomyosin contractile ring, forms along this plane, and the mitotic, or meiotic, spindle is aligned perpendicular to the division plane. In bacteria, the cell division site is generally located at mid-cell and is the site at which the cytoskeletal structure, the Z-ring, assembles.
    GO:0051286    cell tip    The region at the end of the longest axis of a cylindrical or elongated cell.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
