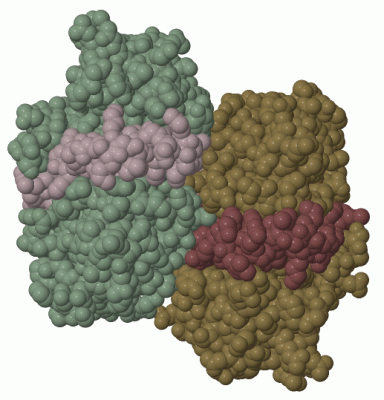

Biol.Unit 1 - manually (Jmol Viewer)

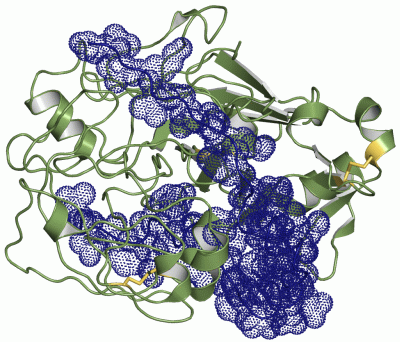

Asym.Unit - manually (Jmol Viewer)

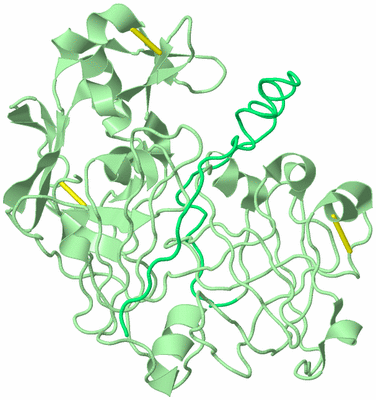

Asymmetric Unit (Jmol Viewer)

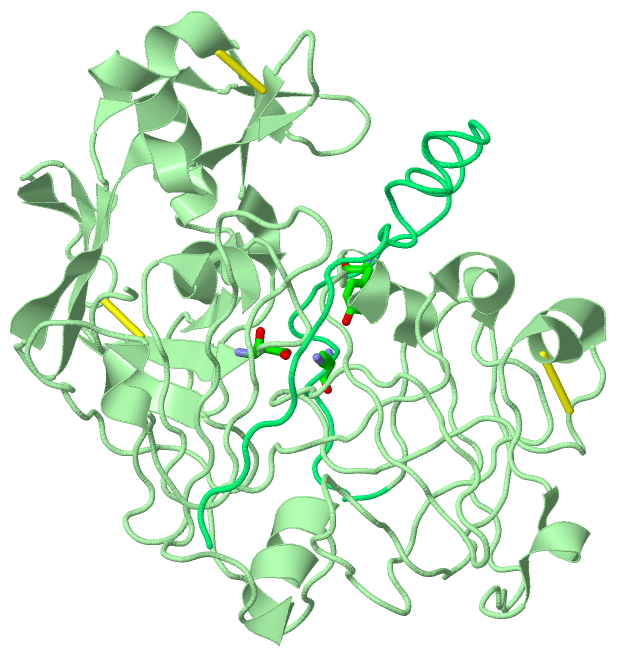

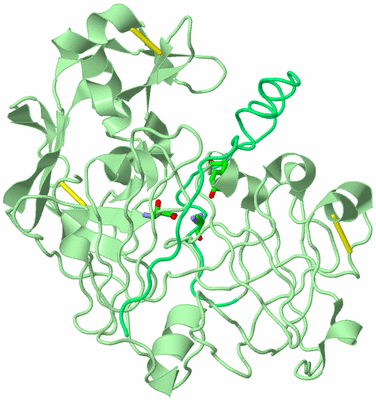

Asym. Unit - sites (Jmol Viewer)

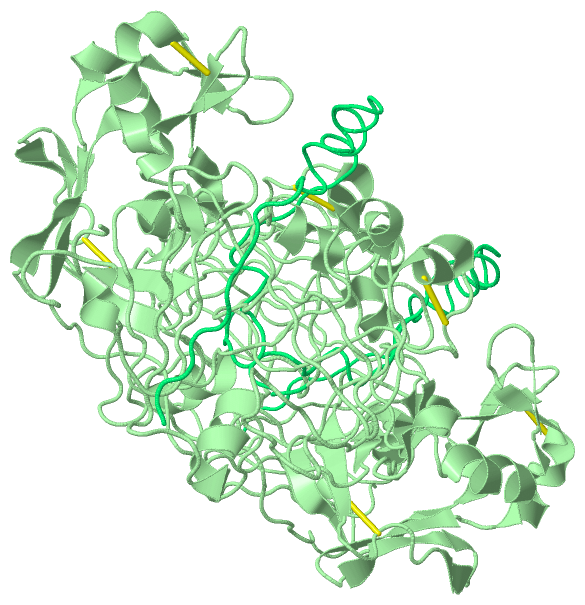

Biological Unit 1 (Jmol Viewer)

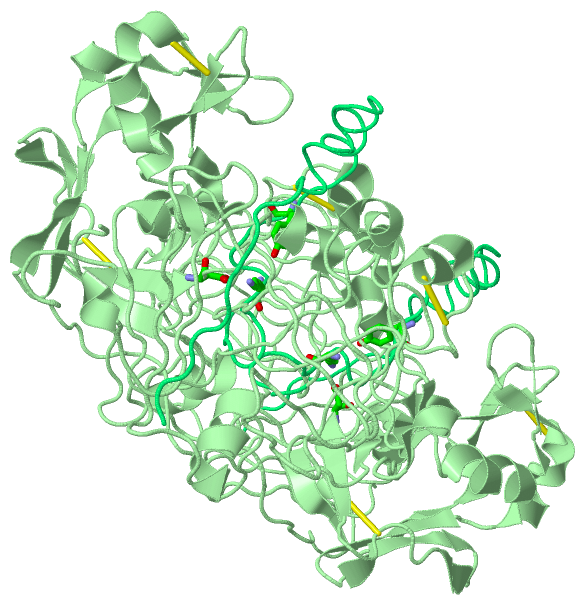

Biol. Unit 1 - sites (Jmol Viewer)

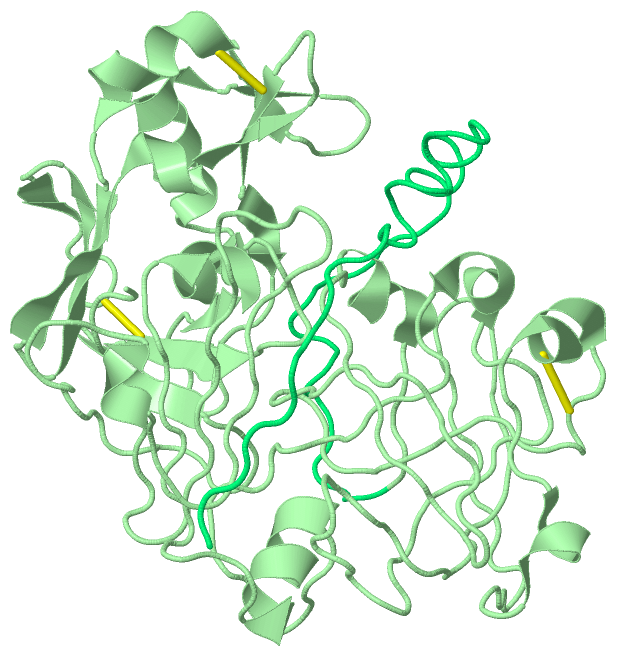

Biological Unit 2 (Jmol Viewer)

Title :   CRYSTAL AND MOLECULAR STRUCTURES OF HUMAN PROGASTRICSIN AT 1.62 ANGSTROMS RESOLUTION

Authors :   S. A. Moore, A. R. Sielecki, M. N. G. James

Date :   21 Oct 94 (Deposition) - 26 Jan 95 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.62

Chains :   Asym. Unit : B,P
Biol. Unit 1: B,P  (2x)
Biol. Unit 2: B,P  (1x)

Keywords :   Aspartyl Protease (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   S. A. Moore, A. R. Sielecki, M. M. Chernaia, N. I. Tarasova, M. N. James
Crystal And Molecular Structures Of Human Progastricsin At 1. 62 A Resolution.
J. Mol. Biol. V. 247 466 1995
PubMed-ID: 7714902 | Reference-DOI: 10.1006/JMBI.1994.0154
(for further references see the PDB file header)

Molecule 1 - PROGASTRICSIN (PRO SEGMENT)
	Chains	:	P
	EC Number	:	3.4.23.3
	Engineered	:	YES
	Organ	:	STOMACH
	Organism Common	:	HUMAN
	Organism Scientific	:	HOMO SAPIENS
	Organism Taxid	:	9606

Molecule 2 - GASTRICSIN
	Chains	:	B
	EC Number	:	3.4.23.3
	Engineered	:	YES
	Organ	:	STOMACH
	Organism Common	:	HUMAN
	Organism Scientific	:	HOMO SAPIENS
	Organism Taxid	:	9606

		1	2
Asymmetric Unit	:	B	P
Biological Unit 1 (2x)	:	B	P
Biological Unit 2 (1x)	:	B	P

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 1HTR)

Asymmetric Unit (1, 1)

No.	Name	Evidence	Residues	Description
1	CAT	AUTHOR	LYS P:37 , TYR P:32 , ASP B:217	IN THIS INACTIVE ZYMOGEN STRUCTURE THE NZ ATOM OF LYS P 37 SITS BETWEEN THE ACTIVE SITE CARBOXYLATES OF ASP B 32 AND ASP B 217, THEREBY PREVENTING CATALYSIS

Asymmetric Unit

No.	Residues
1	B:45	-	B:50
2	B:208	-	B:212
3	B:251	-	B:284

Asymmetric Unit

No.	Residues
1	Thr B:22	-	Pro B:23

(no "SAP(SNP)/Variant" information available for 1HTR)

Asymmetric Unit (2, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PEPTIDASE_A1	PS51767	Peptidase family A1 domain profile.	PEPC_HUMAN	73-385	1	B:14-326
2	ASP_PROTEASE	PS00141	Eukaryotic and viral aspartyl proteases active site.	PEPC_HUMAN	88-99 273-284	2	B:29-40 B:214-225

Biological Unit 1 (2, 6)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PEPTIDASE_A1	PS51767	Peptidase family A1 domain profile.	PEPC_HUMAN	73-385	2	B:14-326
2	ASP_PROTEASE	PS00141	Eukaryotic and viral aspartyl proteases active site.	PEPC_HUMAN	88-99 273-284	4	B:29-40 B:214-225

Biological Unit 2 (2, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PEPTIDASE_A1	PS51767	Peptidase family A1 domain profile.	PEPC_HUMAN	73-385	1	B:14-326
2	ASP_PROTEASE	PS00141	Eukaryotic and viral aspartyl proteases active site.	PEPC_HUMAN	88-99 273-284	2	B:29-40 B:214-225

Asymmetric Unit (9, 10)

	ENSEMBL					UniProtKB			PDB
No.	Transcript ID	Exon	Exon ID	Genome Location	Length	ID	Location	Length	Count	Location	Length
1.2a	ENST00000373025	2a	ENSE00001958407	chr6:41715135-41715014	122	PEPC_HUMAN	1-20	20	1	- P:1-4	- 4
1.3	ENST00000373025	3	ENSE00000750752	chr6:41712546-41712396	151	PEPC_HUMAN	20-70	51	2	B:1-11 P:4-43	11 40
1.4c	ENST00000373025	4c	ENSE00002162675	chr6:41712252-41712135	118	PEPC_HUMAN	71-110	40	1	B:12-51 -	40 -
1.5	ENST00000373025	5	ENSE00002167075	chr6:41711127-41711009	119	PEPC_HUMAN	110-149	40	1	B:51-90 -	40 -
1.6	ENST00000373025	6	ENSE00002151094	chr6:41710227-41710028	200	PEPC_HUMAN	150-216	67	1	B:91-157 -	67 -
1.9b	ENST00000373025	9b	ENSE00002190311	chr6:41708348-41708229	120	PEPC_HUMAN	216-256	41	1	B:157-197 -	41 -
1.10	ENST00000373025	10	ENSE00002152293	chr6:41707684-41707537	148	PEPC_HUMAN	256-305	50	1	B:197-246 -	50 -
1.11	ENST00000373025	11	ENSE00002188870	chr6:41705566-41705468	99	PEPC_HUMAN	306-338	33	1	B:247-279 -	33 -
1.12b	ENST00000373025	12b	ENSE00001814259	chr6:41704742-41704449	294	PEPC_HUMAN	339-388	50	1	B:280-329 -	50 -

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain B from PDB  Type:PROTEIN  Length:329
 aligned with PEPC_HUMAN | P20142 from UniProtKB/Swiss-Prot  Length:388

    Alignment length:329
                                    69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379
           PEPC_HUMAN    60 SVTYEPMAYMDAAYFGEISIGTPPQNFLVLFDTGSSNLWVPSVYCQSQACTSHSRFNPSESSTYSTNGQTFSLQYGSGSLTGFFGYDTLTVQSIQVPNQEFGLSENEPGTNFVYAQFDGIMGLAYPALSVDEATTAMQGMVQEGALTSPVFSVYLSNQQGSSGGAVVFGGVDSSLYTGQIYWAPVTQELYWQIGIEEFLIGGQASGWCSEGCQAIVDTGTSLLTVPQQYMSALLQATGAQEDEYGQFLVNCNSIQNLPSLTFIINGVEFPLPPSSYILSNNGYCTVGVEPTYLSSQNGQPLWILGDVFLRSYYSVYDLGNNRVGFATAA 388
               SCOP domains d1htr.1 P:,B: Pepsin(ogen)                                                                                                                                                                                                                                                                                                                SCOP domains
               CATH domains 1htrB01 B:1-171 Acid Proteases                                                                                                                                             1htrB02 B:172-328 Acid Proteases                                                                                                                             - CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhh....................................hhhhhh....hhhhh...............................................hhhhhhh...................hhhhhhhhh............................hhh.................eeee.eeee..ee.......eeeee......eeee..hhhhhhhhhh.ee.....eeehhhhhhhh..eeeee..eeeeehhhhheee....eee.eeee.........eeeehhhhhh................... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -------------PEPTIDASE_A1  PDB: B:14-326 UniProt: 73-385                                                                                                                                                                                                                                                                              --- PROSITE (1)
                PROSITE (2) ----------------------------ASP_PROTEASE-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------ASP_PROTEASE-------------------------------------------------------------------------------------------------------- PROSITE (2)
           Transcript 1 (1) -----------Exon 1.4c  PDB: B:12-51 UniProt: 71-110 ---------------------------------------Exon 1.6  PDB: B:91-157 UniProt: 150-216                           ---------------------------------------Exon 1.10  PDB: B:197-246 UniProt: 256-305        Exon 1.11  PDB: B:247-279        Exon 1.12b  PDB: B:280-329 UniProt: 339-388        Transcript 1 (1)
           Transcript 1 (2) Exon 1.3   ---------------------------------------Exon 1.5  PDB: B:51-90 UniProt: 110-149 ------------------------------------------------------------------Exon 1.9b  PDB: B:157-197                ------------------------------------------------------------------------------------------------------------------------------------ Transcript 1 (2)
                 1htr B   1 SVTYEPMAYMDAAYFGEISIGTPPQNFLVLFDTGSSNLWVPSVYCQSQACTSHSRFNPSESSTYSTNGQTFSLQYGSGSLTGFFGYDTLTVQSIQVPNQEFGLSENEPGTNFVYAQFDGIMGLAYPALSVDEATTAMQGMVQEGALTSPVFSVYLSNQQGSSGGAVVFGGVDSSLYTGQIYWAPVTQELYWQIGIEEFLIGGQASGWCSEGCQAIVDTGTSLLTVPQQYMSALLQATGAQEDEYGQFLVNCNSIQNLPSLTFIINGVEFPLPPSSYILSNNGYCTVGVEPTYLSSQNGQPLWILGDVFLRSYYSVYDLGNNRVGFATAA 329
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320

Chain P from PDB  Type:PROTEIN  Length:43
 aligned with PEPC_HUMAN | P20142 from UniProtKB/Swiss-Prot  Length:388

    Alignment length:43
                                    26        36        46        56
           PEPC_HUMAN    17 AVVKVPLKKFKSIRETMKEKGLLGEFLRTHKYDPAWKYRFGDL  59
               SCOP domains d1htr.1 P:,B: Pepsin(ogen)                  SCOP domains
               CATH domains ------------------------------------------- CATH domains
               Pfam domains ------------------------------------------- Pfam domains
         Sec.struct. author ........................................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------- SAPs(SNPs)
                PROSITE (1) ------------------------------------------- PROSITE (1)
                PROSITE (2) ------------------------------------------- PROSITE (2)
           Transcript 1 (1) 1.2a--------------------------------------- Transcript 1 (1)
           Transcript 1 (2) ---Exon 1.3  PDB: P:4-43 UniProt: 20-70     Transcript 1 (2)
                 1htr P   1 AVVKVPLKKFKSIRETMKEKGLLGEFLRTHKYDPAWKYRFGDL  43
                                    10        20        30        40

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: Acid proteases (1120)

Superfamily: Acid proteases (1120)

Family: Pepsin-like (505)

Protein domain: Pepsin(ogen) (16)

Human (Homo sapiens), progastricsin (pepsinogen C) [TaxId: 9606] (2)

d1htr.1

P:,B:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Beta (13760)

Architecture: Beta Barrel (4804)

Topology: Cathepsin D, subunit A; domain 1 (745)

Homologous Superfamily: Acid Proteases (745)

Human (Homo sapiens) (161)

1a	1htrB02	B:172-328
1b	1htrB01	B:1-171

(no "Pfam Domain" information available for 1HTR)

Asymmetric Unit(hide GO term definitions)

Chain B,P (PEPC_HUMAN | P20142)

molecular function
	GO:0004190	aspartic-type endopeptidase activity	Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a mechanism in which a water molecule bound by the side chains of aspartic residues at the active center acts as a nucleophile.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0008233	peptidase activity	Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
biological process
	GO:0007586	digestion	The whole of the physical, chemical, and biochemical processes carried out by multicellular organisms to break down ingested nutrients into components that may be easily absorbed and directed into metabolism.
	GO:0002803	positive regulation of antibacterial peptide production	Any process that activates or increases the frequency, rate, or extent of antibacterial peptide production.
	GO:0030163	protein catabolic process	The chemical reactions and pathways resulting in the breakdown of a protein by the destruction of the native, active configuration, with or without the hydrolysis of peptide bonds.
	GO:0006508	proteolysis	The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
cellular component
	GO:0070062	extracellular exosome	A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
	GO:0005615	extracellular space	That part of a multicellular organism outside the cells proper, usually taken to be outside the plasma membranes, and occupied by fluid.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1htr)

	Sites
		CAT	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Thr B:22 - Pro B:23	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1htr
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	PEPC_HUMAN \| P20142
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.4.23.3
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	PEPC_HUMAN \| P20142
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	PEPC_HUMAN \| P20142	:	1avf
