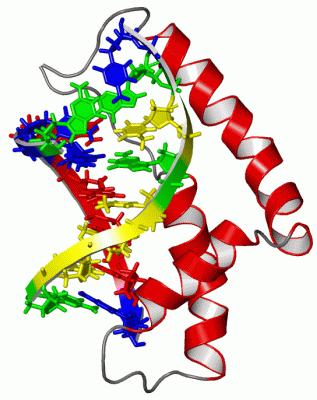

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

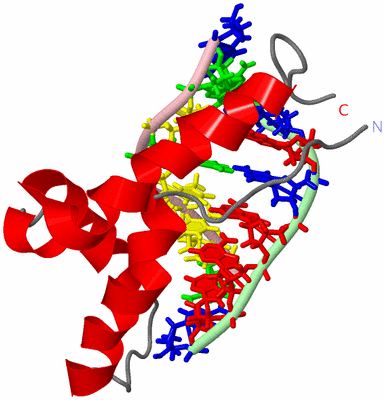

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

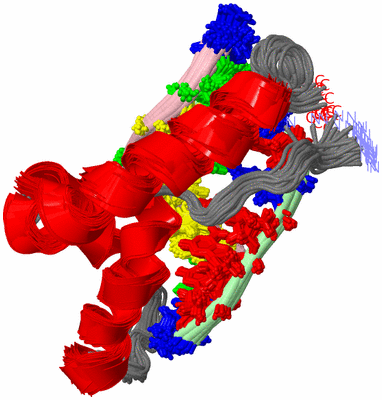

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  THE 3D STRUCTURE OF THE HUMAN SRY-DNA COMPLEX SOLVED BY MULTI-DIMENSIONAL HETERONUCLEAR-EDITED AND-FILTERED NMR

Authors :  G. M. Clore, M. H. Werner, J. R. Huth, A. M. Gronenborn
Date :  09 May 95  (Deposition) - 15 Sep 95  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A,B,C  (35x)
Keywords :  Dna Binding Protein/Dna (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  M. H. Werner, J. R. Huth, A. M. Gronenborn, G. M. Clore
Molecular Basis Of Human 46X, Y Sex Reversal Revealed From The Three-Dimensional Solution Structure Of The Human Sry-Dna Complex.
Cell(Cambridge, Mass. ) V. 81 704 1995
PubMed-ID: 7774012  |  Reference-DOI: 10.1016/0092-8674(95)90532-4
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - DNA (5'-D(*GP*CP*AP*CP*AP*AP*AP*C)-3')
    ChainsB
    EngineeredYES
    SyntheticYES

Molecule 2 - DNA (5'-D(*GP*TP*TP*TP*GP*TP*GP*C)-3')
    ChainsC
    EngineeredYES
    SyntheticYES

Molecule 3 - HUMAN SRY
    ChainsA
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606

 Structural Features

(-) Chains, Units


NMR Structure (35x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1HRZ)

(-) Sites  (0, 0)

(no "Site" information available for 1HRZ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1HRZ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1HRZ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (23, 23)

NMR Structure (23, 23)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
01UniProtVAR_003718V60ASRY_HUMANDisease (SRXY1)764249635AV5A
02UniProtVAR_003719V60LSRY_HUMANDisease (SRXY1)104894957AV5L
03UniProtVAR_003720R62GSRY_HUMANDisease (SRXY1)  ---AR7G
04UniProtVAR_003721M64ISRY_HUMANDisease (SRXY1)104894969AM9I
05UniProtVAR_017298M64RSRY_HUMANDisease (SRXY1)  ---AM9R
06UniProtVAR_017299F67VSRY_HUMANDisease (SRXY1)  ---AF12V
07UniProtVAR_003722I68TSRY_HUMANDisease (SRXY1)104894968AI13T
08UniProtVAR_078433R75MSRY_HUMANDisease (SRXY1)  ---AR20M
09UniProtVAR_017300R76SSRY_HUMANDisease (SRXY1)  ---AR21S
10UniProtVAR_003723M78TSRY_HUMANDisease (SRXY1)  ---AM23T
11UniProtVAR_017301N87YSRY_HUMANDisease (SRXY1)  ---AN32Y
12UniProtVAR_003724I90MSRY_HUMANDisease (SRXY1)104894959AI35M
13UniProtVAR_003725S91GSRY_HUMANDisease (SRXY1)  ---AS36G
14UniProtVAR_017302G95ESRY_HUMANDisease (SRXY1)104894972AG40E
15UniProtVAR_003726G95RSRY_HUMANDisease (SRXY1)104894974AG40R
16UniProtVAR_003727L101HSRY_HUMANDisease (SRXY1)  ---AL46H
17UniProtVAR_003728K106ISRY_HUMANDisease (SRXY1)104894964AK51I
18UniProtVAR_003729P108RSRY_HUMANDisease (SRXY1)  ---AP53R
19UniProtVAR_003730F109SSRY_HUMANDisease (SRXY1)104894956AF54S
20UniProtVAR_003731A113TSRY_HUMANDisease (SRXY1)104894966AA58T
21UniProtVAR_003732P125LSRY_HUMANDisease (SRXY1)  ---AP70L
22UniProtVAR_003733Y127CSRY_HUMANDisease (SRXY1)  ---AY72C
23UniProtVAR_017303Y127FSRY_HUMANDisease (SRXY1)104894973AY72F

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1HMG_BOX_2PS50118 HMG boxes A and B DNA-binding domains profile.SRY_HUMAN60-128  1A:5-73

(-) Exons   (1, 1)

NMR Structure (1, 1)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1ENST000003830701ENSE00001494622Y:2655740-2654896845SRY_HUMAN1-2362361A:3-7573

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:73
 aligned with SRY_HUMAN | Q05066 from UniProtKB/Swiss-Prot  Length:204

    Alignment length:73
                                    67        77        87        97       107       117       127
            SRY_HUMAN    58 DRVKRPMNAFIVWSRDQRRKMALENPRMRNSEISKQLGYQWKMLTEAEKWPFFQEAQKLQAMHREKYPNYKYR 130
               SCOP domains d1hrza_ A: SRY                                                            SCOP domains
               CATH domains 1hrzA00 A:3-75 DNA Binding (I), subunit A                                 CATH domains
               Pfam domains ------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhhhh.......hhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
             SAPs(SNPs) (1) --A-G-I--VT------MS-T--------Y--MG---E-----H----I-RS---T-----------L-C--- SAPs(SNPs) (1)
             SAPs(SNPs) (2) --L---R------------------------------R-------------------------------F--- SAPs(SNPs) (2)
                    PROSITE --HMG_BOX_2  PDB: A:5-73 UniProt: 60-128                               -- PROSITE
               Transcript 1 Exon 1.1  PDB: A:3-75 UniProt: 1-236 [INCOMPLETE]                         Transcript 1
                 1hrz A   3 DRVKRPMNAFIVWSRDQRRKMALENPRMRNSEISKQLGYQWKMLTEAEKWPFFQEAQKLQAMHREKYPNYKYR  75
                                    12        22        32        42        52        62        72

Chain B from PDB  Type:DNA  Length:8

                 1hrz B   1 GCACAAAC   8

Chain C from PDB  Type:DNA  Length:8

                 1hrz C   9 GTTTGTGC  16

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (1, 1)

NMR Structure

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1HRZ)

(-) Gene Ontology  (24, 24)

NMR Structure(hide GO term definitions)
Chain A   (SRY_HUMAN | Q05066)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0008301    DNA binding, bending    The activity of binding selectively and non-covalently to and distorting the original structure of DNA, typically a straight helix, into a bend, or increasing the bend if the original structure was intrinsically bent due to its sequence.
    GO:0000981    RNA polymerase II transcription factor activity, sequence-specific DNA binding    Interacting selectively and non-covalently with a specific DNA sequence in order to modulate transcription by RNA polymerase II. The transcription factor may or may not also interact selectively with a protein or macromolecular complex.
    GO:0005516    calmodulin binding    Interacting selectively and non-covalently with calmodulin, a calcium-binding protein with many roles, both in the calcium-bound and calcium-free states.
    GO:0046982    protein heterodimerization activity    Interacting selectively and non-covalently with a nonidentical protein to form a heterodimer.
    GO:0003705    transcription factor activity, RNA polymerase II distal enhancer sequence-specific binding    Interacting selectively and non-covalently with a sequence of DNA that is in a distal enhancer region for RNA polymerase II (RNAP II) in order to modulate transcription by RNAP II.
    GO:0003700    transcription factor activity, sequence-specific DNA binding    Interacting selectively and non-covalently with a specific DNA sequence in order to modulate transcription. The transcription factor may or may not also interact selectively with a protein or macromolecular complex.
    GO:0008134    transcription factor binding    Interacting selectively and non-covalently with a transcription factor, any protein required to initiate or regulate transcription.
biological process
    GO:0030154    cell differentiation    The process in which relatively unspecialized cells, e.g. embryonic or regenerative cells, acquire specialized structural and/or functional features that characterize the cells, tissues, or organs of the mature organism or some other relatively stable phase of the organism's life history. Differentiation includes the processes involved in commitment of a cell to a specific fate and its subsequent development to the mature state.
    GO:0008584    male gonad development    The process whose specific outcome is the progression of the male gonad over time, from its formation to the mature structure.
    GO:0030238    male sex determination    The specification of male sex of an individual organism.
    GO:0010629    negative regulation of gene expression    Any process that decreases the frequency, rate or extent of gene expression. Gene expression is the process in which a gene's coding sequence is converted into a mature gene product or products (proteins or RNA). This includes the production of an RNA transcript as well as any processing to produce a mature RNA product or an mRNA or circRNA (for protein-coding genes) and the translation of that mRNA or circRNA into protein. Protein maturation is included when required to form an active form of a product from an inactive precursor form.
    GO:0000122    negative regulation of transcription from RNA polymerase II promoter    Any process that stops, prevents, or reduces the frequency, rate or extent of transcription from an RNA polymerase II promoter.
    GO:2000020    positive regulation of male gonad development    Any process that activates or increases the frequency, rate or extent of male gonad development.
    GO:0045893    positive regulation of transcription, DNA-templated    Any process that activates or increases the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0007530    sex determination    Any process that establishes and transmits the specification of sexual status of an individual organism.
    GO:0007548    sex differentiation    The establishment of the sex of an organism by physical differentiation.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0016607    nuclear speck    A discrete extra-nucleolar subnuclear domain, 20-50 in number, in which splicing factors are seen to be localized by immunofluorescence microscopy.
    GO:0044798    nuclear transcription factor complex    A protein complex, located in the nucleus, that is capable of associating with DNA by direct binding, or via other DNA-binding proteins or complexes, and regulating transcription.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1hrz)

  Sites
(no "Sites" information available for 1hrz)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1hrz)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1hrz
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  SRY_HUMAN | Q05066
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  400044
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  SRY_HUMAN | Q05066
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        SRY_HUMAN | Q050661hry 1j46 1j47 2gzk

(-) Related Entries Specified in the PDB File

1hry
