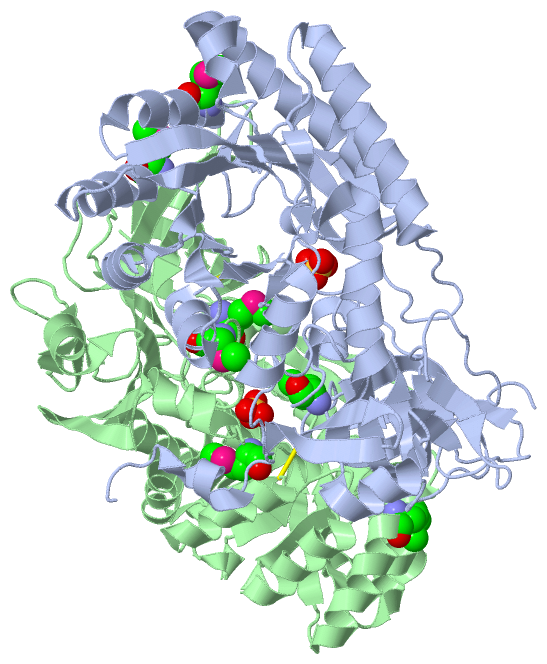

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)
Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  MYCOBACTERIUM DIAMINOPIMELATE DICARBOXYLASE (LYSA)

Authors :  K. Gokulan, B. Rupp, M. S. Pavelka Jr, W. R. Jacobs Jr, J. C. Sacchettin Structural Genomics Consortium (Tbsgc)
Date :  11 Mar 03  (Deposition) - 18 Mar 03  (Release) - 24 May 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.80
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Lyase, Decarboxylase, Diaminopimelate, Dapdc, Plp, Lysine Pathway, Mycobacterium Tuberculosis, Lysine Synthetic Pathway, Psi, Protein Structure Initiative, Tb Structural Genomics Consortium, Tb, Tbsgc (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. Gokulan, B. Rupp, M. Pavelka, W. Jacobs, J. C. Sacchettini
Crystal Structure Of Mycobacterium Tuberculosis Diaminopimelate Decarboxylase, An Essential Enzyme In Bacterial Lysine Biosynthesis
J. Biol. Chem. V. 278 18588 2003
PubMed-ID: 12637582  |  Reference-DOI: 10.1074/JBC.M301549200

(-) Compounds

Molecule 1 - DIAMINOPIMELATE DECARBOXYLASE
    Chains: A, B
    EC Number: 4.1.1.20
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: B834(DE3) MET-
    Expression System Taxid: 562
    Expression System Vector: PET30B/HIS
    Organism Scientific: MYCOBACTERIUM TUBERCULOSIS
    Organism Taxid: 83332
    Other Details: SULFATE ION IN PLP PHOSPHATE BINDING SITE
    Other Details - Source: C-TERM 6-HIS TAG
    Strain: H37RV
    Synonym: DAP DECARBOXYLASE, MESO-DIAMINOPIMELATE DECARBOXYLASE, LYSA

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 10)

Asymmetric/Biological Unit (2, 10)
No.NameCountTypeFull Name
1MSE8Mod. Amino AcidSELENOMETHIONINE
2SO42Ligand/IonSULFATE ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLY A:258 , PRO A:301 , GLY A:302 , ARG A:303 , TYR A:405 , HOH A:2121BINDING SITE FOR RESIDUE SO4 A 500
2AC2SOFTWAREGLY B:258 , PRO B:301 , GLY B:302 , ARG B:303 , TYR B:405 , HOH B:2093BINDING SITE FOR RESIDUE SO4 B 501

(-) SS Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1A:93 -B:375
2A:375 -B:93

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Thr A:40 -Pro A:41
2Thr B:40 -Pro B:41

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1HKW)

(-) PROSITE Motifs  (2, 4)

Asymmetric/Biological Unit (2, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1ODR_DC_2_1PS00878 Orn/DAP/Arg decarboxylases family 2 pyridoxal-P attachment site.DCDA_MYCBO69-87
 		  2A:69-87
B:69-87
DCDA_MYCTO69-87
 		  2A:69-87
B:69-87
DCDA_MYCTU69-87
 		  2A:69-87
B:69-87
2ODR_DC_2_2PS00879 Orn/DAP/Arg decarboxylases family 2 signature 2.DCDA_MYCBO243-260
 		  2A:243-260
B:243-260
DCDA_MYCTO243-260
 		  2A:243-260
B:243-260
DCDA_MYCTU243-260
 		  2A:243-260
B:243-260

(-) Exons   (0, 0)

(no "Exon" information available for 1HKW)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:446
 aligned with DCDA_MYCBO | P0A5M5 from UniProtKB/Swiss-Prot  Length:447

    Alignment length:446
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441
           DCDA_MYCBO     2 NELLHLAPNVWPRNTTRDEVGVVCIAGIPLTQLAQEYGTPLFVIDEDDFRSRCRETAAAFGSGANVHYAAKAFLCSEVARWISEEGLCLDVCTGGELAVALHASFPPERITLHGNNKSVSELTAAVKAGVGHIVVDSMTEIERLDAIAGEAGIVQDVLVRLTVGVEAHTHEFISTAHEDQKFGLSVASGAAMAAVRRVFATDHLRLVGLHSHIGSQIFDVDGFELAAHRVIGLLRDVVGEFGPEKTAQIATVDLGGGLGISYLPSDDPPPIAELAAKLGTIVSDESTAVGLPTPKLVVEPGRAIAGPGTITLYEVGTVKDVDVSATAHRRYVSVDGGMSDNIRTALYGAQYDVRLVSRVSDAPPVPARLVGKHCESGDIIVRDTWVPDDIRPGDLVAVAATGAYCYSLSSRYNMVGRPAVVAVHAGNARLVLRRETVDDLLSLEVR 447
               SCOP domains d1hkwa1 A:2-45,A:311-447                    d1hkwa2 A:46-310 Diaminopimelate decarboxylase LysA                                                                                                                                                                                                                      d1hkwa1 A:2-45,A:311-447 Diaminopimelate decarboxylase LysA                                                                               SCOP domains
               CATH domains 1hkwA01 A:2-46,A:308-447                     1hkwA02 A:47-307 Alanine racemase                                                                                                                                                                                                                                    1hkwA01 A:2-46,A:308-447 Lyase, Ornithine Decarboxylase; Chain A, domain 1                                                                   CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..............eee.....eee..eehhhhhhhhh..eeeeehhhhhhhhhhhhhhhhhhhh.eee.....hhhhhhhhhhhh.eeee.hhhhhhhhhhh..hhh.eee.....hhhhhhhhhhhh.eeeee...hhhhhhhhhhhh....eeeeeeee..eeeee.eeee.........ee...hhhhhhhhhhhhh..eeeeeee...eeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eee................hhhhhhhhhhhhhhhhhhhh.....eee...........eeeeeeeeeeeeee.....eeeeeee.......hhhhhhh....eee........eeeeeee........eeeeeeeee.......eeee....................eeeeee..eeeeee...hhhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) -------------------------------------------------------------------ODR_DC_2_1         ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE (2)
                PROSITE (3) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ODR_DC_2_2        ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (3)
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hkw A   2 NELLHLAPNVWPRNTTRDEVGVVCIAGIPLTQLAQEYGTPLFVIDEDDFRSRCRETAAAFGSGANVHYAAKAFLCSEVARWISEEGLCLDVCTGGELAVALHASFPPERITLHGNNKSVSELTAAVKAGVGHIVVDSmTEIERLDAIAGEAGIVQDVLVRLTVGVEAHTHEFISTAHEDQKFGLSVASGAAmAAVRRVFATDHLRLVGLHSHIGSQIFDVDGFELAAHRVIGLLRDVVGEFGPEKTAQIATVDLGGGLGISYLPSDDPPPIAELAAKLGTIVSDESTAVGLPTPKLVVEPGRAIAGPGTITLYEVGTVKDVDVSATAHRRYVSVDGGmSDNIRTALYGAQYDVRLVSRVSDAPPVPARLVGKHCESGDIIVRDTWVPDDIRPGDLVAVAATGAYCYSLSSRYNmVGRPAVVAVHAGNARLVLRRETVDDLLSLEVR 447
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191 |     201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411   |   421       431       441
                                                                                                                                                                   139-MSE                                               193-MSE                                                                                                                                           339-MSE                                                                     415-MSE


Chain A from PDB  Type:PROTEIN  Length:446
 aligned with DCDA_MYCTO | P9WIU6 from UniProtKB/Swiss-Prot  Length:447

    Alignment length:446
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441
           DCDA_MYCTO     2 NELLHLAPNVWPRNTTRDEVGVVCIAGIPLTQLAQEYGTPLFVIDEDDFRSRCRETAAAFGSGANVHYAAKAFLCSEVARWISEEGLCLDVCTGGELAVALHASFPPERITLHGNNKSVSELTAAVKAGVGHIVVDSMTEIERLDAIAGEAGIVQDVLVRLTVGVEAHTHEFISTAHEDQKFGLSVASGAAMAAVRRVFATDHLRLVGLHSHIGSQIFDVDGFELAAHRVIGLLRDVVGEFGPEKTAQIATVDLGGGLGISYLPSDDPPPIAELAAKLGTIVSDESTAVGLPTPKLVVEPGRAIAGPGTITLYEVGTVKDVDVSATAHRRYVSVDGGMSDNIRTALYGAQYDVRLVSRVSDAPPVPARLVGKHCESGDIIVRDTWVPDDIRPGDLVAVAATGAYCYSLSSRYNMVGRPAVVAVHAGNARLVLRRETVDDLLSLEVR 447
               SCOP domains d1hkwa1 A:2-45,A:311-447                    d1hkwa2 A:46-310 Diaminopimelate decarboxylase LysA                                                                                                                                                                                                                      d1hkwa1 A:2-45,A:311-447 Diaminopimelate decarboxylase LysA                                                                               SCOP domains
               CATH domains 1hkwA01 A:2-46,A:308-447                     1hkwA02 A:47-307 Alanine racemase                                                                                                                                                                                                                                    1hkwA01 A:2-46,A:308-447 Lyase, Ornithine Decarboxylase; Chain A, domain 1                                                                   CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..............eee.....eee..eehhhhhhhhh..eeeeehhhhhhhhhhhhhhhhhhhh.eee.....hhhhhhhhhhhh.eeee.hhhhhhhhhhh..hhh.eee.....hhhhhhhhhhhh.eeeee...hhhhhhhhhhhh....eeeeeeee..eeeee.eeee.........ee...hhhhhhhhhhhhh..eeeeeee...eeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eee................hhhhhhhhhhhhhhhhhhhh.....eee...........eeeeeeeeeeeeee.....eeeeeee.......hhhhhhh....eee........eeeeeee........eeeeeeeee.......eeee....................eeeeee..eeeeee...hhhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------ODR_DC_2_1         -----------------------------------------------------------------------------------------------------------------------------------------------------------ODR_DC_2_2        ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hkw A   2 NELLHLAPNVWPRNTTRDEVGVVCIAGIPLTQLAQEYGTPLFVIDEDDFRSRCRETAAAFGSGANVHYAAKAFLCSEVARWISEEGLCLDVCTGGELAVALHASFPPERITLHGNNKSVSELTAAVKAGVGHIVVDSmTEIERLDAIAGEAGIVQDVLVRLTVGVEAHTHEFISTAHEDQKFGLSVASGAAmAAVRRVFATDHLRLVGLHSHIGSQIFDVDGFELAAHRVIGLLRDVVGEFGPEKTAQIATVDLGGGLGISYLPSDDPPPIAELAAKLGTIVSDESTAVGLPTPKLVVEPGRAIAGPGTITLYEVGTVKDVDVSATAHRRYVSVDGGmSDNIRTALYGAQYDVRLVSRVSDAPPVPARLVGKHCESGDIIVRDTWVPDDIRPGDLVAVAATGAYCYSLSSRYNmVGRPAVVAVHAGNARLVLRRETVDDLLSLEVR 447
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191 |     201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411   |   421       431       441
                                                                                                                                                                   139-MSE                                               193-MSE                                                                                                                                           339-MSE                                                                     415-MSE


Chain A from PDB  Type:PROTEIN  Length:446
 aligned with DCDA_MYCTU | P9WIU7 from UniProtKB/Swiss-Prot  Length:447

    Alignment length:446
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441
           DCDA_MYCTU     2 NELLHLAPNVWPRNTTRDEVGVVCIAGIPLTQLAQEYGTPLFVIDEDDFRSRCRETAAAFGSGANVHYAAKAFLCSEVARWISEEGLCLDVCTGGELAVALHASFPPERITLHGNNKSVSELTAAVKAGVGHIVVDSMTEIERLDAIAGEAGIVQDVLVRLTVGVEAHTHEFISTAHEDQKFGLSVASGAAMAAVRRVFATDHLRLVGLHSHIGSQIFDVDGFELAAHRVIGLLRDVVGEFGPEKTAQIATVDLGGGLGISYLPSDDPPPIAELAAKLGTIVSDESTAVGLPTPKLVVEPGRAIAGPGTITLYEVGTVKDVDVSATAHRRYVSVDGGMSDNIRTALYGAQYDVRLVSRVSDAPPVPARLVGKHCESGDIIVRDTWVPDDIRPGDLVAVAATGAYCYSLSSRYNMVGRPAVVAVHAGNARLVLRRETVDDLLSLEVR 447
               SCOP domains d1hkwa1 A:2-45,A:311-447                    d1hkwa2 A:46-310 Diaminopimelate decarboxylase LysA                                                                                                                                                                                                                      d1hkwa1 A:2-45,A:311-447 Diaminopimelate decarboxylase LysA                                                                               SCOP domains
               CATH domains 1hkwA01 A:2-46,A:308-447                     1hkwA02 A:47-307 Alanine racemase                                                                                                                                                                                                                                    1hkwA01 A:2-46,A:308-447 Lyase, Ornithine Decarboxylase; Chain A, domain 1                                                                   CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..............eee.....eee..eehhhhhhhhh..eeeeehhhhhhhhhhhhhhhhhhhh.eee.....hhhhhhhhhhhh.eeee.hhhhhhhhhhh..hhh.eee.....hhhhhhhhhhhh.eeeee...hhhhhhhhhhhh....eeeeeeee..eeeee.eeee.........ee...hhhhhhhhhhhhh..eeeeeee...eeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eee................hhhhhhhhhhhhhhhhhhhh.....eee...........eeeeeeeeeeeeee.....eeeeeee.......hhhhhhh....eee........eeeeeee........eeeeeeeee.......eeee....................eeeeee..eeeeee...hhhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ODR_DC_2_2        ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                PROSITE (3) -------------------------------------------------------------------ODR_DC_2_1         ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE (3)
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hkw A   2 NELLHLAPNVWPRNTTRDEVGVVCIAGIPLTQLAQEYGTPLFVIDEDDFRSRCRETAAAFGSGANVHYAAKAFLCSEVARWISEEGLCLDVCTGGELAVALHASFPPERITLHGNNKSVSELTAAVKAGVGHIVVDSmTEIERLDAIAGEAGIVQDVLVRLTVGVEAHTHEFISTAHEDQKFGLSVASGAAmAAVRRVFATDHLRLVGLHSHIGSQIFDVDGFELAAHRVIGLLRDVVGEFGPEKTAQIATVDLGGGLGISYLPSDDPPPIAELAAKLGTIVSDESTAVGLPTPKLVVEPGRAIAGPGTITLYEVGTVKDVDVSATAHRRYVSVDGGmSDNIRTALYGAQYDVRLVSRVSDAPPVPARLVGKHCESGDIIVRDTWVPDDIRPGDLVAVAATGAYCYSLSSRYNmVGRPAVVAVHAGNARLVLRRETVDDLLSLEVR 447
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191 |     201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411   |   421       431       441
                                                                                                                                                                   139-MSE                                               193-MSE                                                                                                                                           339-MSE                                                                     415-MSE


Chain B from PDB  Type:PROTEIN  Length:444
 aligned with DCDA_MYCBO | P0A5M5 from UniProtKB/Swiss-Prot  Length:447

    Alignment length:444
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442
           DCDA_MYCBO     3 ELLHLAPNVWPRNTTRDEVGVVCIAGIPLTQLAQEYGTPLFVIDEDDFRSRCRETAAAFGSGANVHYAAKAFLCSEVARWISEEGLCLDVCTGGELAVALHASFPPERITLHGNNKSVSELTAAVKAGVGHIVVDSMTEIERLDAIAGEAGIVQDVLVRLTVGVEAHTHEFISTAHEDQKFGLSVASGAAMAAVRRVFATDHLRLVGLHSHIGSQIFDVDGFELAAHRVIGLLRDVVGEFGPEKTAQIATVDLGGGLGISYLPSDDPPPIAELAAKLGTIVSDESTAVGLPTPKLVVEPGRAIAGPGTITLYEVGTVKDVDVSATAHRRYVSVDGGMSDNIRTALYGAQYDVRLVSRVSDAPPVPARLVGKHCESGDIIVRDTWVPDDIRPGDLVAVAATGAYCYSLSSRYNMVGRPAVVAVHAGNARLVLRRETVDDLLSLEV 446
               SCOP domains d1hkwb1 B:3-45,B:311-446                   d1hkwb2 B:46-310 Diaminopimelate decarboxylase LysA                                                                                                                                                                                                                      d1hkwb1 B:3-45,B:311-446 Diaminopimelate decarboxylase LysA                                                                              SCOP domains
               CATH domains 1hkwB01 B:3-46,B:308-446                    1hkwB02 B:47-307 Alanine racemase                                                                                                                                                                                                                                    1hkwB01 B:3-46,B:308-446 Lyase, Ornithine Decarboxylase; Chain A, domain 1                                                                  CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .............eee.....eee..eehhhhhhhhh..eeeeehhhhhhhhhhhhhhh.hhhh.eee.hhh.hhhhhhhhhhhh.eeee.hhhhhhhhhhh..hhh.eee.....hhhhhhhhhhhh.eeeee...hhhhhhhhhhhhh...eeeeeeee..eeeee.eeee.........ee...hhhhhhhhhhhhh..eeeeeee...eeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eee................hhhhhhhhhhhhhhhhhhh......eee...........eeeeeeeeeeeeee.....eeeeeee.......hhhhhhh....eee........eeeeeee........eeeeeeeee.......eeee....................eeeeee..eeeeee...hhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (2) ------------------------------------------------------------------ODR_DC_2_1         ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                PROSITE (3) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ODR_DC_2_2        ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE (3)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1hkw B   3 ELLHLAPNVWPRNTTRDEVGVVCIAGIPLTQLAQEYGTPLFVIDEDDFRSRCRETAAAFGSGANVHYAAKAFLCSEVARWISEEGLCLDVCTGGELAVALHASFPPERITLHGNNKSVSELTAAVKAGVGHIVVDSmTEIERLDAIAGEAGIVQDVLVRLTVGVEAHTHEFISTAHEDQKFGLSVASGAAmAAVRRVFATDHLRLVGLHSHIGSQIFDVDGFELAAHRVIGLLRDVVGEFGPEKTAQIATVDLGGGLGISYLPSDDPPPIAELAAKLGTIVSDESTAVGLPTPKLVVEPGRAIAGPGTITLYEVGTVKDVDVSATAHRRYVSVDGGmSDNIRTALYGAQYDVRLVSRVSDAPPVPARLVGKHCESGDIIVRDTWVPDDIRPGDLVAVAATGAYCYSLSSRYNmVGRPAVVAVHAGNARLVLRRETVDDLLSLEV 446
                                    12        22        32        42        52        62        72        82        92       102       112       122       132      |142       152       162       172       182       192|      202       212       222       232       242       252       262       272       282       292       302       312       322       332      |342       352       362       372       382       392       402       412  |    422       432       442
                                                                                                                                                                  139-MSE                                               193-MSE                                                                                                                                           339-MSE                                                                     415-MSE


Chain B from PDB  Type:PROTEIN  Length:444
 aligned with DCDA_MYCTO | P9WIU6 from UniProtKB/Swiss-Prot  Length:447

    Alignment length:444
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442
           DCDA_MYCTO     3 ELLHLAPNVWPRNTTRDEVGVVCIAGIPLTQLAQEYGTPLFVIDEDDFRSRCRETAAAFGSGANVHYAAKAFLCSEVARWISEEGLCLDVCTGGELAVALHASFPPERITLHGNNKSVSELTAAVKAGVGHIVVDSMTEIERLDAIAGEAGIVQDVLVRLTVGVEAHTHEFISTAHEDQKFGLSVASGAAMAAVRRVFATDHLRLVGLHSHIGSQIFDVDGFELAAHRVIGLLRDVVGEFGPEKTAQIATVDLGGGLGISYLPSDDPPPIAELAAKLGTIVSDESTAVGLPTPKLVVEPGRAIAGPGTITLYEVGTVKDVDVSATAHRRYVSVDGGMSDNIRTALYGAQYDVRLVSRVSDAPPVPARLVGKHCESGDIIVRDTWVPDDIRPGDLVAVAATGAYCYSLSSRYNMVGRPAVVAVHAGNARLVLRRETVDDLLSLEV 446
               SCOP domains d1hkwb1 B:3-45,B:311-446                   d1hkwb2 B:46-310 Diaminopimelate decarboxylase LysA                                                                                                                                                                                                                      d1hkwb1 B:3-45,B:311-446 Diaminopimelate decarboxylase LysA                                                                              SCOP domains
               CATH domains 1hkwB01 B:3-46,B:308-446                    1hkwB02 B:47-307 Alanine racemase                                                                                                                                                                                                                                    1hkwB01 B:3-46,B:308-446 Lyase, Ornithine Decarboxylase; Chain A, domain 1                                                                  CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .............eee.....eee..eehhhhhhhhh..eeeeehhhhhhhhhhhhhhh.hhhh.eee.hhh.hhhhhhhhhhhh.eeee.hhhhhhhhhhh..hhh.eee.....hhhhhhhhhhhh.eeeee...hhhhhhhhhhhhh...eeeeeeee..eeeee.eeee.........ee...hhhhhhhhhhhhh..eeeeeee...eeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eee................hhhhhhhhhhhhhhhhhhh......eee...........eeeeeeeeeeeeee.....eeeeeee.......hhhhhhh....eee........eeeeeee........eeeeeeeee.......eeee....................eeeeee..eeeeee...hhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------ODR_DC_2_1         -----------------------------------------------------------------------------------------------------------------------------------------------------------ODR_DC_2_2        ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1hkw B   3 ELLHLAPNVWPRNTTRDEVGVVCIAGIPLTQLAQEYGTPLFVIDEDDFRSRCRETAAAFGSGANVHYAAKAFLCSEVARWISEEGLCLDVCTGGELAVALHASFPPERITLHGNNKSVSELTAAVKAGVGHIVVDSmTEIERLDAIAGEAGIVQDVLVRLTVGVEAHTHEFISTAHEDQKFGLSVASGAAmAAVRRVFATDHLRLVGLHSHIGSQIFDVDGFELAAHRVIGLLRDVVGEFGPEKTAQIATVDLGGGLGISYLPSDDPPPIAELAAKLGTIVSDESTAVGLPTPKLVVEPGRAIAGPGTITLYEVGTVKDVDVSATAHRRYVSVDGGmSDNIRTALYGAQYDVRLVSRVSDAPPVPARLVGKHCESGDIIVRDTWVPDDIRPGDLVAVAATGAYCYSLSSRYNmVGRPAVVAVHAGNARLVLRRETVDDLLSLEV 446
                                    12        22        32        42        52        62        72        82        92       102       112       122       132      |142       152       162       172       182       192|      202       212       222       232       242       252       262       272       282       292       302       312       322       332      |342       352       362       372       382       392       402       412  |    422       432       442
                                                                                                                                                                  139-MSE                                               193-MSE                                                                                                                                           339-MSE                                                                     415-MSE


Chain B from PDB  Type:PROTEIN  Length:444
 aligned with DCDA_MYCTU | P9WIU7 from UniProtKB/Swiss-Prot  Length:447

    Alignment length:444
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442
           DCDA_MYCTU     3 ELLHLAPNVWPRNTTRDEVGVVCIAGIPLTQLAQEYGTPLFVIDEDDFRSRCRETAAAFGSGANVHYAAKAFLCSEVARWISEEGLCLDVCTGGELAVALHASFPPERITLHGNNKSVSELTAAVKAGVGHIVVDSMTEIERLDAIAGEAGIVQDVLVRLTVGVEAHTHEFISTAHEDQKFGLSVASGAAMAAVRRVFATDHLRLVGLHSHIGSQIFDVDGFELAAHRVIGLLRDVVGEFGPEKTAQIATVDLGGGLGISYLPSDDPPPIAELAAKLGTIVSDESTAVGLPTPKLVVEPGRAIAGPGTITLYEVGTVKDVDVSATAHRRYVSVDGGMSDNIRTALYGAQYDVRLVSRVSDAPPVPARLVGKHCESGDIIVRDTWVPDDIRPGDLVAVAATGAYCYSLSSRYNMVGRPAVVAVHAGNARLVLRRETVDDLLSLEV 446
               SCOP domains d1hkwb1 B:3-45,B:311-446                   d1hkwb2 B:46-310 Diaminopimelate decarboxylase LysA                                                                                                                                                                                                                      d1hkwb1 B:3-45,B:311-446 Diaminopimelate decarboxylase LysA                                                                              SCOP domains
               CATH domains 1hkwB01 B:3-46,B:308-446                    1hkwB02 B:47-307 Alanine racemase                                                                                                                                                                                                                                    1hkwB01 B:3-46,B:308-446 Lyase, Ornithine Decarboxylase; Chain A, domain 1                                                                  CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .............eee.....eee..eehhhhhhhhh..eeeeehhhhhhhhhhhhhhh.hhhh.eee.hhh.hhhhhhhhhhhh.eeee.hhhhhhhhhhh..hhh.eee.....hhhhhhhhhhhh.eeeee...hhhhhhhhhhhhh...eeeeeeee..eeeee.eeee.........ee...hhhhhhhhhhhhh..eeeeeee...eeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhh...eee................hhhhhhhhhhhhhhhhhhh......eee...........eeeeeeeeeeeeee.....eeeeeee.......hhhhhhh....eee........eeeeeee........eeeeeeeee.......eeee....................eeeeee..eeeeee...hhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (2) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ODR_DC_2_2        ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE (2)
                PROSITE (3) ------------------------------------------------------------------ODR_DC_2_1         ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (3)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1hkw B   3 ELLHLAPNVWPRNTTRDEVGVVCIAGIPLTQLAQEYGTPLFVIDEDDFRSRCRETAAAFGSGANVHYAAKAFLCSEVARWISEEGLCLDVCTGGELAVALHASFPPERITLHGNNKSVSELTAAVKAGVGHIVVDSmTEIERLDAIAGEAGIVQDVLVRLTVGVEAHTHEFISTAHEDQKFGLSVASGAAmAAVRRVFATDHLRLVGLHSHIGSQIFDVDGFELAAHRVIGLLRDVVGEFGPEKTAQIATVDLGGGLGISYLPSDDPPPIAELAAKLGTIVSDESTAVGLPTPKLVVEPGRAIAGPGTITLYEVGTVKDVDVSATAHRRYVSVDGGmSDNIRTALYGAQYDVRLVSRVSDAPPVPARLVGKHCESGDIIVRDTWVPDDIRPGDLVAVAATGAYCYSLSSRYNmVGRPAVVAVHAGNARLVLRRETVDDLLSLEV 446
                                    12        22        32        42        52        62        72        82        92       102       112       122       132      |142       152       162       172       182       192|      202       212       222       232       242       252       262       272       282       292       302       312       322       332      |342       352       362       372       382       392       402       412  |    422       432       442
                                                                                                                                                                  139-MSE                                               193-MSE                                                                                                                                           339-MSE                                                                     415-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 4)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (2, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1HKW)

(-) Gene Ontology  (11, 27)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (DCDA_MYCTO | P9WIU6)
molecular function
    GO:0016831    carboxy-lyase activity    Catalysis of the nonhydrolytic addition or removal of a carboxyl group to or from a compound.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0008836    diaminopimelate decarboxylase activity    Catalysis of the reaction: meso-2,6-diaminopimelate + H(+) = L-lysine + CO(2).
    GO:0016829    lyase activity    Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
    GO:0030170    pyridoxal phosphate binding    Interacting selectively and non-covalently with pyridoxal 5' phosphate, 3-hydroxy-5-(hydroxymethyl)-2-methyl4-pyridine carboxaldehyde 5' phosphate, the biologically active form of vitamin B6.
biological process
    GO:0008652    cellular amino acid biosynthetic process    The chemical reactions and pathways resulting in the formation of amino acids, organic acids containing one or more amino substituents.
    GO:0009085    lysine biosynthetic process    The chemical reactions and pathways resulting in the formation of lysine, 2,6-diaminohexanoic acid.
    GO:0009089    lysine biosynthetic process via diaminopimelate    The chemical reactions and pathways resulting in the formation of lysine, via the intermediate diaminopimelate.

Chain A,B   (DCDA_MYCBO | P0A5M5)
molecular function
    GO:0016831    carboxy-lyase activity    Catalysis of the nonhydrolytic addition or removal of a carboxyl group to or from a compound.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0008836    diaminopimelate decarboxylase activity    Catalysis of the reaction: meso-2,6-diaminopimelate + H(+) = L-lysine + CO(2).
    GO:0016829    lyase activity    Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
    GO:0030170    pyridoxal phosphate binding    Interacting selectively and non-covalently with pyridoxal 5' phosphate, 3-hydroxy-5-(hydroxymethyl)-2-methyl4-pyridine carboxaldehyde 5' phosphate, the biologically active form of vitamin B6.
biological process
    GO:0008652    cellular amino acid biosynthetic process    The chemical reactions and pathways resulting in the formation of amino acids, organic acids containing one or more amino substituents.
    GO:0009085    lysine biosynthetic process    The chemical reactions and pathways resulting in the formation of lysine, 2,6-diaminohexanoic acid.
    GO:0009089    lysine biosynthetic process via diaminopimelate    The chemical reactions and pathways resulting in the formation of lysine, via the intermediate diaminopimelate.

Chain A,B   (DCDA_MYCTU | P9WIU7)
molecular function
    GO:0016831    carboxy-lyase activity    Catalysis of the nonhydrolytic addition or removal of a carboxyl group to or from a compound.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0008836    diaminopimelate decarboxylase activity    Catalysis of the reaction: meso-2,6-diaminopimelate + H(+) = L-lysine + CO(2).
    GO:0016829    lyase activity    Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0030170    pyridoxal phosphate binding    Interacting selectively and non-covalently with pyridoxal 5' phosphate, 3-hydroxy-5-(hydroxymethyl)-2-methyl4-pyridine carboxaldehyde 5' phosphate, the biologically active form of vitamin B6.
biological process
    GO:0008652    cellular amino acid biosynthetic process    The chemical reactions and pathways resulting in the formation of amino acids, organic acids containing one or more amino substituents.
    GO:0040007    growth    The increase in size or mass of an entire organism, a part of an organism or a cell.
    GO:0009085    lysine biosynthetic process    The chemical reactions and pathways resulting in the formation of lysine, 2,6-diaminohexanoic acid.
    GO:0009089    lysine biosynthetic process via diaminopimelate    The chemical reactions and pathways resulting in the formation of lysine, via the intermediate diaminopimelate.
cellular component
    GO:0005618    cell wall    The rigid or semi-rigid envelope lying outside the cell membrane of plant, fungal, most prokaryotic cells and some protozoan parasites, maintaining their shape and protecting them from osmotic lysis. In plants it is made of cellulose and, often, lignin; in fungi it is composed largely of polysaccharides; in bacteria it is composed of peptidoglycan; in protozoan parasites such as Giardia species, it's made of carbohydrates and proteins.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Thr A:40 - Pro A:41   [ RasMol ]
    Thr B:40 - Pro B:41   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1hkw
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  DCDA_MYCBO | P0A5M5
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  DCDA_MYCTO | P9WIU6
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  DCDA_MYCTU | P9WIU7
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  4.1.1.20
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  DCDA_MYCBO | P0A5M5
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  DCDA_MYCTO | P9WIU6
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  DCDA_MYCTU | P9WIU7
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        DCDA_MYCBO | P0A5M5: 1hkv
        DCDA_MYCTO | P9WIU6: 1hkv 2o0t
        DCDA_MYCTU | P9WIU7: 1hkv 2o0t

(-) Related Entries Specified in the PDB File

1hkv MYCOBACTERIUM DIAMINOPIMELATE DICARBOXYLASE (LYSA) RELATED ID: RV1293 RELATED DB: TARGETDB
