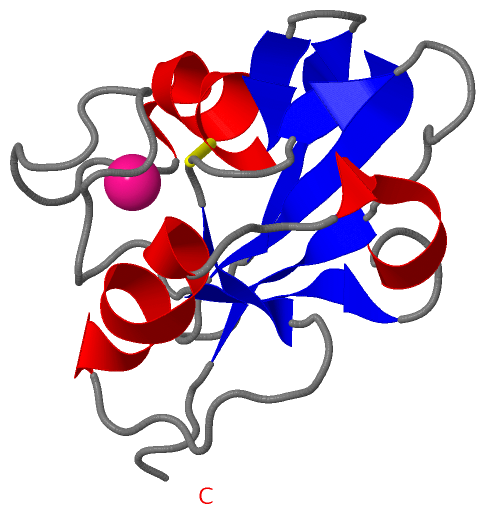

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

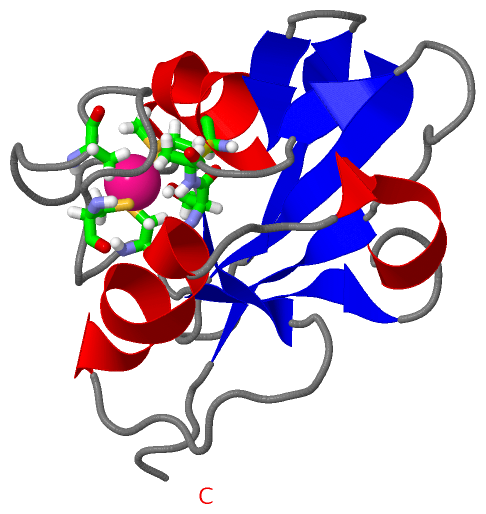

Image NMR Structure - model 1, sites
NMR Structure - model 1, sites  (Jmol Viewer)

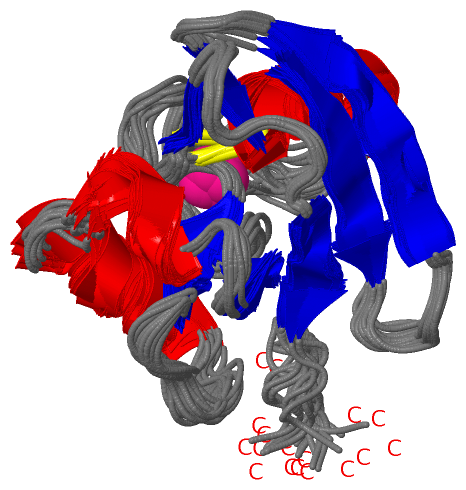

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  C85S GAPDX, NMR, 20 STRUCTURES

Authors :  T. C. Pochapsky, M. Kuti, S. Kazanis
Date :  10 Jun 98  (Deposition) - 27 Jan 99  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Electron Transport, Gapdx C85S, 20 Structures Aligned And Sa (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  T. C. Pochapsky, M. Kuti, S. Kazanis
The Solution Structure Of A Gallium-Substituted Putidaredoxin Mutant: Gapdx C85S.
J. Biomol. Nmr V. 12 407 1998
PubMed-ID: 9835048  |  Reference-DOI: 10.1023/A:1008354113765
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PUTIDAREDOXIN
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPKM536
    Expression System Taxid562
    GeneCAMB
    MutationYES
    Organism ScientificPSEUDOMONAS PUTIDA
    Organism Taxid303
    Other DetailsCOORDINATION OF GA+3 BY SG OF CYS 39, CYS 45, CYS 48 AND CYS 86
    Other Details - SourceFROM P. PUTIDA CAMPHOR HYDROXYLASE SYSTEM
    SynonymC85S GAPDX

 Structural Features

(-) Chains, Units


NMR Structure (20x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

NMR Structure (1, 1)
No.NameCountTypeFull Name
1GA1Ligand/IonGALLIUM (III) ION

(-) Sites  (2, 2)

NMR Structure (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREMET A:24 , CYS A:39 , CYS A:45 , CYS A:48 , SER A:85 , CYS A:86BINDING SITE FOR RESIDUE GA A 107
2GALUNKNOWNCYS A:39 , CYS A:45 , CYS A:48 , CYS A:86GALLIUM METAL ION BINDING LIGANDS.

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1GPX)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1GPX)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1GPX)

(-) PROSITE Motifs  (2, 2)

NMR Structure (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
12FE2S_FER_2PS51085 2Fe-2S ferredoxin-type iron-sulfur binding domain profile.PUTX_PSEPU2-106  1A:1-105
2ADXPS00814 Adrenodoxin family, iron-sulfur binding region signature.PUTX_PSEPU40-50  1A:39-49

(-) Exons   (0, 0)

(no "Exon" information available for 1GPX)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:106
 aligned with PUTX_PSEPU | P00259 from UniProtKB/Swiss-Prot  Length:107

    Alignment length:106
                                    11        21        31        41        51        61        71        81        91       101
           PUTX_PSEPU     2 SKVVYVSHDGTRRELDVADGVSLMQAAVSNGIYDIVGDCGGSASCATCHVYVNEAFTDKVPAANEREIGMLECVTAELKPNSRLCCQIIMTPELDGIVVDVPDRQW 107
               SCOP domains d1gpxa_ A: 2Fe-2S ferredoxin                                                                               SCOP domains
               CATH domains 1gpxA00 A:1-106  [code=3.10.20.30, no name defined]                                                        CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author eeeeee.....eeeeee...eehhhhhhhhh..................eeee...hhhhh...hhhhhhhhh........eee....ee.......eeee..... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) 2FE2S_FER_2  PDB: A:1-105 UniProt: 2-106                                                                 - PROSITE (1)
                PROSITE (2) --------------------------------------ADX        --------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 1gpx A   1 SKVVYVSHDGTRRELDVADGVSLMQAAVSNGIYDIVGDCGGSASCATCHVYVNEAFTDKVPAANEREIGMLECVTAELKPNSRLSCQIIMTPELDGIVVDVPDRQW 106
                                    10        20        30        40        50        60        70        80        90       100

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1GPX)

(-) Gene Ontology  (5, 5)

NMR Structure(hide GO term definitions)
Chain A   (PUTX_PSEPU | P00259)
molecular function
    GO:0051537    2 iron, 2 sulfur cluster binding    Interacting selectively and non-covalently with a 2 iron, 2 sulfur (2Fe-2S) cluster; this cluster consists of two iron atoms, with two inorganic sulfur atoms found between the irons and acting as bridging ligands.
    GO:0009055    electron carrier activity    Any molecular entity that serves as an electron acceptor and electron donor in an electron transport chain. An electron transport chain is a process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
    GO:0051536    iron-sulfur cluster binding    Interacting selectively and non-covalently with an iron-sulfur cluster, a combination of iron and sulfur atoms.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
