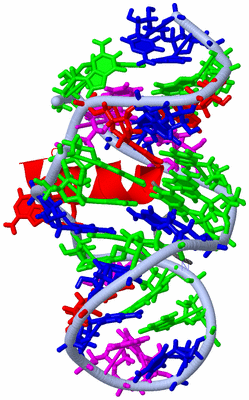

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

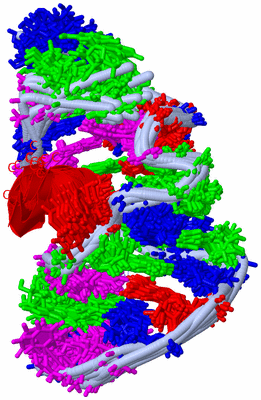

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  COMPLEX OF HIV-1 RRE-IIB RNA WITH RSG-1.2 PEPTIDE

Authors :  Y. Gosser, T. Hermann, A. Majumdar, W. Hu, R. Frederick, F. Jiang, W. Xu, D. J. Patel
Date :  08 Nov 00  (Deposition) - 07 Feb 01  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A,B  (14x)
Keywords :  Peptide-Rna Complex, Non-Canonical Base Pairs, Viral Protein/Rna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. Gosser, T. Hermann, A. Majumdar, W. Hu, R. Frederick, F. Jiang, W. Xu, D. J. Patel
Peptide-Triggered Conformational Switch In Hiv-1 Rre Rna Complexes.
Nat. Struct. Biol. V. 8 146 2001
PubMed-ID: 11175904  |  Reference-DOI: 10.1038/84138
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - RSG-1.2 PEPTIDE
    Chains: B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: HUMAN IMMUNODEFICIENCY VIRUS 1
    Organism Taxid: 11676
    Other Details: IN VIVO-SELECTED PEPTIDE

Molecule 2 - HIV-1 RRE-IIB 32 NUCLEOTIDE RNA
    Chains: A
    Engineered: YES
    Organism Scientific: HUMAN IMMUNODEFICIENCY VIRUS 1
    Organism Taxid: 11676
    Other Details: T7 IN VITRO TRANSCRIPTION

 Structural Features

(-) Chains, Units


NMR Structure (14x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1G70)

(-) Sites  (0, 0)

(no "Site" information available for 1G70)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1G70)

(-) Cis Peptide Bonds  (1, 14)

NMR Structure
No.ModelResidues
11, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14Ser B:7 -Arg B:8

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1G70)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1G70)

(-) Exons   (0, 0)

(no "Exon" information available for 1G70)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:RNA  Length:32

                  1g70 A 41 GGUCUGGGCGCACUUCGGUGACGGUACAGGCC 79
                                    50 |||   |67        77
                                      52||  64|
                                       54|   66
                                        60


Chain B from PDB  Type:PROTEIN  Length:16

               SCOP domains d1g70b_ B:       SCOP domains
               CATH domains ---------------- CATH domains
               Pfam domains ---------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------- SAPs(SNPs)
                    PROSITE ---------------- PROSITE
                 Transcript ---------------- Transcript
                  1g70 B  7 SRPSGAERRRRRAAAA 22
                                    16
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Peptides (792)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1G70)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1G70)

(-) Gene Ontology  (0, 0)

NMR Structure(hide GO term definitions)
    (no "Gene Ontology" information available for 1G70)

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1g70)

  Sites
(no "Sites" information available for 1g70)

  Cis Peptide Bonds
    Ser B:7 - Arg B:8   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

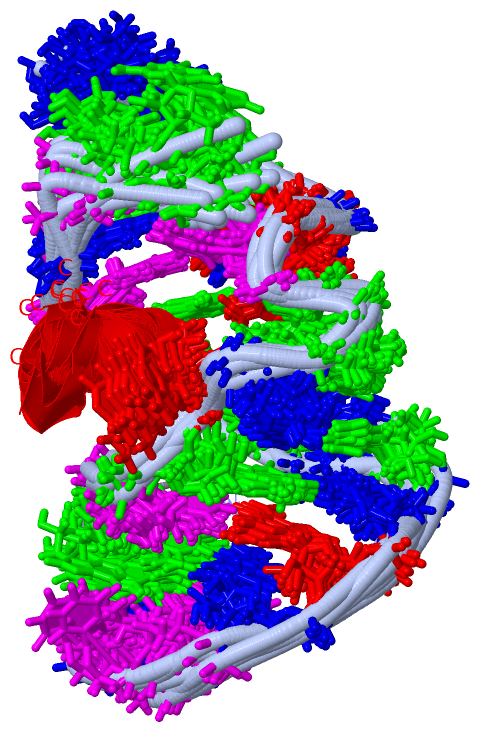

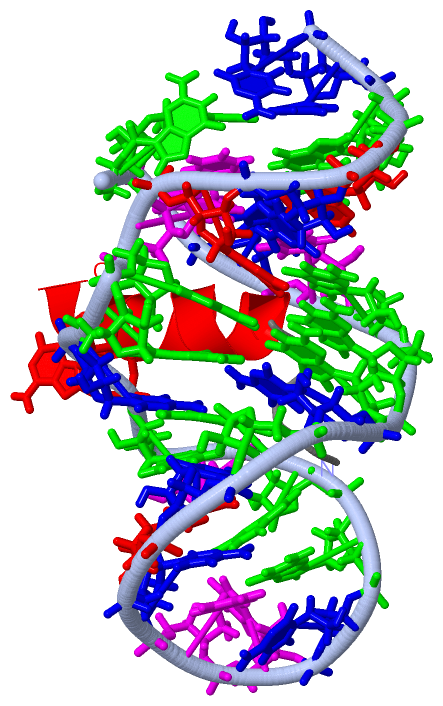

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
