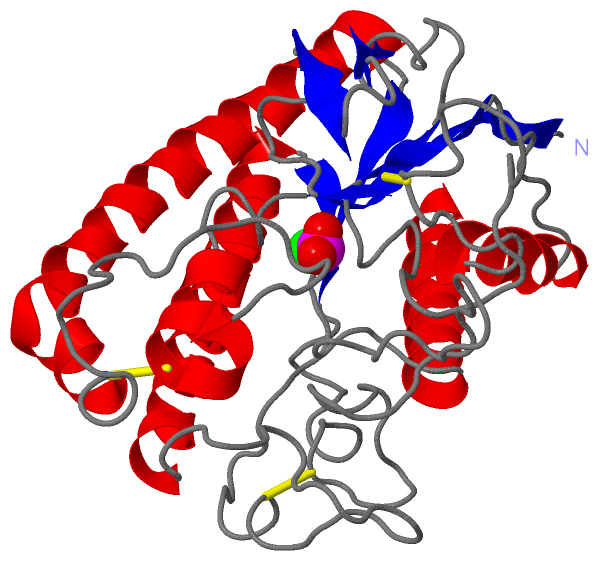

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

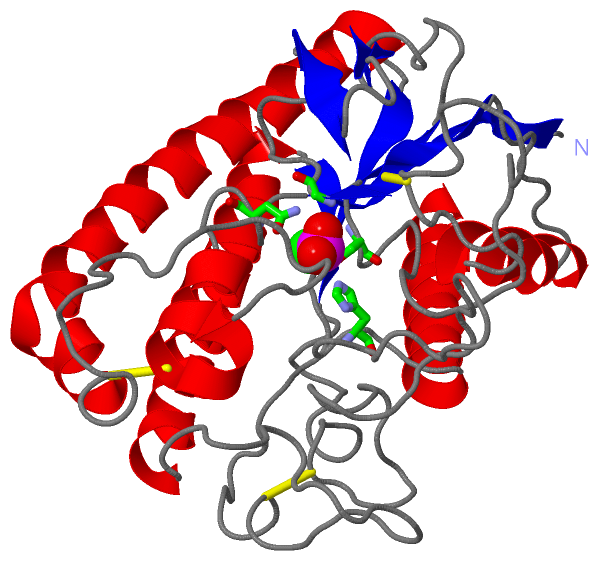

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  THE MOLECULAR MECHANISM OF ENANTIORECOGNITION BY ESTERASES

Authors :  Y. Wei, J. L. Schottel, U. Derewenda, L. Swenson, S. Patkar, Z. S. Derewenda
Date :  07 Oct 94  (Deposition) - 15 Oct 95  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym./Biol. Unit :  A
Keywords :  Hydrolase (Serine Esterase) (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  Y. Wei, J. L. Schottel, U. Derewenda, L. Swenson, S. Patkar, Z. S. Derewenda
A Novel Variant Of The Catalytic Triad In The Streptomyces Scabies Esterase.
Nat. Struct. Biol. V. 2 218 1995
PubMed-ID: 7773790  |  Reference-DOI: 10.1038/NSB0395-218
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ESTERASE
    ChainsA
    Organism ScientificSTREPTOMYCES SCABIEI
    Organism Taxid1930

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1VXA1Ligand/IonMETHYLPHOSPHONIC ACID ESTER GROUP

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWARESER A:14 , GLY A:66 , ASN A:106 , HIS A:283BINDING SITE FOR RESIDUE VXA A 400
2S1UNKNOWNSER A:14 , HIS A:283NULL

(-) SS Bonds  (3, 3)

Asymmetric/Biological Unit
No.Residues
1A:34 -A:64
2A:117 -A:141
3A:197 -A:255

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Ala A:22 -Pro A:23

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1ESD)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1ESD)

(-) Exons   (0, 0)

(no "Exon" information available for 1ESD)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:302
 aligned with ESTA_STRSC | P22266 from UniProtKB/Swiss-Prot  Length:345

    Alignment length:302
                                    52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342
           ESTA_STRSC    43 DPVPTVFFGDSYTANFGIAPVTNQDSERGWCFQAKENYPAVATRSLADKGITLDVQADVSCGGALIHHFWEKQELPFGAGELPPQQDALKQDTQLTVGSLGGNTLGFNRILKQCSDELRKPSLLPGDPVDGDEPAAKCGEFFGTGDGKQWLDDQFERVGAELEELLDRIGYFAPDAKRVLVGYPRLVPEDTTKCLTAAPGQTQLPFADIPQDALPVLDQIQKRLNDAMKKAAADGGADFVDLYAGTGANTACDGADRGIGGLLEDSQLELLGTKIPWYAHPNDKGRDIQAKQVADKIEEILN 344
               SCOP domains d1esda_ A: Esterase                                                                                                                                                                                                                                                                                            SCOP domains
               CATH domains 1esdA00 A:4-305  [code=3.40.50.1110, no name defined]                                                                                                                                                                                                                                                          CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee............................hhhhhhhhhhhh........eeeeee........eeeeee....eeee..........eeeee.......hhhhhhhhhhhhh..................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeee.............................hhhhhhhhhhhhhhhhhhhhhhhhh.eeee..........................................hhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1esd A   4 DPVPTVFFGDSYTANFGIAPVTNQDSERGWCFQAKENYPAVATRSLADKGITLDVQADVSCGGALIHHFWEKQELPFGAGELPPQQDALKQDTQLTVGSLGGNTLGFNRILKQCSDELRKPSLLPGDPVDGDEPAAKCGEFFGTGDGKQWLDDQFERVGAELEELLDRIGYFAPDAKRVLVGYPRLVPEDTTKCLTAAPGQTQLPFADIPQDALPVLDQIQKRLNDAMKKAAADGGADFVDLYAGTGANTACDGADRGIGGLLEDSQLELLGTKIPWYAHPNDKGRDIQAKQVADKIEEILN 305
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1ESD)

(-) Gene Ontology  (3, 3)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (ESTA_STRSC | P22266)
molecular function
    GO:0052689    carboxylic ester hydrolase activity    Catalysis of the hydrolysis of a carboxylic ester bond.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
