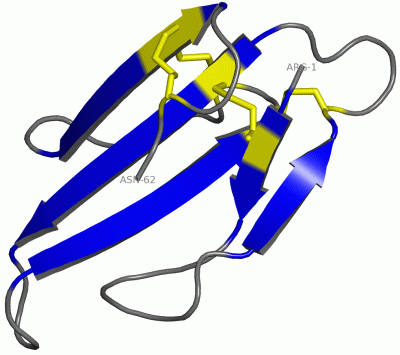

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)
Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

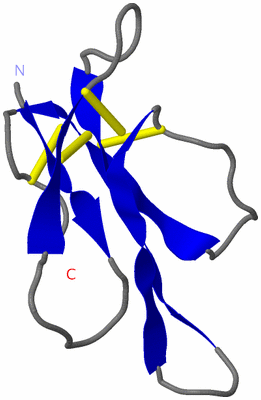

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  TERTIARY STRUCTURE OF ERABUTOXIN B IN AQUEOUS SOLUTION ELUCIDATED BY TWO-DIMENSIONAL NUCLEAR MAGNETIC RESONANCE

Authors :  H. Hatanaka, D. Kohda, F. Inagaki
Date :  28 Mar 94  (Deposition) - 22 Jun 94  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A
Keywords :  Toxin (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  H. Hatanaka, M. Oka, D. Kohda, S. Tate, A. Suda, N. Tamiya, F. Inagaki
Tertiary Structure Of Erabutoxin B In Aqueous Solution As Elucidated By Two-Dimensional Nuclear Magnetic Resonance.
J. Mol. Biol. V. 240 155 1994
PubMed-ID: 8027999  |  Reference-DOI: 10.1006/JMBI.1994.1429
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ERABUTOXIN B
    ChainsA
    EngineeredYES
    Organism CommonBROAD-BANDED BLUE SEA KRAIT
    Organism ScientificLATICAUDA SEMIFASCIATA
    Organism Taxid8631

 Structural Features

(-) Chains, Units


NMR Structure

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1ERA)

(-) Sites  (0, 0)

(no "Site" information available for 1ERA)

(-) SS Bonds  (4, 4)

NMR Structure
No.Residues
1A:3 -A:24
2A:17 -A:41
3A:43 -A:54
4A:55 -A:60

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1ERA)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (1, 1)

NMR Structure (1, 1)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_3S1EB_LATSE_001 *V80R3S1EB_LATSE  ---  ---AV59R
   * ID not provided by source

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1SNAKE_TOXINPS00272 Snake toxins signature.3S1EB_LATSE61-79  1A:40-58

(-) Exons   (0, 0)

(no "Exon" information available for 1ERA)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:62
 aligned with 3S1EB_LATSE | Q90VW1 from UniProtKB/Swiss-Prot  Length:83

    Alignment length:62
                                    31        41        51        61        71        81
           3S1EB_LATSE   22 RICFNHQSSQPQTTKTCSPGESSCYHKQWSDFRGTIIERGCGCPTVKPGIKLSCCESEVCNN 83
               SCOP domains d1eraa_ A: Erabutoxin B (also neurotoxin B)                    SCOP domains
               CATH domains 1eraA00 A:1-62 CD59                                            CATH domains
               Pfam domains -------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee.......eeee......eeeeeeee....eeeeeee........eeeeeee...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------R--- SAPs(SNPs)
                    PROSITE ---------------------------------------SNAKE_TOXIN        ---- PROSITE
                 Transcript -------------------------------------------------------------- Transcript
                  1era A  1 RICFNHQSSQPQTTKTCSPGESSCYHKQWSDFRGTIIERGCGCPTVKPGIKLSCCESEVCNN 62
                                    10        20        30        40        50        60

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1ERA)

(-) Gene Ontology  (3, 3)

NMR Structure(hide GO term definitions)
Chain A   (3S1EB_LATSE | Q90VW1)
biological process
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
    GO:0035792    other organism postsynaptic membrane    A postsynaptic membrane that is part of another organism, i.e. a secondary organism with which the first organism is interacting. A postsynaptic membrane is a specialized area of membrane facing the presynaptic membrane on the tip of the nerve ending and separated from it by a minute cleft (the synaptic cleft). Neurotransmitters transmit the signal across the synaptic cleft to the postsynaptic membrane.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1era)

  Sites
(no "Sites" information available for 1era)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1era)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1era
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  3S1EB_LATSE | Q90VW1
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  3S1EB_LATSE | Q90VW1
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        3S1EB_LATSE | Q90VW11fra 1nxb 3ebx 6ebx

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1ERA)
