(-)NMR Structure - model 1
(-)NMR Structure - all models
collapse expand < >

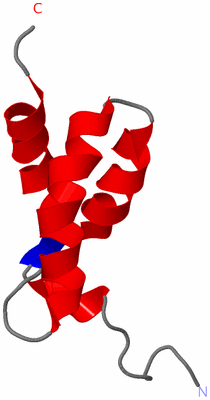

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

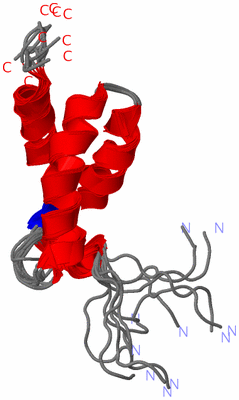

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR ENSEMBLE OF METHANOBACTERIUM THERMOAUTOTROPHICUM PROTEIN 1615

Authors :  D. Christendat, V. Booth, M. Gernstein, C. H. Arrowsmith, A. M. Edwards, Northeast Structural Genomics Consortium (Nesg)
Date :  25 Feb 00  (Deposition) - 03 Nov 00  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (10x)
Keywords :  Beta-Helix, Structural Genomics, Psi, Protein Structure Initiative, Northeast Structural Genomics Consortium, Nesg, Dna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Christendat, A. Yee, A. Dharamsi, Y. Kluger, A. Savchenko, J. R. Cort, V. Booth, C. D. Mackereth, V. Saridakis, I. Ekiel, G. Kozlov, K. L. Maxwell, N. Wu, L. P. Mcintosh, K. Gehring, M. A. Kennedy, A. R. Davidson, E. F. Pai, M. Gerstein, A. M. Edwards, C. H. Arrowsmith
Structural Proteomics Of An Archaeon.
Nat. Struct. Biol. V. 7 903 2000
PubMed-ID: 11017201  |  Reference-DOI: 10.1038/82823
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN MTH1615
    Chains: A
    Organism Scientific: METHANOTHERMOBACTER THERMAUTOTROPHICUS
    Organism Taxid: 145262
    Other Details: HOMOLOGOUS TO HUMAN APOPTOSIS PROTEIN TFAR19

 Structural Features

(-) Chains, Units


NMR Structure (10x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1EIJ)

(-) Sites  (0, 0)

(no "Site" information available for 1EIJ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1EIJ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1EIJ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1EIJ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1EIJ)

(-) Exons   (0, 0)

(no "Exon" information available for 1EIJ)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:72
 aligned with DNBP_METTH | O27652 from UniProtKB/Swiss-Prot  Length:111

    Alignment length:72
                                    41        51        61        71        81        91       101
           DNBP_METTH    32 MRQQLEMQKKQIMMQILTPEARSRLANLRLTRPDFVEQIELQLIQLAQMGRVRSKITDEQLKELLKRVAGKK 103
               SCOP domains d1eija_ A: Hypothetical protein MTH1615                                  SCOP domains
               CATH domains 1eijA00 A:1-72                                                           CATH domains
               Pfam domains ------------------------------------------------------------------------ Pfam domains
     Sec.struct. author (1) ........hhhhhh.--hhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh.....--hhhhhhhhhhhhh... Sec.struct. author (1)
     Sec.struct. author (2) ---------------eee------------------------------------eee--------------- Sec.struct. author (2)
                 SAPs(SNPs) ------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------ Transcript
                 1eij A   1 MRQQLEMQKKQIMMQILTPEARSRLANLRLTRPDFVEQIELQLIQLAQMGRVRSKITDEQLKELLKRVAGKK  72
                                    10        20        30        40        50        60        70
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1EIJ)

(-) Gene Ontology  (1, 1)

NMR Structure(hide GO term definitions)
Chain A   (DNBP_METTH | O27652)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1eij)

  Sites
(no "Sites" information available for 1eij)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1eij)


(-) Still Images

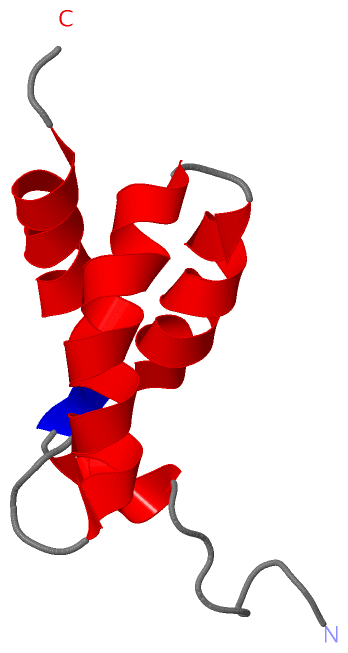

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
