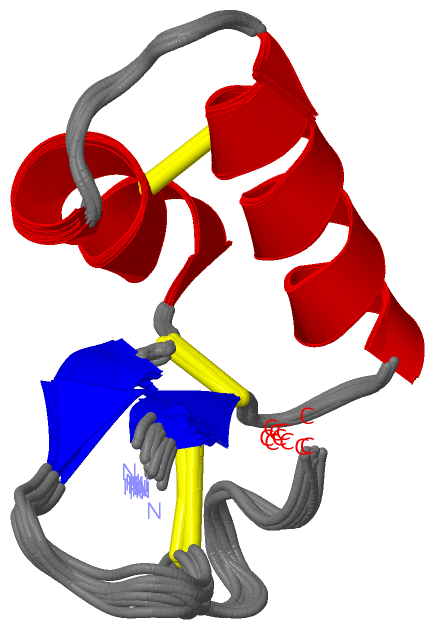

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR STRUCTURAL DETERMINATION OF VISCOTOXIN A3 FROM VISCUM ALBUM L.

Authors :  S. Romagnoli, R. Ugolini, F. Fogolari, G. Schaller, K. Urech, M. Giannattasio, L. Ragona, H. Molinari
Date :  26 Jan 00  (Deposition) - 04 Feb 00  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (10x)
Keywords :  Thionin, Concentric Motif, Helix-Turn-Helix, Alpha-Beta Protein, Amphipathic Helix, Toxin (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  S. Romagnoli, R. Ugolini, F. Fogolari, G. Schaller, K. Urech, M. Giannattasio, L. Ragona, H. Molinari
Nmr Structural Determination Of Viscotoxin A3 From Viscum Album L.
Biochem. J. V. 350 569 2000
PubMed-ID: 10947973  |  Reference-DOI: 10.1042/0264-6021:3500569
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - VISCOTOXIN A3
    ChainsA
    Organism CommonEUROPEAN MISTLETOE
    Organism ScientificVISCUM ALBUM
    Organism Taxid3972

 Structural Features

(-) Chains, Units


NMR Structure (10x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1ED0)

(-) Sites  (0, 0)

(no "Site" information available for 1ED0)

(-) SS Bonds  (3, 3)

NMR Structure
No.Residues
1A:3 -A:40
2A:4 -A:32
3A:16 -A:26

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1ED0)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1ED0)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1THIONINPS00271 Plant thionins signature.THN3_VISAL29-42  1A:3-16

(-) Exons   (0, 0)

(no "Exon" information available for 1ED0)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:46
 aligned with THN3_VISAL | P01538 from UniProtKB/Swiss-Prot  Length:111

    Alignment length:46
                                    36        46        56        66
            THN3_VISAL   27 KSCCPNTTGRNIYNACRLTGAPRPTCAKLSGCKIISGSTCPSDYPK 72
               SCOP domains d1ed0a_ A: Viscotoxin a3                       SCOP domains
               CATH domains 1ed0A00 A:1-46                                 CATH domains
               Pfam domains ---------------------------------------------- Pfam domains
         Sec.struct. author .ee...hhhhhhhhhhhh....hhhhhhhh..ee............ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------- SAPs(SNPs)
                    PROSITE --THIONIN       ------------------------------ PROSITE
                 Transcript ---------------------------------------------- Transcript
                  1ed0 A  1 KSCCPNTTGRNIYNACRLTGAPRPTCAKLSGCKIISGSTCPSDYPK 46
                                    10        20        30        40

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1ED0)

(-) Gene Ontology  (2, 2)

NMR Structure(hide GO term definitions)
Chain A   (THN3_VISAL | P01538)
biological process
    GO:0006952    defense response    Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1ed0)

  Sites
(no "Sites" information available for 1ed0)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ed0)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1ed0
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  THN3_VISAL | P01538
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  THN3_VISAL | P01538
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        THN3_VISAL | P015381okh

(-) Related Entries Specified in the PDB File

1ab1 CRAMBIN
1bhp BETA-PUROTHIONIN
1cbn CRAMBIN
1ccm CRAMBIN
1cnr CRAMBIN
2plh ALPHA-1-PUROTHIONIN
