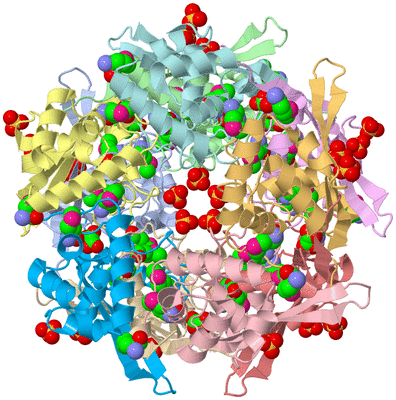

Asym./Biol. Unit (Jmol Viewer)

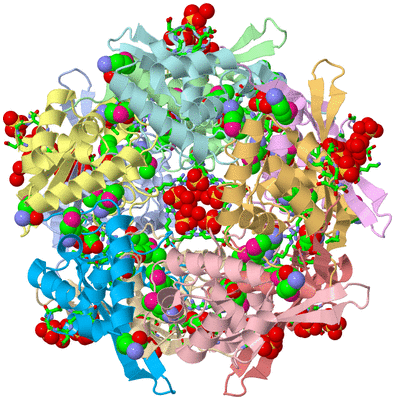

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   STRUCTURE OF CYANASE WITH THE DI-ANION OXALATE BOUND AT THE ENZYME ACTIVE SITE

Authors :   M. A. Walsh, Z. Otwinowski, A. Perrakis, P. M. Anderson, A. Joachimiak

Date :   07 Dec 99 (Deposition) - 16 May 00 (Release) - 12 Jul 17 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.65

Chains :   Asym./Biol. Unit : A,B,C,D,E,F,G,H,I,J

Keywords :   Lyase, Cyanate Degradation, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. A. Walsh, Z. Otwinowski, A. Perrakis, P. M. Anderson, A. Joachimiak
Structure Of Cyanase Reveals That A Novel Dimeric And Decameric Arrangement Of Subunits Is Required For Formation Of The Enzyme Active Site.
Structure V. 8 505 2000
PubMed-ID: 10801492 | Reference-DOI: 10.1016/S0969-2126(00)00134-9
(for further references see the PDB file header)

Molecule 1 - CYANATE HYDRATASE
	Chains	:	A, B, C, D, E, F, G, H, I, J
	EC Number	:	4.2.1.104
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	562

		1	2	3	4	5	6	7	8	9	10
Asymmetric/Biological Unit	:	A	B	C	D	E	F	G	H	I	J

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (3, 68)

No.	Name	Count	Type	Full Name
1	MSE	40	Mod. Amino Acid	SELENOMETHIONINE
2	OXL	5	Ligand/Ion	OXALATE ION
3	SO4	23	Ligand/Ion	SULFATE ION

Asymmetric Unit (28, 28)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	ALA A:39 , GLU A:40 , HOH A:366 , HOH A:448 , HOH A:463 , HOH A:408 , HOH A:320 , HOH A:335	BINDING SITE FOR RESIDUE SO4 A 1157
02	AC2	SOFTWARE	ALA B:39 , GLU B:40 , HOH B:318 , HOH B:465 , HOH B:371 , HOH B:314	BINDING SITE FOR RESIDUE SO4 B 1157
03	AC3	SOFTWARE	ALA C:39 , GLU C:40 , HOH C:341 , HOH C:410 , HOH C:337 , HOH C:307	BINDING SITE FOR RESIDUE SO4 C 1157
04	AC4	SOFTWARE	ALA D:39 , GLU D:40 , HOH D:411 , HOH D:462 , HOH D:306 , HOH D:311	BINDING SITE FOR RESIDUE SO4 D 1157
05	AC5	SOFTWARE	ALA E:39 , GLU E:40 , HOH E:424 , HOH E:369 , HOH E:335	BINDING SITE FOR RESIDUE SO4 E 1157
06	AC6	SOFTWARE	ALA F:39 , GLU F:40 , HOH F:451 , HOH F:414 , HOH F:302	BINDING SITE FOR RESIDUE SO4 F 1157
07	AC7	SOFTWARE	ALA G:39 , GLU G:40 , HOH G:318 , HOH G:409 , HOH G:322 , HOH G:304	BINDING SITE FOR RESIDUE SO4 G 1157
08	AC8	SOFTWARE	ALA H:39 , GLU H:40 , HOH H:403 , HOH H:323	BINDING SITE FOR RESIDUE SO4 H 1157
09	AC9	SOFTWARE	ALA I:39 , GLU I:40 , HOH I:418 , HOH I:305	BINDING SITE FOR RESIDUE SO4 I 1157
10	BC1	SOFTWARE	ALA J:39 , GLU J:40 , HOH J:407 , HOH J:307	BINDING SITE FOR RESIDUE SO4 J 1157
11	BC2	SOFTWARE	ARG A:87 , SO4 A:202 , ARG B:87 , ARG D:87 , SO4 D:203 , ARG J:87 , HOH B:312 , HOH B:397	BINDING SITE FOR RESIDUE SO4 A 1158
12	BC3	SOFTWARE	ARG A:87 , SO4 B:201 , ARG C:87 , SO4 G:201 , ARG I:87 , ARG J:87 , HOH A:309 , HOH A:310	BINDING SITE FOR RESIDUE SO4 A 1159
13	BC4	SOFTWARE	SO4 A:202 , ARG C:87 , SO4 F:201 , ARG G:87 , ARG H:87 , ARG I:87 , HOH G:353	BINDING SITE FOR RESIDUE SO4 C 1158
14	BC5	SOFTWARE	SO4 G:201 , ARG E:87 , SO4 D:203 , ARG F:87 , ARG G:87 , ARG H:87 , HOH F:372	BINDING SITE FOR RESIDUE SO4 E 1158
15	BC6	SOFTWARE	SO4 B:201 , ARG B:87 , ARG D:87 , ARG E:87 , SO4 F:201 , ARG F:87 , HOH D:382	BINDING SITE FOR RESIDUE SO4 E 1159
16	BC7	SOFTWARE	ASP A:34 , GLY A:35 , THR A:36 , GLY A:37 , LYS E:131 , HOH A:306 , HOH A:301 , HOH A:312 , HOH A:378 , HOH A:388	BINDING SITE FOR RESIDUE SO4 A 1160
17	BC8	SOFTWARE	ASP D:34 , GLY D:35 , THR D:36 , GLY D:37 , HOH D:303	BINDING SITE FOR RESIDUE SO4 D 1158
18	BC9	SOFTWARE	ASP E:34 , GLY E:35 , GLY E:37 , HOH E:327 , HOH E:307	BINDING SITE FOR RESIDUE SO4 E 1160
19	CC1	SOFTWARE	ALA F:33 , ASP F:34 , GLY F:35 , THR F:36 , GLY F:37 , HOH F:316 , HOH F:301	BINDING SITE FOR RESIDUE SO4 F 1158
20	CC2	SOFTWARE	LYS D:131 , HOH D:406 , HOH D:347 , ALA G:33 , ASP G:34 , GLY G:35 , THR G:36 , GLY G:37 , HOH G:309	BINDING SITE FOR RESIDUE SO4 G 1158
21	CC3	SOFTWARE	ALA H:33 , ASP H:34 , GLY H:35 , GLY H:37 , HOH H:353 , HOH H:304	BINDING SITE FOR RESIDUE SO4 H 1158
22	CC4	SOFTWARE	ALA I:33 , ASP I:34 , GLY I:35 , THR I:36 , GLY I:37 , HOH I:351 , HOH I:357	BINDING SITE FOR RESIDUE SO4 I 1158
23	CC5	SOFTWARE	ALA J:33 , ASP J:34 , GLY J:35 , THR J:36 , GLY J:37 , HOH J:328 , HOH J:405	BINDING SITE FOR RESIDUE SO4 J 1158
24	CC6	SOFTWARE	ILE A:120 , SER A:122 , ALA A:123 , LEU A:151 , ARG D:96 , ARG I:96 , ILE J:120 , SER J:122 , ALA J:123 , LEU J:151 , HOH J:363	BINDING SITE FOR RESIDUE OXL A 1161
25	CC7	SOFTWARE	ARG A:96 , ILE B:120 , SER B:122 , ALA B:123 , LEU B:151 , ILE D:120 , SER D:122 , ALA D:123 , LEU D:151 , ARG F:96	BINDING SITE FOR RESIDUE OXL D 1159
26	CC8	SOFTWARE	ILE C:120 , SER C:122 , ALA C:123 , LEU C:151 , ARG H:96 , ILE I:120 , SER I:122 , ALA I:123 , LEU I:151 , ARG J:96	BINDING SITE FOR RESIDUE OXL I 1159
27	CC9	SOFTWARE	ARG B:96 , ILE E:120 , SER E:122 , ALA E:123 , LEU E:151 , ILE F:120 , SER F:122 , ALA F:123 , LEU F:151 , ARG G:96	BINDING SITE FOR RESIDUE OXL E 1161
28	DC1	SOFTWARE	ARG C:96 , ARG E:96 , ILE G:120 , SER G:122 , ALA G:123 , LEU G:151 , ILE H:120 , SER H:122 , ALA H:123 , LEU H:151	BINDING SITE FOR RESIDUE OXL G 1159

(no "SS Bond" information available for 1DWK)

(no "Cis Peptide Bond" information available for 1DWK)

(no "SAP(SNP)/Variant" information available for 1DWK)

(no "PROSITE Motif" information available for 1DWK)

(no "Exon" information available for 1DWK)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d1dwka1 A:1-86 Cyanase N-terminal domain                                              d1dwka2 A:87-156 Cyanase C-terminal domain                             SCOP domains
               CATH domains -1dwkA01 A:2-88 lambda repressor-like DNA-binding domains                               1dwkA02 A:89-153  [code=3.30.1160.10, no name defined]           --- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhh...........................hhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1dwk A   1 mIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQmIPLRGCIDDRIPTDPTmYRFYEmLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                            |       10        20        30        40        50        60        70      | 80        90   |   100       110       120       130       140       150
                            |                                                                          77-MSE           94-MSE |
                            1-MSE                                                                                            100-MSE

Chain B from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d1dwkb1 B:1-86 Cyanase N-terminal domain                                              d1dwkb2 B:87-156 Cyanase C-terminal domain                             SCOP domains
               CATH domains -1dwkB01 B:2-88 lambda repressor-like DNA-binding domains                               1dwkB02 B:89-153  [code=3.30.1160.10, no name defined]           --- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhh..hhhhhhhhh...........................hhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1dwk B   1 mIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQmIPLRGCIDDRIPTDPTmYRFYEmLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                            |       10        20        30        40        50        60        70      | 80        90   |   100       110       120       130       140       150
                            1-MSE                                                                      77-MSE           94-MSE |
                                                                                                                             100-MSE

Chain C from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d1dwkc1 C:1-86 Cyanase N-terminal domain                                              d1dwkc2 C:87-156 Cyanase C-terminal domain                             SCOP domains
               CATH domains -1dwkC01 C:2-88 lambda repressor-like DNA-binding domains                               1dwkC02 C:89-153  [code=3.30.1160.10, no name defined]           --- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhh..hhhhhhhhh...........................hhhhhhhhhhhhhh.eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1dwk C   1 mIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQmIPLRGCIDDRIPTDPTmYRFYEmLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                            |       10        20        30        40        50        60        70      | 80        90   |   100       110       120       130       140       150
                            1-MSE                                                                      77-MSE           94-MSE |
                                                                                                                             100-MSE

Chain D from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d1dwkd1 D:1-86 Cyanase N-terminal domain                                              d1dwkd2 D:87-156 Cyanase C-terminal domain                             SCOP domains
               CATH domains -1dwkD01 D:2-88 lambda repressor-like DNA-binding domains                               1dwkD02 D:89-153  [code=3.30.1160.10, no name defined]           --- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhh...........................hhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1dwk D   1 mIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQmIPLRGCIDDRIPTDPTmYRFYEmLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                            |       10        20        30        40        50        60        70      | 80        90   |   100       110       120       130       140       150
                            1-MSE                                                                      77-MSE           94-MSE |
                                                                                                                             100-MSE

Chain E from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d1dwke1 E:1-86 Cyanase N-terminal domain                                              d1dwke2 E:87-156 Cyanase C-terminal domain                             SCOP domains
               CATH domains -1dwkE01 E:2-88 lambda repressor-like DNA-binding domains                               1dwkE02 E:89-153  [code=3.30.1160.10, no name defined]           --- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhh...........................hhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1dwk E   1 mIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQmIPLRGCIDDRIPTDPTmYRFYEmLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                            |       10        20        30        40        50        60        70      | 80        90   |   100       110       120       130       140       150
                            1-MSE                                                                      77-MSE           94-MSE |
                                                                                                                             100-MSE

Chain F from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d1dwkf1 F:1-86 Cyanase N-terminal domain                                              d1dwkf2 F:87-156 Cyanase C-terminal domain                             SCOP domains
               CATH domains -1dwkF01 F:2-88 lambda repressor-like DNA-binding domains                               1dwkF02 F:89-153  [code=3.30.1160.10, no name defined]           --- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhhh...........................hhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1dwk F   1 mIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQmIPLRGCIDDRIPTDPTmYRFYEmLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                            |       10        20        30        40        50        60        70      | 80        90   |   100       110       120       130       140       150
                            1-MSE                                                                      77-MSE           94-MSE |
                                                                                                                             100-MSE

Chain G from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d1dwkg1 G:1-86 Cyanase N-terminal domain                                              d1dwkg2 G:87-156 Cyanase C-terminal domain                             SCOP domains
               CATH domains -1dwkG01 G:2-88 lambda repressor-like DNA-binding domains                               1dwkG02 G:89-153  [code=3.30.1160.10, no name defined]           --- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhh..hhhhhhhhh...........................hhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1dwk G   1 mIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQmIPLRGCIDDRIPTDPTmYRFYEmLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                            |       10        20        30        40        50        60        70      | 80        90   |   100       110       120       130       140       150
                            1-MSE                                                                      77-MSE           94-MSE |
                                                                                                                             100-MSE

Chain H from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d1dwkh1 H:1-86 Cyanase N-terminal domain                                              d1dwkh2 H:87-156 Cyanase C-terminal domain                             SCOP domains
               CATH domains -1dwkH01 H:2-88 lambda repressor-like DNA-binding domains                               1dwkH02 H:89-153  [code=3.30.1160.10, no name defined]           --- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhh..hhhhhhhh............................hhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1dwk H   1 mIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQmIPLRGCIDDRIPTDPTmYRFYEmLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                            |       10        20        30        40        50        60        70      | 80        90   |   100       110       120       130       140       150
                            1-MSE                                                                      77-MSE           94-MSE |
                                                                                                                             100-MSE

Chain I from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d1dwki1 I:1-86 Cyanase N-terminal domain                                              d1dwki2 I:87-156 Cyanase C-terminal domain                             SCOP domains
               CATH domains -1dwkI01 I:2-88 lambda repressor-like DNA-binding domains                               1dwkI02 I:89-153  [code=3.30.1160.10, no name defined]           --- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhhh.hhhhhhhh............................hhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1dwk I   1 mIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQmIPLRGCIDDRIPTDPTmYRFYEmLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                            |       10        20        30        40        50        60        70      | 80        90   |   100       110       120       130       140       150
                            1-MSE                                                                      77-MSE           94-MSE |
                                                                                                                             100-MSE

Chain J from PDB  Type:PROTEIN  Length:156
 aligned with CYNS_ECOLI | P00816 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:156
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           CYNS_ECOLI     1 MIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQMIPLRGCIDDRIPTDPTMYRFYEMLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
               SCOP domains d1dwkj1 J:1-86 Cyanase N-terminal domain                                              d1dwkj2 J:87-156 Cyanase C-terminal domain                             SCOP domains
               CATH domains -1dwkJ01 J:2-88 lambda repressor-like DNA-binding domains                               1dwkJ02 J:89-153  [code=3.30.1160.10, no name defined]           --- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhh.....hhhhhhhhhhhh..hhhhhhhhh...........................hhhhhhhhhhhhh..eeeeeeeeeeeeeeee.....eeeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1dwk J   1 mIQSQINRNIRLDLADAILLSKAKKDLSFAEIADGTGLAEAFVTAALLGQQALPADAARLVGAKLDLDEDSILLLQmIPLRGCIDDRIPTDPTmYRFYEmLQVYGTTLKALVHEKFGDGIISAINFKLDVKKVADPEGGERAVITLDGKYLPTKPF 156
                            |       10        20        30        40        50        60        70      | 80        90   |   100       110       120       130       140       150
                            1-MSE                                                                      77-MSE           94-MSE |
                                                                                                                             100-MSE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: lambda repressor-like DNA-binding domains (180)

Superfamily: lambda repressor-like DNA-binding domains (180)

Family: Cyanase N-terminal domain (8)

Protein domain: Cyanase N-terminal domain (2)

Escherichia coli [TaxId: 562] (2)

1a	d1dwka1	A:1-86
1b	d1dwkb1	B:1-86
1c	d1dwkc1	C:1-86
1d	d1dwkd1	D:1-86
1e	d1dwke1	E:1-86
1f	d1dwkf1	F:1-86
1g	d1dwkg1	G:1-86
1h	d1dwkh1	H:1-86
1i	d1dwki1	I:1-86
1j	d1dwkj1	J:1-86

Class: Alpha and beta proteins (a+b) (23004)

Fold: Cyanase C-terminal domain (8)

Superfamily: Cyanase C-terminal domain (8)

Family: Cyanase C-terminal domain (8)

Protein domain: Cyanase C-terminal domain (2)

Escherichia coli [TaxId: 562] (2)

2a	d1dwka2	A:87-156
2b	d1dwkb2	B:87-156
2c	d1dwkc2	C:87-156
2d	d1dwkd2	D:87-156
2e	d1dwke2	E:87-156
2f	d1dwkf2	F:87-156
2g	d1dwkg2	G:87-156
2h	d1dwkh2	H:87-156
2i	d1dwki2	I:87-156
2j	d1dwkj2	J:87-156

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 2-Layer Sandwich (8480)

Topology: Cyanate Lyase; Chain: A, domain 2 (8)

Homologous Superfamily: [code=3.30.1160.10, no name defined] (8)

Escherichia coli. Organism_taxid: 562. (8)

1a	1dwkA02	A:89-153
1b	1dwkB02	B:89-153
1c	1dwkC02	C:89-153
1d	1dwkD02	D:89-153
1e	1dwkE02	E:89-153
1f	1dwkF02	F:89-153
1g	1dwkG02	G:89-153
1h	1dwkH02	H:89-153
1i	1dwkI02	I:89-153
1j	1dwkJ02	J:89-153

Class: Mainly Alpha (13335)

Architecture: Orthogonal Bundle (10391)

Topology: 434 Repressor (Amino-terminal Domain) (116)

Homologous Superfamily: lambda repressor-like DNA-binding domains (100)

Escherichia coli. Organism_taxid: 562. (10)

2a	1dwkA01	A:2-88
2b	1dwkB01	B:2-88
2c	1dwkC01	C:2-88
2d	1dwkD01	D:2-88
2e	1dwkE01	E:2-88
2f	1dwkF01	F:2-88
2g	1dwkG01	G:2-88
2h	1dwkH01	H:2-88
2i	1dwkI01	I:2-88
2j	1dwkJ01	J:2-88

(no "Pfam Domain" information available for 1DWK)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B,C,D,E,F,G,H,I,J (CYNS_ECOLI | P00816)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
	GO:0008824	cyanate hydratase activity	Catalysis of the reaction: cyanate + H2O = carbamate.
	GO:0016829	lyase activity	Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
biological process
	GO:0009440	cyanate catabolic process	The chemical reactions and pathways resulting in the breakdown of cyanate, NCO-, the anion of cyanic acid.
	GO:0009439	cyanate metabolic process	The chemical reactions and pathways involving cyanate, NCO-, the anion of cyanic acid.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		MSE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		OXL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]
		BC8	[ RasMol ]	+environment [ RasMol ]
		BC9	[ RasMol ]	+environment [ RasMol ]
		CC1	[ RasMol ]	+environment [ RasMol ]
		CC2	[ RasMol ]	+environment [ RasMol ]
		CC3	[ RasMol ]	+environment [ RasMol ]
		CC4	[ RasMol ]	+environment [ RasMol ]
		CC5	[ RasMol ]	+environment [ RasMol ]
		CC6	[ RasMol ]	+environment [ RasMol ]
		CC7	[ RasMol ]	+environment [ RasMol ]
		CC8	[ RasMol ]	+environment [ RasMol ]
		CC9	[ RasMol ]	+environment [ RasMol ]
		DC1	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1dwk)

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1dwk
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	CYNS_ECOLI \| P00816
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	4.2.1.104
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	CYNS_ECOLI \| P00816
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	CYNS_ECOLI \| P00816	:	1dw9 2iu7 2iuo 2iv1 2ivb 2ivg 2ivq

1dw9	STRUCTURE OF CYANASE REVEALS THAT A NOVEL DIMERIC AND DECAMERIC ARRANGEMENT OF SUBUNITS IS REQUIRED FOR FORMATION OF THE ENZYME ACTIVE SITE

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (3, 68)

Sites (28, 28)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (2, 20)

CATH Domains (2, 20)

Pfam Domains (0, 0)

Gene Ontology (6, 6)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
