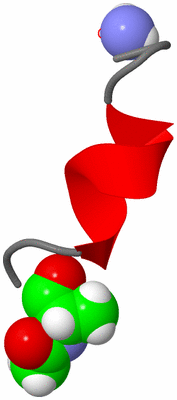

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

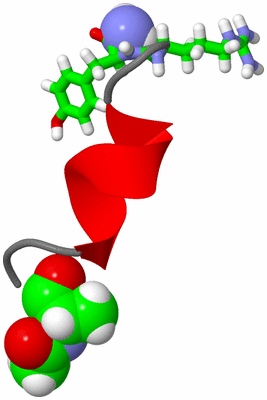

Image NMR Structure - model 1, sites
NMR Structure - model 1, sites  (Jmol Viewer)

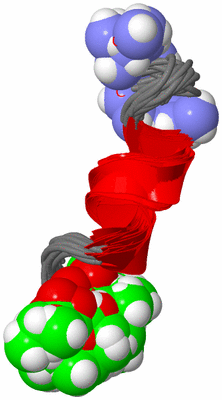

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF LACTAM-BRIDGED C-TERMINAL ANALOGUE-I OF NEUROPEPTIDE Y

Authors :  S. Yao, R. S. Norton
Date :  14 Sep 99  (Deposition) - 16 Jun 00  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Lactam-Bridged, Helix, Neuropeptide (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  S. Yao, M. A. Smith-White, E. K. Potter, R. S. Norton
Stabilization Of The Helical Structure Of Y2-Selective Analogues Of Neuropeptide Y By Lactam Bridges.
J. Med. Chem. V. 45 2310 2002
PubMed-ID: 12014969  |  Reference-DOI: 10.1021/JM010543Z
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - C-TERMINAL ANALOGUE OF NEUROPEPTIDE Y, A POTENT Y2 RECEPTOR AGONIST
    ChainsA
    EngineeredYES
    FragmentC-TERMINAL ANALOGUE
    MutationYES
    Other DetailsSYNTHETIC WITH MUTATION: L24A, I28K, I31L, T32E, A LACTAM-BRIDGE WAS INTRODUCED BETWEEN POSITIONS (28) AND (32)
    Other Details - SourceCHEMICALLY SYNTHESIZED.
    SyntheticYES

 Structural Features

(-) Chains, Units


NMR Structure (20x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

NMR Structure (2, 2)
No.NameCountTypeFull Name
1AYA1Mod. Amino AcidN-ACETYLALANINE
2NH21Mod. Amino AcidAMINO GROUP

(-) Sites  (1, 1)

NMR Structure (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREARG A:35 , TYR A:36BINDING SITE FOR RESIDUE NH2 A 37

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1D0W)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1D0W)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1D0W)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1D0W)

(-) Exons   (0, 0)

(no "Exon" information available for 1D0W)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:14

               SCOP domains d1d0wa_ A:     SCOP domains
               CATH domains -------------- CATH domains
               Pfam domains -------------- Pfam domains
         Sec.struct. author ...hhhhhh..... Sec.struct. author
                 SAPs(SNPs) -------------- SAPs(SNPs)
                    PROSITE -------------- PROSITE
                 Transcript -------------- Transcript
                  1d0w A 24 aRHYKNLLERQRYx 37
                            |       33   |
                            |           37-NH2
                           24-AYA

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Peptides (792)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1D0W)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1D0W)

(-) Gene Ontology  (0, 0)

NMR Structure(hide GO term definitions)
    (no "Gene Ontology" information available for 1D0W)

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    AYA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NH2  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1d0w)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
