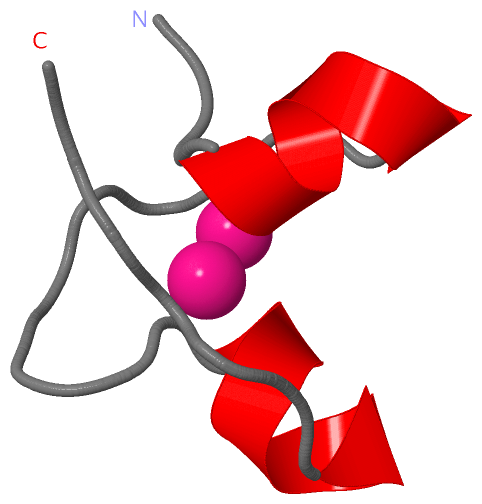

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

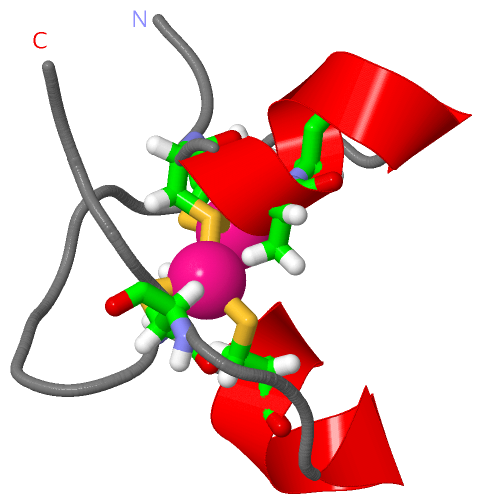

Image NMR Structure - model 1, sites
NMR Structure - model 1, sites  (Jmol Viewer)

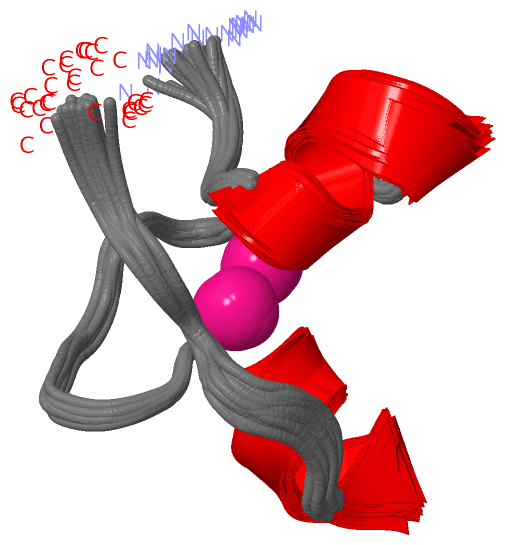

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  DNA-BINDING PROTEIN

Authors :  K. H. Gardner, J. E. Coleman
Date :  06 Jun 95  (Deposition) - 15 Sep 95  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (29x)
Keywords :  Zinc-Binding Domain, Transcription Regulation (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  K. H. Gardner, S. F. Anderson, J. E. Coleman
Solution Structure Of The Kluyveromyces Lactis Lac9 Cd2 Cys6 Dna-Binding Domain.
Nat. Struct. Biol. V. 2 898 1995
PubMed-ID: 7552715  |  Reference-DOI: 10.1038/NSB1095-898
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CD2-LAC9
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    MutationYES
    Organism ScientificKLUYVEROMYCES LACTIS
    Organism Taxid28985

 Structural Features

(-) Chains, Units


NMR Structure (29x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

NMR Structure (1, 2)
No.NameCountTypeFull Name
1CD2Ligand/IonCADMIUM ION

(-) Sites  (2, 2)

NMR Structure (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWARECYS A:95 , CYS A:98 , CYS A:105 , CYS A:112 , CD A:146BINDING SITE FOR RESIDUE CD A 145
2AC2SOFTWARECYS A:95 , ALA A:97 , CYS A:112 , CYS A:115 , CYS A:122 , CD A:145BINDING SITE FOR RESIDUE CD A 146

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1CLD)

(-) Cis Peptide Bonds  (1, 29)

NMR Structure
No.ModelResidues
11, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29Val A:109 -Pro A:110

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1CLD)

(-) PROSITE Motifs  (2, 2)

NMR Structure (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1ZN2_CY6_FUNGAL_1PS00463 Zn(2)-C6 fungal-type DNA-binding domain signature.LAC9_KLULA94-122  1A:94-122
2ZN2_CY6_FUNGAL_2PS50048 Zn(2)-C6 fungal-type DNA-binding domain profile.LAC9_KLULA94-124  1A:94-124

(-) Exons   (0, 0)

(no "Exon" information available for 1CLD)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:33
 aligned with LAC9_KLULA | P08657 from UniProtKB/Swiss-Prot  Length:865

    Alignment length:33
                                   102       112       122
           LAC9_KLULA    93 QACDACRKKKWKCSKTVPTCTNCLKYNLDCVYS 125
               SCOP domains d1clda_ A: CD2-Lac9               SCOP domains
               CATH domains 1cldA00 A:93-125 CD2-Gal4         CATH domains
               Pfam domains --------------------------------- Pfam domains
         Sec.struct. author ...hhhhhh...........hhhhhh....... Sec.struct. author
                 SAPs(SNPs) --------------------------------- SAPs(SNPs)
                PROSITE (1) -ZN2_CY6_FUNGAL_1             --- PROSITE (1)
                PROSITE (2) -ZN2_CY6_FUNGAL_2  PDB: A:94-124- PROSITE (2)
                 Transcript --------------------------------- Transcript
                 1cld A  93 QACDACRKKKWKCSKTVPTCTNCLKYNLDCVYS 125
                                   102       112       122

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (1, 1)

NMR Structure

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1CLD)

(-) Gene Ontology  (16, 16)

NMR Structure(hide GO term definitions)
Chain A   (LAC9_KLULA | P08657)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0000978    RNA polymerase II core promoter proximal region sequence-specific DNA binding    Interacting selectively and non-covalently with a sequence of DNA that is in cis with and relatively close to a core promoter for RNA polymerase II.
    GO:0000981    RNA polymerase II transcription factor activity, sequence-specific DNA binding    Interacting selectively and non-covalently with a specific DNA sequence in order to modulate transcription by RNA polymerase II. The transcription factor may or may not also interact selectively with a protein or macromolecular complex.
    GO:0001133    RNA polymerase II transcription factor activity, sequence-specific transcription regulatory region DNA binding    Interacting selectively and non-covalently with a specific sequence of DNA that is part of a regulatory region that controls transcription of that section of the DNA by RNA polymerase II and recruiting another transcription factor to the DNA in order to modulate transcription by RNAP II.
    GO:0001085    RNA polymerase II transcription factor binding    Interacting selectively and non-covalently with an RNA polymerase II transcription factor, any protein required to initiate or regulate transcription by RNA polymerase II.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0043565    sequence-specific DNA binding    Interacting selectively and non-covalently with DNA of a specific nucleotide composition, e.g. GC-rich DNA binding, or with a specific sequence motif or type of DNA e.g. promotor binding or rDNA binding.
    GO:0001077    transcriptional activator activity, RNA polymerase II core promoter proximal region sequence-specific binding    Interacting selectively and non-covalently with a sequence of DNA that is in cis with and relatively close to a core promoter for RNA polymerase II (RNAP II) in order to activate or increase the frequency, rate or extent of transcription from the RNAP II promoter.
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0006012    galactose metabolic process    The chemical reactions and pathways involving galactose, the aldohexose galacto-hexose. D-galactose is widely distributed in combined form in plants, animals and microorganisms as a constituent of oligo- and polysaccharides; it also occurs in galactolipids and as its glucoside in lactose and melibiose.
    GO:0000435    positive regulation of transcription from RNA polymerase II promoter by galactose    Any process involving galactose that activates or increases the rate of transcription from an RNA polymerase II promoter.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006366    transcription from RNA polymerase II promoter    The synthesis of RNA from a DNA template by RNA polymerase II, originating at an RNA polymerase II promoter. Includes transcription of messenger RNA (mRNA) and certain small nuclear RNAs (snRNAs).
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Val A:109 - Pro A:110   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1cld
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  LAC9_KLULA | P08657
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  LAC9_KLULA | P08657
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
