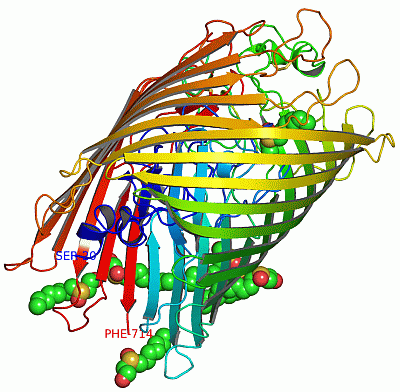

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

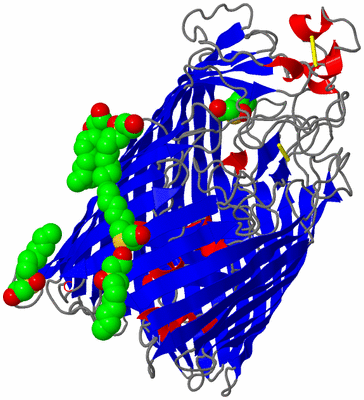

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

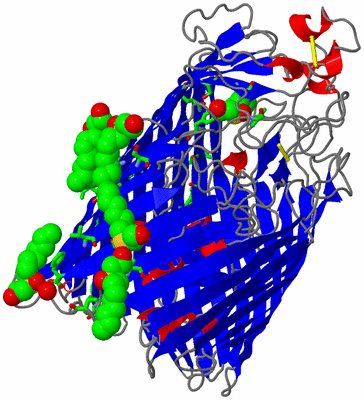

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  FHUA FROM E. COLI

Authors :  K. P. Locher, B. Rees, R. Koebnik, A. Mitschler, L. Moulinier, J. P. Rosenbusch, D. Moras
Date :  22 Oct 98  (Deposition) - 13 Jan 99  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.74
Chains :  Asym./Biol. Unit :  A
Keywords :  Fhua, Membrane Protein, Ligand-Gated, Iron Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. P. Locher, B. Rees, R. Koebnik, A. Mitschler, L. Moulinier, J. P. Rosenbusch, D. Moras
Transmembrane Signaling Across The Ligand-Gated Fhua Receptor: Crystal Structures Of Free And Ferrichrome-Bound States Reveal Allosteric Changes.
Cell(Cambridge, Mass. ) V. 95 771 1998
PubMed-ID: 9865695  |  Reference-DOI: 10.1016/S0092-8674(00)81700-6
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROTEIN (FERRICHROME-IRON RECEPTOR PRECURSOR (FHUA))
    Chains: A
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 7)

Asymmetric/Biological Unit (1, 7)
No.NameCountTypeFull Name
1OES7Ligand/IonN-OCTYL-2-HYDROXYETHYL SULFOXIDE

(-) Sites  (7, 7)

Asymmetric Unit (7, 7)
No.NameEvidenceResiduesDescription
1AC1SOFTWARETHR A:176 , SER A:200 , PHE A:290 , ASN A:291 , PHE A:294BINDING SITE FOR RESIDUE OES A 715
2AC2SOFTWARETYR A:284 , GLN A:298 , VAL A:676 , ALA A:710BINDING SITE FOR RESIDUE OES A 716
3AC3SOFTWAREPHE A:302 , PHE A:355 , VAL A:669BINDING SITE FOR RESIDUE OES A 717
4AC4SOFTWARETYR A:116 , TRP A:246 , GLN A:309 , SER A:311 , TYR A:313BINDING SITE FOR RESIDUE OES A 718
5AC5SOFTWARETYR A:213BINDING SITE FOR RESIDUE OES A 719
6AC6SOFTWAREALA A:214 , ILE A:215 , PHE A:235BINDING SITE FOR RESIDUE OES A 720
7AC7SOFTWAREVAL A:164 , TRP A:455 , ASP A:457 , ASP A:472 , PHE A:714 , HOH A:1072BINDING SITE FOR RESIDUE OES A 721

(-) SS Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1A:318 -A:329
2A:692 -A:698

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1BY3)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1BY3)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1TONB_DEPENDENT_REC_2PS01156 TonB-dependent receptor proteins signature 2.FHUA_ECOLI730-747  1A:697-714

(-) Exons   (0, 0)

(no "Exon" information available for 1BY3)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:695
 aligned with FHUA_ECOLI | P06971 from UniProtKB/Swiss-Prot  Length:747

    Alignment length:695
                                    62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492       502       512       522       532       542       552       562       572       582       592       602       612       622       632       642       652       662       672       682       692       702       712       722       732       742
           FHUA_ECOLI    53 SAWGPAATIAARQSATGTKTDTPIQKVPQSISVVTAEEMALHQPKSVKEALSYTPGVSVGTRGASNTYDHLIIRGFAAEGQSQNNYLNGLKLQGNFYNDAVIDPYMLERAEIMRGPVSVLYGKSSPGGLLNMVSKRPTTEPLKEVQFKAGTDSLFQTGFDFSDSLDDDGVYSYRLTGLARSANAQQKGSEEQRYAIAPAFTWRPDDKTNFTFLSYFQNEPETGYYGWLPKEGTVEPLPNGKRLPTDFNEGAKNNTYSRNEKMVGYSFDHEFNDTFTVRQNLRFAENKTSQNSVYGYGVCSDPANAYSKQCAALAPADKGHYLARKYVVDDEKLQNFSVDTQLQSKFATGDIDHTLLTGVDFMRMRNDINAWFGYDDSVPLLNLYNPVNTDFDFNAKDPANSGPYRILNKQKQTGVYVQDQAQWDKVLVTLGGRYDWADQESLNRVAGTTDKRDDKQFTWRGGVNYLFDNGVTPYFSYSESFEPSSQVGKDGNIFAPSKGKQYEVGVKYVPEDRPIVVTGAVYNLTKTNNLMADPEGSFFSVEGGEIRARGVEIEAKAALSASVNVVGSYTYTDAEYTTDTTYKGNTPAQVPKHMASLWADYTFFDGPLSGLTLGTGGRYTGSSYGDPANSFKVGSYTVVDALVRYDLARVGMAGSNVALHVNNLFDREYVASCFNTYGCFWGAERQVVATATFRF 747
               SCOP domains d1by3a_ A: Ferric hydroxamate uptake receptor FhuA                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      SCOP domains
               CATH domains 1by3A01 A:20-160 Ferric Hydroxamate Uptake Protein; Chain A, domain 1                                                                        1by3A02 A:161-714  [code=2.40.170.20, no name defined]                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                     CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhh.hhh...........hhh....eeeeehhhhhhh.....hhhh...........................hhh......................hhheeeeeeee...hhhh......eeeeeee.......eeeeeeeee...eeeeeeeeeee......eeeeeeeeeeeee......eeeeeeeeeeeee.....eeeeeeeeeeee...................................eeeeeeeeeeeeeeee....eeeeeeeeeeeeeeeeeeeee......hhh...hhhh.....hhh....eeeeeeeeeeeeeeeeeeeeeeeee..eeeeeeeeeeeeeeeeeeeeeee.........hhh...............eeeeeeeeeeeeeeeeeeeeeee..eeeeeeeeeeeeeeeeee.....eeeeeeeeeeeeeeeeee....eeeeeeeeeeee..............eeeeeeeeeeee......eeeeeeeeeeeee.................eeeeeeeeeeeee.....eeeeeeeeeeeeeeee..............eeeeeeeeeee.......eeeeeeeeee...............eeeeeeeeeee.........eeeeeee.......eeee.....eee....eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------TONB_DEPENDENT_REC PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1by3 A  20 SAWGPAATIAARQSATGTKTDTPIQKVPQSISVVTAEEMALHQPKSVKEALSYTPGVSVGTRGASNTYDHLIIRGFAAEGQSQNNYLNGLKLQGNFYNDAVIDPYMLERAEIMRGPVSVLYGKSSPGGLLNMVSKRPTTEPLKEVQFKAGTDSLFQTGFDFSDSLDDDGVYSYRLTGLARSANAQQKGSEEQRYAIAPAFTWRPDDKTNFTFLSYFQNEPETGYYGWLPKEGTVEPLPNGKRLPTDFNEGAKNNTYSRNEKMVGYSFDHEFNDTFTVRQNLRFAENKTSQNSVYGYGVCSDPANAYSKQCAALAPADKGHYLARKYVVDDEKLQNFSVDTQLQSKFATGDIDHTLLTGVDFMRMRNDINAWFGYDDSVPLLNLYNPVNTDFDFNAKDPANSGPYRILNKQKQTGVYVQDQAQWDKVLVTLGGRYDWADQESLNRVAGTTDKRDDKQFTWRGGVNYLFDNGVTPYFSYSESFEPSSQVGKDGNIFAPSKGKQYEVGVKYVPEDRPIVVTGAVYNLTKTNNLMADPEGSFFSVEGGEIRARGVEIEAKRPLSASVNVVGSYTYTDAEYTTDTTYKGNTPAQVPKHMASLWADYTFFDGPLSGLTLGTGGRYTGSSYGDPANSFKVGSYTVVDALVRYDLARVGMAGSNVALHVNNLFDREYVASCFNTYGCFWGAERQVVATATFRF 714
                                    29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379       389       399       409       419       429       439       449       459       469       479       489       499       509       519       529       539       549       559       569       579       589       599       609       619       629       639       649       659       669       679       689       699       709
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Membrane and cell surface proteins and peptides (2046)

(-) CATH Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1BY3)

(-) Gene Ontology  (14, 14)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (FHUA_ECOLI | P06971)
molecular function
    GO:0048037    cofactor binding    Interacting selectively and non-covalently with a cofactor, a substance that is required for the activity of an enzyme or other protein. Cofactors may be inorganic, such as the metal atoms zinc, iron, and copper in certain forms, or organic, in which case they are referred to as coenzymes. Cofactors may either be bound tightly to active sites or bind loosely with the substrate.
    GO:0005506    iron ion binding    Interacting selectively and non-covalently with iron (Fe) ions.
    GO:0004872    receptor activity    Combining with an extracellular or intracellular messenger to initiate a change in cell activity.
    GO:0015344    siderophore uptake transmembrane transporter activity    Enables the transfer of a solute or solutes from one side of a membrane to the other according to the reaction: siderophore-iron(ferrioxamine)(out) + H+(out) = siderophore-iron(ferrioxamine)(in) + H+(in).
    GO:0015643    toxic substance binding    Interacting selectively and non-covalently with a toxic substance, a poisonous substance that causes damage to biological systems.
    GO:0046790    virion binding    Interacting selectively and non-covalently with a virion, either by binding to components of the capsid or the viral envelope.
biological process
    GO:0006811    ion transport    The directed movement of charged atoms or small charged molecules into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0055072    iron ion homeostasis    Any process involved in the maintenance of an internal steady state of iron ions within an organism or cell.
    GO:0044718    siderophore transmembrane transport    The directed movement of siderophores, low molecular weight Fe(III)-chelating substances, from one side of a membrane to the other, by means of some agent such as a transporter or pore.
    GO:0015891    siderophore transport    The directed movement of siderophores, low molecular weight Fe(III)-chelating substances, into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0009279    cell outer membrane    A lipid bilayer that forms the outermost membrane of the cell envelope; enriched in polysaccharide and protein; the outer leaflet of the membrane contains specific lipopolysaccharide structures.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    OES  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1by3)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

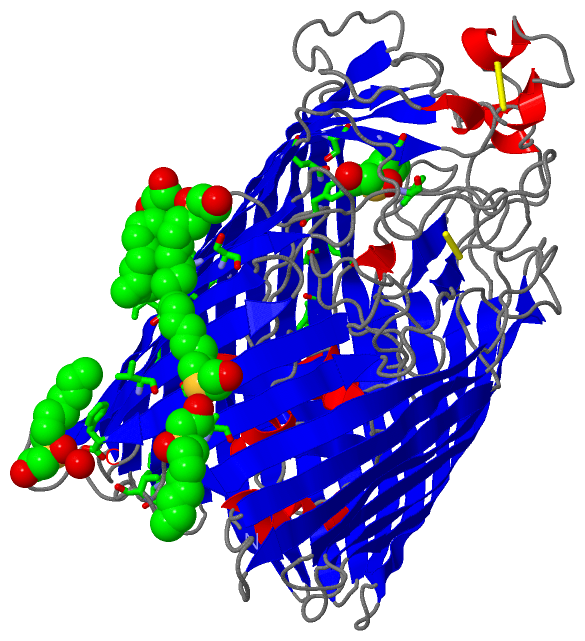

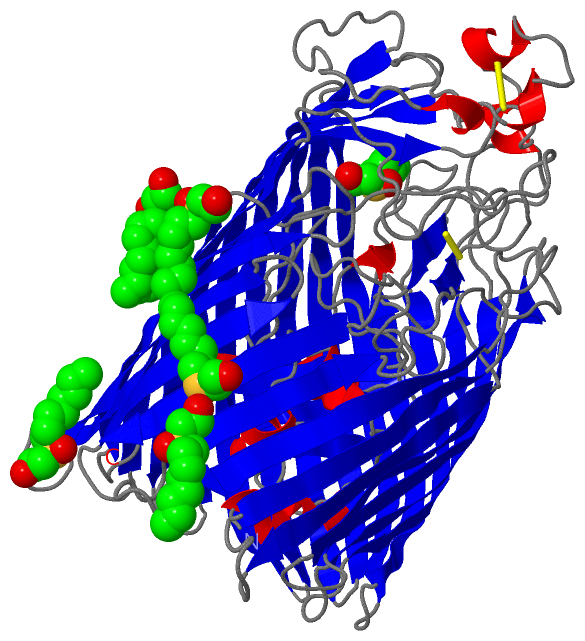

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
