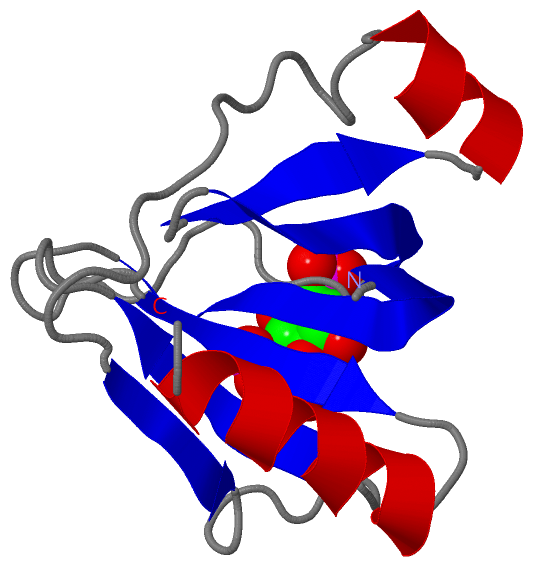

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

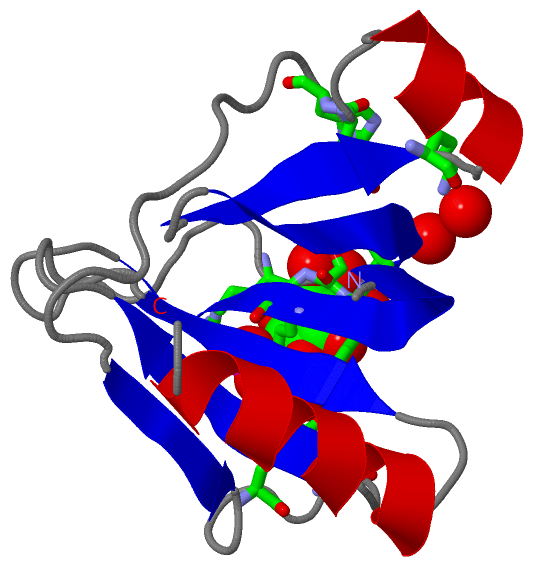

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

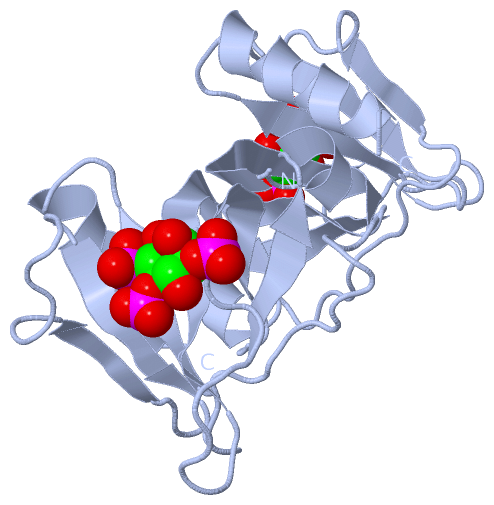

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

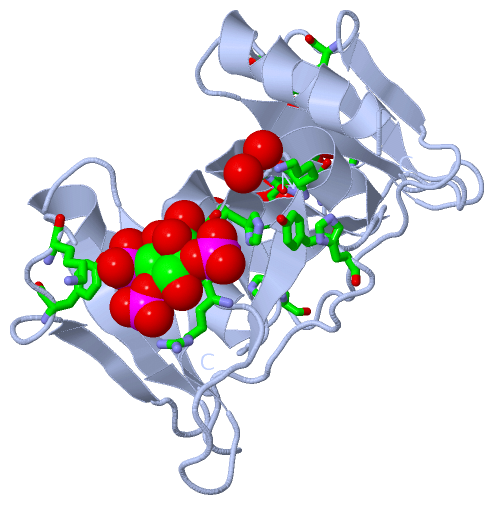

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE BINDING SITE FOR INOSITOL PHOSPHATES IN A PH DOMAIN

Authors :  M. Wilmanns, M. Hyvoenen, M. Saraste
Date :  23 Aug 95  (Deposition) - 08 Mar 96  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Signal Transduction Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  M. Hyvonen, M. J. Macias, M. Nilges, H. Oschkinat, M. Saraste, M. Wilmanns
Structure Of The Binding Site For Inositol Phosphates In A Ph Domain.
Embo J. V. 14 4676 1995
PubMed-ID: 7588597
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - BETA-SPECTRIN
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI BL21
    Expression System GeneMUSSPNA.GBROD
    Expression System PlasmidPET21D
    Expression System StrainBL21
    Expression System Taxid511693
    FragmentPH DOMAIN, RESIDUES 2199 - 2304
    GeneMUSSPNA.GBROD
    OrganBRAIN
    Organism CommonHOUSE MOUSE
    Organism ScientificMUS MUSCULUS
    Organism Taxid10090

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit A
Biological Unit 1 (2x)A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1I3P1Ligand/IonD-MYO-INOSITOL-1,4,5-TRIPHOSPHATE
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1I3P2Ligand/IonD-MYO-INOSITOL-1,4,5-TRIPHOSPHATE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELYS A:8 , ARG A:21 , SER A:22 , TRP A:23 , HIS A:24 , LYS A:39 , TYR A:50 , HIS A:51 , TYR A:69 , LYS A:71 , HOH A:129 , HOH A:133 , HOH A:180BINDING SITE FOR RESIDUE I3P A 107

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1BTN)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1BTN)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1BTN)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1BTN)

(-) Exons   (0, 0)

(no "Exon" information available for 1BTN)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:106
 aligned with SPTB2_MOUSE | Q62261 from UniProtKB/Swiss-Prot  Length:2363

    Alignment length:106
                                  2208      2218      2228      2238      2248      2258      2268      2278      2288      2298
         SPTB2_MOUSE   2199 MEGFLNRKHEWEAHNKKASSRSWHNVYCVINNQEMGFYKDAKSAASGIPYHSEVPVSLKEAICEVALDYKKKKHVFKLRLSDGNEYLFQAKDDEEMNTWIQAISSA 2304
               SCOP domains d1btna_ A: beta-spectrin                                                                                   SCOP domains
               CATH domains 1btnA00 A:1-106 Pleckstrin-homology domain (PH domain)/Phosphotyrosine-binding domain (PTB)                CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeeee............eeeeeeee..eeeee..hhhhhh...............eeee.........eeeee.....eeeee...hhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                1btn A    1 MEGFLNRKHEWEAHNKKASSRSWHNVYCVINNQEMGFYKDAKSAASGIPYHSEVPVSLKEAICEVALDYKKKKHVFKLRLSDGNEYLFQAKDDEEMNTWIQAISSA  106
                                    10        20        30        40        50        60        70        80        90       100

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1BTN)

(-) Gene Ontology  (31, 31)

Asymmetric Unit(hide GO term definitions)
Chain A   (SPTB2_MOUSE | Q62261)
molecular function
    GO:0051020    GTPase binding    Interacting selectively and non-covalently with a GTPase, any enzyme that catalyzes the hydrolysis of GTP.
    GO:0003779    actin binding    Interacting selectively and non-covalently with monomeric or multimeric forms of actin, including actin filaments.
    GO:0030506    ankyrin binding    Interacting selectively and non-covalently with ankyrin, a 200 kDa cytoskeletal protein that attaches other cytoskeletal proteins to integral membrane proteins.
    GO:0005516    calmodulin binding    Interacting selectively and non-covalently with calmodulin, a calcium-binding protein with many roles, both in the calcium-bound and calcium-free states.
    GO:0005543    phospholipid binding    Interacting selectively and non-covalently with phospholipids, a class of lipids containing phosphoric acid as a mono- or diester.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0005200    structural constituent of cytoskeleton    The action of a molecule that contributes to the structural integrity of a cytoskeletal structure.
biological process
    GO:0043001    Golgi to plasma membrane protein transport    The directed movement of proteins from the Golgi to the plasma membrane in transport vesicles that move from the trans-Golgi network to the plasma membrane.
    GO:0007184    SMAD protein import into nucleus    The directed movement of a SMAD proteins from the cytoplasm into the nucleus. Pathway-restricted SMAD proteins and common-partner SMAD proteins are involved in the transforming growth factor beta receptor signaling pathways.
    GO:0051693    actin filament capping    The binding of a protein or protein complex to the end of an actin filament, thus preventing the addition, exchange or removal of further actin subunits.
    GO:0007182    common-partner SMAD protein phosphorylation    The process of introducing a phosphate group on to a common-partner SMAD protein. A common partner SMAD protein binds to pathway-restricted SMAD proteins forming a complex that translocates to the nucleus.
    GO:0071709    membrane assembly    The aggregation, arrangement and bonding together of a set of components to form a membrane.
    GO:0000281    mitotic cytokinesis    A cell cycle process that results in the division of the cytoplasm of a cell after mitosis, resulting in the separation of the original cell into two daughter cells.
    GO:0007009    plasma membrane organization    A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of the plasma membrane.
    GO:1900042    positive regulation of interleukin-2 secretion    Any process that activates or increases the frequency, rate or extent of interleukin-2 secretion.
    GO:1903078    positive regulation of protein localization to plasma membrane    Any process that activates or increases the frequency, rate or extent of protein localization to plasma membrane.
    GO:0072661    protein targeting to plasma membrane    The process of directing proteins towards the plasma membrane; usually uses signals contained within the protein.
    GO:1903076    regulation of protein localization to plasma membrane    Any process that modulates the frequency, rate or extent of protein localization to plasma membrane.
cellular component
    GO:0031430    M band    The midline of aligned thick filaments in a sarcomere; location of specific proteins that link thick filaments. Depending on muscle type the M band consists of different numbers of M lines.
    GO:0030673    axolemma    The portion of the plasma membrane surrounding an axon; it is a specialized trilaminar random mosaic of protein molecules floating within a fluid matrix of highly mobile phospholipid molecules, 7-8 nm in thickness.
    GO:0030863    cortical cytoskeleton    The portion of the cytoskeleton that lies just beneath the plasma membrane.
    GO:0032437    cuticular plate    A dense network of actin filaments found beneath the apical cell surface of hair cells, and into which stereocilia are inserted.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005856    cytoskeleton    Any of the various filamentous elements that form the internal framework of cells, and typically remain after treatment of the cells with mild detergent to remove membrane constituents and soluble components of the cytoplasm. The term embraces intermediate filaments, microfilaments, microtubules, the microtrabecular lattice, and other structures characterized by a polymeric filamentous nature and long-range order within the cell. The various elements of the cytoskeleton not only serve in the maintenance of cellular shape but also have roles in other cellular functions, including cellular movement, cell division, endocytosis, and movement of organelles.
    GO:0012505    endomembrane system    A collection of membranous structures involved in transport within the cell. The main components of the endomembrane system are endoplasmic reticulum, Golgi bodies, vesicles, cell membrane and nuclear envelope. Members of the endomembrane system pass materials through each other or though the use of vesicles.
    GO:0070062    extracellular exosome    A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005730    nucleolus    A small, dense body one or more of which are present in the nucleus of eukaryotic cells. It is rich in RNA and protein, is not bounded by a limiting membrane, and is not seen during mitosis. Its prime function is the transcription of the nucleolar DNA into 45S ribosomal-precursor RNA, the processing of this RNA into 5.8S, 18S, and 28S components of ribosomal RNA, and the association of these components with 5S RNA and proteins synthesized outside the nucleolus. This association results in the formation of ribonucleoprotein precursors; these pass into the cytoplasm and mature into the 40S and 60S subunits of the ribosome.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0008091    spectrin    Membrane associated dimeric protein (240 and 220 kDa) of erythrocytes. Forms a complex with ankyrin, actin and probably other components of the membrane cytoskeleton, so that there is a mesh of proteins underlying the plasma membrane, potentially restricting the lateral mobility of integral proteins.
