(-)NMR Structure - model 1
(-)NMR Structure - all models
collapse expand < >

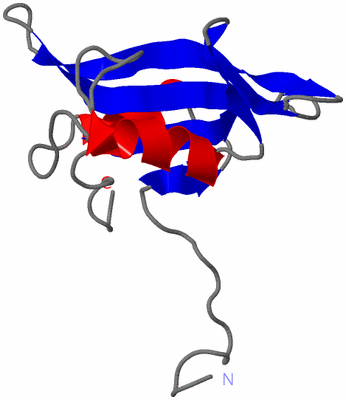

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

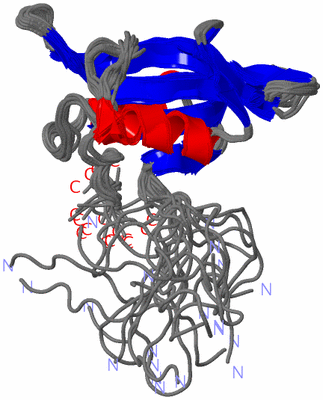

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR ENSEMBLE OF BLK SH2 DOMAIN USING CHEMICAL SHIFT REFINEMENT, 20 STRUCTURES

Authors :  W. J. Metzler, B. Leiting, K. Pryor, L. Mueller, B. T. Farmer Ii
Date :  26 Mar 96  (Deposition) - 12 Mar 97  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Signal Transduction, Tyrosine Kinase, Transferase, Phosphotransferase, Phosphorylation (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  W. J. Metzler, B. Leiting, K. Pryor, L. Mueller, B. T. Farmer 2Nd.
The Three-Dimensional Solution Structure Of The Sh2 Domain From P55Blk Kinase.
Biochemistry V. 35 6201 1996
PubMed-ID: 8639560  |  Reference-DOI: 10.1021/BI960157X
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - P55 BLK PROTEIN TYROSINE KINASE
    ChainsA
    EC Number2.7.1.112
    EngineeredYES
    Expression SystemESCHERICHIA COLI BL21
    Expression System GeneP55 BLK KINASE (RESIDUES 107 - 218)
    Expression System PlasmidPGEX-2T
    Expression System StrainBL21
    Expression System Taxid511693
    FragmentSH2 DOMAIN, SRC HOMOLOGY 2
    GeneP55 BLK KINASE (RESIDUES 107 -
    Organism CommonHOUSE MOUSE
    Organism ScientificMUS MUSCULUS
    Organism Taxid10090
    Other DetailsPEPTIDE FREE

 Structural Features

(-) Chains, Units


NMR Structure (20x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1BLK)

(-) Sites  (0, 0)

(no "Site" information available for 1BLK)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1BLK)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1BLK)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1BLK)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1SH2PS50001 Src homology 2 (SH2) domain profile.BLK_MOUSE118-214  1A:14-110

(-) Exons   (0, 0)

(no "Exon" information available for 1BLK)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:114
 aligned with BLK_MOUSE | P16277 from UniProtKB/Swiss-Prot  Length:499

    Alignment length:122
                                   106       116       126       136       146       156       166       176       186       196       206       216
            BLK_MOUSE    97 GREGYVPSNFVAPVETLEVEKWFFRTISRKDAERQLLAPMNKAGSFLIRESESNKGAFSLSVKDITTQGEVVKHYKIRSLDNGGYYISPRITFPTLQALVQHYSKKGDGLCQKLTLPCVNLA 218
               SCOP domains d      1  blka_ A: P55 Blk protein tyrosine kinase                                                                         SCOP domains
               CATH domains 1      b  lkA00 A:1-114 SHC Adaptor Protein                                                                                CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .------.--...........eee....hhhhhhhh........eeeeee......eeeeeeeee....eeeeeeeeeee...eeeee..eee..hhhhhhhhhh................. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------SH2  PDB: A:14-110 UniProt: 118-214                                                              ---- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------- Transcript
                 1blk A   1 G------S--VAPVETLEVEKWFFRTISRKDAERQLLAPMNKAGSFLIRESESNKGAFSLSVKDITTQGEVVKHYKIRSLDNGGYYISPRITFPTLQALVQHYSKKGDGLCQKLTLPCVNLA 114
                            |      | -|       12        22        32        42        52        62        72        82        92       102       112
                            |      2  3
                            1

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1BLK)

(-) Gene Ontology  (26, 26)

NMR Structure(hide GO term definitions)
Chain A   (BLK_MOUSE | P16277)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0004715    non-membrane spanning protein tyrosine kinase activity    Catalysis of the reaction: ATP + protein L-tyrosine = ADP + protein L-tyrosine phosphate by a non-membrane spanning protein.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0004672    protein kinase activity    Catalysis of the phosphorylation of an amino acid residue in a protein, usually according to the reaction: a protein + ATP = a phosphoprotein + ADP.
    GO:0004713    protein tyrosine kinase activity    Catalysis of the reaction: ATP + a protein tyrosine = ADP + protein tyrosine phosphate.
    GO:0005102    receptor binding    Interacting selectively and non-covalently with one or more specific sites on a receptor molecule, a macromolecule that undergoes combination with a hormone, neurotransmitter, drug or intracellular messenger to initiate a change in cell function.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0050853    B cell receptor signaling pathway    A series of molecular signals initiated by the cross-linking of an antigen receptor on a B cell.
    GO:0030154    cell differentiation    The process in which relatively unspecialized cells, e.g. embryonic or regenerative cells, acquire specialized structural and/or functional features that characterize the cells, tissues, or organs of the mature organism or some other relatively stable phase of the organism's life history. Differentiation includes the processes involved in commitment of a cell to a specific fate and its subsequent development to the mature state.
    GO:0007010    cytoskeleton organization    A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of cytoskeletal structures.
    GO:0045087    innate immune response    Innate immune responses are defense responses mediated by germline encoded components that directly recognize components of potential pathogens.
    GO:0043066    negative regulation of apoptotic process    Any process that stops, prevents, or reduces the frequency, rate or extent of cell death by apoptotic process.
    GO:0038083    peptidyl-tyrosine autophosphorylation    The phosphorylation by a protein of one or more of its own tyrosine amino acid residues, or a tyrosine residue on an identical protein.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
    GO:0032024    positive regulation of insulin secretion    Any process that activates or increases the frequency, rate or extent of the regulated release of insulin.
    GO:0006468    protein phosphorylation    The process of introducing a phosphate group on to a protein.
    GO:0042127    regulation of cell proliferation    Any process that modulates the frequency, rate or extent of cell proliferation.
    GO:0050764    regulation of phagocytosis    Any process that modulates the frequency, rate or extent of phagocytosis, the process in which phagocytes engulf external particulate material.
    GO:0071801    regulation of podosome assembly    Any process that modulates the frequency, rate or extent of podosome assembly.
    GO:0007169    transmembrane receptor protein tyrosine kinase signaling pathway    A series of molecular signals initiated by the binding of an extracellular ligand to a receptor on the surface of the target cell where the receptor possesses tyrosine kinase activity, and ending with regulation of a downstream cellular process, e.g. transcription.
cellular component
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0031234    extrinsic component of cytoplasmic side of plasma membrane    The component of a plasma membrane consisting of gene products and protein complexes that are loosely bound to its cytoplasmic surface, but not integrated into the hydrophobic region.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1blk)

  Sites
(no "Sites" information available for 1blk)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1blk)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1blk
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  BLK_MOUSE | P16277
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.7.1.112
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  BLK_MOUSE | P16277
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        BLK_MOUSE | P162771blj
