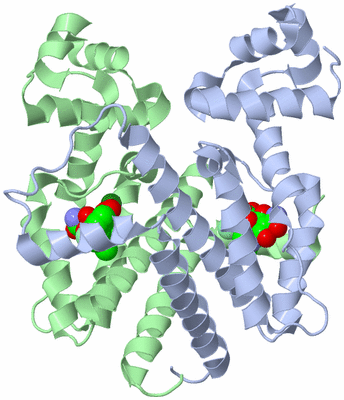

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

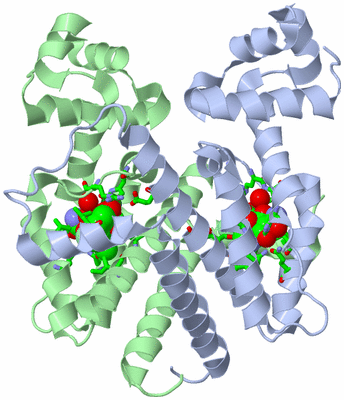

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  TETRACYCLINE REPRESSOR TETR(D) BOUND TO CHLORTETRACYCLINE AND ISO-CHLORTETRACYCLINE

Authors :  S. Werten, P. Orth, W. Saenger, W. Hinrichs
Date :  09 Oct 14  (Deposition) - 10 Dec 14  (Release) - 14 Jan 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.71
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Transcription, Repressor, Antibiotic Resistance, Tetr (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Werten, D. Dalm, G. J. Palm, C. C. Grimm, W. Hinrichs
Tetracycline Repressor Allostery Does Not Depend On Divalent Metal Recognition.
Biochemistry V. 53 7990 2014
PubMed-ID: 25432019  |  Reference-DOI: 10.1021/BI5012805

(-) Compounds

Molecule 1 - TETRACYCLINE REPRESSOR PROTEIN CLASS D
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PWH208
    Expression System Strain: K-12
    Expression System Taxid: 83333
    Expression System Vector Type: PLASMID
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 3)

Asymmetric/Biological Unit (3, 3)
No.NameCountTypeFull Name
1CTC1Ligand/Ion7-CHLOROTETRACYCLINE
2ITC1Ligand/IonISO-7-CHLORTETRACYCLINE
3MG1Ligand/IonMAGNESIUM ION

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS A:64 , ASN A:82 , PHE A:86 , HIS A:100 , ARG A:104 , PRO A:105 , VAL A:113 , GLN A:116 , ILE A:134 , SER A:138 , HIS A:139 , HOH A:2010 , LEU B:170 , LEU B:174BINDING SITE FOR RESIDUE ITC A 222
2AC2SOFTWARELEU A:170 , LEU A:174 , HOH A:2005 , HOH A:2015 , HIS B:64 , SER B:67 , ASN B:82 , PHE B:86 , HIS B:100 , ARG B:104 , VAL B:113 , GLN B:116 , ILE B:134 , SER B:138 , MG B:223 , HOH B:2008 , HOH B:2009BINDING SITE FOR RESIDUE CTC B 222
3AC3SOFTWAREGLU A:147 , HOH A:2014 , HOH A:2015 , HIS B:100 , CTC B:222 , HOH B:2008BINDING SITE FOR RESIDUE MG B 223

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4V2G)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4V2G)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4V2G)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4V2G)

(-) Exons   (0, 0)

(no "Exon" information available for 4V2G)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:207

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh.hhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhh..hhhhhhhh...hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4v2g A   2 SRLNRESVIDAALELLNETGIDGLTTRKLAQKLGIEQPTLYWHVKNKRALLDALAVEILARHHDYSLPAAGESWQSFLRNNAMSFRRALLRYRDGAKVHLGTRPDEKQYDTVETQLRFMTENGFSLRDGLYAISAVSHFTLGAVLEQQEHTAALTDRPAAPDENLPPLLREALQIMDSDDGEQAFLHGLESLIRGFEVQLTALLQIV 208
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201


Chain B from PDB  Type:PROTEIN  Length:196

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh.hhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4v2g B   2 SRLNRESVIDAALELLNETGIDGLTTRKLAQKLGIEQPTLYWHVKNKRALLDALAVEILARHHDYSLPAAGESWQSFLRNNAMSFRRALLRYRDGAKVHLGTRPDEKQYDTVETQLRFMTENGFSLRDGLYAISAVSHFTLGAVLEQQEHTANLPPLLREALQIMDSDDGEQAFLHGLESLIRGFEVQLTALLQIV 208
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151 ||    172       182       192       202
                                                                                                                                                                                 153|
                                                                                                                                                                                  165
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0 ; only for superseded entry 1BJY: 2,4)

(no "SCOP Domain" information available for 4V2G, only for superseded entry 1BJY replaced by 4V2G)

(-) CATH Domains  (0, 0 ; only for superseded entry 1BJY: 2,4)

(no "CATH Domain" information available for 4V2G, only for superseded entry 1BJY replaced by 4V2G)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4V2G)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CTC  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    ITC  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4v2g)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

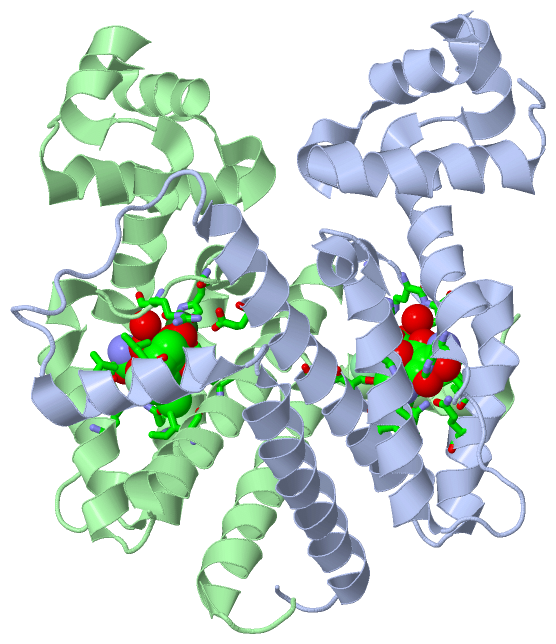

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4v2g
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  TETR4_ECOLX | P0ACT4
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  TETR4_ECOLX | P0ACT4
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        TETR4_ECOLX | P0ACT4: 1a6i 1bjz 1ork 1qpi 2fj1 2ns7 2ns8 2o7o 2tct 2trt 2vke 2vkv 2x6o 2x9d 2xb5 2xgc 2xgd 2xge 2xpu 2xpv 2xpw 2xrl 3fk6 3fk7 3zqf 3zqg 3zqh 3zqi 4abz 4aux 4b1r 4b3a 4d7m 4d7n 4v2f 5fkk 5fkl 5fkm 5fkn 5fko

(-) Related Entries Specified in the PDB File

4v2f TETRACYCLINE REPRESSOR TETR(D), UNLIGANDED
