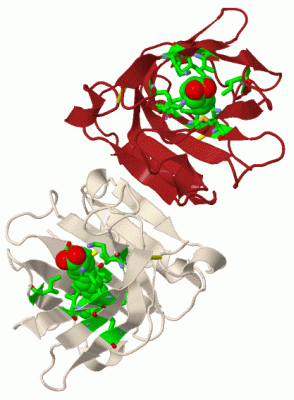

Biol.Unit 1 - manually

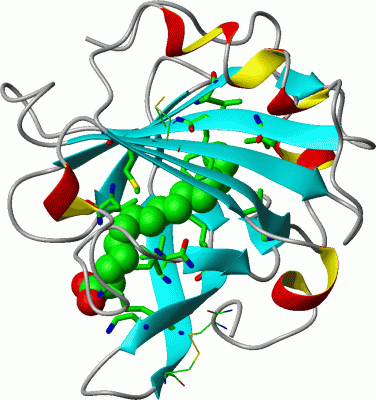

Asym.Unit - manually

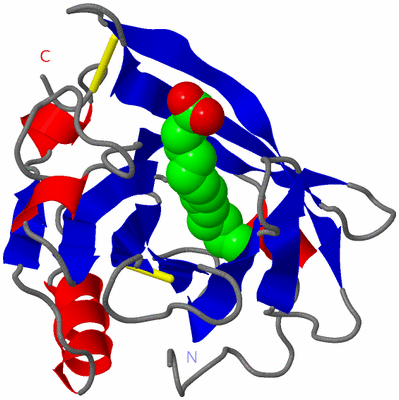

Asymmetric Unit

Asym. Unit - sites

Biological Unit 1

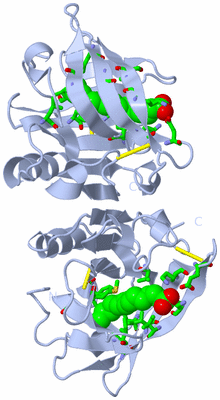

Biol. Unit 1 - sites

collapse

expand

Biol.Unit 1 - manually (Jmol Viewer)

Asym.Unit - manually (Jmol Viewer)

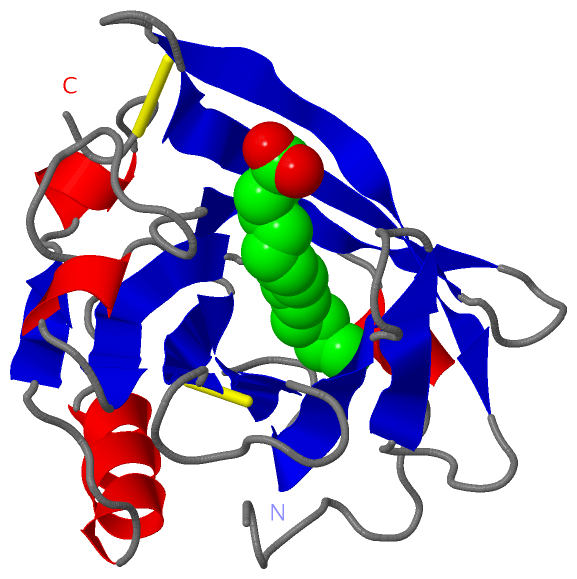

Asymmetric Unit (Jmol Viewer)

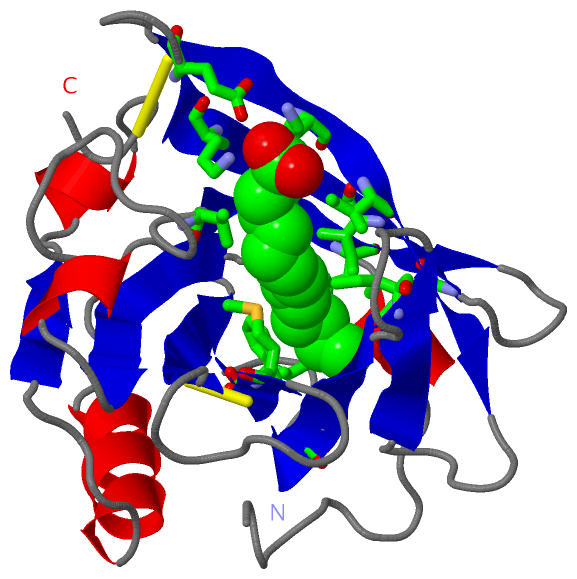

Asym. Unit - sites (Jmol Viewer)

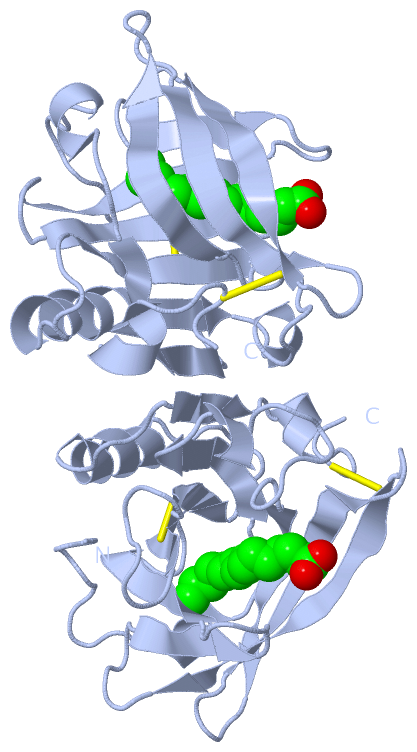

Biological Unit 1 (Jmol Viewer)

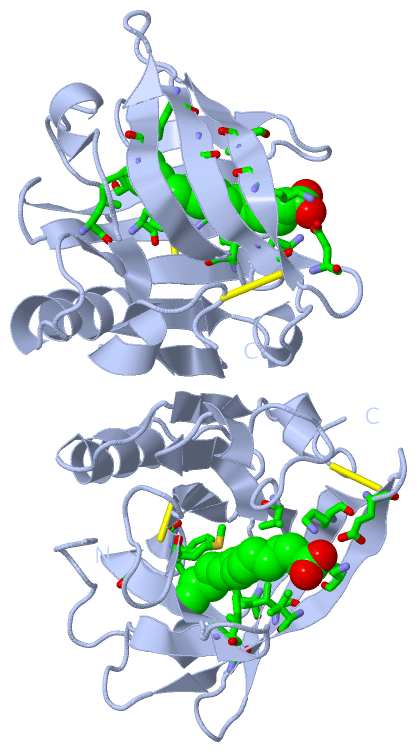

Biol. Unit 1 - sites (Jmol Viewer)

Description

Title :   BOVINE BETA-LACTOGLOBULIN COMPLEXED WITH PALMITATE, LATTICE Z

Authors :   S. -Y. Wu, L. Sawyer

Date :   11 Nov 98 (Deposition) - 02 Feb 99 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.50

Chains :   Asym. Unit : A
Biol. Unit 1: A  (2x)

Keywords :   Lipocalin, Milk Whey Protein, Bovine, Palmitate-Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   S. Y. Wu, M. D. Perez, P. Puyol, L. Sawyer
Beta-Lactoglobulin Binds Palmitate Within Its Central Cavity.
J. Biol. Chem. V. 274 170 1999
PubMed-ID: 9867826 | Reference-DOI: 10.1074/JBC.274.1.170
(for further references see the PDB file header)

Compounds

Molecule 1 - BETA-LACTOGLOBULIN
	Cellular Location	:	EXTRACELLULAR
	Chains	:	A
	Organ	:	MAMMARY GLAND
	Organism Common	:	CATTLE
	Organism Scientific	:	BOS TAURUS
	Organism Taxid	:	9913
	Other Details	:	PROTEIN PURCHASED FROM SIGMA CHEMICALS, LOT 13H7150
	Secretion	:	MILK
	Variant	:	GENETIC VARIANT B

Structural Features

Chains, Units

		1
Asymmetric Unit	:	A
Biological Unit 1 (2x)	:	A

Summary Information (see also Sequences/Alignments below)

Ligands, Modified Residues, Ions (1, 1)

Asymmetric Unit (1, 1)

No.	Name	Count	Type	Full Name
1	PLM	1	Ligand/Ion	PALMITIC ACID

Biological Unit 1 (1, 2)

No.	Name	Count	Type	Full Name
1	PLM	2	Ligand/Ion	PALMITIC ACID

Sites (2, 2)

Asymmetric Unit (2, 2)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	VAL A:41 , LEU A:46 , LEU A:54 , LYS A:60 , GLU A:62 , LYS A:69 , ILE A:84 , VAL A:94 , PHE A:105 , MET A:107	BINDING SITE FOR RESIDUE PLM A 180
2	PBS	UNKNOWN	LEU A:46 , PHE A:105 , MET A:107 , VAL A:41 , LYS A:69 , LYS A:60 , ILE A:71 , ILE A:84 , ILE A:56 , LEU A:103 , VAL A:94	FATTY ACID (PALMITATE ) BINDING SITE

SS Bonds (2, 2)

Asymmetric Unit

No.	Residues
1	A:66	-	A:160
2	A:106	-	A:119

Cis Peptide Bonds (0, 0)

(no "Cis Peptide Bond" information available for 1B0O)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (5, 5)

Asymmetric Unit (5, 5)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_LACB_BOVIN_001 *	E	61	Q	LACB_BOVIN	---	---	A	E	45	Q
2	UniProt	VAR_LACB_BOVIN_002 *	I	72	L	LACB_BOVIN	---	---	A	I	56	L
3	UniProt	VAR_LACB_BOVIN_003 *	Q	75	H	LACB_BOVIN	---	---	A	Q	59	H
4	UniProt	VAR_LACB_BOVIN_004 *	G	80	D	LACB_BOVIN	---	---	A	G	64	D
5	UniProt	VAR_LACB_BOVIN_005 *	A	134	V	LACB_BOVIN	---	---	A	A	118	V
	* ID not provided by source

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 1 (5, 10)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_LACB_BOVIN_001 *	E	61	Q	LACB_BOVIN	---	---	A	E	45	Q
2	UniProt	VAR_LACB_BOVIN_002 *	I	72	L	LACB_BOVIN	---	---	A	I	56	L
3	UniProt	VAR_LACB_BOVIN_003 *	Q	75	H	LACB_BOVIN	---	---	A	Q	59	H
4	UniProt	VAR_LACB_BOVIN_004 *	G	80	D	LACB_BOVIN	---	---	A	G	64	D
5	UniProt	VAR_LACB_BOVIN_005 *	A	134	V	LACB_BOVIN	---	---	A	A	118	V
	* ID not provided by source

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

PROSITE Motifs (1, 1)

Asymmetric Unit (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	LIPOCALIN	PS00213	Lipocalin signature.	LACB_BOVIN	25-38	1	A:9-22

Biological Unit 1 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	LIPOCALIN	PS00213	Lipocalin signature.	LACB_BOVIN	25-38	2	A:9-22

Exons (0, 0)

(no "Exon" information available for 1B0O)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:161
 aligned with LACB_BOVIN | P02754 from UniProtKB/Swiss-Prot  Length:178

    Alignment length:161
                                    27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177
           LACB_BOVIN    18 IVTQTMKGLDIQKVAGTWYSLAMAASDISLLDAQSAPLRVYVEELKPTPEGDLEILLQKWENGECAQKKIIAEKTKIPAVFKIDALNENKVLVLDTDYKKYLLFCMENSAEPEQSLACQCLVRTPEVDDEALEKFDKALKALPMHIRLSFNPTQLEEQCHI 178
               SCOP domains d1b0oa_ A: beta-Lactoglobulin                                                                                                                                     SCOP domains
               CATH domains 1b0oA00 A:2-162  [code=2.40.128.20, no name defined]                                                                                                              CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........hhhh....eeeeeee..hhh..........eeeeeee.....eeeeeeee....eeeeeeeeee.....eeee.....eeeeeeee....eeeeeee........eeeeeee......hhhhhhhhhhhh.....eeee..hhhh...... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------Q----------L--H----D-----------------------------------------------------V-------------------------------------------- SAPs(SNPs)
                    PROSITE -------LIPOCALIN     -------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1b0o A   2 IVTQTMKGLDIQKVAGTWYSLAMAASDISLLDAQSAPLRVYVEELKPTPEGDLEILLQKWENGECAQKKIIAEKTKIPAVFKIDALNENKVLVLDTDYKKYLLFCMENSAEPEQSLACQCLVRTPEVDDEALEKFDKALKALPMHIRLSFNPTQLEEQCHI 162
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: Lipocalins (514)

Superfamily: Lipocalins (514)

Family: Retinol binding protein-like (261)

Protein domain: beta-Lactoglobulin (41)

Cow (Bos taurus) [TaxId: 9913] (39)

d1b0oa_

CATH Domains (1, 1)

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Beta (13760)

Architecture: Beta Barrel (4804)

Topology: Lipocalin (526)

Homologous Superfamily: [code=2.40.128.20, no name defined] (352)

Cattle (Bos taurus) (38)

1b0oA00

A:2-162

Pfam Domains (0, 0)

(no "Pfam Domain" information available for 1B0O)

Gene Ontology (4, 4)

Asymmetric Unit(hide GO term definitions)

Chain A (LACB_BOVIN | P02754)

molecular function
	GO:0019841	retinol binding	Interacting selectively and non-covalently with retinol, vitamin A1, 2,6,6-trimethyl-1-(9'-hydroxy-3',7'-dimethylnona-1',3',5',7'-tetraenyl)cyclohex-1-ene, one of the three components that makes up vitamin A. Retinol is an intermediate in the vision cycle and it also plays a role in growth and differentiation.
	GO:0036094	small molecule binding	Interacting selectively and non-covalently with a small molecule, any low molecular weight, monomeric, non-encoded molecule.
biological process
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

Visualization

Interactive Views

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		PLM	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		PBS	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1b0o)

Biological Unit
	Complete Structure
		Biological Unit 1	[ Jena3D ]

Still Images

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Databases and Analysis Tools

Databases

Access by PDB/NDB ID
	1b0o
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	LACB_BOVIN \| P02754
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Analysis Tools

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	LACB_BOVIN \| P02754
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
	LACB_BOVIN \| P02754	:	1b8e 1beb 1bso 1bsq 1bsy 1cj5 1dv9 1gx8 1gx9 1gxa 1qg5 1uz2 1yup 2akq 2blg 2gj5 2q2m 2q2p 2q39 2r56 3blg 3kza 3npo 3nq3 3nq9 3ph5 3ph6 3ueu 3uev 3uew 3uex 4dq3 4dq4 4gny 4ib6 4ib7 4ib8 4ib9 4iba 4kii 4lzu 4lzv 4y0p 4y0q 4y0r 5eee 5htd 5hte 5io5 5io7 5k06 5lke 5lkf

Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1B0O)
