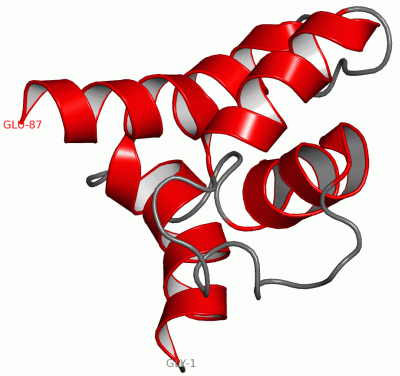

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

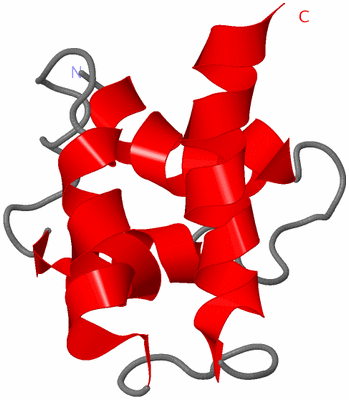

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

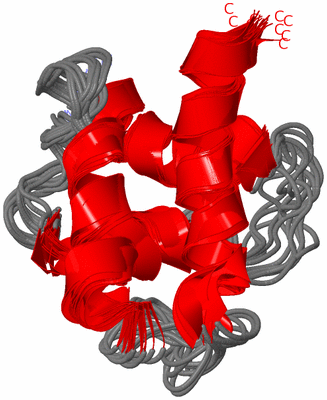

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  M-DOMAIN FROM GAG POLYPROTEIN OF ROUS SARCOMA VIRUS, NMR, 20 STRUCTURES

Authors :  J. M. Mcdonnell, D. Fushman, S. M. Cahill, W. Zhou, A. Wolven, C. B. Wilson, T. D. Nelle, M. D. Resh, J. Wills, D. Cowburn
Date :  02 Mar 98  (Deposition) - 14 Oct 98  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Core Protein, Virus Structure, Membrane Binding, Viral Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. M. Mcdonnell, D. Fushman, S. M. Cahill, W. Zhou, A. Wolven, C. B. Wilson, T. D. Nelle, M. D. Resh, J. Wills, D. Cowburn
Solution Structure And Dynamics Of The Bioactive Retroviral M Domain From Rous Sarcoma Virus
J. Mol. Biol. V. 279 921 1998
PubMed-ID: 9642071  |  Reference-DOI: 10.1006/JMBI.1998.1788
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - GAG POLYPROTEIN
    Cell Line: BL21
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Gene: GAG
    Expression System Plasmid: PATV-8
    Expression System Strain: BL21 (DE3)
    Expression System Taxid: 469008
    Fragment: M-DOMAIN
    Gene: GAG
    Mutation: YES
    Organism Scientific: ROUS SARCOMA VIRUS - PRAGUE C
    Organism Taxid: 11888
    Strain: PRAGUE C

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1A6S)

(-) Sites  (0, 0)

(no "Site" information available for 1A6S)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1A6S)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1A6S)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1A6S)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1A6S)

(-) Exons   (0, 0)

(no "Exon" information available for 1A6S)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:87
 aligned with GAG_RSVP | P03322 from UniProtKB/Swiss-Prot  Length:701

    Alignment length:87
                                    10        20        30        40        50        60        70        80
              GAG_RSVP    1 MEAVIKVISSACKTYCGKTSPSKKEIGAMLSLLQKEGLLMSPSDLYSPGSWDPITAALSQRAMILGKSGELKTWGLVLGALKAAREE 87
               SCOP domains d1a6sa_ A: GAG polyprotein M-domain                                                     SCOP domains
               CATH domains 1a6sA00 A:1-87  [code=1.10.150.90, no name defined]                                     CATH domains
               Pfam domains --------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhh.........hhhhhhhhhhhh.............hhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------- Transcript
                  1a6s A  1 GEAVIKVISSACKTYCGKTSPSKKEIGAMLSLLQKEGLLMSPSDLYSPGSWDPITAALSQRAMILGKSGELKTWGLVLGALKAAREE 87
                                    10        20        30        40        50        60        70        80
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1A6S)

(-) Gene Ontology  (12, 12)

NMR Structure(hide GO term definitions)
Chain A   (GAG_RSVP | P03322)
molecular function
    GO:0004190    aspartic-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a mechanism in which a water molecule bound by the side chains of aspartic residues at the active center acts as a nucleophile.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0003676    nucleic acid binding    Interacting selectively and non-covalently with any nucleic acid.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
    GO:0039660    structural constituent of virion    The action of a molecule that contributes to the structural integrity of a virion.
    GO:0005198    structural molecule activity    The action of a molecule that contributes to the structural integrity of a complex or its assembly within or outside a cell.
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
    GO:0016032    viral process    A multi-organism process in which a virus is a participant. The other participant is the host. Includes infection of a host cell, replication of the viral genome, and assembly of progeny virus particles. In some cases the viral genetic material may integrate into the host genome and only subsequently, under particular circumstances, 'complete' its life cycle.
cellular component
    GO:0019028    viral capsid    The protein coat that surrounds the infective nucleic acid in some virus particles. It comprises numerous regularly arranged subunits, or capsomeres.
    GO:0019012    virion    The complete fully infectious extracellular virus particle.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1a6s)

  Sites
(no "Sites" information available for 1a6s)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1a6s)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

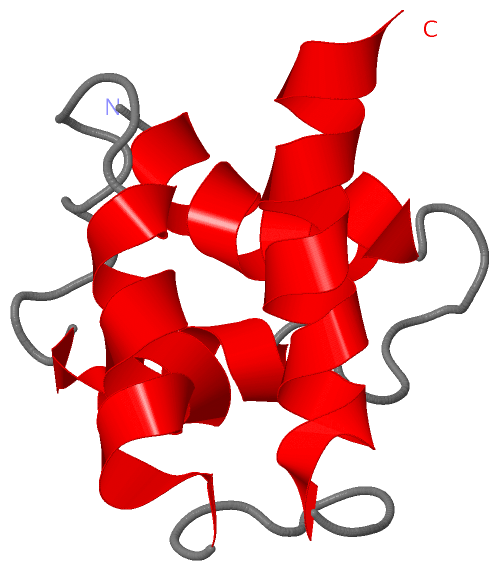

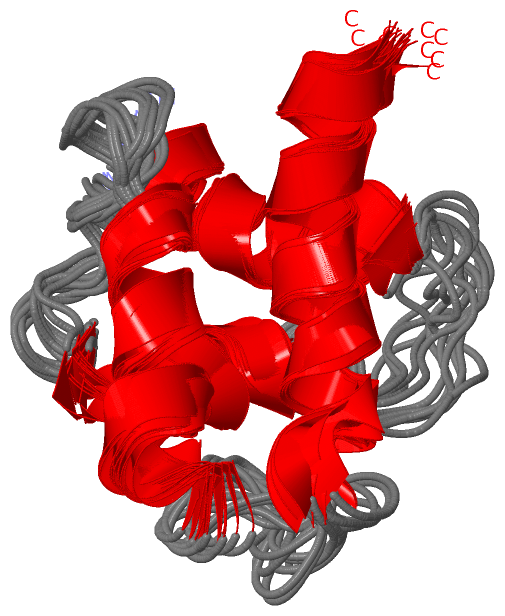

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
