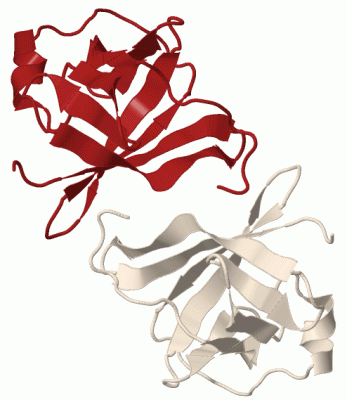

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

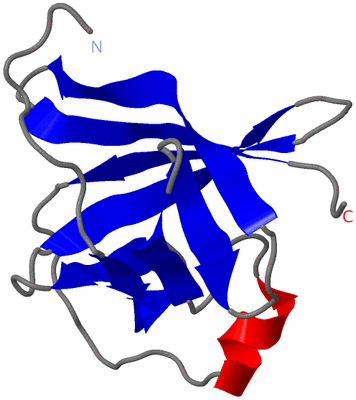

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

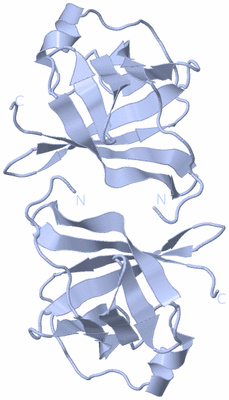

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF MTCP-1 INVOLVED IN T CELL MALIGNANCIES

Authors :  Z. Q. Fu, G. C. Dubois, S. P. Song, I. Kulikovskaya, L. Virgilio, J. Rothstein, C. M. Croce, I. T. Weber, R. W. Harrison
Date :  18 Dec 97  (Deposition) - 27 May 98  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Mtcp-1, Crystal Structure, Oncogene Involved In T Cell Malignancies, Proto-Oncogene (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Z. Q. Fu, G. C. Du Bois, S. P. Song, I. Kulikovskaya, L. Virgilio, J. L. Rothstein, C. M. Croce, I. T. Weber, R. W. Harrison
Crystal Structure Of Mtcp-1: Implications For Role Of Tcl-1 And Mtcp-1 In T Cell Malignancies.
Proc. Natl. Acad. Sci. Usa V. 95 3413 1998
PubMed-ID: 9520380  |  Reference-DOI: 10.1073/PNAS.95.7.3413
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HMTCP-1
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1A1X)

(-) Sites  (0, 0)

(no "Site" information available for 1A1X)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1A1X)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1A1X)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1A1X)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1A1X)

(-) Exons   (3, 3)

Asymmetric Unit (3, 3)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.2bENST000003694762bENSE00001852005X:154299501-154298969533MTCP1_HUMAN-00--
1.3ENST000003694763ENSE00001622983X:154294332-154294181152MTCP1_HUMAN1-35351A:3-3634
1.4ENST000003694764ENSE00001598211X:154294064-154293894171MTCP1_HUMAN36-92571A:37-9357
1.5aENST000003694765aENSE00001661504X:154293812-15429376152MTCP1_HUMAN93-107151A:94-10815
1.6eENST000003694766eENSE00001450119X:154293674-1542923091366MTCP1_HUMAN-00--

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:106
 aligned with MTCP1_HUMAN | P56278 from UniProtKB/Swiss-Prot  Length:107

    Alignment length:106
                                    11        21        31        41        51        61        71        81        91       101
          MTCP1_HUMAN     2 AGEDVGAPPDHLWVHQEGIYRDEYQRTWVAVVEEETSFLRARVQQIQVPLGDAARPSHLLTSQLPLMWQLYPEERYMDNNSRLWQIQHHLMVRGVQELLLKLLPDD 107
               SCOP domains d1a1xa_ A: p13-MTCP1                                                                                       SCOP domains
               CATH domains 1a1xA00 A:3-108 Proto-oncogene - Oncogene Product P14tcl1;                                                 CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........eeeeee..eeee....eeeeeeee....eeeeee...........hhhhhh.....eeeee...eeee....eeeeeeeeee..eeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------- PROSITE
               Transcript 1 Exon 1.3  PDB: A:3-36 [INCOMPLETE]Exon 1.4  PDB: A:37-93 UniProt: 36-92                    Exon 1.5a       Transcript 1
                 1a1x A   3 AGEDVGAPPDHLWVHQEGIYRDEYQRTWVAVVEEETSFLRARVQQIQVPLGDAARPSHLLTSQLPLMWQLYPEERYMDNNSRLWQIQHHLMVRGVQELLLKLLPDD 108
                                    12        22        32        42        52        62        72        82        92       102
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1A1X)

(-) Gene Ontology  (2, 2)

Asymmetric Unit(hide GO term definitions)
Chain A   (MTCP1_HUMAN | P56278)
biological process
    GO:0008283    cell proliferation    The multiplication or reproduction of cells, resulting in the expansion of a cell population.
cellular component
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1a1x)

  Sites
(no "Sites" information available for 1a1x)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1a1x)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1a1x
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  MTCP1_HUMAN | P56278
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  MTCP1_HUMAN | P56278
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        MTCP1_HUMAN | P56278: 1qtt 1qtu

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1A1X)
