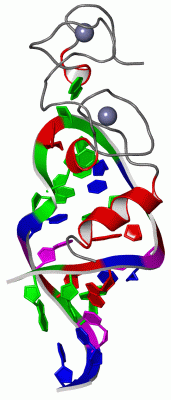

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

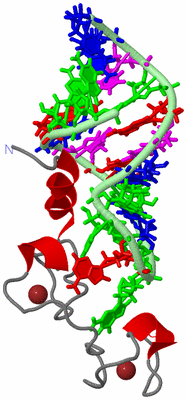

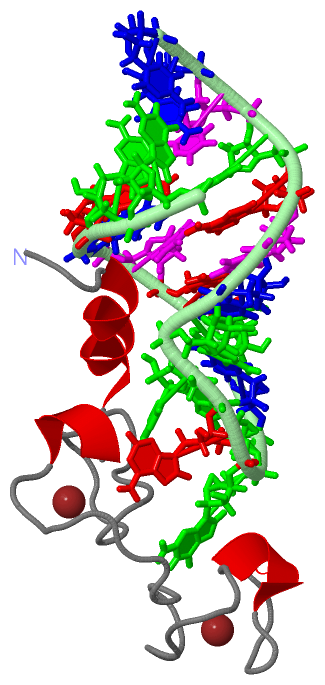

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

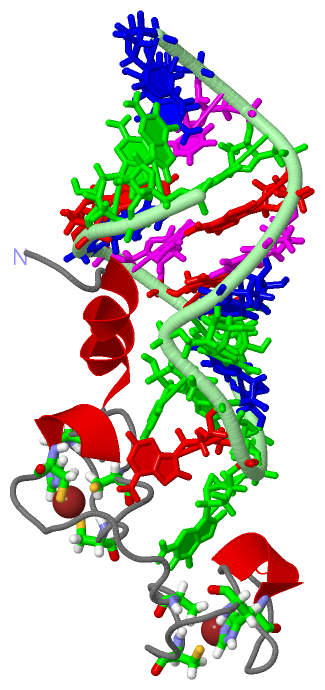

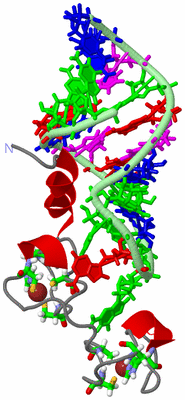

Image NMR Structure - model 1, sites
NMR Structure - model 1, sites  (Jmol Viewer)

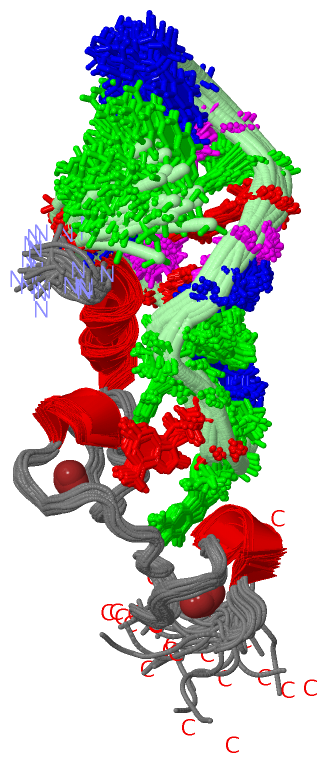

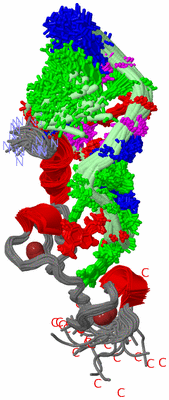

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE HIV-1 NUCLEOCAPSID PROTEIN BOUND TO THE SL3 PSI-RNA RECOGNITION ELEMENT, NMR, 25 STRUCTURES

Authors :  R. N. De Guzman, Z. R. Wu, C. C. Stalling, L. Pappalardo, P. N. Borer, M. F. Summers
Date :  15 Dec 97  (Deposition) - 17 Jun 98  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A,B  (25x)
Keywords :  Nucleocapsid Protein, Complex (Nucleocapsid Protein/Rna), Stem-Loop Rna, Viral Protein/Rna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. N. De Guzman, Z. R. Wu, C. C. Stalling, L. Pappalardo, P. N. Borer, M. F. Summers
Structure Of The Hiv-1 Nucleocapsid Protein Bound To The Sl3 Psi-Rna Recognition Element.
Science V. 279 384 1998
PubMed-ID: 9430589  |  Reference-DOI: 10.1126/SCIENCE.279.5349.384
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - SL3 STEM-LOOP RNA
    Chains: B
    Engineered: YES
    Synthetic: YES

Molecule 2 - NUCLEOCAPSID PROTEIN
    Cell Line: BL21
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Gene: NC
    Expression System Plasmid: PRD2
    Expression System Strain: BL21 (DE3) PLYSE
    Expression System Taxid: 562
    Expression System Vector: PET-3A
    Gene: NC
    Organism Scientific: HUMAN IMMUNODEFICIENCY VIRUS 1
    Organism Taxid: 11676
    Strain: NL4-3

 Structural Features

(-) Chains, Units


NMR Structure (25x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

NMR Structure (1, 2)
No.NameCountTypeFull Name
1ZN2Ligand/IonZINC ION

(-) Sites  (2, 2)

NMR Structure (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWARECYS A:15 , CYS A:18 , HIS A:23 , CYS A:28BINDING SITE FOR RESIDUE ZN A 56
2AC2SOFTWARECYS A:36 , CYS A:39 , HIS A:44 , CYS A:49BINDING SITE FOR RESIDUE ZN A 57

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1A1T)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1A1T)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1A1T)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1A1T)

(-) Exons   (0, 0)

(no "Exon" information available for 1A1T)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:55
 aligned with Q75677_9HIV1 | Q75677 from UniProtKB/TrEMBL  Length:107

    Alignment length:55
                                    10        20        30        40        50
         Q75677_9HIV1     1 MQRGNFRNQRKTVKCFNCGKEGHIAKNCRAPRKKGCWKCGKEGHQMKDCTERQAN  55
               SCOP domains d1a1ta_ A: HIV nucleocapsid                             SCOP domains
               CATH domains 1a1tA00 A:1-55 HIV-1 Nucleocapsid Protein               CATH domains
               Pfam domains ------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhh.............hhh..................hhh....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------- Transcript
                 1a1t A   1 MQKGNFRNQRKTVKCFNCGKEGHIAKNCRAPRKKGCWKCGKEGHQMKDCTERQAN  55
                                    10        20        30        40        50


Chain B from PDB  Type:RNA  Length:20

                 1a1t B 201 GGACUAGCGGAGGCUAGUCC 220
                                   210       220
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Small proteins (3458)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Few Secondary Structures (1120)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1A1T)

(-) Gene Ontology  (3, 3)

NMR Structure(hide GO term definitions)
Chain A   (Q75677_9HIV1 | Q75677)
molecular function
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0003676    nucleic acid binding    Interacting selectively and non-covalently with any nucleic acid.
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
