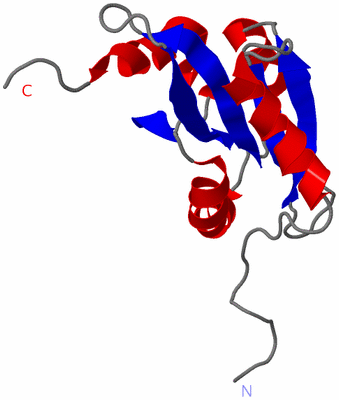

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

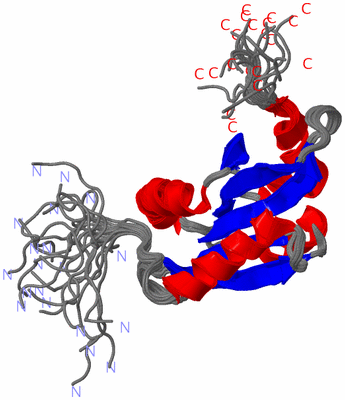

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE COFILIN HOMOLOGY DOMAIN OF HIP-55 (DREBRIN-LIKE PROTEIN)

Authors :  A. K. Goroncy, T. Kigawa, S. Koshiba, M. Sato, N. Kobayashi, N. Tochio, M. Inoue, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  17 May 05  (Deposition) - 17 Nov 05  (Release) - 02 Feb 10  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Cell-Free Protein Synthesis, Actin-Binding Protein, Sh3P7, Mabp1, T-Cell Lymphocyte Signaling And Regulation, T-Cell Antigen Receptor Regulation, Hpk-1 Activation, C-Jun N- Terminal Kinase Activation, Structural Genomics, Nppsfa, National Project On Protein Structural And Functional Analyses, Riken Structural Genomics/Proteomics Initiative, Rsgi, Protein Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  A. K. Goroncy, S. Koshiba, N. Tochio, T. Tomizawa, M. Sato, M. Inoue, S. Watanabe, Y. Hayashizaki, A. Tanaka, T. Kigawa, S. Yokoyama
Nmr Solution Structures Of Actin Depolymerizing Factor Homology Domains.
Protein Sci. V. 18 2384 2009
PubMed-ID: 19768801  |  Reference-DOI: 10.1002/PRO.248

(-) Compounds

Molecule 1 - DREBRIN-LIKE PROTEIN
    ChainsA
    EngineeredYES
    Expression System PlasmidP041129-01
    Expression System Vector TypePLASMID
    FragmentCOFILIN HOMOLOGY DOMAIN
    GeneDBNL
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    Other DetailsCELL-FREE PROTEIN SYNTHESIS
    SynonymSH3 DOMAIN-CONTAINING PROTEIN 7, DREBRIN F, CERVICAL SH3P7, HPK1-INTERACTING PROTEIN OF 55 KDA, HIP-55, CERVICAL MUCIN-ASSOCIATED PROTEIN, PP5423

 Structural Features

(-) Chains, Units


NMR Structure (20x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1X67)

(-) Sites  (0, 0)

(no "Site" information available for 1X67)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1X67)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1X67)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1X67)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1ADF_HPS51263 ADF-H domain profile.DBNL_HUMAN4-133  1A:11-140

(-) Exons   (0, 0)

(no "Exon" information available for 1X67)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:146
 aligned with DBNL_HUMAN | Q9UJU6 from UniProtKB/Swiss-Prot  Length:430

    Alignment length:154
                                   1
                                   | 3        13        23        33        43        53        63        73        83        93       103       113       123       133       143
           DBNL_HUMAN     - -------MAANLSRNGPALQEAYVRVVTEKSPTDWALFTYEGNSNDIRVAGTGEGGLEEMVEELNSGKVMYAFCRVKDPNSGLPKFVLINWTGEGVNDVRKGACASHVSTMASFLKGAHVTINARAEEDVEPECIMEKVAKASGANYSFHKESG 147
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------Cofilin_ADF-1x67A01 A:17-140                                                                                                -------------- Pfam domains
         Sec.struct. author ..............hhhhhhhhhhhhhh......eeeeee......eeeeeee..hhhhhhhhh....eeeeeeeee......eeeeeeeee....hhhhhhhhhhhhhhhhhhh..eeeee...hhhhhhhhhhhhhhhh..--------... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------ADF_H  PDB: A:11-140 UniProt: 4-133                                                                                               -------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1x67 A   1 GSSGSSGMAANLSRNGPALQEAYVRVVTEKSPTDWALFTYEGNSNDIRVAGTGEGGLEEMVEELNSGKVMYAFCRVKDPNSGLPKFVLINWTGEGVNDVRKGACASHVSTMASFLKGAHVTINARAEEDVEPECIMEKVASGP--------SSG 146
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140  |      - |
                                                                                                                                                                        143      144

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 1X67)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1X67)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: ADF (44)

(-) Gene Ontology  (39, 39)

NMR Structure(hide GO term definitions)
Chain A   (DBNL_HUMAN | Q9UJU6)
molecular function
    GO:0003779    actin binding    Interacting selectively and non-covalently with monomeric or multimeric forms of actin, including actin filaments.
    GO:0051015    actin filament binding    Interacting selectively and non-covalently with an actin filament, also known as F-actin, a helical filamentous polymer of globular G-actin subunits.
    GO:0008047    enzyme activator activity    Binds to and increases the activity of an enzyme.
    GO:0008022    protein C-terminus binding    Interacting selectively and non-covalently with a protein C-terminus, the end of any peptide chain at which the 1-carboxy function of a constituent amino acid is not attached in peptide linkage to another amino-acid residue.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0019904    protein domain specific binding    Interacting selectively and non-covalently with a specific domain of a protein.
biological process
    GO:0016601    Rac protein signal transduction    A series of molecular signals within the cell that are mediated by a member of the Rac family of proteins switching to a GTP-bound active state.
    GO:0007257    activation of JUN kinase activity    The initiation of the activity of the inactive enzyme JUN kinase (JNK).
    GO:0002250    adaptive immune response    An immune response mediated by cells expressing specific receptors for antigen produced through a somatic diversification process, and allowing for an enhanced secondary response to subsequent exposures to the same antigen (immunological memory).
    GO:0006897    endocytosis    A vesicle-mediated transport process in which cells take up external materials or membrane constituents by the invagination of a small region of the plasma membrane to form a new membrane-bounded vesicle.
    GO:0002376    immune system process    Any process involved in the development or functioning of the immune system, an organismal system for calibrated responses to potential internal or invasive threats.
    GO:0048812    neuron projection morphogenesis    The process in which the anatomical structures of a neuron projection are generated and organized. A neuron projection is any process extending from a neural cell, such as axons or dendrites.
    GO:0071800    podosome assembly    The aggregation, arrangement and bonding together of a set of components to form a podosome, an actin-rich adhesion structure characterized by formation upon cell substrate contact and localization at the substrate-attached part of the cell.
    GO:0006898    receptor-mediated endocytosis    An endocytosis process in which cell surface receptors ensure specificity of transport. A specific receptor on the cell surface binds tightly to the extracellular macromolecule (the ligand) that it recognizes; the plasma-membrane region containing the receptor-ligand complex then undergoes endocytosis, forming a transport vesicle containing the receptor-ligand complex and excluding most other plasma-membrane proteins. Receptor-mediated endocytosis generally occurs via clathrin-coated pits and vesicles.
    GO:0097178    ruffle assembly    The aggregation, arrangement and bonding together of a set of components to form a ruffle, a projection at the leading edge of a crawling cell; the protrusions are supported by a microfilament meshwork. The formation of ruffles (also called membrane ruffling) is thought to be controlled by a group of enzymes known as Rho GTPases, specifically RhoA, Rac1 and cdc42.
    GO:0007416    synapse assembly    The aggregation, arrangement and bonding together of a set of components to form a synapse. This process ends when the synapse is mature (functional).
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0005794    Golgi apparatus    A compound membranous cytoplasmic organelle of eukaryotic cells, consisting of flattened, ribosome-free vesicles arranged in a more or less regular stack. The Golgi apparatus differs from the endoplasmic reticulum in often having slightly thicker membranes, appearing in sections as a characteristic shallow semicircle so that the convex side (cis or entry face) abuts the endoplasmic reticulum, secretory vesicles emerging from the concave side (trans or exit face). In vertebrate cells there is usually one such organelle, while in invertebrates and plants, where they are known usually as dictyosomes, there may be several scattered in the cytoplasm. The Golgi apparatus processes proteins produced on the ribosomes of the rough endoplasmic reticulum; such processing includes modification of the core oligosaccharides of glycoproteins, and the sorting and packaging of proteins for transport to a variety of cellular locations. Three different regions of the Golgi are now recognized both in terms of structure and function: cis, in the vicinity of the cis face, trans, in the vicinity of the trans face, and medial, lying between the cis and trans regions.
    GO:0000139    Golgi membrane    The lipid bilayer surrounding any of the compartments of the Golgi apparatus.
    GO:0005938    cell cortex    The region of a cell that lies just beneath the plasma membrane and often, but not always, contains a network of actin filaments and associated proteins.
    GO:0030054    cell junction    A cellular component that forms a specialized region of connection between two or more cells or between a cell and the extracellular matrix. At a cell junction, anchoring proteins extend through the plasma membrane to link cytoskeletal proteins in one cell to cytoskeletal proteins in neighboring cells or to proteins in the extracellular matrix.
    GO:0042995    cell projection    A prolongation or process extending from a cell, e.g. a flagellum or axon.
    GO:0030665    clathrin-coated vesicle membrane    The lipid bilayer surrounding a clathrin-coated vesicle.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0031410    cytoplasmic vesicle    A vesicle found in the cytoplasm of a cell.
    GO:0005856    cytoskeleton    Any of the various filamentous elements that form the internal framework of cells, and typically remain after treatment of the cells with mild detergent to remove membrane constituents and soluble components of the cytoplasm. The term embraces intermediate filaments, microfilaments, microtubules, the microtrabecular lattice, and other structures characterized by a polymeric filamentous nature and long-range order within the cell. The various elements of the cytoskeleton not only serve in the maintenance of cellular shape but also have roles in other cellular functions, including cellular movement, cell division, endocytosis, and movement of organelles.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0030425    dendrite    A neuron projection that has a short, tapering, often branched, morphology, receives and integrates signals from other neurons or from sensory stimuli, and conducts a nerve impulse towards the axon or the cell body. In most neurons, the impulse is conveyed from dendrites to axon via the cell body, but in some types of unipolar neuron, the impulse does not travel via the cell body.
    GO:0005769    early endosome    A membrane-bounded organelle that receives incoming material from primary endocytic vesicles that have been generated by clathrin-dependent and clathrin-independent endocytosis; vesicles fuse with the early endosome to deliver cargo for sorting into recycling or degradation pathways.
    GO:0005768    endosome    A vacuole to which materials ingested by endocytosis are delivered.
    GO:0070062    extracellular exosome    A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
    GO:0005622    intracellular    The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.
    GO:0030027    lamellipodium    A thin sheetlike process extended by the leading edge of a migrating cell or extending cell process; contains a dense meshwork of actin filaments.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0002102    podosome    An actin-rich adhesion structure characterized by formation upon cell substrate contact and localization at the substrate-attached part of the cell, contain an F-actin-rich core surrounded by a ring structure containing proteins such as vinculin and talin, and have a diameter of 0.5 mm.
    GO:0014069    postsynaptic density of dendrite    An electron dense network of proteins within and adjacent to the postsynaptic membrane of the dendrite of asymetric synapses. Its major components include neurotransmitter receptors and the proteins that spatially and functionally organize them such as anchoring and scaffolding molecules, signaling enzymes and cytoskeletal components.
    GO:0001726    ruffle    Projection at the leading edge of a crawling cell; the protrusions are supported by a microfilament meshwork.
    GO:0045202    synapse    The junction between a nerve fiber of one neuron and another neuron, muscle fiber or glial cell. As the nerve fiber approaches the synapse it enlarges into a specialized structure, the presynaptic nerve ending, which contains mitochondria and synaptic vesicles. At the tip of the nerve ending is the presynaptic membrane; facing it, and separated from it by a minute cleft (the synaptic cleft) is a specialized area of membrane on the receiving cell, known as the postsynaptic membrane. In response to the arrival of nerve impulses, the presynaptic nerve ending secretes molecules of neurotransmitters into the synaptic cleft. These diffuse across the cleft and transmit the signal to the postsynaptic membrane.
