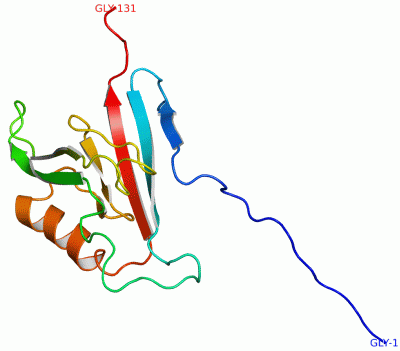

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

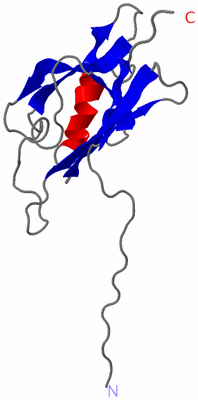

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

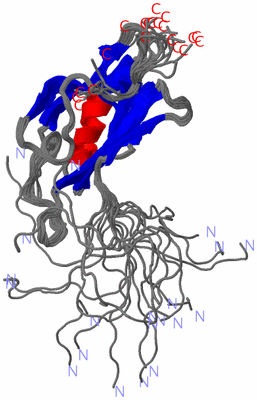

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  PDZ DOMAIN OF HUMAN RIM2B

Authors :  T. Nagashima, F. Hayashi, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  26 May 04  (Deposition) - 24 Nov 04  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Pdz Domain, Exocytosis, Rab3-Interacting Molecule, Riken Structural Genomics/Proteomics Initiative, Rsgi, Structural Genomics, Endocytosis/Exocytosis Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  T. Nagashima, F. Hayashi, S. Yokoyama
Pdz Domain Of Human Rim2B
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - REGULATING SYNAPTIC MEMBRANE EXOCYTOSIS PROTEIN 2
    ChainsA
    EngineeredYES
    Expression System PlasmidP021030-35
    Expression System Vector TypePLASMID
    FragmentPDZ DOMAIN
    GeneKAZUSA CDNA HK04424
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    Other DetailsCELL-FREE PROTEIN SYNTHESIS
    SynonymRAB3-INTERACTING MOLECULE 2, RIM 2

 Structural Features

(-) Chains, Units


NMR Structure (20x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1WFG)

(-) Sites  (0, 0)

(no "Site" information available for 1WFG)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1WFG)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1WFG)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1WFG)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PDZPS50106 PDZ domain profile.RIMS2_HUMAN668-754  1A:39-125

(-) Exons   (0, 0)

(no "Exon" information available for 1WFG)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:131
 aligned with RIMS2_HUMAN | Q9UQ26 from UniProtKB/Swiss-Prot  Length:1411

    Alignment length:235
                                   582       592       602       612       622       632       642       652       662       672       682       692       702       712       722       732       742       752       762       772       782       792       802
          RIMS2_HUMAN   573 GDSQKGKRKTSEQAVLSDSNTRSERQKEMMYFGGHSLEEDLEWSEPQIKDSGVDTCSSTTLNEEHSHSDKHPVTWQPSKDGDRLIGRILLNKRLKDGSVPRDSGAMLGLKVVGGKMTESGRLCAFITKVKKGSLADTVGHLRPGDEVLEWNGRLLQGATFEEVYNIILESKPEPQVELVVSRPIGDIPRIPDSTHAQLESSSSSFESQKMDRPSISVTSPMSPGMLRDVPQFLSG 807
               SCOP domains d1w  f                                           ga_             A: DNA Regulating synaptic membrane exocytosis protein 2, RIMS2                                                                                                            SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------PDZ-1wfgA01 A:41-124                                                                ------------------------------------------------------ Pfam domains
         Sec.struct. author ...--.-------------------------------------------...------------.........eeee.....eeeeeeeee.................eeeeeeee.....eeeeeeee................eeeee..ee....hhhhhhhhhhhh....eeeeeeee-----------------e...------------------------------.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------------------------------PDZ  PDB: A:39-125 UniProt: 668-754                                                    ----------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1wfg A   1 GSS--G-------------------------------------------SSG------------HSHSDKHPVTWQPSKDGDRLIGRILLNKRLKDGSVPRDSGAMLGLKVVGGKMTESGRLCAFITKVKKGSLADTVGHLRPGDEVLEWNGRLLQGATFEEVYNIILESKPEPQVELVVSR-----------------SGPS------------------------------SG 131
                              |  |   -         -         -         -         5 |       -    |   13        23        33        43        53        63        73        83        93       103       113       123 |       -       126  |      -         -         -   |
                              3  4                                           5 7            8                                                                                                                  125               126  |                            130
                                                                                                                                                                                                                                    129

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1WFG)

(-) Pfam Domains  (1, 1)

NMR Structure
(-)
Clan: PDZ-like (184)
(-)
Family: PDZ (172)

(-) Gene Ontology  (25, 25)

NMR Structure(hide GO term definitions)
Chain A   (RIMS2_HUMAN | Q9UQ26)
molecular function
    GO:0017137    Rab GTPase binding    Interacting selectively and non-covalently with Rab protein, any member of the Rab subfamily of the Ras superfamily of monomeric GTPases.
    GO:0044325    ion channel binding    Interacting selectively and non-covalently with one or more specific sites on an ion channel, a protein complex that spans a membrane and forms a water-filled channel across the phospholipid bilayer allowing selective ion transport down its electrochemical gradient.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0019933    cAMP-mediated signaling    Any intracellular signal transduction in which the signal is passed on within the cell via cyclic AMP (cAMP). Includes production of cAMP, and downstream effectors that further transmit the signal within the cell.
    GO:0017156    calcium ion regulated exocytosis    The release of intracellular molecules (e.g. hormones, matrix proteins) contained within a membrane-bounded vesicle by fusion of the vesicle with the plasma membrane of a cell, induced by a rise in cytosolic calcium-ion levels.
    GO:0048791    calcium ion-regulated exocytosis of neurotransmitter    The release of a neurotransmitter into the synaptic cleft by exocytosis of synaptic vesicles, where the release step is dependent on a rise in cytosolic calcium ion levels.
    GO:0030154    cell differentiation    The process in which relatively unspecialized cells, e.g. embryonic or regenerative cells, acquire specialized structural and/or functional features that characterize the cells, tissues, or organs of the mature organism or some other relatively stable phase of the organism's life history. Differentiation includes the processes involved in commitment of a cell to a specific fate and its subsequent development to the mature state.
    GO:0030073    insulin secretion    The regulated release of proinsulin from secretory granules (B granules) in the B cells of the pancreas; accompanied by cleavage of proinsulin to form mature insulin.
    GO:0006886    intracellular protein transport    The directed movement of proteins in a cell, including the movement of proteins between specific compartments or structures within a cell, such as organelles of a eukaryotic cell.
    GO:1903861    positive regulation of dendrite extension    Any process that activates or increases the frequency, rate or extent of dendrite extension.
    GO:2000463    positive regulation of excitatory postsynaptic potential    Any process that enhances the establishment or increases the extent of the excitatory postsynaptic potential (EPSP) which is a temporary increase in postsynaptic potential due to the flow of positively charged ions into the postsynaptic cell. The flow of ions that causes an EPSP is an excitatory postsynaptic current (EPSC) and makes it easier for the neuron to fire an action potential.
    GO:0010628    positive regulation of gene expression    Any process that increases the frequency, rate or extent of gene expression. Gene expression is the process in which a gene's coding sequence is converted into a mature gene product or products (proteins or RNA). This includes the production of an RNA transcript as well as any processing to produce a mature RNA product or an mRNA or circRNA (for protein-coding genes) and the translation of that mRNA or circRNA into protein. Protein maturation is included when required to form an active form of a product from an inactive precursor form.
    GO:0097151    positive regulation of inhibitory postsynaptic potential    Any process that activates or increases the frequency, rate or extent of inhibitory postsynaptic potential (IPSP). IPSP is a temporary decrease in postsynaptic membrane potential due to the flow of negatively charged ions into the postsynaptic cell. The flow of ions that causes an IPSP is an inhibitory postsynaptic current (IPSC) and makes it more difficult for the neuron to fire an action potential.
    GO:0017157    regulation of exocytosis    Any process that modulates the frequency, rate or extent of exocytosis.
    GO:0042391    regulation of membrane potential    Any process that modulates the establishment or extent of a membrane potential, the electric potential existing across any membrane arising from charges in the membrane itself and from the charges present in the media on either side of the membrane.
    GO:0061669    spontaneous neurotransmitter secretion    Neurotransmitter secretion that occurs in the absence of the action of a secretagogue or a presynaptic action potential.
cellular component
    GO:0030054    cell junction    A cellular component that forms a specialized region of connection between two or more cells or between a cell and the extracellular matrix. At a cell junction, anchoring proteins extend through the plasma membrane to link cytoskeletal proteins in one cell to cytoskeletal proteins in neighboring cells or to proteins in the extracellular matrix.
    GO:0070062    extracellular exosome    A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
    GO:0005622    intracellular    The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0048786    presynaptic active zone    A specialized region of the plasma membrane and cell cortex of a presynaptic neuron; encompasses a region of the plasma membrane where synaptic vesicles dock and fuse, and a specialized cortical cytoskeletal matrix.
    GO:0042734    presynaptic membrane    A specialized area of membrane of the axon terminal that faces the plasma membrane of the neuron or muscle fiber with which the axon terminal establishes a synaptic junction; many synaptic junctions exhibit structural presynaptic characteristics, such as conical, electron-dense internal protrusions, that distinguish it from the remainder of the axon plasma membrane.
    GO:0045202    synapse    The junction between a nerve fiber of one neuron and another neuron, muscle fiber or glial cell. As the nerve fiber approaches the synapse it enlarges into a specialized structure, the presynaptic nerve ending, which contains mitochondria and synaptic vesicles. At the tip of the nerve ending is the presynaptic membrane; facing it, and separated from it by a minute cleft (the synaptic cleft) is a specialized area of membrane on the receiving cell, known as the postsynaptic membrane. In response to the arrival of nerve impulses, the presynaptic nerve ending secretes molecules of neurotransmitters into the synaptic cleft. These diffuse across the cleft and transmit the signal to the postsynaptic membrane.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1wfg)

  Sites
(no "Sites" information available for 1wfg)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1wfg)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1wfg
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  RIMS2_HUMAN | Q9UQ26
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  RIMS2_HUMAN | Q9UQ26
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        RIMS2_HUMAN | Q9UQ261v27
