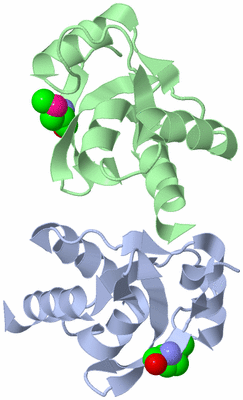

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

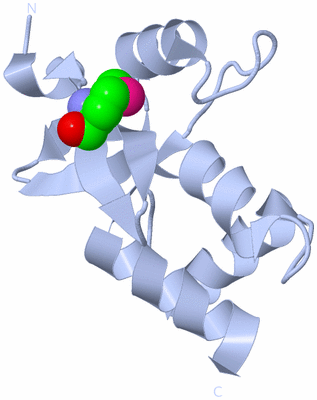

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

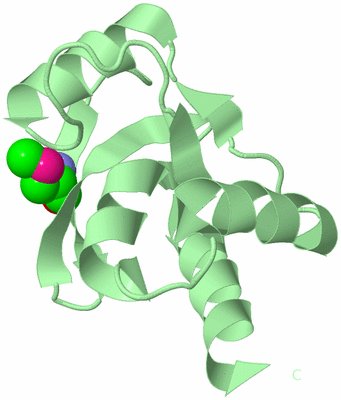

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE RETINAL DETERMINATION PROTEIN DACHSHUND REVEALS A DNA-BINDING MOTIF

Authors :  S. S. Kim, R. Zhang, S. E. Braunstein, A. Joachimiak, A. Cvekl, R. S. Hegde
Date :  21 Mar 02  (Deposition) - 26 Jun 02  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.65
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Winged-Helix, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  S. S. Kim, R. G. Zhang, S. E. Braunstein, A. Joachimiak, A. Cvekl, R. S. Hegde
Structure Of The Retinal Determination Protein Dachshund Reveals A Dna Binding Motif.
Structure V. 10 787 2002
PubMed-ID: 12057194  |  Reference-DOI: 10.1016/S0969-2126(02)00769-4
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - DACHSHUND
    ChainsA, B
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    FragmentDACHBOX-N
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit AB
Biological Unit 1 (1x)A
Biological Unit 2 (1x) B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric Unit (1, 2)
No.NameCountTypeFull Name
1MSE2Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (1, 1)
No.NameCountTypeFull Name
1MSE1Mod. Amino AcidSELENOMETHIONINE
Biological Unit 2 (1, 1)
No.NameCountTypeFull Name
1MSE1Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 1L8R)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1L8R)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1L8R)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1L8R)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1L8R)

(-) Exons   (0, 0)

(no "Exon" information available for 1L8R)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:101
 aligned with DACH1_HUMAN | Q9UI36 from UniProtKB/Swiss-Prot  Length:760

    Alignment length:144
                                   150       160       170       180       190       200       210       220       230       240       250       260       270       280
          DACH1_HUMAN   141 GSSSSSSSSSSSSSSSSSSSSSSSSCGPLPGKPVYSTPSPVENTPQNNECKMVDLRGAKVASFTVEGCELICLPQAFDLFLKHLVGGLHTVYTKLKRLEITPVVCNVEQVRILRGLGAIQPGVNRCKLISRKDFETLYNDCTNA 284
               SCOP domains d1                                           l8ra_ A: Retinal determination protein Dachshund                                                    SCOP domains
               CATH domains 1l                                           8rA00 A:182-282 Putative DNA-binding domain                                                         CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .h-------------------------------------------hhhh.eeeee..eeeeeeee..eeeeehhhhhhhhh.....hhhhhhhhhhhh....ee.hhhhhhhhhhh..........eeeehhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1l8r A 182 GS-------------------------------------------QNNECKmVDLRGAKVASFTVEGCELICLPQAFDLFLKHLVGGLHTVYTKLKRLEITPVVCNVEQVRILRGLGAIQPGVNRCKLISRKDFETLYNDCTNA 282
                             |       -         -         -         -     | 188 |     198       208       218       228       238       248       258       268       278
                             |                                         184     |
                           183                                               190-MSE

Chain B from PDB  Type:PROTEIN  Length:99
 aligned with DACH1_HUMAN | Q9UI36 from UniProtKB/Swiss-Prot  Length:760

    Alignment length:99
                                   195       205       215       225       235       245       255       265       275
          DACH1_HUMAN   186 QNNECKMVDLRGAKVASFTVEGCELICLPQAFDLFLKHLVGGLHTVYTKLKRLEITPVVCNVEQVRILRGLGAIQPGVNRCKLISRKDFETLYNDCTNA 284
               SCOP domains d1l8rb_ B: Retinal determination protein Dachshund                                                  SCOP domains
               CATH domains 1l8rB00 B:184-282 Putative DNA-binding domain                                                       CATH domains
           Pfam domains (1) Ski_Sno-1l8rB01 B:184-280                                                                        -- Pfam domains (1)
           Pfam domains (2) Ski_Sno-1l8rB02 B:184-280                                                                        -- Pfam domains (2)
         Sec.struct. author ....eeeeee..eeeeeeee..eeeeehhhhhhhhh....hhhhhhhhhhhhh....ee.hhhhhhhhhhh..........eeeehhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 1l8r B 184 QNNECKmVDLRGAKVASFTVEGCELICLPQAFDLFLKHLVGGLHTVYTKLKRLEITPVVCNVEQVRILRGLGAIQPGVNRCKLISRKDFETLYNDCTNA 282
                                  |193       203       213       223       233       243       253       263       273
                                190-MSE

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (1, 2)

Asymmetric Unit

(-) Gene Ontology  (24, 24)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (DACH1_HUMAN | Q9UI36)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0001075    transcription factor activity, RNA polymerase II core promoter sequence-specific binding involved in preinitiation complex assembly    Interacting selectively and non-covalently with a specific DNA sequence in an RNA polymerase II (Pol II) core promoter, the region composed of the transcription start site and binding sites for transcription factors of the Pol II basal transcription machinery, in order to promote assembly of the transcriptional preinitiation complex (PIC), the formation of which is a prerequisite for transcription from an RNA polymerase II promoter.
    GO:0003700    transcription factor activity, sequence-specific DNA binding    Interacting selectively and non-covalently with a specific DNA sequence in order to modulate transcription. The transcription factor may or may not also interact selectively with a protein or macromolecular complex.
    GO:0001078    transcriptional repressor activity, RNA polymerase II core promoter proximal region sequence-specific binding    Interacting selectively and non-covalently with a sequence of DNA that is in cis with and relatively close to a core promoter for RNA polymerase II (RNAP II) in order to stop, prevent, or reduce the frequency, rate or extent of transcription from an RNA polymerase II promoter.
biological process
    GO:0051123    RNA polymerase II transcriptional preinitiation complex assembly    The aggregation, arrangement and bonding together of proteins on an RNA polymerase II promoter DNA to form the transcriptional preinitiation complex (PIC), the formation of which is a prerequisite for transcription by RNA polymerase.
    GO:0008283    cell proliferation    The multiplication or reproduction of cells, resulting in the expansion of a cell population.
    GO:0046545    development of primary female sexual characteristics    The process whose specific outcome is the progression of the primary female sexual characteristics over time, from their formation to the mature structure. The primary female sexual characteristics are the ovaries, and they develop in response to sex hormone secretion.
    GO:0007275    multicellular organism development    The biological process whose specific outcome is the progression of a multicellular organism over time from an initial condition (e.g. a zygote or a young adult) to a later condition (e.g. a multicellular animal or an aged adult).
    GO:2000279    negative regulation of DNA biosynthetic process    Any process that stops, prevents or reduces the frequency, rate or extent of DNA biosynthetic process.
    GO:0030336    negative regulation of cell migration    Any process that stops, prevents, or reduces the frequency, rate or extent of cell migration.
    GO:0060244    negative regulation of cell proliferation involved in contact inhibition    Any process that stops, prevents or reduces the rate or extent of cell proliferation in response to cell density.
    GO:0048147    negative regulation of fibroblast proliferation    Any process that stops, prevents, or reduces the frequency, rate or extent of multiplication or reproduction of fibroblast cells.
    GO:0010944    negative regulation of transcription by competitive promoter binding    Any process that stops, prevents, or reduces the frequency, rate or extent of DNA-dependent transcription using a mechanism that involves direct competition for interaction with a promoter binding site.
    GO:0000122    negative regulation of transcription from RNA polymerase II promoter    Any process that stops, prevents, or reduces the frequency, rate or extent of transcription from an RNA polymerase II promoter.
    GO:0045892    negative regulation of transcription, DNA-templated    Any process that stops, prevents, or reduces the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0033262    regulation of nuclear cell cycle DNA replication    Any process that modulates the frequency, rate or extent of The DNA-dependent DNA replication that occurs in the nucleus of eukaryotic organisms as part of the cell cycle.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0007585    respiratory gaseous exchange    The process of gaseous exchange between an organism and its environment. In plants, microorganisms, and many small animals, air or water makes direct contact with the organism's cells or tissue fluids, and the processes of diffusion supply the organism with dioxygen (O2) and remove carbon dioxide (CO2). In larger animals the efficiency of gaseous exchange is improved by specialized respiratory organs, such as lungs and gills, which are ventilated by breathing mechanisms.
    GO:0001967    suckling behavior    Specific behavior of a newborn or infant mammal that results in the derivation of nourishment from the breast.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0005667    transcription factor complex    A protein complex that is capable of associating with DNA by direct binding, or via other DNA-binding proteins or complexes, and regulating transcription.
